د SHAKS S5b بې سیم لوبې پیډ کنټرولر لارښوونې لارښود

1. محصول ختم شوview

The SHAKS S5b is a versatile wireless gamepad controller designed for a wide range of gaming platforms. It offers ultra-low latency connectivity, dual haptic vibration, and extensive compatibility, enhancing your mobile and PC gaming experience.

Image: The SHAKS S5b gamepad with a smartphone securely mounted, ready for gaming.

2. د بسته محتويات

• SHAKS S5b Wireless Gamepad Controller
• د USB چارج کیبل
• Portable Carry Pouch
• Circle-type D-pad (replaceable)
• د لارښود لارښود (دا سند)

Image: The SHAKS S5b gamepad box, indicating typical packaging.

3. د محصول ډیاګرام

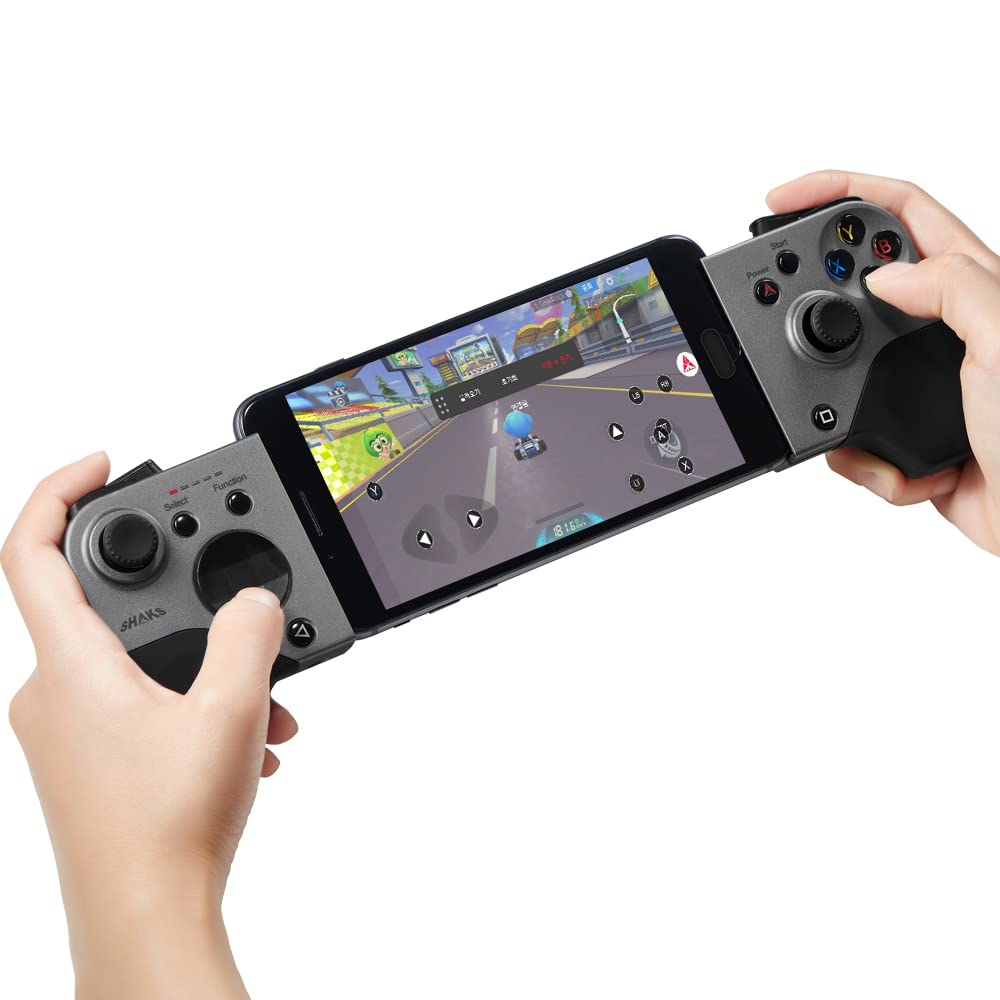

انځور: پورته view of the SHAKS S5b gamepad, highlighting the left and right control sections with joysticks, D-pad, and action buttons.

انځور: اړخ view of the SHAKS S5b gamepad, illustrating the placement of the L1/R1 bumpers and L2/R2 triggers.

Image: The SHAKS S5b gamepad with red circles indicating the location of the dual haptic vibration motors within the grips.

4. تنظیم او پیوستون

4.1. بریښنا فعال/بند

To power on the gamepad, slide the mode select switch to your desired operating system (Android, Windows, iOS). To power off, slide the switch to the 'Off' position.

4.2. د بلوتوث جوړه کول

1. Ensure the gamepad is powered off.
2. Select the correct operating system mode using the slide switch on the left side of the gamepad.
3. Press the Bluetooth (BT) key on the gamepad to initiate pairing mode. The LED indicators will flash.
4. On your device (phone, tablet, PC), go to Bluetooth settings and search for "SHAKS S5b" (or similar ID).
5. Select the gamepad to pair. Once successfully paired, the gamepad will vibrate, and the corresponding LED will remain solid.

یادونه: If switching between different devices or operating systems, you may need to delete previous pairings from your device's Bluetooth settings and re-pair.

4.3. د تار نښلول

For wired connection, power off the S5b. While pressing the Bluetooth key, connect the USB cable for power booting. iOS is not supported via wired connection.

۴. د عملیاتو طریقې او مطابقت

The SHAKS S5b supports various operating systems and platforms:

• اندروید: Compatible with Android phones, Firestick, Fire TV, Chromecast, and Android TV Box.
• وینډوز: Compatible with Windows PC, Notebook, and Chromebook. No additional drivers are needed for Windows 10.
• میک OS: Compatible with Mac PC (Catalina, Big Sur).
• iOS: Compatible with iPhone, iPad, and Apple TV.

The S5b is also compatible with advanced streaming platforms such as Stadia, X-Cloud, Geforce Now, Magenta Gaming, and GameBox.

Image: A circular diagram illustrating the SHAKS S5b's compatibility with Android, iOS, Windows, and Mac OS devices, including phones, tablets, laptops, and TVs.

6. SHAKS GameHub Application

The SHAKS GameHub app (Android only) enhances your gaming experience with advanced customization and mapping features.

6.1. ډاونلوډ او نصب کول

Download the "SHAKS GameHub" application from the Google Play Store. Ensure you allow necessary permissions for the app to function correctly, especially "Draw over other apps" for mapping features.

Image: A screenshot showing the SHAKS GameHub application available for download on the Google Play Store.

6.2. Key Mapping and Customization (Android Only)

The GameHub app allows you to map touchscreen controls to gamepad buttons for games that do not natively support controllers. You can adjust speed, sensitivity, and calibration. Advanced features include:

• د سپنر حالت: Adjust stick sensitivity for precise aiming.
• د ټربو دنده: Enable rapid-fire for specific buttons.
• Mouse Function: Use the joystick to navigate the screen like a mouse.
• Self Key Testing: Test each button and key for functionality.

6.3. د فرم ویئر تازه کول

The GameHub app allows for firmware updates (FoTA FW Upgrade) to ensure your gamepad always has the latest features and improvements.

6.4. Sleep Time and LED Brightness

Customize the gamepad's sleep timer and adjust LED brightness through the GameHub app settings.

7. ستونزه حل کول

7.1. د پیوستون مسلې

If you experience connection problems:

1. Press and hold the Bluetooth (BT) key on the gamepad for 6 seconds to delete the stored profile.
2. On your device's Bluetooth settings, delete any previously paired SHAKS S5b profiles.
3. Wait 3 minutes for the device's memory to refresh.
4. Re-pair the gamepad following the Bluetooth Pairing instructions (Section 4.2).

8. مشخصات

9. د خوندیتوب معلومات

• وسیله د خورا تودوخې یا رطوبت سره مه ښکاره کوئ.
• د قوي تاثیراتو سره د وسیله له مینځه وړلو یا تابع کولو څخه ډډه وکړئ.
• د ماشومانو د لاسرسي څخه لرې وساتئ.
• د وسیلې د جلا کولو یا ترمیم کولو هڅه مه کوئ.
• یوازې چمتو شوی چارجینګ کیبل یا تصدیق شوی معادل وکاروئ.

10. تضمین او ملاتړ

For warranty information, technical support, or any questions regarding your SHAKS S5b controller, please refer to the official SHAKS website or contact customer support through the Amazon Q&A section.
