1. پیژندنه
This manual provides detailed instructions for the installation, operation, and troubleshooting of the VEDINDUST HDMI Splitter Extender 1x2. This device allows you to split one HDMI signal into two identical signals and extend them up to 50 meters (165 feet) over a single Cat5e/6/7 Ethernet cable, supporting 1080p resolution. It features EDID preset management and Power Over Cable (POC) technology, requiring power only at the Transmitter (TX) unit.
2. د بسته محتويات
مهرباني وکړئ د بسته بندۍ د پرانیستلو پر مهال ډاډ ترلاسه کړئ چې ټول توکي شتون لري او په ښه حالت کې دي.
- 1x HDMI Extender Splitter (Transmitter Unit - TX)
- 2x HDMI Extender Receivers (RX Units)
- 1x 12V Power Adapter (for TX unit)
- 1x Pair of Fixed Hangers
- 1x د کارونکي لارښود
Image: Contents of the VEDINDUST HDMI Splitter Extender package, showing the main transmitter unit, two receiver units, power adapter, mounting brackets, and user manual.
3. کلیدي ځانګړتیاوې
- HDMI Splitter Extender: Splits one HDMI signal to two outputs and extends up to 50m (165ft) over Cat5e/6/7 cable.
- EDID Preset Management: Supports various EDID presets to optimize compatibility between source and display.
- Power Over Cable (POC): Only the Transmitter (TX) unit requires a 12V power supply; Receiver (RX) units are powered via the Ethernet cable.
- No Compression Transmission: Supports resolutions up to 1920x1200@60Hz and 1080p@60Hz.
- د غږ بڼه ملاتړ: PCM / DTS / DSD.
- Auto EQ: Built-in automatic equalization algorithm for stable transmission over varying cable lengths.
- Recommended Cable Lengths: Cat6/7 - 50m, Cat5e - 40m, Cat5 - 30m.
4. مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | EX-HDMI |
| برانډ | VEDINDUST |
| د نښلونکي ډول | HDMI، RJ45 |
| د کیبل ډول | Ethernet (Cat5e/6/7) |
| د بندرونو شمیر | 1 HDMI In, 2 HDMI Out (local loop), 2 RJ45 Out |
| د اعظمي پریکړه | 1080p@60Hz, 1920x1200@60Hz |
| د لیږد واټن | Up to 50m (165ft) with Cat6/7, 40m with Cat5e, 30m with Cat5 |
| د بریښنا رسول | 12V DC (for TX unit), POC (for RX units) |
| مطابقت لرونکې وسیلې | PC, DVD Player, PlayStation, Television |
| ابعاد (پکیج) | 20.4 x 16.1 x 6.2 سانتي متره |
| وزن (پیکج) | 580 ګرامه |
| UPC | 798610311257 |
۳. د محصول ډیاګرامونه
انځور: اوورview of the VEDINDUST HDMI Splitter Extender system, showing the main transmitter unit and two compact receiver units.
انځور: تفصیلي view of the Transmitter (TX) unit's front panel, indicating the ON/OFF switch, Power indicator, and HDMI input indicator.
انځور: تفصیلي view of the Transmitter (TX) unit's rear panel, showing RJ45 outputs (CAT3, CAT4), HDMI loop-out ports (HDMI1, HDMI2), EDID DIP switch, HDMI input, and 12V DC power input.
۴. د تنظیم لارښوونې
- د HDMI سرچینه له TX سره وصل کړئ: Connect your HDMI source device (e.g., PC, DVD player, game console) to the HDMI-IN port on the Transmitter (TX) unit using a high-quality HDMI cable.
- ځایی نندارې وصل کړئ (اختیاري): If you wish to use local displays, connect them to the HDMI 1 او HDMI 2 loop-out ports on the TX unit.
- Connect TX to RX Units: سره وصل کړئ CAT3 او CAT4 RJ45 outputs on the TX unit to the respective RJ45 inputs on the two Receiver (RX) units using Cat5e/6/7 Ethernet cables. Ensure the cable lengths are within the recommended limits (50m for Cat6/7, 40m for Cat5e, 30m for Cat5).
- Connect Remote Displays to RX Units: Connect your remote HDMI display devices (e.g., TVs, projectors) to the HDMI بهر ports on each RX unit using high-quality HDMI cables.
- Power On TX Unit: Connect the provided 12V power adapter to the DC12V input on the TX unit. The RX units will receive power via the Ethernet cables (POC).
- Select EDID Mode: تنظیم کړئ د EDID DIP سویچ on the TX unit according to your display and audio requirements. Refer to the EDID Mode section for detailed settings.
- اړیکې تایید کړئ: Ensure all cables are securely connected. Power on all connected devices.

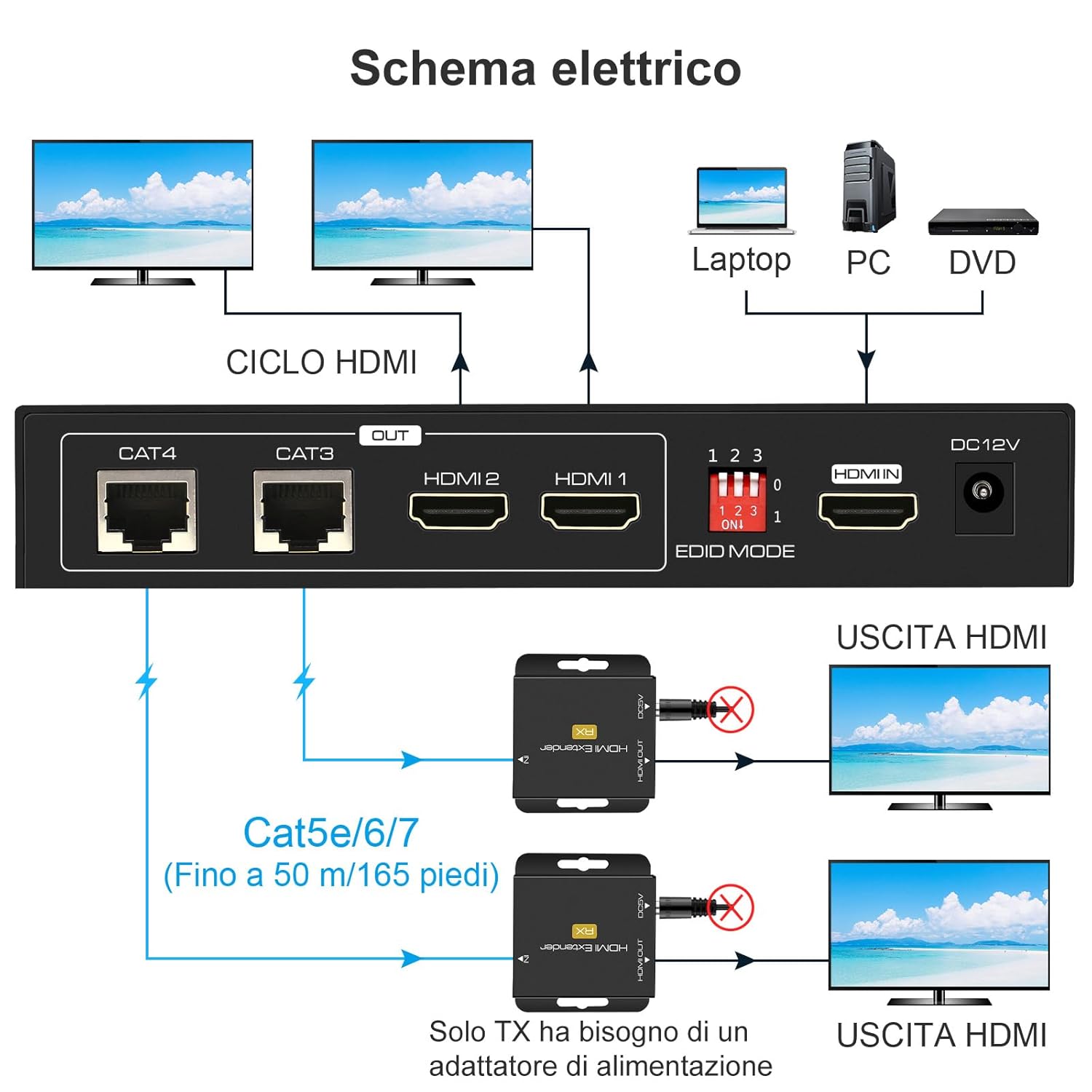

Image: A schematic diagram illustrating the connection process, showing an HDMI source connected to the TX unit, which then connects to two local displays and two remote RX units via Cat5e/6/7 cables, leading to two remote displays.
انځور: یو پخوانیample setup showing the VEDINDUST HDMI Splitter Extender used in a conference room environment, connecting a laptop to multiple displays via the extender system.
7. عملیاتي لارښوونې
۸ پاور آن/بند
- Ensure the 12V power adapter is connected to the TX unit.
- د کارولو آن/بند switch on the front panel of the TX unit to power the system on or off.
- The Power indicator LED on the TX unit will illuminate when powered on.
7.2 EDID Mode Selection
The EDID (Extended Display Identification Data) DIP switch allows you to select the optimal video and audio format for your connected displays. This helps ensure compatibility and the best possible output quality.
Image: Close-up of the EDID DIP switch on the Transmitter unit, showing the three switches labeled 1, 2, 3 and their ON/OFF positions.
Refer to the table below for common EDID settings:
| DIP Switch Setting (1-2-3) | د ای ډي آی اکر |
|---|---|
| 000 | 1080p 2CH Audio |
| 001 | 1080p 5.1CH Audio |
| 010 | 1080p 7.1CH Audio |
| 011 | 1080p 3D 2CH Audio |
| 100 | 1080p 3D 5.1CH Audio |
| 101 | 1080p 3D 7.1CH Audio |
| 110 | 1920x1200 2CH Audio |
| 111 | Copy HDMI OUT 1 EDID |
Note: "0" typically means the switch is in the OFF/down position, and "1" means the ON/up position. If you experience display issues, try different EDID settings or use the "Copy HDMI OUT 1 EDID" mode if a local display is connected to HDMI OUT 1.
8. ساتنه
- وسیله په یخ او وچ ځای کې وساتئ، د مستقیم لمر وړانګو او تودوخې سرچینو څخه لرې.
- د وسیلې د رطوبت یا خورا تودوخې سره مخ کیدو څخه مخنیوی وکړئ.
- وسیله د نرم او وچ ټوکر سره پاکه کړئ. د مایع یا ایروسول پاکوونکو څخه کار مه اخلئ.
- د ډیر تودوخې مخنیوي لپاره د واحدونو شاوخوا مناسب هوا ورکول ډاډمن کړئ.
9. ستونزه حل کول
- انځور/سګنال نشته:
- Ensure all HDMI and Ethernet cables are securely connected.
- Verify the TX unit is powered on and the power indicator is lit.
- Check the length and quality of your Ethernet cables. Ensure they meet the recommended specifications (Cat5e/6/7).
- Try adjusting the EDID DIP switch settings on the TX unit to match your display's capabilities.
- Test with a different HDMI source or display to rule out device incompatibility.
- ځلیدونکی یا وقفه ای سیګنال:
- This can often be resolved by adjusting the EDID settings.
- Ensure Ethernet cables are not running near strong electromagnetic interference sources.
- د خرابو کیبلونو لپاره وګورئ.
- غږ نشته:
- Verify the EDID setting supports the desired audio format (e.g., 2CH, 5.1CH, 7.1CH).
- په خپل سرچینې وسیله او ښودنه کې د آډیو ترتیبات وګورئ.
- POC Not Working (RX unit not powering on):
- Ensure the TX unit is powered by a 12V adapter. The RX units draw power from the TX unit via the Ethernet cable.
- Check the Ethernet cable for damage or improper termination.
10. تضمین او ملاتړ
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the VEDINDUST official webسایټ د تضمین ادعاګانو لپاره خپل د پیرود رسید وساتئ.
