د HP t430 پتلي مراجع کارونکي لارښود

1. پیژندنه او وروستهview

The HP t430 Thin Client is a versatile, cloud-first device designed for desktop virtualization and cloud-based applications. It offers an intuitive experience for users and simplifies maintenance for IT administrators. Its compact design and efficient processing power contribute to a modern computing experience.

کلیدي ځانګړتیاوې عبارت دي له:

• غوره شوی فعالیت: Experience responsive performance with the Intel Celeron N4020 processor, operating at up to 2.8 GHz.
• Flexible Operating Systems: Available with Linux-based HP ThinPro or Windows 10 IoT Enterprise for Thin Clients.
• Efficient Memory: Equipped with 4 GB DDR4 SDRAM for smooth operation.
• مربوط ګرافیک: Features Intel UHD Graphics 600, supporting up to 4K display resolution.
• جامع ارتباط: Includes USB-C for power, audio, and data, DisplayPort, HDMI, Gigabit Ethernet, and optional Wi-Fi.
• کمپیکټ او د تطبیق وړ ډیزاین: A sleek profile with a built-in VESA mount allows for flexible placement, including mounting behind a display.

انځور 1.1: مخکی view of the HP t430 Thin Client, showcasing its compact design and front USB port.

2. د تنظیم کولو لارښود

This section outlines the steps to set up your HP t430 Thin Client.

۲.۱. د بسته بندۍ او محتوا خلاصول

Carefully unpack your HP t430 Thin Client and verify that all components are present:

• HP t430 Thin Client unit
• د بریښنا اډاپټر
• HP USB Slim Business Keyboard
• موږک

2.2. د پردیو نښلول

1. د نښلولو ښودنه: Use a DisplayPort or HDMI cable to connect your monitor to the corresponding port on the thin client. The device supports up to two displays simultaneously.
2. کیبورډ او موږک سره وصل کړئ: Plug the USB keyboard and mouse into any available USB ports on the thin client.
3. د نښلولو شبکه: For a wired connection, connect an Ethernet cable from your network router or switch to the LAN port on the thin client. If using Wi-Fi (optional), ensure your device has the integrated Wi-Fi module.
4. بریښنا وصل کړئ: Plug the power adapter into the thin client's power input, then connect the power adapter to an electrical outlet.

انځور 2.1: شاته view of the HP t430 Thin Client, illustrating the various connectivity ports including USB, DisplayPort, HDMI, and Ethernet.

۴. لومړنی بریښنا فعالول

After connecting all peripherals and power, press the power button on the thin client. The device will boot up, and you will be presented with the operating system interface (HP ThinPro or Windows 10 IoT Enterprise).

Image 2.2: The HP t430 Thin Client positioned on a desk, connected to a monitor, keyboard, and mouse, ready for use.

3. عملیاتي لارښوونې

Your HP t430 Thin Client is designed for efficient operation in virtualized and cloud environments.

3.1. بریښنا فعال/بند

• د فعالولو لپاره: د وسیلې په مخ کې موقعیت لرونکي د بریښنا تڼۍ فشار ورکړئ.
• د بریښنا بندولو لپاره: Use the shutdown option within your operating system (HP ThinPro or Windows 10 IoT Enterprise). Avoid direct power disconnection during operation to prevent data corruption.

3.2. Operating System Navigation

Depending on your configuration, your thin client will run either HP ThinPro or Windows 10 IoT Enterprise. Familiarize yourself with the respective operating system's interface for accessing applications, settings, and network resources.

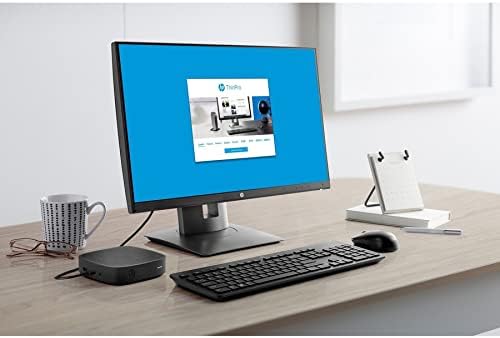

Image 3.1: A monitor connected to the HP t430 Thin Client, displaying the user interface of the HP ThinPro operating system.

3.3. Connecting to Virtual Desktops and Cloud Applications

The HP t430 Thin Client is pre-configured to connect to various virtualization platforms such as Citrix, VMware, and Microsoft RDP. Consult your IT administrator for specific connection details and credentials. Web browsers are also available for accessing cloud-based applications directly.

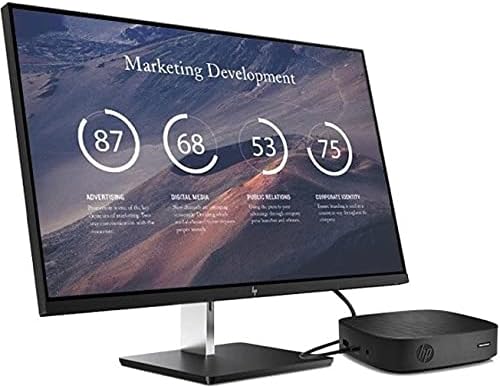

Image 3.2: The HP t430 Thin Client in a professional setting, connected to a monitor displaying a business-oriented dashboard with charts and data.

4. ساتنه

Proper maintenance ensures the longevity and optimal performance of your HP t430 Thin Client.

4.1. پاکول

• بهر: د نرم، لینټ پاک ټوکر څخه په روښانه توګه کار واخلئampened with water or a mild, non-abrasive cleaner to wipe the exterior surfaces. Avoid harsh chemicals.
• بندرونه: Ensure ports are free of dust and debris. Use compressed air if necessary, holding the can upright to prevent liquid discharge.

4.2. د سافټویر تازه معلومات

Regularly apply operating system and security updates as recommended by HP or your IT department. HP manageability software can assist in deploying and managing these updates efficiently.

4.3. د چاپیریال په اړه نظرونه

Operate the thin client in a well-ventilated area, away from direct sunlight, excessive heat, and moisture. Ensure proper airflow around the device to prevent overheating.

5. ستونزه حل کول

دا برخه د هغو عامو ستونزو لپاره حلونه وړاندې کوي چې تاسو ورسره مخ کیدی شئ.

5.1. هیڅ ځواک نشته

• Verify the power adapter is securely connected to both the thin client and a working electrical outlet.
• د بریښنایی آوټ لیټ د بل وسیلې سره ازموینه وکړئ ترڅو ډاډ ترلاسه کړئ چې دا کار کوي.
• Ensure the power button on the thin client has been pressed.

5.2. نه ښکاره کول

• Check that the display cable (DisplayPort or HDMI) is securely connected to both the thin client and the monitor.
• ډاډ ترلاسه کړئ چې مانیټر فعال دی او سم ان پټ سرچینې ته تنظیم شوی دی.
• Try connecting the thin client to a different monitor or using a different display cable if available.

۲. د شبکې د اتصال مسلې

• د تار نښلول: Verify the Ethernet cable is properly connected to the thin client and the network router/switch. Check the network status lights on the thin client and router.
• د وای فای اتصال: Ensure the Wi-Fi module is enabled in the operating system settings. Confirm you are connected to the correct network and have entered the password correctly.
• Restart the thin client and your network equipment (router/modem).

For persistent issues, refer to the HP support website or contact your IT administrator.

6. مشخصات

Detailed technical specifications for the HP t430 Thin Client.

7. د تضمین معلومات

The HP t430 Thin Client comes with a د جوړونکي دوه کلن تضمین. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty documentation included with your product or visit the official HP support webسایټ

8. ملاتړ

For further assistance, technical support, or to download drivers and documentation, please visit the official HP support webسایټ:

د HP رسمي ملاتړ Webسایټ

You may also contact HP customer service directly through the contact information provided on their webسایټ
