COSTWAY Electric Fireplace Insert (25-Inch Wide) User Manual

1. د خوندیتوب مهمې لارښوونې

Please read all instructions carefully before using this electric fireplace insert. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• بریښنایی خوندیتوب: Ensure the fireplace is connected to a properly grounded outlet. Do not overload electrical circuits. Do not use with extension cords unless absolutely necessary and ensure the cord is rated for the appliance's wattage.
• د ډیر تودوخې ساتنه: This electric fireplace is equipped with an overheat protection system that automatically shuts off the unit if it reaches an unsafe temperature. If this occurs, unplug the unit, allow it to cool, and check for any obstructions to the air inlets or outlets before restarting.
• ځای په ځای کول: Maintain a minimum clearance of 4 inches (10 cm) from the top of the fireplace to any combustible materials. Do not block air vents.
• رطوبت: Do not use this appliance near water or in damp ځایونه
• ماشومان او څاروي: Keep children and pets away from the hot surfaces of the fireplace.
• ساتنه: Always unplug the fireplace before cleaning or performing any maintenance.

Figure 1: The electric fireplace features a built-in thermostat for constant temperature heating and overheating protection for safety.

2. محصول ختم شوview

The COSTWAY 25-inch electric fireplace insert provides a realistic flame effect and efficient heating for indoor spaces. It can be used recessed into a wall or furniture, or as a freestanding unit. Enjoy adjustable heat settings, multiple flame colors, and brightness levels to create a comfortable ambiance.

کلیدي ځانګړتیاوې:

• د تودوخې ځواک: 900W/1350W settings suitable for various room sizes and weather conditions.
• د تودوخې کنټرول: Adjustable temperature range from 62°F to 82°F.
• د ریښتیني شعلې اغیزې: Features 3 flame colors and 4 brightness settings, operable with or without heat.
• د ټیمر فعالیت: Convenient timer for automatic shut-off.
• د کنټرول اختیارونه: Operable via remote control or touch screen panel.
• د تودوخې پوښښ: Effectively heats areas up to 400 square feet.

Figure 2: The COSTWAY 25-inch electric fireplace insert.

Figure 3: The multi-function fireplace offers simple installation, operates without dust or smoke, features low noise, and is energy-saving.

3. د بسته محتويات

Verify that all components are present before beginning assembly or installation:

• Electric Fireplace Insert (25-inch)
• ریموټ کنټرول
• د لارښوونې لارښود
• Necessary Hardware for Installation (if applicable)

4. نصب کول

The electric fireplace insert offers versatile installation options, including recessed, freestanding, or integration into a TV stand or decorative fireplace cabinet.

د نصب کولو دمخه چک:

• Before any installation, locate and turn on the main heating switch, usually found on the unit itself.
• Ensure a minimum of 4 inches (10 cm) safe distance is maintained on the top of the electric fireplace from any surfaces or materials.

ابعاد:

• د محصول ابعاد: ۱۱۸"D x ۱۵۶"W x ۵۹"H
• Chamber Depth: 9.5 Inches

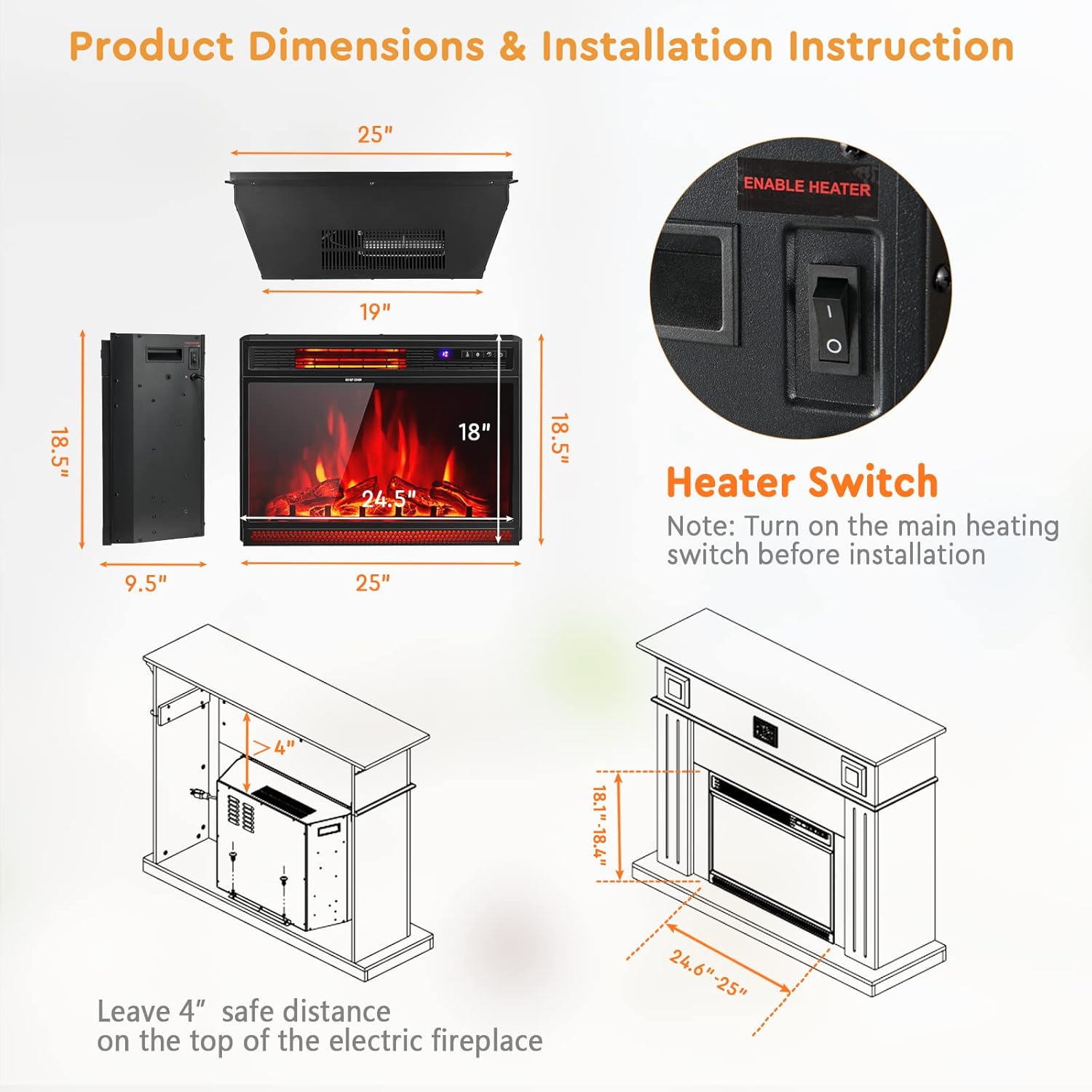

Figure 4: Product dimensions and a detailed view of the heater switch. Ensure the main heating switch is turned on before installation.

Figure 5: The fireplace can be installed freestanding, recessed into a wall, or integrated into a TV stand.

5. عملیات

The electric fireplace can be controlled using the touch screen panel on the unit or the included remote control.

د کنټرول پینل او لرې پرتو دندې:

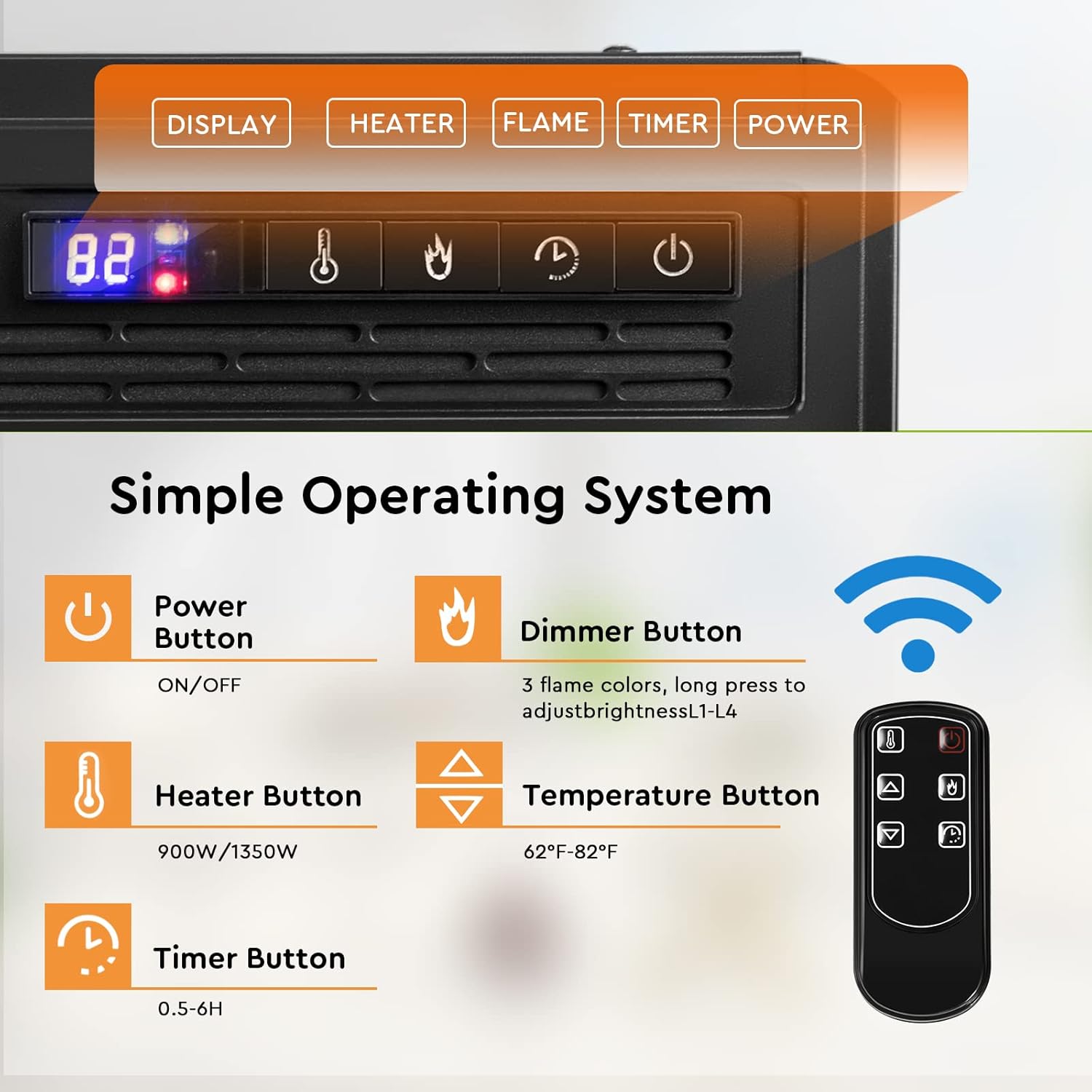

شکل 6: پایview of the simple operating system, including both the unit's control panel and the remote control.

• د بریښنا تڼۍ: واحد فعال/بندوي.
• د ګرمۍ تڼۍ: Toggles between 900W and 1350W heat settings.
• د تودوخې تڼۍ: Adjusts the desired temperature from 62°F to 82°F.
• Flame Button (Dimmer): Cycles through 3 flame colors and allows adjustment of 4 brightness levels (L1-L4) by long-pressing.
• د ټایمر تڼۍ: Sets the automatic shut-off timer from 0.5 to 6 hours.

Figure 7: The fireplace offers 3 flame colors and 4 brightness modes for a customizable visual experience.

6. ساتنه

منظم ساتنه ستاسو د بریښنایی اور ځای غوره فعالیت او اوږد عمر تضمینوي.

• پاکول: Always unplug the unit and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe exterior surfaces. Do not use abrasive cleaners or sprays.
• د هوا ویښتان: Periodically check and clean the air inlets and outlets to ensure they are free from dust and debris, which can impede airflow and cause overheating.
• ذخیره کول: If storing the fireplace for an extended period, ensure it is clean and dry. Store in a cool, dry place, preferably in its original packaging.

7. ستونزه حل کول

که تاسو د خپل بریښنایی اور ځای سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:

• ځواک نشته:
  • وګورئ چې آیا د بریښنا تار په خوندي ډول په کاري ځای کې پلګ شوی دی.
  • ډاډ ترلاسه کړئ چې سرکټ بریکر نه دی ټکر شوی.
  • Ensure the main power switch on the unit is in the 'ON' position.
• حرارت نشته:
  • Confirm the heater function is activated via the control panel or remote.
  • Check if the desired temperature setting is higher than the current room temperature.
  • If the unit overheated, it might have automatically shut off. Unplug, cool down, and check for obstructions.
• د شعلې اغیزې کار نه کوي:
  • Ensure the flame function is turned on.
  • Adjust flame brightness settings.
• ریموټ کنټرول کار نه کوي:
  • بیټرۍ په ریموټ کنټرول کې ځای په ځای کړئ.
  • Ensure there are no obstructions between the remote and the fireplace's sensor.

د هغو ستونزو لپاره چې د دې ګامونو په واسطه حل نه شوې، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.

8. مشخصات

9. تضمین او ملاتړ

This product is covered by a manufacturer's warranty. Please refer to your purchase documentation or contact the retailer for specific warranty terms and conditions. Note that warranty coverage may vary depending on the point of purchase.

For technical support, replacement parts, or further assistance, please contact COSTWAY customer service through their official webسایټ یا پرچون پلورونکی چیرې چې محصول اخیستل شوی و.
