1. د خوندیتوب مهمې لارښوونې
مهرباني وکړئ د وسیلې کارولو دمخه ټولې لارښوونې په دقت سره ولولئ. دا لارښود د راتلونکي حوالې لپاره وساتئ.
- بریښنایی خوندیتوب: Ensure the dishwasher is connected to a properly grounded outlet. Do not operate with a damaged power cord or plug.
- د اوبو خوندیتوب: Do not immerse the appliance in water or other liquids. Ensure proper drainage to prevent water damage.
- ماشومان: Keep children away from the dishwasher during operation and when the door is open. Detergents can be harmful.
- صابونونه: یوازې هغه صابونونه وکاروئ چې په ځانګړي ډول د لوښو مینځلو لپاره ډیزاین شوي وي. صابونونه د ماشومانو له لاسرسي لرې وساتئ.
- تیز شیان: د ټپي کیدو مخنیوي لپاره تیز شیان (چاقوګانې، فورکونه) په لاسونو کې پورته کړئ.
- وینټیلیشن: د وسایلو شاوخوا مناسب هوا ورکول ډاډمن کړئ. د هوا د بهیدو هیڅ لاره مه بندوئ.
2. محصول ختم شوview
The JOYOUNG Portable Countertop Dishwasher (Model XT601) is designed for compact spaces, offering efficient dish cleaning with multiple wash programs and a built-in water tank.
کلیدي ځانګړتیاوې:
- د تړون اندازه: اندازه یې تقریبا ۹.۰۰ x ۳.۱۵ x ۱.۷۰ انچه ده.
- جوړ شوی د اوبو ټانک: 5-liter capacity, eliminating the need for permanent plumbing.
- د مینځلو ۱۶ پروګرامونه: Heavy, Normal, Light, Rinse, and Self-clean.
- Air-Dry Function: Automatic drying after cleaning.
- 360° Dual Spray Arms: For comprehensive cleaning coverage.
- Detachable Holder: Allows for flexible loading of various tableware sizes.
شاملې برخې:
- د لوښو مینځلو واحد
- د جلا کولو وړ لرونکی
- د کټري ټوکرۍ
- Pitcher for water filling
- ډرین نلی
- فلیټ فلټر
- ټوخه فلټر
- د ذخیره کولو ریک
شکل 2.1: مخکی view of the JOYOUNG Portable Countertop Dishwasher.

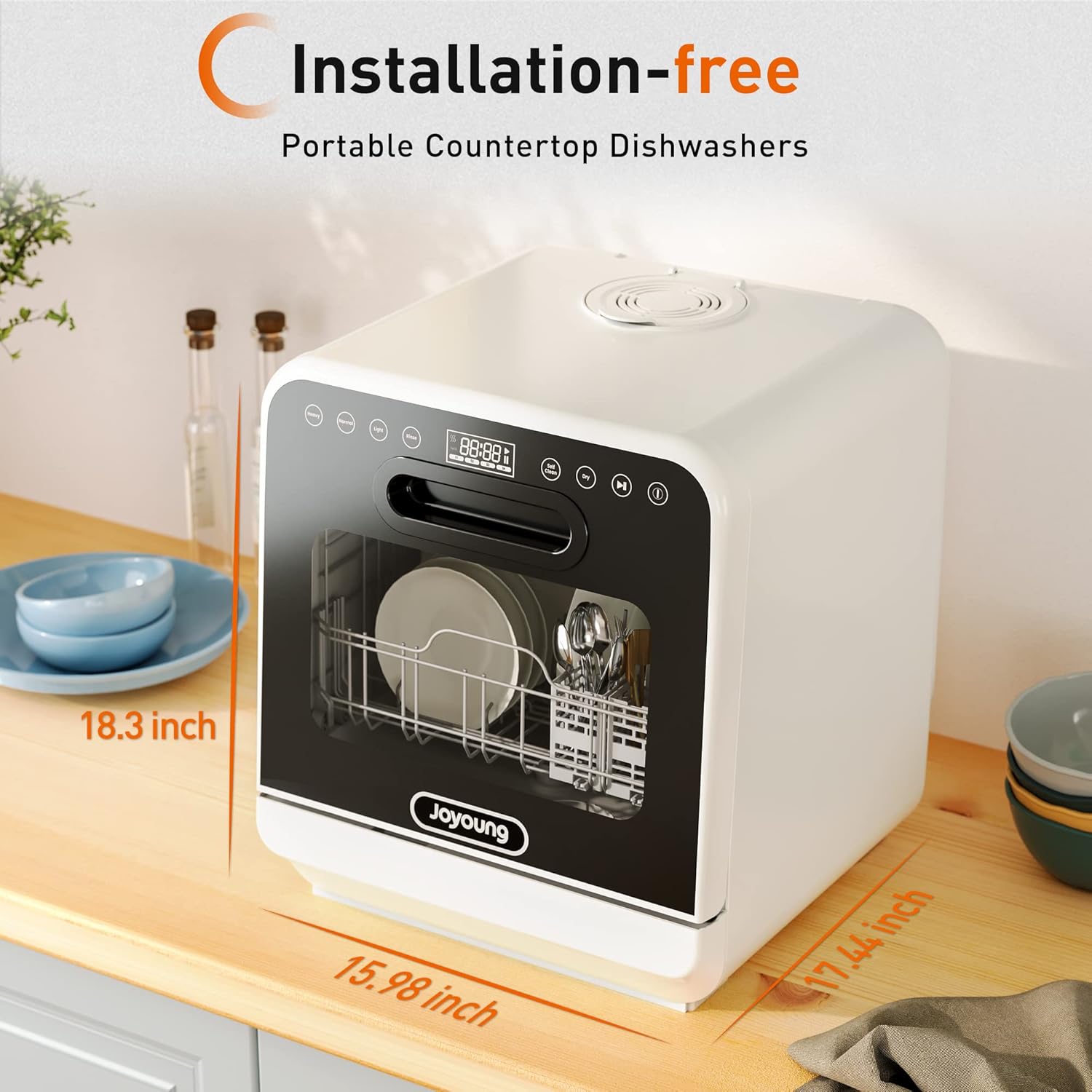

Figure 2.2: Dimensions of the dishwasher: 17.44 inches wide, 15.98 inches deep, and 18.3 inches high.

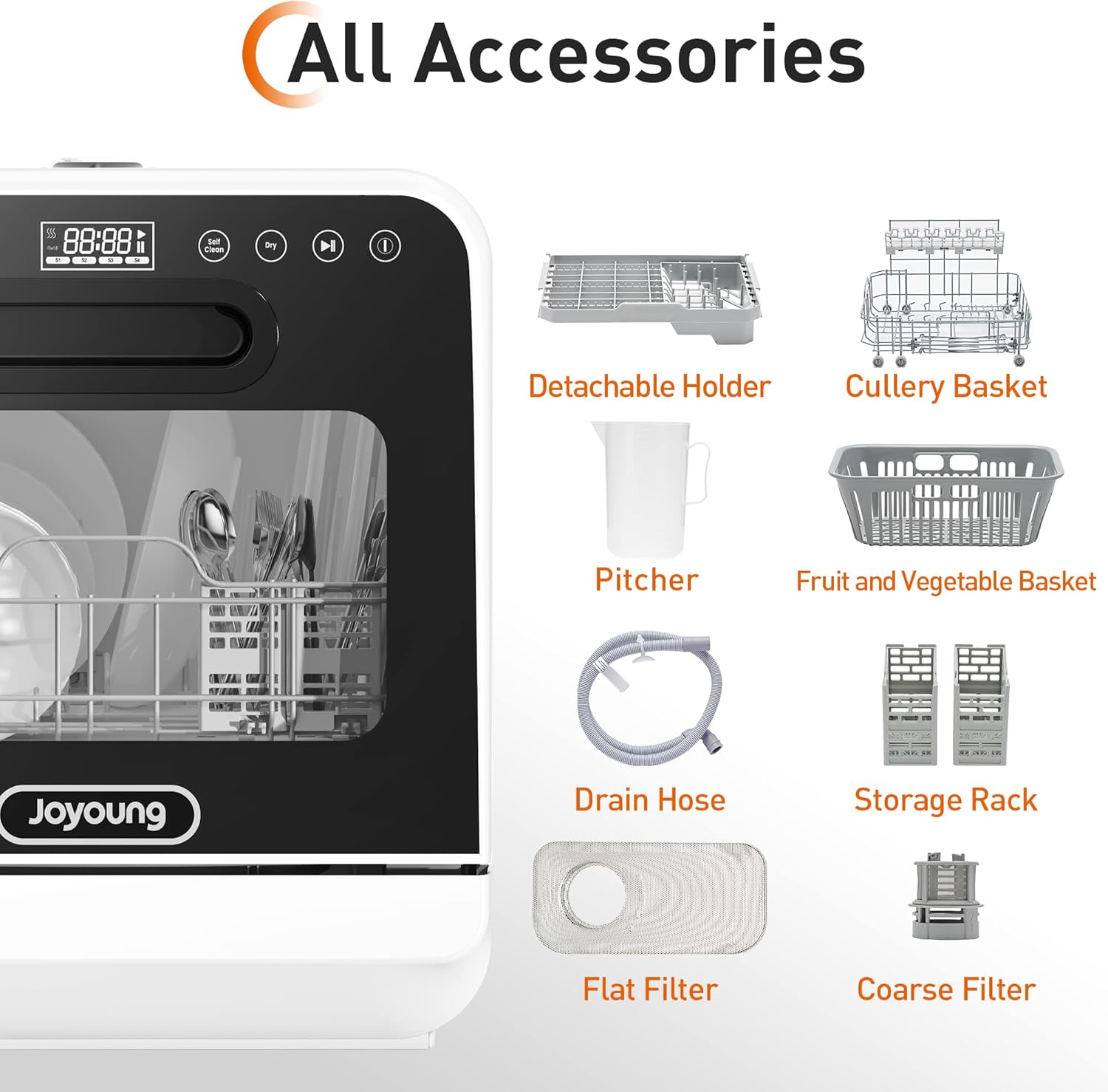

شکل 2.3: پایview of all accessories, including detachable holder, cutlery basket, pitcher, drain hose, filters, and storage rack.
3. ترتیب کول
The JOYOUNG Portable Countertop Dishwasher requires no permanent installation due to its built-in water tank. Follow these steps for initial setup:
- ځای په ځای کول: Place the dishwasher on a stable, level countertop near a power outlet and a sink for drainage. Ensure there is enough space for the door to open fully.
- د نلی نلی نښلول: Connect the drain hose to the designated outlet on the back of the dishwasher. Route the other end of the hose into a sink or drain. Ensure the hose is not kinked and is securely positioned to prevent leaks.
- د بریښنا پیوستون: د برښنا تار په یو ځمکني بریښنایی پلورنځي کې ولګوه.
- د اوبو ډکول: Open the water inlet cover on the top of the dishwasher. Use the provided pitcher to pour 5 liters of clean water into the tank. The dishwasher will signal when the tank is full.
Figure 3.1: Illustrates the process of filling the 5-liter built-in water tank using the provided pitcher.
Setup and Features Overview:
دوهمه ویډیو: دا ویډیو عمومي معلومات وړاندې کويview of the Joyoung Portable Dishwasher, demonstrating its compact design, installation-free setup, and various features.
4. عملیاتي لارښوونې
Follow these steps to operate your JOYOUNG Portable Countertop Dishwasher:
- لوښي بار کړئ: Open the dishwasher door and pull out the dish rack. Arrange dishes, bowls, and cutlery. Utilize the detachable holder for smaller items or remove it to accommodate larger items like pots.
Figure 4.1: Shows the detachable knife and fork holder, which can be removed to create space for bulkier tableware.
Video 4.1: Demonstrates how to disassemble the holders to create more space for larger items within the dishwasher.
Figure 4.2: Illustrates the capacity and recommended loading arrangement for various dishes, including plates, bowls, cups, and cutlery.
- صابون اضافه کړئ: Place a small amount of dishwasher detergent into the designated dispenser. Do not use liquid dish soap.
- برنامه غوره کړئ: Close the door. On the control panel, select one of the 5 washing programs:
- دروند: For heavily soiled dishes (approx. 120 mins wash, 90 mins dry).
- نورمال: For general dishware (approx. 90 mins wash, 90 mins dry).
- رڼا: For lightly soiled dishes (approx. 29 mins wash, 90 mins dry).
- پاکول: For washing fruits or vegetables (approx. 10 mins).
- ځان پاکول: For cleaning the dishwasher interior (approx. 10 mins).
Figure 4.3: Displays the control panel with options for Heavy, Normal, Light, Rinse, and Self-clean programs, along with their approximate durations.
- سایکل پیل کړئ: د ټاکل شوي مینځلو دورې پیل کولو لپاره د پیل/پاز تڼۍ فشار ورکړئ.
- 360° Dual Spray Arms: The dishwasher utilizes upper and lower spray arms for thorough cleaning.
Figure 4.4: Illustrates the 360° stereoscopic decontamination process with water spraying from both upper and lower arms.
- Air-Dry Function: After the wash cycle, the dishwasher automatically initiates an air-dry function to ensure dishes are dry and fresh.
Figure 4.5: Depicts the hot air drying and storage function, showing air circulation to dry tableware.
5. ساتنه
منظم ساتنه ستاسو د ډش واشیر غوره فعالیت او اوږد عمر تضمینوي.
د فلټرونو پاکول:
The dishwasher is equipped with a Flat Filter and a Coarse Filter. These should be cleaned regularly to prevent blockages and ensure efficient washing.
- د فلټر اسمبلۍ د ډش واشر ټب په ښکته برخه کې ومومئ.
- Twist and lift the filter assembly to remove it.
- Separate the Flat Filter and Coarse Filter.
- Rinse both filters under running water to remove any food particles or debris. Use a soft brush if necessary.
- فلټرونه بیا سره یوځای کړئ او بیرته یې په ډش واشیر کې ځای په ځای کړئ، ډاډ ترلاسه کړئ چې دوی په خوندي ډول په خپل ځای کې تړل شوي دي.
د کور دننه او بهر پاکول:
- داخلي: Run the 'Self-clean' program periodically to clean the interior of the dishwasher. You can also wipe down the interior with a damp ټوکر او نرم صابون.
- بهر: بهرنۍ سطحې په نرمۍ سره مسح کړئ، دamp ټوکر. د کثافاتو پاکوونکو یا محلولونو څخه ډډه وکړئ.
6. ستونزه حل کول
If you encounter issues with your dishwasher, refer to the following common problems and solutions:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| ډش واشر پیل نه کوي | Power cord not plugged in; door not closed properly; no water in tank. | Check power connection; ensure door is latched; fill water tank. |
| لوښي پاک ندي | ناسم بارول؛ د سپرې وسلو تړل؛ ناکافي صابون؛ ناپاک فلټرونه. | Reload dishes correctly; clean spray arm nozzles; use appropriate detergent; clean filters. |
| Water leaks from dishwasher | Improperly connected drain hose; damaged door seal. | Ensure drain hose is secure; inspect door seal for damage. |
| د لوښو مینځلو ماشین شور کوي | Dishes rattling; foreign object in pump. | Rearrange dishes; check for and remove any foreign objects. |
که چیرې د دې حل لارو هڅه کولو وروسته هم ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.
7. مشخصات
| مشخصات | تفصیل |
|---|---|
| برانډ | جویونګ |
| د ماډل شمیره | XT601 |
| د محصول ابعاد | 15.98 x 17.44 x 18.3 انچه |
| د توکي وزن | ۲.۴۵ پونډه |
| د اوبو د ټانک ظرفیت | 5 لیتره |
| د مینځلو پروګرامونه | 5 (Heavy, Normal, Light, Rinse, Self-clean) |
| ځانګړي ځانګړتیاوې | Built-In Water Tank, Compact, Portable, Air-Dry Function |
| د کنټرول ډول | لمس |
| والیtage | 120 ولټه |
| د موادو ډول | شیشه (دروازه) |
8. تضمین او ملاتړ
The JOYOUNG Portable Countertop Dishwasher comes with a یو کلن تضمین د پیرود نیټې څخه. دا تضمین د عادي استعمال لاندې د تولید نیمګړتیاوې او نیمګړتیاوې پوښي.
For warranty claims, technical assistance, or any questions regarding your product, please contact JOYOUNG customer support. Refer to the product packaging or the official JOYOUNG webد اړیکو د تازه معلوماتو لپاره سایټ.
When contacting support, please have your model number (XT601) and proof of purchase readily available.
