پیژندنه
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Reloop RP-7000 MK2 Professional Upper Torque Turntable System. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
د خوندیتوب لارښوونې
- Ensure the turntable is placed on a stable, level surface away from direct sunlight, heat sources, and excessive moisture.
- د اور یا بریښنا شاک څخه د مخنیوي لپاره واحد باران یا رطوبت ته مه ښکاره کوئ.
- Always disconnect the power cord from the outlet before cleaning or performing any maintenance.
- د واحد د خدمت کولو هڅه مه کوئ. ټول خدمتونه وړ خدماتو پرسونل ته راجع کړئ.
- د ماشومانو د لاسرسي څخه لرې وساتئ.
د بسته محتويات
Your Reloop RP-7000 MK2 Professional Upper Torque Turntable System package should include the following items:
- 2 x Reloop RP-7000 MK2 Professional Upper Torque Turntable System
- 2 x Reloop Dust Cover for RP-7000/8000
- Knox Gear Vinyl Record Care System (includes brush, velvet cleaner, stylus brush, and cleaning solution)
- د بریښنا کیبلونه
- د RCA کیبلونه
- ضد وزنونه
- Slipmats
- د کارن لارښود
Image: The complete bundle including two Reloop RP-7000 MK2 turntables, two dust covers, and the Knox Gear vinyl record care solution.
چمتو کول
۱. خلاصول او ځای پر ځای کول
Carefully remove all components from the packaging. Place the turntable on a flat, stable surface. Ensure there is adequate space around the unit for ventilation and cable connections.
انځور: یو زاویه لرونکی view of the Reloop RP-7000 MK2 turntable, highlighting its main components.
2. Attaching the Dust Cover
Gently place the dust cover onto the turntable. The dust cover helps protect the platter and tonearm from dust and debris when the turntable is not in use.

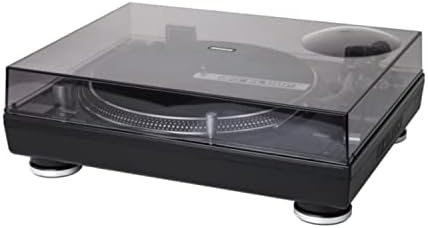

Image: The Reloop RP-7000 MK2 turntable with its protective dust cover in place.
3. Connecting Audio Cables
Connect the RCA cables from the turntable's output to the appropriate input on your mixer or amplifier. Ensure the ground wire is also connected to prevent hum.
Image: Rear panel of the Reloop RP-7000 MK2, displaying the RCA audio outputs, ground terminal, and power connection.
4. د بریښنا پیوستون
Connect the power cable to the turntable and then to a suitable power outlet. Ensure the power switch is in the OFF position before connecting.
عملیاتي لارښوونې
1. بریښنا کول او بندول
To power on the turntable, flip the power switch located on the front left side to the ON position. To power off, flip the switch back to OFF.
انځور: سر view of the Reloop RP-7000 MK2 turntable, illustrating the arrangement of its controls and components.
2. د ریکارډ غږول
- یو ریکارډ په تخته کې ځای په ځای کړئ.
- Select the appropriate speed (33, 45, or 78 RPM) using the speed buttons.
- فشار ورکړئ پیل / ودرول د پلیټرې گردش پیل کولو لپاره تڼۍ.
- Carefully lower the tonearm onto the record using the cue lever.
Image: The Reloop RP-7000 MK2 turntable with a record playing, demonstrating the tonearm's position.
3. Pitch Control and Reverse Function
Use the pitch fader to adjust the playback speed. The REVERSE button allows for reverse playback of the record.
ساتنه
۱. د ټرنټیبل پاکول
Regularly wipe the turntable's surface with a soft, dry cloth. For the dust cover, use a slightly damp cloth and avoid abrasive cleaners. The included Knox Gear Vinyl Record Care System can be used for cleaning records and the stylus.
Image: The Knox Gear Vinyl Record Care System, showing the velvet record brush, stylus brush, and cleaning solution bottle.
۲. د سټایلس پاملرنه
Gently clean the stylus using the provided stylus brush. Always brush from back to front. A dirty stylus can degrade sound quality and damage records.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| هیڅ ځواک نشته | د برېښنا کیبل نه دی وصل شوی؛ د برېښنا رسۍ خرابه ده | Check power cable connection; Try a different outlet |
| غږ نشته | د RCA کیبلونه نه دي وصل شوي؛ Amplifier/mixer input incorrect; Stylus damaged | Check RCA connections; Select correct input on amplifier/mixer; Inspect and replace stylus if necessary |
| د خندا شور | Ground wire not connected; Interference | Ensure ground wire is securely connected; Move turntable away from other electronic devices |
| د پلې بیک سرعت ناسم دی | Wrong speed selected; Pitch fader not centered | Select correct RPM; Adjust pitch fader to center position |
مشخصات
- نښه: راګرځول
- ماډل: RP-7000 MK2
- د ارتباط ټیکنالوژي: تارونه
- ځانګړي ځانګړتیاوې: Balanced S-shaped Tone Arm, Dual Start/Stop Buttons, Precise Motor Control, Reverse Function, Freely Movable Aluminum LED Target Light
- مواد: پلاستیک
- د توکي وزن: 4.5 Kilograms (per turntable)
- رنګ: Deep black or classic silver metallic
- مطابقت لرونکي وسایل: سپیکر ، هیډفون
تضمین او ملاتړ
Reloop products are designed and manufactured to the highest quality standards. For warranty information and technical support, please refer to the official Reloop webسایټ یا خپل محلي توزیع کونکي سره اړیکه ونیسئ. د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
د نورو مرستو لپاره، لیدنه وکړئ Reloop Store on Amazon.
