د TOUCARE T9S موټرسایکل بلوتوټ انټرکام کارونکي لارښود

پیژندنه

The TOUCARE T9S is a high-performance Bluetooth intercom system designed for motorcycle riders. It enables clear communication between up to four riders, offers music sharing, and integrates with your mobile phone for calls and GPS navigation. With advanced noise cancellation and a robust waterproof design, the T9S ensures a reliable and enjoyable riding experience in various conditions.

کلیدي ځانګړتیاوې

• 1200M Maximum Distance: Equipped with Bluetooth 5.0 for high compatibility and stability, allowing group communication within a 1200m intercom range.
• Support 4-Riders Intercom: Full-duplex communication for up to 4 riders simultaneously. Universal pairing function ensures compatibility with most Bluetooth headsets and mobile phones.
• د موسیقۍ شریکول: Share music with another rider, enjoy Hi-Fi stereo music, FM radio, or GPS voice guidance.
• Noise Reduction and IP67 Waterproof: DSP and CVC advanced noise reduction technology for clear communication up to 120km/h. IP67 waterproof rating for all-weather use.
• Ultra-Long Standby Battery: 800mAh rechargeable battery provides up to a week of standby time and 15 hours of working time.

Image: The T9S system supports communication for up to four riders over a distance of 1200 meters.

Image: CVC & DSP Noise Cancellation Technology ensures clear and smooth communication even at high speeds.

Image: The IP67 waterproof rating makes the T9S suitable for use in all weather conditions, including water sports.

Image: The T9S offers extended endurance times for talking, music playback, and standby, supporting long-distance travel.

د بسته محتويات

Each TOUCARE T9S package includes the following components:

• 1 x Bluetooth Intercom Unit
• 1 x Hi-Fi Speaker Set
• 1 x Boom Microphone
• 1 x Button Microphone
• 1 x USB کیبل
• 1 x د قوس قوس
• 1 x Clamp پلیټ
• 1 x الن رنچ

Image: All components included in the TOUCARE T9S package, ensuring you have everything needed for installation and use.

محصول پای ته ورسیدview او د تڼۍ دندې

Familiarize yourself with the buttons and indicators on your T9S intercom unit:

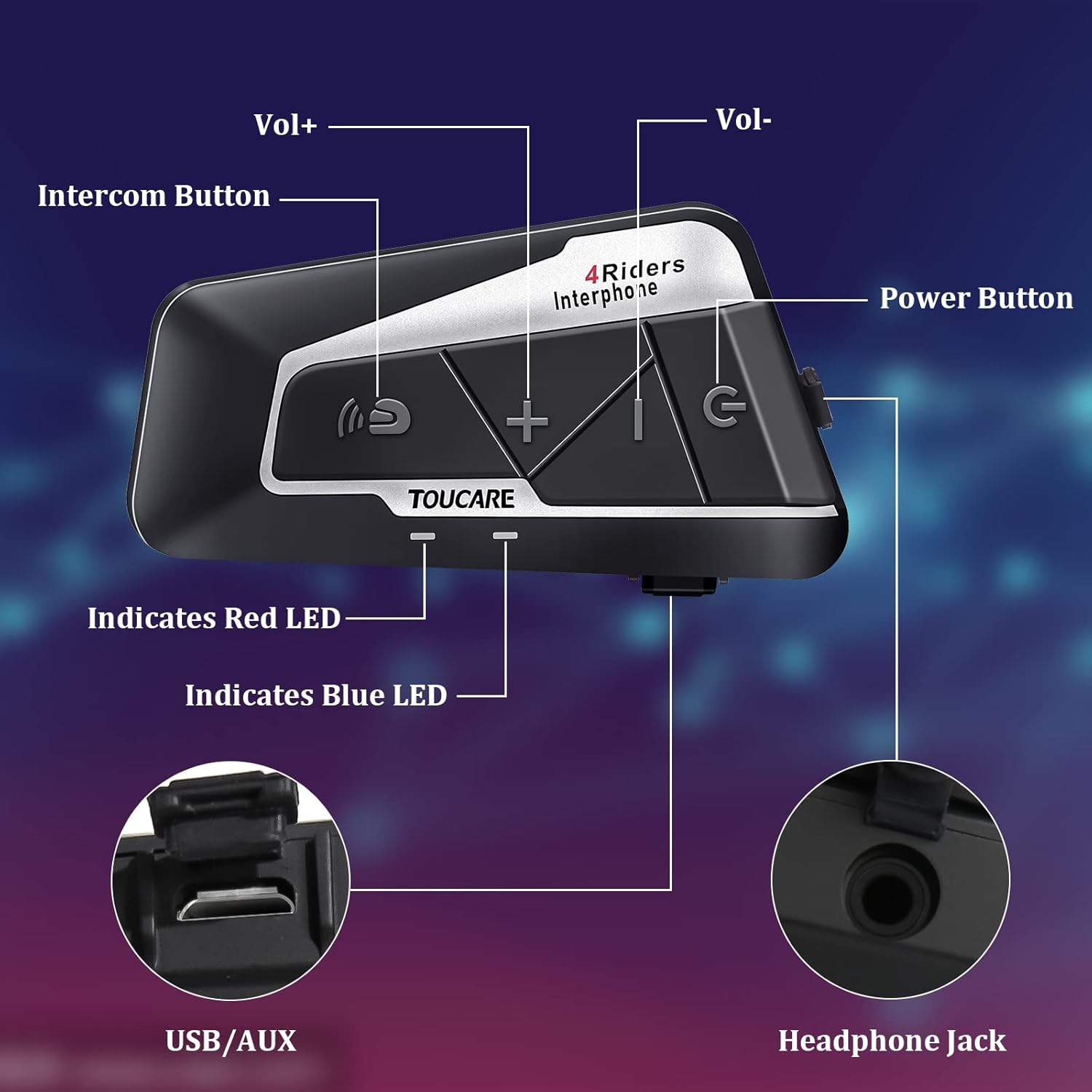

Image: Detailed diagram of the T9S unit, highlighting the location and labels of each button and port.

Power On/Off Button (G)

• پاور آن/بند: د وسیله د فعال یا بندولو لپاره فشار ورکړئ او ونیسئ.
• Paired Mobile Phone: Short press to connect/disconnect with a paired mobile phone.
• د بریښنا غوښتنه: Short press to hear battery level prompt.
• Hang up Bluetooth Intercom: Short press during an intercom call to end it.
• د میوزیک پلی کول / وقفه: د میوزیک غږولو یا بندولو لپاره لنډ فشار.
• Call Answering/Third Party Answer/End/Reject: د تلیفون زنګونه اداره کړئ.

Bluetooth Intercom Button (Intercom Icon)

• حجم +: د حجم زیاتولو لپاره لنډ فشار.
• وروستۍ سندره: پخوانۍ سندرې ته د تګ لپاره اوږد فشار ورکړئ.
• FM Turn Up: Short press during FM mode to tune up.
• FM Turn On/Off: Long press to turn FM radio on or off.
• وروستنۍ شمېره بیا کتل: Double press to redial the last dialed number.

Volume - Button (-)

• ټوک -: د حجم کمولو لپاره لنډ فشار.
• بله سندره: راتلونکی سندرې ته د تګ لپاره اوږد فشار ورکړئ.
• FM Turn Down: Short press during FM mode to tune down.
• FM Turn On/Off: Long press to turn FM radio on or off.
• د غږ ویلو سره: Double press to activate voice dialing (if supported by your phone).

Image: The T9S features ultra-large buttons, designed for easy operation even while wearing gloves.

د نصبولو لارښود

د نصب کولو ثابت طریقه

Follow these steps to securely install the T9S intercom unit on your helmet:

1. Locate and Clean: Identify a suitable flat area on the left side of your helmet for mounting. Ensure the surface is clean and dry.
2. چپکونکی چمتو کړئ: Peel off the protective film from the 3M adhesive on the back of the mounting bracket.
3. فشار ورکول: Firmly press the mounting bracket onto the chosen location on your helmet. Apply consistent pressure for several seconds to ensure a strong bond.
4. خوندي واحد: Slide the T9S intercom unit onto the mounted bracket until it clicks securely into place.
5. Install Speakers and Microphone: Route the speaker and microphone wires inside the helmet lining. Position the speakers inside the ear pockets and the microphone near your mouth for optimal audio.

عملیاتي لارښوونې

د ګرځنده تلیفون سره یوځای کول

1. Ensure the T9S is powered off.
2. Press and hold the Power On/Off button until the LED indicator flashes red and blue alternately, indicating pairing mode.
3. On your mobile phone, enable Bluetooth and search for new devices. Select "TOUCARE T9S" from the list.
4. Once paired, the LED will flash blue slowly.

Initiating Intercom Communication

1. Ensure all T9S units are powered on and within range.
2. To initiate a group intercom, short press the Bluetooth Intercom Button on your unit. The units will attempt to connect.
3. To end an intercom call, short press the Power On/Off button.

د غږ غږ

• پلی کول / ودرول: د پاور آن / آف تڼۍ لنډ فشار ورکړئ.
• بله سندره: د حجم تڼۍ اوږد فشار ورکړئ.
• پخوانۍ سندره: Long press the Bluetooth Intercom button.
• د حجم سمون: Short press Volume + or Volume - buttons.

ایف ایم راډیو

• آن/بندول: Long press either the Bluetooth Intercom button or the Volume - button.
• ټون اپ: Short press the Bluetooth Intercom button.
• ښکته کول: د حجم تڼۍ لنډ فشار ورکړئ.

زنګونو ته ځواب ورکول/پای کول

• زنګ ووهئ: Short press the Power On/Off button when a call comes in.
• ټلیفون پای: Short press the Power On/Off button during a call.
• زنګ رد کړئ: Long press the Power On/Off button when a call comes in.
• د غږ ویلو سره: Double press the Volume - button (requires phone support).
• وروستنۍ شمېره بیا کتل: Double press the Bluetooth Intercom button.

تخنیکي مشخصات

ساتنه

To ensure the longevity and optimal performance of your TOUCARE T9S intercom, follow these maintenance guidelines:

• پاکول: یونټ د نرم سره پاک کړئ ، دamp ټوکر سخت کیمیاوي مواد، د پاکولو محلول، یا قوي صابون مه کاروئ.
• ذخیره کول: وسیله په یخ او وچ ځای کې وساتئ، د مستقیم لمر وړانګو او سختې تودوخې څخه لرې وساتئ کله چې کارول نه وي.
• د بیټرۍ پاملرنه: For long-term storage, charge the battery to about 50% every three months to prevent deep discharge and extend battery life.
• د اوبو ښکاره کول: Although IP67 rated, avoid prolonged submersion. Ensure charging port is dry before charging.
• د کیبل مدیریت: کیبلونه او نښلونکي په نرمۍ سره سمبال کړئ ترڅو د زیان مخه ونیول شي.

د ستونزو حل کول

If you encounter issues with your T9S intercom, try the following solutions:

هیڅ ځواک نشته

• بیټرۍ چیک کړئ: Ensure the unit is fully charged. Connect it to a power source and check if the charging indicator lights up.
• بیا تنظیمول: If unresponsive, try holding the Power On/Off button for an extended period (e.g., 10-15 seconds) to force a reset.

Cannot Pair with Mobile Phone/Other Intercoms

• جوړه جوړه: Ensure the T9S is in pairing mode (LED flashing red and blue alternately).
• د وسیلې لیدلوری: Make sure Bluetooth is enabled on your phone/other intercoms and they are discoverable.
• د جوړه کولو تاریخ پاک کړئ: On your phone, forget the T9S device and try pairing again. For intercoms, consult the manual for clearing pairing history if available.
• واټن: Ensure devices are within close proximity (e.g., 1 meter) during pairing.

Poor Audio Quality/No Sound

• حجم: Check if the volume is turned up on both the T9S and the connected device (phone/intercom).
• د مایکروفون موقعیت: Ensure the microphone is correctly positioned near your mouth and not obstructed.
• د سپیکر اړیکه: Verify that the speakers are securely plugged into the headphone jack.
• لاسوهنه: د قوي الکترومقناطیسي مداخلې سرچینو څخه لرې شئ.
• فرم ویئر: جوړونکي وګورئ website for any available firmware updates that might improve audio performance.

تضمین او ملاتړ

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official TOUCARE webسایټ. د تضمین ادعاوو لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.

For further assistance, you may also contact TOUCARE customer service through the contact information provided on their official channels.
