VANNECT 1200W 7-inch Car Buffer Polisher

پیژندنه

Thank you for choosing the VANNECT 1200W 7-inch Car Buffer Polisher. This powerful tool is designed for efficient sanding, polishing, and waxing of various surfaces, including vehicles, marble, wood, and walls. With its 6-variable speed control and ergonomic design, it provides precise and comfortable operation for both beginners and professionals. Please read this manual thoroughly before operation to ensure safe and effective use.

د خوندیتوب مهمې لارښوونې

خبرداری: د دې بریښنا وسیلې سره چمتو شوي ټول خوندیتوب اخطارونه ، لارښوونې ، توضیحات او مشخصات ولولئ. د لاندې لست شوي ټولو لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور او/یا جدي ټپي کیدو پایله ولري.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection, when operating the polisher.
• Ensure the work area is clean, well-lit, and free from obstructions. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• د بریښنا وسیله چلولو پرمهال ماشومان او لیدونکي لرې وساتئ. ګډوډي کولی شي ستاسو د کنټرول له لاسه ورکولو لامل شي.
• د ناڅاپي پیل څخه مخنیوی وکړئ. ډاډ ترلاسه کړئ چې سویچ د پلګ ان کولو دمخه په بند حالت کې دی.
• زیاتی مه کوه. هر وخت مناسب پښه او توازن وساتئ. دا په غیر متوقع حالتونو کې د بریښنا وسیلې غوره کنټرول وړوي.
• د هر ډول سمون کولو، لوازمو بدلولو، یا د بریښنا وسیلو ذخیره کولو دمخه د بریښنا سرچینې څخه پلګ منقطع کړئ.
• Maintain the tool. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use.
• د دې لارښوونو سره سم د بریښنا وسیله، لوازم او د وسیلې بټونه وکاروئ، د کاري شرایطو او د ترسره کولو کار په پام کې نیولو سره. د عملیاتو لپاره د بریښنا وسیلې کارول د هدف څخه مختلف کیدی شي خطرناک حالت رامینځته کړي.

څه پکې شامل دي

Your VANNECT Buffer Polisher package includes the following components:

• 1 x Power Buffer Polisher
• 5 x Foam Pads (various densities)
• 1 x Foam Disc
• 1 x Detachable D-handle
• 1 ایکس سپنر
• 1 x هیکس رنچ
• 2 x کاربن برش
• ۱ x د کارونکي لارښود (دا سند)

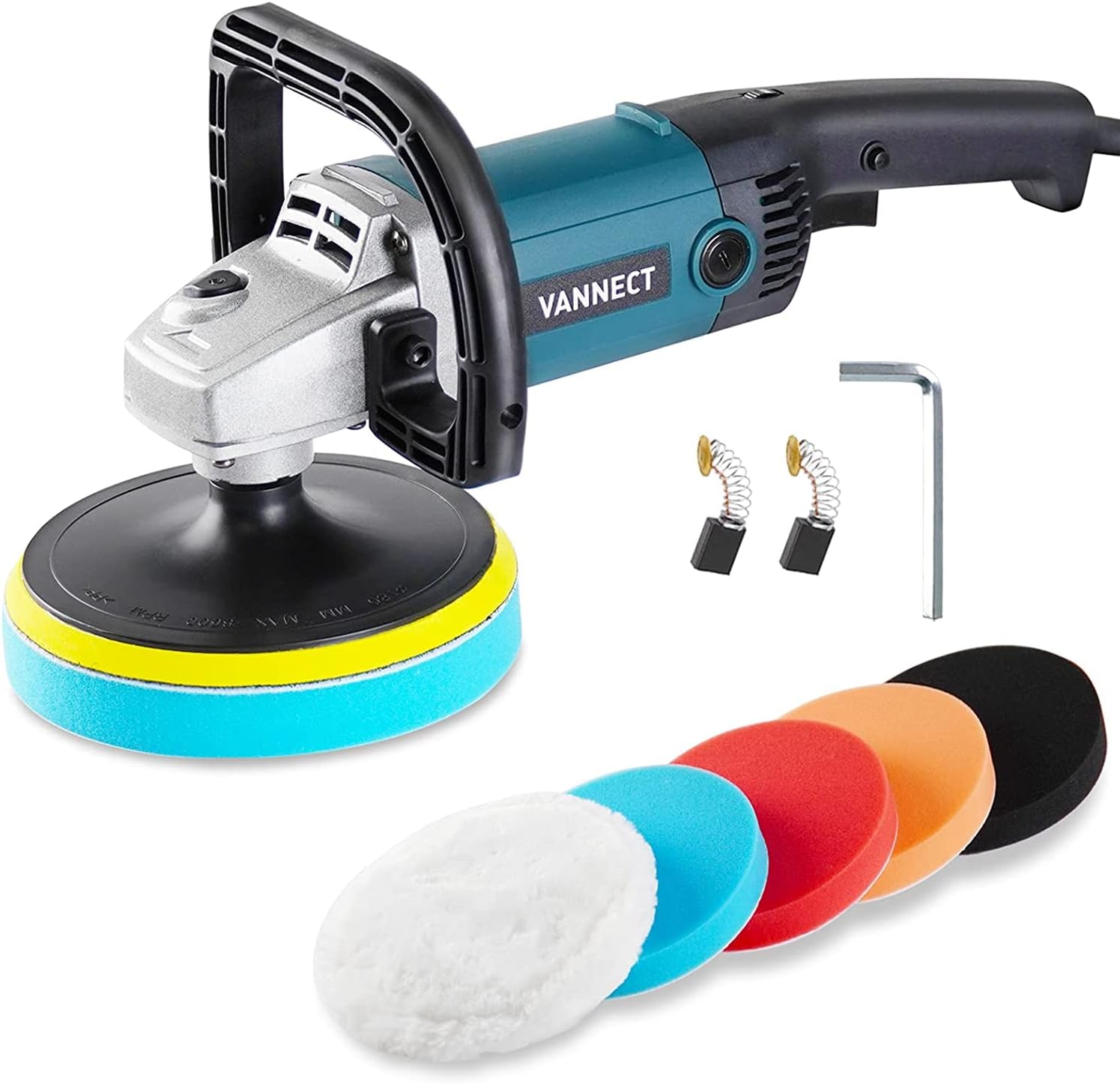

Image: All components included in the VANNECT Buffer Polisher package, showing the polisher unit, various foam pads, and tools.

تنظیم او مجلس

The VANNECT Buffer Polisher is designed for quick and easy assembly. Follow these steps to prepare your polisher for use:

1. Attach the D-handle: Align the detachable D-handle with the mounting points on the polisher head. Secure it using the provided screws and hex wrench. The handle can be adjusted to left, vertical, or right directions for optimal comfort and control.


Image: Diagram illustrating the three adjustable positions (left, vertical, right) for the multi-purpose D-handle.

2. Install the Foam Pad/Disc: Ensure the backing plate is securely attached to the polisher. Select the appropriate foam pad or disc for your task and firmly press it onto the hook-and-loop surface of the backing plate.

Image: Detailed diagram of the polisher, highlighting the backing plate, adjustable auxiliary handle, variable speed control, safety locking button, ON/OFF button, power cord sleeve, and locking spindle.
3. د بریښنا پیوستون: Before plugging in, ensure the polisher's ON/OFF switch is in the "OFF" position and the speed dial is set to the lowest setting (1). Connect the power cord to a suitable power outlet.

عملیاتي لارښوونې

Follow these guidelines for effective and safe operation of your polisher:

1. پاور آن: Press the ON/OFF button to start the polisher.
2. سرعت تنظیم کړئ: Use the 6-speed control dial to select the desired RPM.
   • ټیټ سرعت (۱-۳): Ideal for waxing and buffing.
   • Medium Speed (3-4): د عمومي پالش کولو او پاکولو لپاره مناسب.
   • لوړ سرعت (۴-۶): د رنګ نیمګړتیاو او اکسیډیشن لرې کولو لپاره وړاندیز شوی.

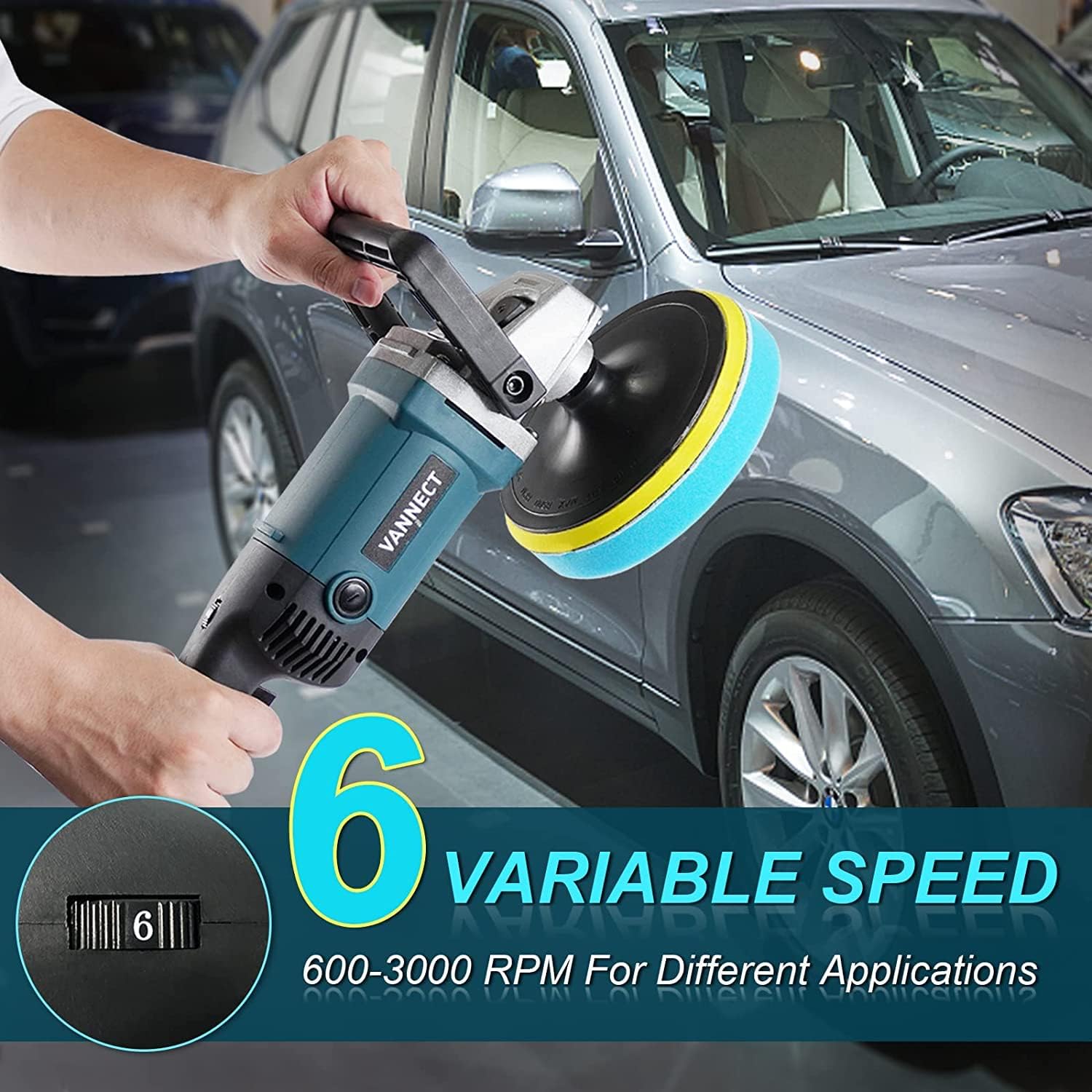

Image: The polisher in use on a car, with an overlay highlighting the 6-variable speed control dial and its RPM range (600-3000 RPM).

3. د خوندیتوب قفل مشغول کړئ: For continuous operation at a set speed, press the safety lock button. This reduces user fatigue during extended use. To disengage, simply press the ON/OFF trigger again.
4. غوښتنلیک: Apply appropriate polishing compound or wax to the pad or directly to the surface. Start the polisher at a low speed and gradually increase as needed. Move the polisher in a consistent, overlapping pattern across the surface.

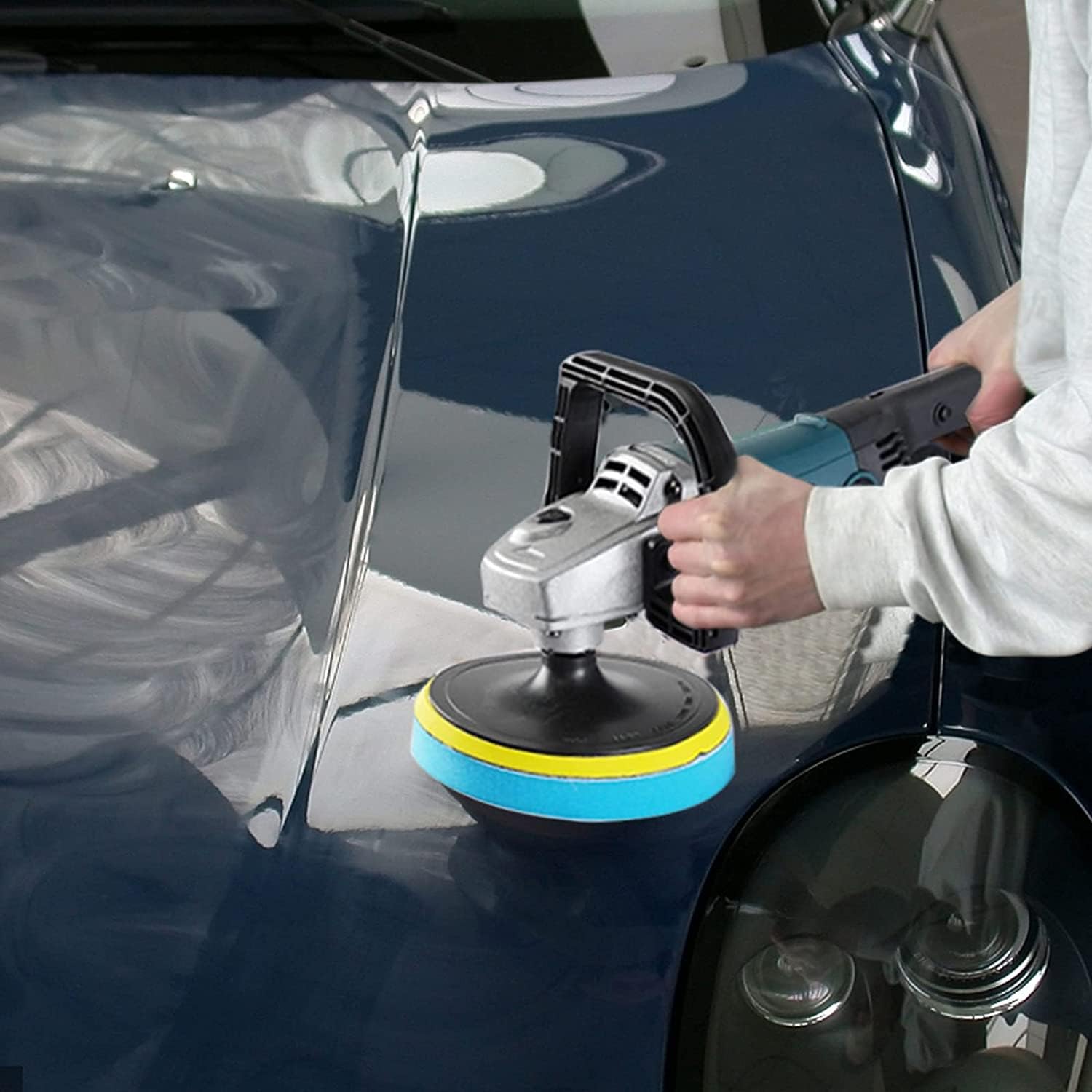

Image: A person demonstrating the use of the VANNECT buffer polisher on the hood of a car, showing the polishing process.

5. Achieving Results: The polisher is designed to effectively remove swirls, scratches, and defects, restoring the shine to painted surfaces.

Image: A side-by-side comparison of a car's front, showing a dull, scratched finish on the left ("Before") and a shiny, restored finish on the right ("After") after polishing.
6. بندول: Once finished, turn the speed dial to the lowest setting, then press the ON/OFF button to turn off the polisher. Unplug the tool from the power outlet.

ساتنه

Proper maintenance ensures the longevity and optimal performance of your polisher:

• پاکول: After each use, unplug the polisher and wipe down the exterior with a clean, damp cloth. Remove any residue from the backing plate and pads. Ensure pads are cleaned according to their specific instructions.
• ذخیره کول: Store the polisher in a dry, secure location, away from direct sunlight and extreme temperatures. Keep it out of reach of children.
• د کاربن برشونه: The polisher includes two carbon brushes. Periodically inspect the carbon brushes for wear. If they are worn down, replace them with the provided spares or genuine VANNECT replacement parts to maintain motor efficiency. Refer to the diagram in the setup section for the location of the carbon brush access points.
• د تار معاینه: Regularly check the power cord for any signs of damage, cuts, or fraying. Do not use the tool if the cord is damaged.

د ستونزو حل کول

که تاسو د خپل پالش کونکي سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:

If you are unable to resolve an issue using the troubleshooting guide, please contact VANNECT customer support for assistance.

د محصول مشخصات

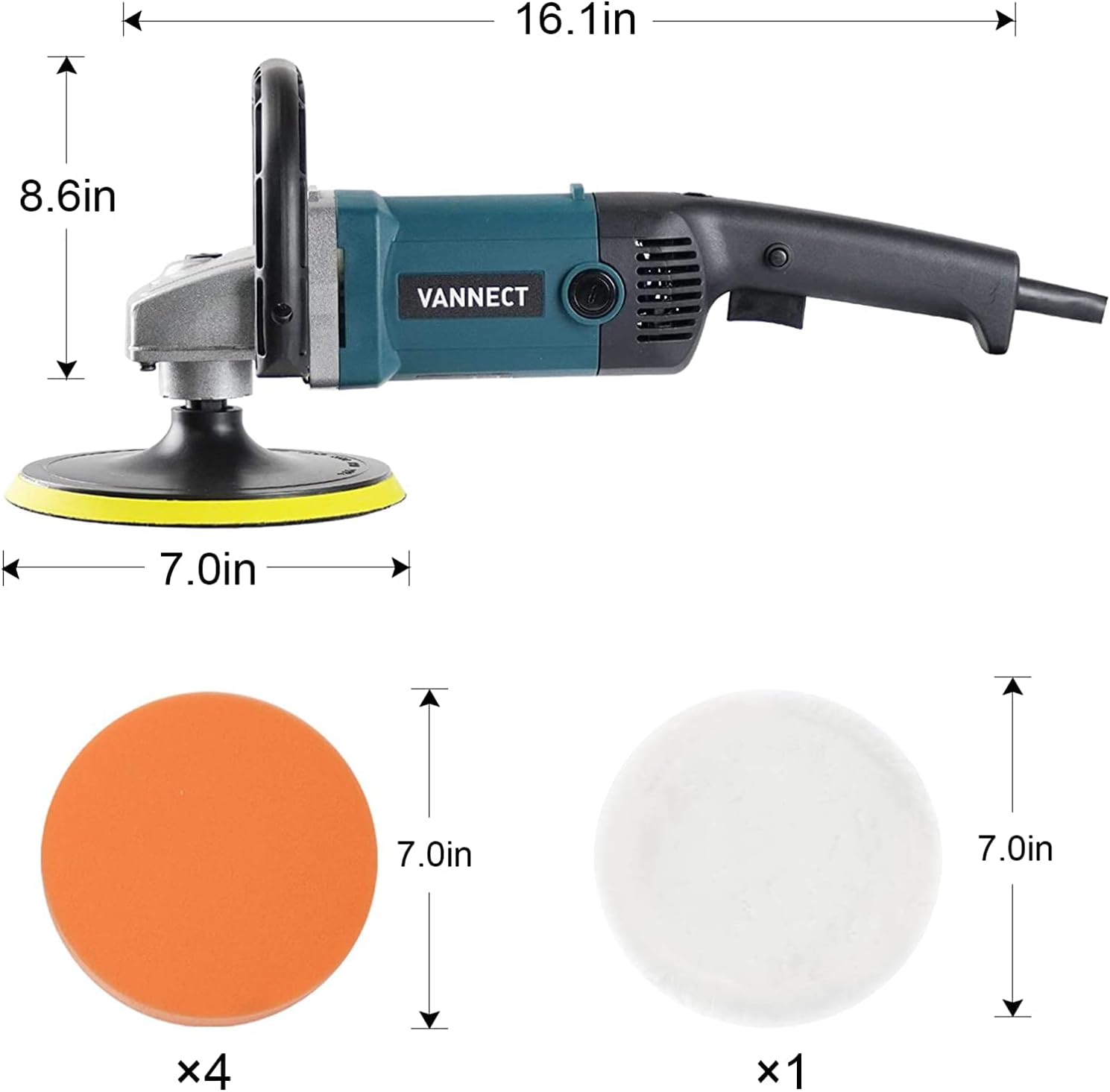

Image: Diagram showing the overall dimensions of the polisher (16.1in x 8.6in) and the 7.0in diameter of the foam pads.

تضمین او د پیرودونکي ملاتړ

Your VANNECT Buffer Polisher comes with a د 12 میاشتو تضمین د پیرود نیټې څخه.

For any questions, concerns, or warranty claims, please feel free to contact our customer support team. You can reach us by:

• ستاسو د ایمیزون حساب ته ننوتل.
• "ستاسو امرونه" ته تګ.
• Finding the specific order ID for your polisher.
• Clicking on "Contact seller" to send us a message.

We are committed to providing excellent service and will address any concerns you may have.
