1. پیژندنه
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your EuropAce EWH 2100W Instant Water Heater. Please read these instructions thoroughly before installation and use, and retain this manual for future reference.
2. د خوندیتوب معلومات
Your safety is paramount. This appliance has been designed with multiple safety features. Adhere to all warnings and instructions to prevent injury or damage.
- مسلکي نصب کول: نصب کول باید د سیمه ایزو مقرراتو او معیارونو سره سم د وړ بریښنایی کارکونکي او نل لیکونکي لخوا ترسره شي.
- بریښنایی خوندیتوب: Ensure the power supply matches the appliance's requirements (3300 watts). Do not operate with damaged cords or plugs.
- د اوبو فشار: The unit is suitable for both high and low water pressure environments. However, ensure stable water supply during operation.
- دوه ګونی خوندیتوب: The heater features a built-in auto water flow-sensor device switch, which activates heating only when sufficient water flow is detected.
- Anti-Scalding Thermal Safety: An upgraded anti-scalding thermal safety design prevents water from reaching dangerously high temperatures.
- Splash Proof Protection: The unit is designed with splash-proof features for enhanced safety in wet environments.
- ساتنه: د هر ډول ساتنې یا پاکولو دمخه بریښنا قطع کړئ.
- ماشومان او زیان منونکي کسان: دا وسیله د هغو کسانو لخوا د کارولو لپاره نه ده چې فزیکي، حسي یا ذهني وړتیاوې یې کمې دي، یا د تجربې او پوهې نشتوالی، پرته لدې چې دوی ته د دوی د خوندیتوب لپاره مسؤل شخص لخوا د وسیلې کارولو په اړه نظارت یا لارښوونې ورکړل شوي وي.
3. محصول ختم شوview
The EuropAce EWH 2100W is an instant water heater designed for efficient and safe hot water delivery. It incorporates a high-quality UK technology heating element with UL standard approval and a durable copper tank.
Figure 3.1: EuropAce EWH 2100W Instant Water Heater with included black shower head and rail.

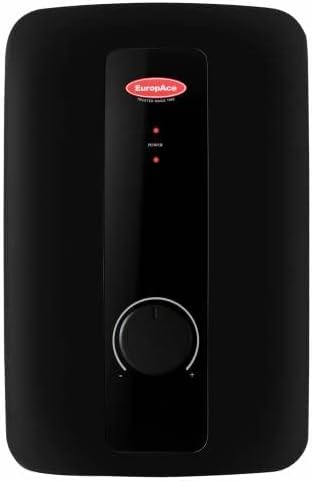

شکل 3.2: مخکی view of the EuropAce EWH 2100W Instant Water Heater unit, showing the power indicator, heating indicator, and temperature control knob.
The unit features an electronic variable power temperature control for precise temperature adjustment and comes with a stylish black shower set.
4. مشخصات
| ماډل | EWH 2100W |
| برانډ | اروپایی |
| واټtage | ۴۵ واټه |
| مواد | Copper (tank) |
| د نصب کولو ډول | دیوال |
| د محصول ابعاد | 10 x 22 x 34 سانتي متره |
| د توکي وزن | 2.4 کیلو ګرامه |
| ځانګړي ځانګړتیاوې | Double Safety Protection, Splash Proof Protection, Auto Water Flow-Sensor, Anti-Scalding Thermal Safety |
| د بریښنا سرچینه | د بریښنا تار شوی |
۵. نصب کول (تنظیم)
مهم: Installation must be carried out by a qualified and licensed professional plumber and electrician. Incorrect installation can lead to electric shock, fire, or other hazards.
- د سایټ انتخاب: Choose a suitable wall location for mounting, ensuring it is within reach of water supply and electrical connections, and away from direct spray.
- پورته کول: Securely mount the heater unit to the wall using appropriate fasteners. Ensure the unit is level.
- د اوبو نښلول: Connect the water inlet and outlet pipes according to the markings on the unit. Ensure all connections are watertight.
- بریښنایی پیوستون: Connect the unit to a dedicated electrical circuit with appropriate circuit breakers, following local electrical codes. Ensure proper grounding.
- لومړی کارول: Before switching on the power, open the water supply to the heater and allow water to flow through the shower head for a few minutes to purge any air from the system.
6. عملیات
Operating your EuropAce EWH 2100W Instant Water Heater is straightforward.
- پاور آن: Ensure the main power switch to the heater is turned on. The "Power" indicator light on the unit will illuminate.
- د اوبو جریان: Turn on the water supply to the shower head. The built-in auto water flow-sensor will detect the water flow.
- Heating Activation: Once sufficient water flow is detected, the heating element will activate, and the "Heating" indicator light will illuminate.
- د حرارت درجه تنظیمول: Use the electronic variable power temperature control knob on the front of the unit to adjust the desired water temperature. Turn clockwise for hotter water, counter-clockwise for cooler water.
- بندول: After use, turn off the water supply to the shower head. The heater will automatically stop heating. For extended periods of non-use, it is recommended to turn off the main power switch to the unit.
7. ساتنه
منظم ساتنه ستاسو د اوبو ګرمولو ماشین اوږد عمر او مؤثر عملیات تضمینوي.
- پاکول: د یونټ بهرنۍ برخه د نرم سره پاکه کړئamp ټوکر. د کثافاتو پاکوونکي یا محلولونه مه کاروئ. ډاډ ترلاسه کړئ چې د پاکولو دمخه بریښنا قطع شوې ده.
- د شاور سر پاکول: Periodically clean the shower head nozzles to prevent mineral buildup, which can affect water flow.
- اړیکې معاینه کړئ: Regularly check water and electrical connections for any signs of leaks or damage. If any issues are found, contact a qualified professional for inspection and repair.
- تشریح کول: In areas with hard water, descaling may be required periodically. This procedure should only be performed by a qualified technician.
8. ستونزه حل کول
د عامو ستونزو او د هغوی د احتمالي حل لارو لپاره لاندې جدول ته مراجعه وکړئ.
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| No hot water / Heater not turning on | بریښنا نشته د اوبو ناکافي جریان حرارتي کټ آوټ فعال شوی | Check main power switch and circuit breaker. Ensure adequate water pressure and flow. د معاینې لپاره د وړ تخنیکین سره اړیکه ونیسئ. |
| اوبه کافي ګرمې ندي | د حرارت درجه ډیره ټیټه ده High incoming water temperature د اوبو ټیټ فشار | Adjust temperature control knob to a higher setting. This is normal for instant heaters; consider reducing flow rate slightly. د اوبو ثابت فشار ډاډمن کړئ. |
| د اوبو جریان کمزوری دی | Clogged shower head Low main water pressure | Clean shower head nozzles. Check household water supply. |
| د واحد څخه لیکیدل | تړلې اړیکې داخلي برخې ته زیان | Immediately turn off water and power supply. Contact a qualified technician. |
If the problem persists after attempting these solutions, please contact EuropAce customer support or a qualified service technician.
9. تضمین او ملاتړ
For warranty information, please refer to the warranty card provided with your purchase or visit the official EuropAce webسایټ. د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
For technical support, spare parts, or service inquiries, please contact EuropAce customer service. Contact details can typically be found on the product packaging or the official brand webسایټ
