1. پیژندنه
Thank you for choosing the LYCEBELL LC-846A HVAC Anemometer CFM Meter. This device is designed for accurate measurement of wind speed, air flow, and air temperature. It is an essential tool for HVAC professionals, outdoor enthusiasts, and anyone requiring precise air movement data. This manual provides detailed instructions for the proper setup, operation, and maintenance of your anemometer to ensure optimal performance and longevity.
کلیدي ځانګړتیاوې عبارت دي له:
- Accurate wind speed measurement with MAX/MIN/Current readings.
- High precision air flow (CFM) and air temperature measurements.
- Large backlit LCD display for clear readability in various lighting conditions.
- Data hold function and built-in data recorder for up to 600 sets of values.
- Manual/Auto power off feature to conserve battery life.
- Equipped with a dust-proof carrying case for protection and portability.
2. محصول ختم شوview
Familiarize yourself with the components and display of your LC-846A Anemometer.

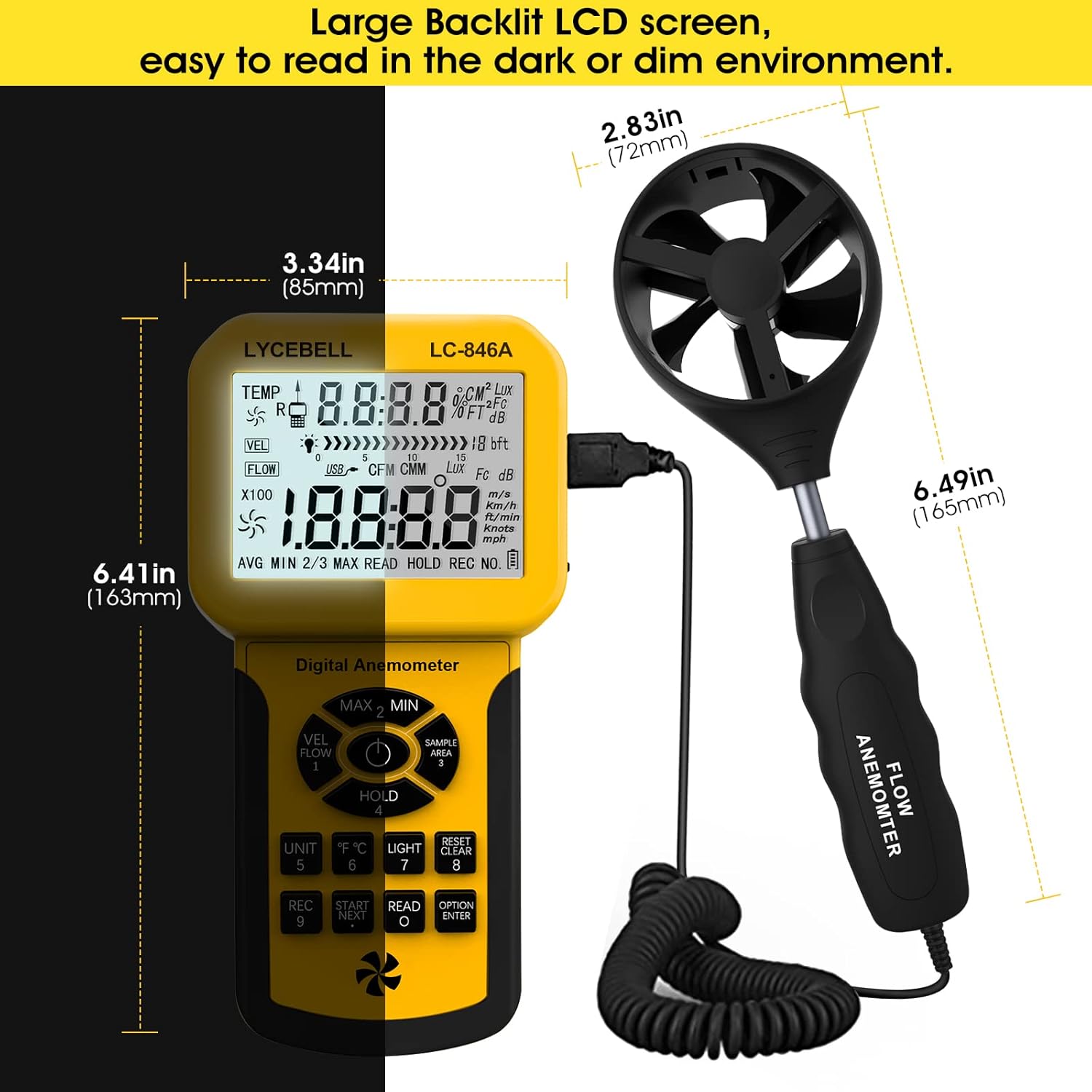

Figure 2.1: LC-846A Anemometer Main Unit and Vane Probe with Dimensions
This image displays the main unit of the LC-846A Anemometer and its detachable vane probe, along with their respective dimensions. The main unit features a large LCD screen and control buttons, while the vane probe is connected via a coiled cable.

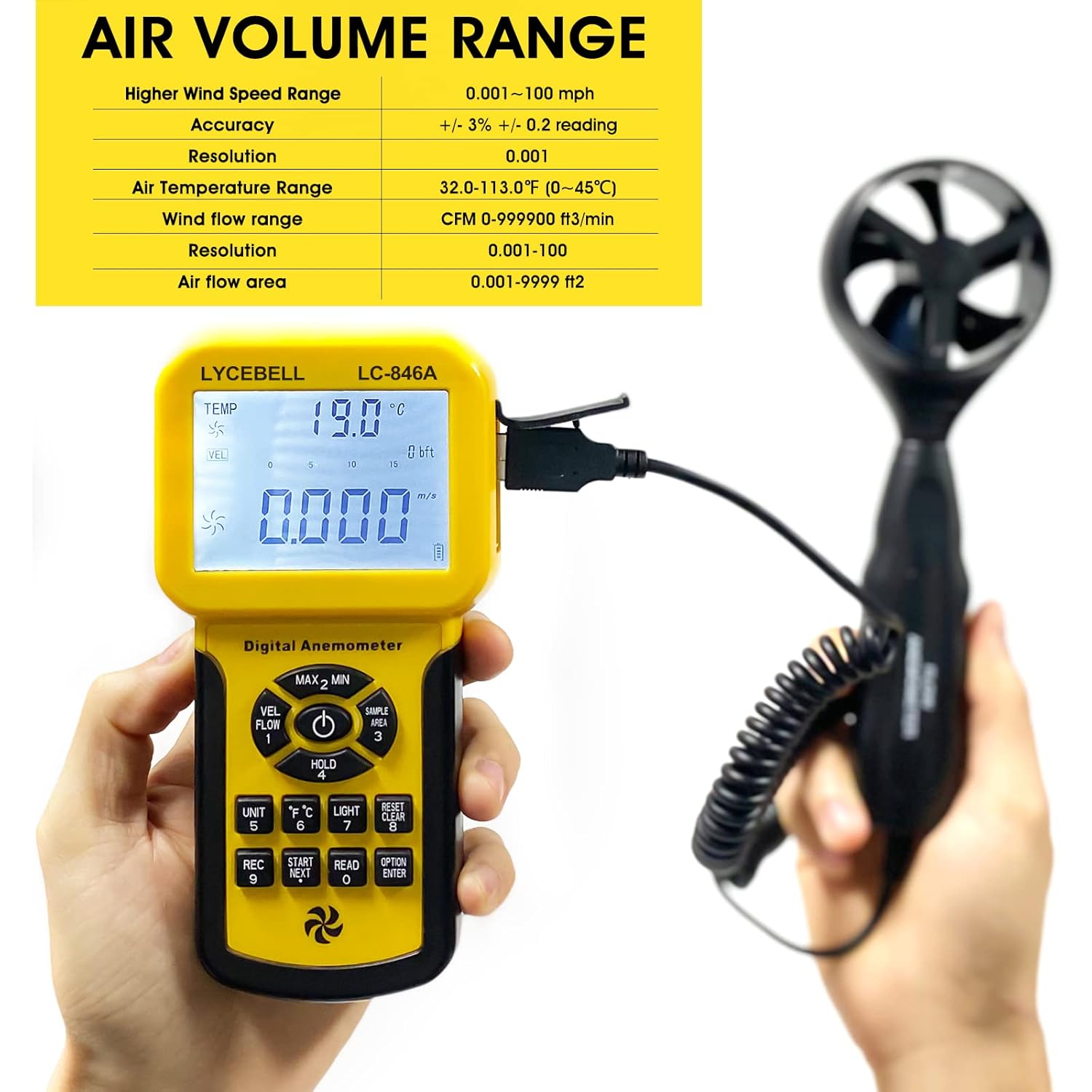

Figure 2.2: Air Volume Range Display
The anemometer's display shows the air volume range and other measurement specifications, highlighting its capability to measure various air parameters.
شکل ۷: د تڼۍ دندې
This image illustrates the various buttons on the LC-846A Anemometer and their corresponding functions, such as backlight control, MAX/MIN mode, unit switching, and data recording.
Figure 2.4: Battery Type and Extendable Wand
The image shows the 9V battery compartment and the extendable wand feature of the wind sensor, allowing for flexible positioning during measurements.
3. ترتیب کول
- د بیټرۍ نصب کول: Open the battery compartment cover on the back of the main unit. Insert one 9V (6F22) battery, ensuring correct polarity. Close the cover securely.
- Connect Vane Probe: Connect the coiled cable from the vane probe to the USB port on the top of the main unit. Ensure the connection is firm.
- Extend Vane Probe (Optional): The vane probe features an extendable wand. Gently pull the probe head away from the handle to extend it for reaching difficult areas. Push it back to retract for storage.
- پاور آن: فشار ورکړئ بریښنا فعال/بند button to turn on the device. The LCD display will illuminate.
4. عملیاتي لارښوونې
This section details the functions and operation of the LC-846A Anemometer.
Video 4.1: LYCEBELL 846A CFM Meter Overview
This video provides a visual guide to the LYCEBELL 846A CFM Meter, demonstrating its components, assembly, and basic functions. It shows how to connect the probe, power on the device, and navigate through some of its settings.
- پاور آن/بند: فشار ورکړئ بریښنا فعال/بند button to turn the device on or off. The device will automatically power off after a period of inactivity to save battery.
- د واحد انتخاب: فشار ورکړئ UNIT button to cycle through wind speed units: m/s, km/h, ft/min, knots, mph.
- د تودوخې واحد انتخاب: فشار ورکړئ ° سي / ° ف button to switch between Celsius and Fahrenheit for temperature readings.
- MAX/MIN/AVG Mode: فشار ورکړئ MAX/MIN تڼۍ ته view maximum, minimum, or average wind speed/air flow readings. Press again to cycle.
- د معلوماتو ساتل: فشار ورکړئ هوډ په ښودنه کې د اوسني لوستلو د کنګل کولو لپاره تڼۍ. د خوشې کولو لپاره بیا فشار ورکړئ.
- د شاتنۍ رڼا کنټرول: فشار ورکړئ رڼا د LCD بیک لایټ فعال یا بندولو لپاره تڼۍ.
- Air Flow Area Setting: To measure CFM, you must first input the duct's cross-sectional area. Press SAMPLE AREA, then use the arrow keys to adjust the value and ننوتل تصدیق کول.
- د معلوماتو ثبتول: مطبوعاتي REC to start recording data. The device can store up to 600 sets of measured values. Press لوستل ته view ثبت شوي معلومات
- Wind Speed/Air Volume Toggle: د کارولو VEL/flow button to switch between wind velocity and air volume (CFM) measurements.
Figure 4.1: Anemometer in Use for HVAC and Air Flow
This image demonstrates the LC-846A Anemometer being used in practical applications, such as measuring air flow in an HVAC system and balancing air in a large space.
5. مشخصات
| مشخصات | ارزښت |
|---|---|
| برانډ | لایسبیل |
| ماډل | LC-846A |
| د توکي ابعاد (L x W x H) | 6.41 x 3.34 x 1.36 انچه |
| د توکي وزن | ۲.۴۵ پونډه |
| د باد سرعت حد | 0.001~100 mph (0.3~30 m/s) |
| د باد سرعت دقت | +/- 3% +/- 0.2 reading |
| د باد سرعت حل | 0.001 |
| Air Flow Range (CFM) | 0-999900 ft³/min |
| د هوا جریان ساحه | 0.001-9999 فوټ² |
| د هوا د حرارت درجه | 32.0-113.0 °F (0~45°C) |
| د معلوماتو ذخیره کول | Up to 600 sets of measured values |
| د بریښنا سرچینه | 9V (6F22) Battery |
6. ستونزه حل کول
- وسیله نه فعالیږي:
- Check if the 9V battery is installed correctly with proper polarity.
- که بیټرۍ ورکه شوې وي نو بیا یې بدل کړئ.
- ناسم لوستل:
- Ensure the vane probe is clean and free from obstructions.
- Verify that the vane probe is securely connected to the main unit.
- Confirm that the correct air flow area is set for CFM measurements.
- Avoid taking measurements in turbulent air conditions.
- ښودنه تیاره یا د لوستلو وړ نه ده:
- Activate the backlight by pressing the رڼا تڼۍ
- Check battery level; a low battery can cause a dim display. Replace if necessary.
- Data recording issues:
- Ensure there is sufficient memory available for new recordings.
- Follow the data recording steps precisely as outlined in the Operating Instructions.
7. ساتنه
- پاکول: Use a soft, dry cloth to clean the device. Do not use abrasive cleaners or solvents. Keep the vane probe free of dust and debris to ensure accurate readings.
- ذخیره کول: When not in use, store the anemometer in its protective carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods to prevent leakage.
- د بیټرۍ بدلول: کله چې د ټیټ بیټرۍ شاخص په ډسپلې کې څرګند شي یا که وسیله فعاله نشي، نو د 9V بیټرۍ بدله کړئ.
Figure 7.1: Protective Carrying Case
The anemometer comes with a durable, dust-proof carrying case for safe storage and transport, protecting the device from drops and bumps.
8. تضمین او ملاتړ
The LYCEBELL LC-846A Anemometer comes with a 12 Months Worry-Free Replacement warranty for any defective product due to the production process. For technical support, warranty claims, or any questions regarding your device, please do not hesitate to contact our friendly support team. Refer to the contact information provided with your purchase or visit the official LYCEBELL webد مرستې لپاره سایټ.
۱.۱. د تطبیق وړ سناریوګانې
The LC-846A Anemometer is suitable for a wide range of applications, including:
- Air flow balancing in HVAC systems.
- Testing dust collection systems.
- Environmental monitoring (meteorology).
- Outdoor activities such as sailing, hiking, and kite flying.
- Long-range shooting.
- Cooling diagnostics.
