This manual provides instructions for the Belkin 5-in-1 Multiport Hub Adapter, Model INC008btBK. This adapter is designed to expand connectivity for Chromebook and Chrome OS devices, offering ports for 4K video output, power delivery, USB peripherals, and a wired internet connection. It supports fast charging up to 86W and video resolutions up to 4K at 60Hz via its HDMI port. The hub includes two USB-A 3.1 Gen 1 ports and a Gigabit Ethernet port. It is Works With Chromebook certified, ensuring compatibility with Chrome OS.
The Belkin 5-in-1 Multiport Hub Adapter, a compact black device with an integrated USB-C cable.
د محصول ځانګړتیاوې
- Chromebook optimized adapter provides automatic firmware updates directly through Chrome OS.
- Certified to meet Google's compatibility standards for Chrome OS devices.
- Features 2x USB-A 3.1 Gen 1 ports for connecting peripherals.
- Includes a Gigabit Ethernet port for a stable wired internet connection.
- Equipped with a 4K HDMI port supporting resolutions up to 4K at 60Hz.
- USB-C port supports pass-through charging up to 100W (minus 15W for adapter operation), delivering up to 86W to connected devices.
- Tethered USB-C cable for easy connection to your Chromebook.
د بسته محتويات
- Belkin 5-in-1 Multiport Hub Adapter (Model INC008btBK)
د تنظیم کولو لارښوونې
Follow these steps to set up your Belkin 5-in-1 Multiport Hub Adapter:
- Connect to your Chromebook: Plug the integrated USB-C cable from the hub into an available USB-C port on your Chromebook or compatible device.
- د بریښنا سره وصل کړئ (اختیاري): For charging your Chromebook and connected devices, connect a USB-C power adapter (minimum 65W recommended) to the USB-C Power Delivery (PD) port on the hub. This port supports up to 100W pass-through charging.
- Connect HDMI Display (Optional): Use an HDMI cable to connect your external monitor or display to the HDMI port on the hub. Ensure your display is set to the correct input source.
- Connect USB Peripherals (Optional): Plug your USB-A devices, such as a mouse, keyboard, or external storage, into the two USB-A 3.1 Gen 1 ports on the hub.
- ایترنیټ وصل کړئ (اختیاري): For a wired internet connection, connect an Ethernet cable from your router or modem to the Gigabit Ethernet port on the hub.

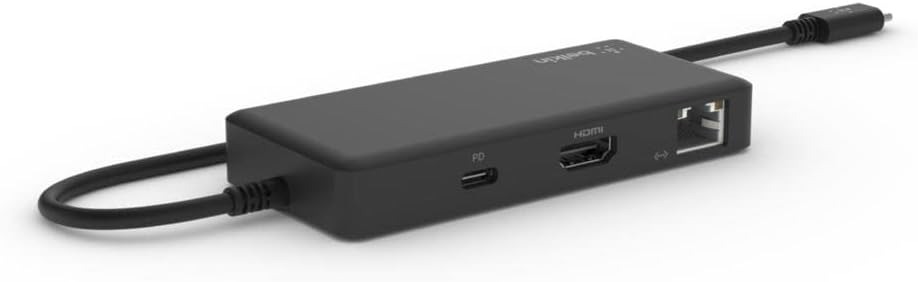

A view of the Belkin Multiport Hub's side, displaying the HDMI, USB-C Power Delivery, and Gigabit Ethernet ports.

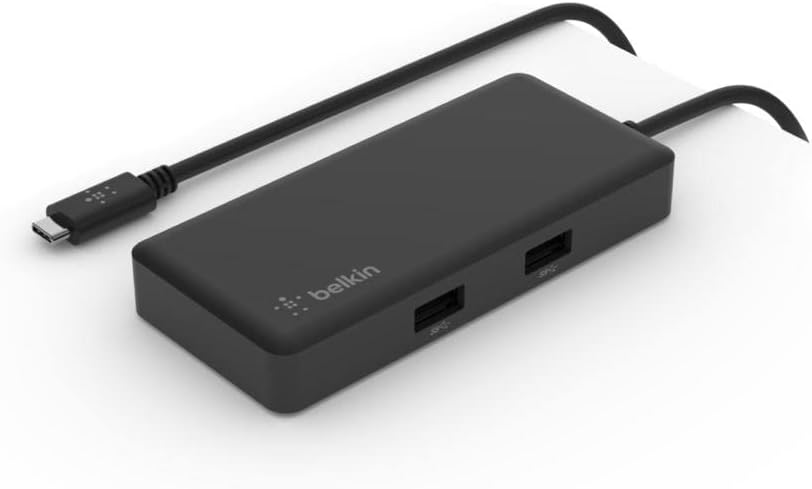

یو زاویه لرونکی view of the Belkin Multiport Hub, highlighting the two USB-A 3.1 Gen 1 ports on its top surface.
عملیاتي لارښوونې
Once connected, the Belkin 5-in-1 Multiport Hub Adapter operates automatically with your Chromebook. Chrome OS will detect connected devices and displays.
- د ښودلو محصول: Your Chromebook should automatically extend or mirror its display to the connected HDMI monitor. Adjust display settings in Chrome OS if needed.
- د USB وسایل: USB-A peripherals will function as soon as they are plugged into the hub.
- د شبکې ارتباط: The Gigabit Ethernet port provides a stable wired network connection, which will be prioritized over Wi-Fi when connected.
- د بریښنا رسول: Ensure your external USB-C power adapter meets the recommended wattage for optimal charging performance, especially when using multiple hub functions.
The Belkin Multiport Hub connected to a laptop, demonstrating its use with an external monitor (via HDMI) and other USB peripherals.
ساتنه
To ensure the longevity and optimal performance of your Belkin Multiport Hub:
- Keep the adapter clean by wiping it with a soft, dry cloth. Avoid liquid cleaners.
- اډاپټر په یخ او وچ ځای کې د مستقیم لمر وړانګو او سختې تودوخې څخه لرې وساتئ.
- Avoid bending or stressing the integrated USB-C cable excessively.
د ستونزو حل کول
- په بهرني مانیټر کې هیڅ ښودنه نشته:
- ډاډ ترلاسه کړئ چې د HDMI کیبل په خوندي ډول د مرکز او مانیټر دواړو سره وصل دی.
- Verify the monitor's input source is set to HDMI.
- Check your Chromebook's display settings to ensure the external display is detected and configured correctly.
- که امکان ولري، یو بل HDMI کیبل یا مانیټر هڅه وکړئ.
- د USB وسایل کار نه کوي:
- Ensure the USB-A devices are fully inserted into the hub's ports.
- Test the USB device by connecting it directly to your Chromebook (if possible) to rule out device issues.
- If using high-power USB devices, ensure the hub is connected to a power adapter.
- د ایترنیټ له لارې د انټرنیټ اتصال نشته:
- Verify the Ethernet cable is securely connected to both the hub and your router/modem.
- Check the network status on your Chromebook.
- ډاډ ترلاسه کړئ چې ستاسو روټر/موډیم په سمه توګه کار کوي.
- Chromebook Not Charging:
- Ensure a USB-C power adapter is connected to the hub's USB-C PD port.
- Verify the power adapter is functioning and provides sufficient wattage (minimum 65W recommended for optimal pass-through charging).
- Check the charging indicator on your Chromebook.
مشخصات
| برانډ | بیلکین |
| د ماډل شمیره | INC008btBK |
| هډوتري برسیر | Ethernet, USB-C, HDMI, USB-A |
| د بندرونو شمیر | 5 (2x USB-A, 1x HDMI, 1x USB-C PD, 1x Ethernet) |
| د USB-A بندرونه | 2x USB 3.1 Gen 1 |
| د HDMI محصول | تر 4K @ 60Hz پورې |
| د USB-C بریښنا تحویلي | Up to 86W to host (100W pass-through minus 15W for adapter) |
| ایترنیټ | Gigabit Ethernet (1 Gbps) |
| مطابقت لرونکې وسیلې | Laptops (Chromebooks, Chrome OS devices) |
| عملیاتي سیسټم | کروم OS |
| مواد | پلاستیک |
| د توکي ابعاد (L x W x H) | 5.91" x 0.50" x 30.31" (approximate, based on provided data) |
| د توکي وزن | 0.12 کیلوګرامه |
تضمین او ملاتړ
د تضمین معلوماتو او تخنیکي ملاتړ لپاره، مهرباني وکړئ رسمي بیلکین ته مراجعه وکړئ website or contact Belkin customer service. Product registration may be available for extended warranty benefits.
