1. پیژندنه
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your KATOOL KT-T850 Tire Changer Machine and KATOOL KT-B760 Wheel Balancer. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.
شکل 1.1: The KATOOL KT-T850 Tire Changer and KT-B760 Wheel Balancer machines.
2. د خوندیتوب معلومات
Always adhere to the following safety guidelines when operating the KATOOL KT-T850 Tire Changer and KT-B760 Wheel Balancer:
- د کارولو دمخه پدې لارښود کې ټولې لارښوونې او اخطارونه ولولئ او پوه شئ.
- مناسب شخصي محافظتي تجهیزات (PPE) واغوندئ، په شمول د خوندیتوب عینکې، دستکشې، او د اوریدلو محافظت.
- Ensure the equipment is placed on a level, stable surface and properly secured.
- Keep hands, feet, and clothing clear of moving parts.
- د هر ډول ساتنې یا سمون ترسره کولو دمخه بریښنا قطع کړئ.
- که چیرې کومې برخې زیانمنې یا ورکې وي، ماشین مه چلوئ.
- Ensure adequate ventilation when working with tires, especially during bead seating.
- یوازې روزل شوي پرسونل باید دا تجهیزات پرمخ بوځي.
3. محصول ختم شوview
3.1 KATOOL KT-T850 Tire Changer
The KATOOL KT-T850 is a professional-grade tire changer designed for efficient tire mounting and demounting. It features a robust construction and user-friendly design.
شکل 3.1: The KATOOL KT-T850 Tire Changer.
- Clampد لړۍ لړۍ: بهر کلیamp: 14-26 inches; Inside clamp: 16-28 انچه.
- Tilt-Back Design: Provides convenience for larger tires and easier access.
- Mounting Head: Constructed from stainless steel with solution treatment and interface polishing, includes a plastic cover for rim protection.
- د مڼو د مچیو وهونکی: Integrated bead blast seater with a post tank for efficient bead seating.
- د مرغۍ ماتونکی: Features a 186mm stainless steel bead breaker cylinder.
- Assist Arm: Improved assist arm and fixture for enhanced operation.
- بیلچه: Larger universal shovel for various tire types.
- د ډیسک اندازه: Bigger 28-inch disk.
شکل 3.2: Key features of the KATOOL KT-T850 Tire Changer, including the assist arm, pedals, and mounting head.
3.2 KATOOL KT-B760 Wheel Balancer
The KATOOL KT-B760 is an automatic measurement wheel balancer designed for precise wheel balancing, ensuring smooth vehicle operation.
شکل 3.3: The KATOOL KT-B760 Wheel Balancer.
- اتومات اندازه کول: Features an automatic measurement ruler for inputting A and D values.
- ساختمان: Body constructed from 3mm thick steel for high strength and minimal vibration.
- موټروان: Top-level motor with pure copper winding for power, fast heat dissipation, and extended lifespan.
- شافټ: Longer shaft accommodates wider wheels.
4. ترتیب کول
Proper setup is crucial for the safe and effective operation of your KATOOL equipment. It is recommended that setup be performed by qualified personnel.
4.1 پیک کول او تفتیش کول
- Carefully unpack all components from the shipping crates.
- Inspect both the KT-T850 Tire Changer and KT-B760 Wheel Balancer for any signs of shipping damage. Report any damage to the carrier immediately.
- Verify that all parts listed in the packing list are present. The package includes the tire changer machine and the wheel balancer machine.
4.2 ځای پرځای کول
- Choose a level, solid concrete floor capable of supporting the weight of the machines and the tires/wheels being serviced.
- Ensure sufficient clearance around both machines for safe operation and maintenance.
- Position the machines away from flammable materials and sources of moisture.
4.3 Electrical and Air Connections
- Connect the power cords of both machines to appropriate grounded electrical outlets as specified in the electrical requirements section (refer to specifications).
- For the KT-T850 Tire Changer, connect a compressed air supply line to the designated inlet. Ensure the air supply meets the required pressure and flow rates.
4.4 ابتدايي چکونه
- Before first use, check all fasteners for tightness.
- Lubricate moving parts as indicated in the maintenance section.
- Perform a functional test of all controls and movements without a tire or wheel.
5. عملیاتي لارښوونې
5.1 KATOOL KT-T850 Tire Changer Operation
Follow these steps for safe and effective tire changing:
- Prepare the Wheel: Remove any old balance weights and valve stem. Deflate the tire completely.
- څرخ ځای په ځای کړئ: Place the wheel on the turntable.
- Clamp the Wheel: Use the foot pedal to activate the clamps. Ensure the wheel is securely clamped. The machine supports outside clamping from 14-26 inches and inside clamping from 16-28 inches.
- Break the Bead: Position the bead breaker shovel against the tire sidewall, close to the rim. Use the foot pedal to activate the bead breaker cylinder, pushing the bead away from the rim. Repeat for both sides of the tire.
- Demount the Tire:
- Lubricate the tire beads and rim edges.
- Swing the mounting arm into position. The tilt-back design allows for easy adjustment.
- Engage the mounting head under the top bead.
- Rotate the turntable using the foot pedal to demount the top bead.
- Repeat for the bottom bead.
- Mount the Tire:
- Lubricate the new tire beads and rim edges.
- Position the bottom bead over the mounting head.
- Rotate the turntable to mount the bottom bead.
- Position the top bead over the mounting head. Use the assist arm for stiff sidewalls or low-profile ټایرونه
- Rotate the turntable to mount the top bead.
- Bead Seating: Use the integrated bead blast seater to quickly inflate the tire and seat the beads. Ensure the tire is properly seated before full inflation.
- ټایر انفلایټ کړئ: Inflate the tire to the manufacturer's recommended pressure.
شکل 5.1: Adjusting the angle and operating pedals on the KT-T850 Tire Changer.

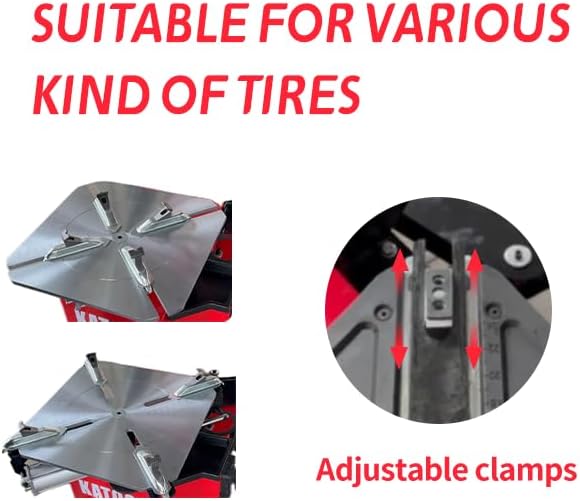

شکل 5.2: د تنظیم وړ clamps of the KT-T850 Tire Changer, suitable for various tire types.
5.2 KATOOL KT-B760 Wheel Balancer Operation
Follow these steps for accurate wheel balancing:
- څرخ پورته کړئ: Securely mount the wheel onto the balancer's shaft using the appropriate cone and quick-release nut.
- د معلوماتو داخلول: Use the automatic measurement ruler to input the wheel's A (distance), D (diameter), and W (width) values. The machine will automatically detect and input A and D values.
- د اندازه کولو پیل: Close the wheel guard (if applicable) or press the START button to initiate the spin cycle.
- پایلې ولولئ: The display will show the required weight amounts and their precise locations on both the inner and outer sides of the rim.
- Apply Weights: Attach the correct balance weights to the indicated positions on the rim.
- Re-spin (Check Balance): Spin the wheel again to verify the balance. If the display shows zero or minimal imbalance, the wheel is balanced.
- څرخ لرې کړئ: Once balanced, remove the wheel from the balancer.
6. ساتنه
Regular maintenance ensures the longevity and optimal performance of your KATOOL equipment.
- ورځنی: Clean both machines of tire debris, dust, and grease. Inspect air lines and electrical cords for damage.
- اونیزه: Lubricate all pivot points and moving parts on the tire changer (e.g., clamping jaws, bead breaker pivot, mounting arm) with appropriate grease. Check air pressure and filter/lubricator levels.
- میاشتنی: Inspect all bolts and fasteners for tightness. Check for wear on plastic rim protectors and replace if necessary. Calibrate the wheel balancer if accuracy issues are observed (refer to specific balancer calibration instructions, usually found in a separate technical manual).
- په کلني ډول: Have a qualified technician inspect and service both machines.
مهم: Always disconnect power and air supply before performing any maintenance.
7. ستونزه حل کول
This section addresses common issues you might encounter. For problems not listed here, contact KATOOL support.
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| KT-T850: ماشین نه چالانېږي. | د برېښنا نشتوالی؛ د سرکټ بریکر ټکر شوی؛ خراب سویچ. | Check power cord connection; reset circuit breaker; contact service. |
| KT-T850: Clamps not holding wheel securely. | Low air pressure; worn clamping jaws; debris in jaws. | Check air supply; clean jaws; replace worn jaws. |
| KT-T850: Bead breaker not effective. | Low air pressure; improper positioning; worn cylinder seals. | Check air supply; reposition tire/shovel; contact service for seal replacement. |
| KT-B760: Inaccurate balance readings. | Improper wheel mounting; incorrect data input; machine out of calibration. | Re-mount wheel correctly; verify data input; perform calibration. |
| KT-B760: Machine does not spin. | No power; safety guard open; motor issue. | Check power; ensure guard is closed; contact service. |
8. مشخصات
Key specifications for the KATOOL KT-T850 Tire Changer and KT-B760 Wheel Balancer:
| فیچر | مشخصات |
|---|---|
| جوړونکی | KATOOL |
| د ماډل شمیرې | KT-T850 (Tire Changer), KT-B760 (Wheel Balancer) |
| Tire Changer Outside Clamp | ۲۳ - ۶۵ انچه |
| Tire Changer Inside Clamp | ۲۳ - ۶۵ انچه |
| Tire Changer Disk Size | 28 انچه |
| Tire Changer Bead Breaker Cylinder | ۱.۵ ملي متره سټینلیس سټیل |
| Wheel Balancer Measurement | Automatic A and D values input |
| Wheel Balancer Body Material | 3mm thickness steel |
| Wheel Balancer Motor | Pure copper winding |
| د بریښنا اړتیاوې | د ځانګړي حجم لپاره د محصول لیبل ته مراجعه وکړئtage او ampزمانه |
| Air Supply (Tire Changer) | Refer to product label for specific pressure requirements. |
9. تضمین او ملاتړ
For specific warranty information regarding your KATOOL KT-T850 Tire Changer and KT-B760 Wheel Balancer, please refer to the documentation included with your purchase or contact the seller directly. KATOOL products are manufactured by Rainier Engineering, Ltd.
For technical support, parts, or service inquiries, please contact your authorized KATOOL dealer or Rainier Engineering, Ltd. customer service. Contact information can typically be found on the product packaging or the official KATOOL webسایټ
پلورونکی: Rainier Engineering, LTD
