1. پیژندنه
The BSIDE X1A is a compact and intelligent digital multimeter pen designed for efficient and safe electronic parameter detection. This device offers multiple measurement functions including DC/AC voltage, resistance, and frequency, making it an essential tool for electricians, hobbyists, and DIY enthusiasts. Its pen-type design ensures portability and ease of use in various working environments.
2. د خوندیتوب معلومات
مهرباني وکړئ د دې وسیلې کارولو دمخه د خوندیتوب ټول اخطارونه او عملیاتي لارښوونې ولولئ او پوه شئ. د دې لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور، یا جدي ټپي کیدو لامل شي.
- Always select the correct function and measurement range for your task.
- Do not exceed the maximum input value specified for each measurement range.
- When the meter is connected to a circuit, avoid touching the metallic parts of the test leads.
- کله چې د حجم اندازه کولtages above 60V DC or 30V AC (RMS), always keep your fingers behind the finger guards on the test probes.
- د حجم اندازه کولو هڅه مه کوئtage if the terminal voltage د 500V DC یا 500V AC څخه ډیر وي.
- Before changing measurement functions, ensure the test leads are disconnected from the circuit under test.
- Never measure resistance or continuity on live circuits. Ensure the circuit is de-energized to prevent damage to the meter or injury.
- Do not operate the instrument near explosive gases, vapors, or dust.
- Discontinue use immediately if any abnormality or malfunction is observed.
- Ensure the bottom case and battery cover are securely fastened before operating the meter.
- Avoid storing or using the meter in direct sunlight, high temperatures, or high humidity.
3. د بسته محتويات
ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي. که کوم توکي ورک یا زیانمن شوي وي، مهرباني وکړئ له خپل پرچون پلورونکي سره اړیکه ونیسئ.
- 1 x BSIDE X1A Digital Multimeter Pen
- ۱ x د ټیسټ لیډ سیټ (سور او تور)
- 1 x د کارونکي لارښود
- 1 x سکرو ډرایور (د بیټرۍ کڅوړې لپاره)
- 1 x د ذخیره کولو کڅوړه

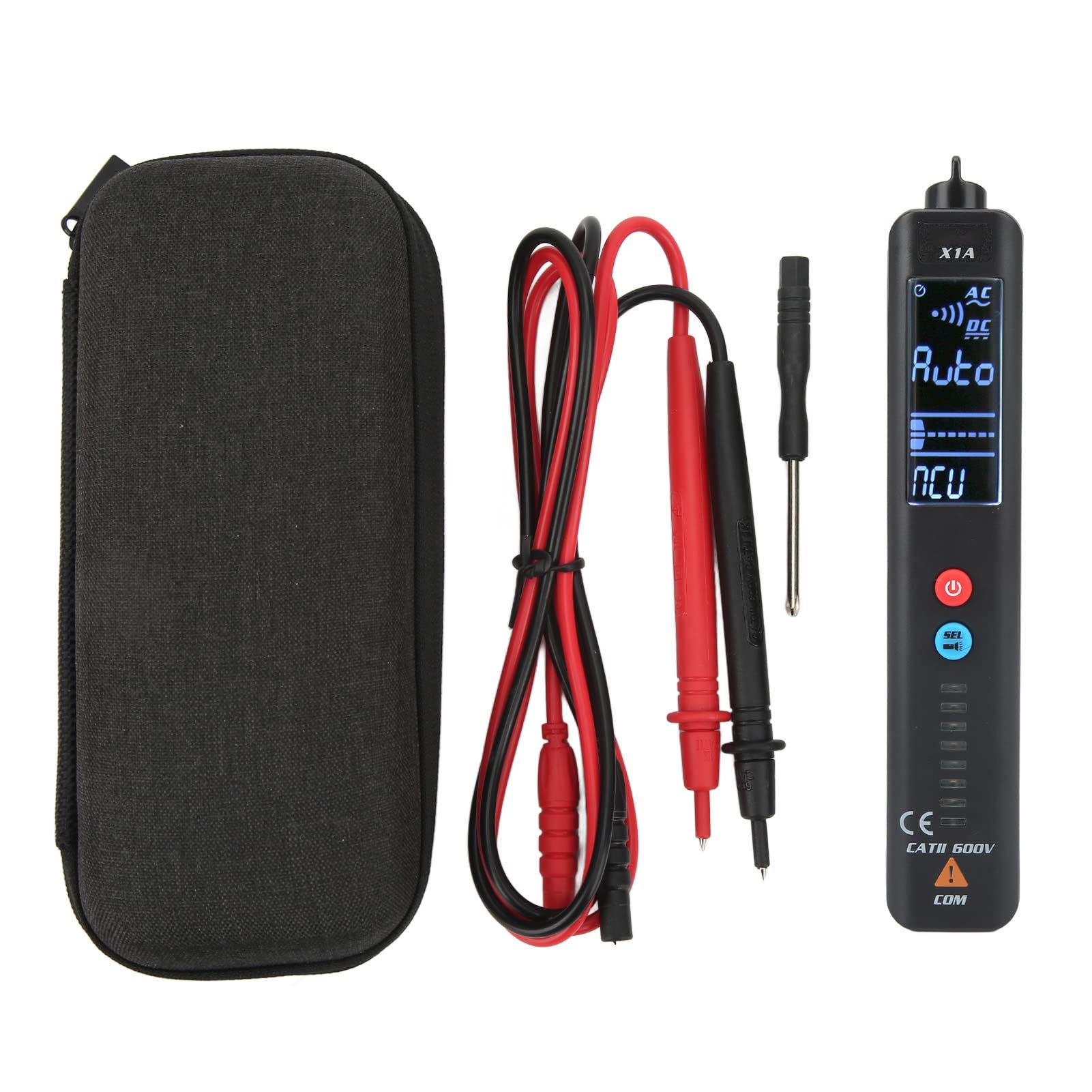

Image 3.1: Complete package contents of the BSIDE X1A Digital Multimeter Pen, including the pen meter, test leads, screwdriver, and storage bag.
4. محصول ختم شوview
The BSIDE X1A features a clear digital display and intuitive controls for various electrical measurements.
- اضطراري فلش لائټ: Equipped with a built-in flashlight for improved visibility in low-light conditions, enhancing safety during night work.
- څو اړخیزه اندازه کول: Supports various measurements including voltage, resistance, and frequency to meet diverse testing needs.
- پورټ ایبل او کمپیکٹ: Its pen-type design makes it easy to carry and suitable for most work environments.
- دوامدار ساختمان: Made from high-quality ABS material, providing impact resistance, scratch resistance, and environmental friendliness.
انځور 4.1: مخکی view of the BSIDE X1A Digital Multimeter Pen, highlighting the display, power button, and mode selection button.
5. ترتیب کول
5.1 د بیټرۍ نصب کول
The BSIDE X1A requires two 1.5V AAA batteries for operation.
- Locate the battery compartment cover on the back of the multimeter pen.
- Use the provided screwdriver to loosen the screw securing the battery cover.
- د بیټرۍ پوښ لرې کړئ.
- Insert two 1.5V AAA batteries, ensuring correct polarity (+ and -).
- د بیټرۍ پوښ بدل کړئ او پیچ په خوندي ډول ټینګ کړئ.
6. عملیاتي لارښوونې
۸ پاور آن/بند
Press and hold the red power button (U) د وسیله د فعالولو یا بندولو لپاره.
6.2 د حالت انتخاب
The BSIDE X1A operates in two main modes. Press the blue 'SET' button to cycle through available measurement functions (e.g., Voltage, Resistance, Frequency, NCV).
۴.۳ د DC/AC حجم اندازه کولtage
- ملټي میټر چالان کړئ.
- مناسب حجم غوره کړئtage measurement mode (DC V or AC V) using the 'SET' button. The display will indicate the selected mode.
- Connect the red test lead to the positive (+) terminal of the circuit and the black test lead to the negative (-) terminal or ground.
- ټوک ولولئtage ارزښت په سکرین کې ښودل شوی.
6.4 د مقاومت اندازه کول
- د مقاومت اندازه کولو دمخه ډاډ ترلاسه کړئ چې سرکټ غیر انرژي شوی دی.
- Turn on the multimeter and select the resistance measurement mode (Ω).
- Connect the test leads across the component or circuit section where resistance is to be measured.
- په سکرین کې ښودل شوي مقاومت ارزښت ولولئ.
6.5 د فریکونسی اندازه کول
- Turn on the multimeter and select the frequency measurement mode (Hz).
- Connect the test leads to the circuit where frequency is to be measured.
- Read the frequency value displayed on the screen.
6.6 غیر اړیکه والیومtage (NCV) کشف
د NCV فعالیت د AC حجم کشف کولو ته اجازه ورکويtage without direct contact. Select NCV mode and bring the tip of the multimeter close to the conductor. The device will indicate the presence of AC voltage through visual and/or audible alerts.
7. ساتنه
- پاکول: یو نرم استعمال کړئ، دamp د میټر د پاکولو لپاره ټوکرasinج. د کثافاتو پاکوونکي یا محلولونه مه کاروئ.
- د بیټرۍ بدلول: Replace batteries when the low battery indicator appears on the display to ensure accurate readings. Refer to Section 5.1 for battery installation instructions.
- ذخیره کول: کله چې د اوږدې مودې لپاره نه کارول کیږي، نو د لیکیدو مخنیوي لپاره بیټرۍ لرې کړئ. میټر په یخ او وچ ځای کې وساتئ، د مستقیم لمر وړانګو او سخت تودوخې څخه لرې.
8. ستونزه حل کول
If you encounter issues with your BSIDE X1A, refer to the following common troubleshooting steps:
- هیڅ ښودنه/بریښنا نشته: وګورئ چې بیټرۍ په سمه توګه نصب شوي او کافي چارج لري. که اړتیا وي نو بیټرۍ بدل کړئ.
- ناسم لوستل: Ensure the correct measurement function and range are selected. Check test lead connections for proper contact. Verify that the circuit is de-energized for resistance/continuity tests.
- د NCV کشف نشته: Ensure the NCV mode is active and the tip of the meter is brought sufficiently close to the AC voltage سرچینه.
- میټر ځواب نه ورکوي: هڅه وکړئ چې میټر بیا بند او چالان کړئ. که ستونزه دوام وکړي، بیټرۍ بدل کړئ.
د هغو دوامداره ستونزو لپاره چې د دې ګامونو په واسطه حل نه شي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.
9. مشخصات
| پیرامیټر | ارزښت |
|---|---|
| ماډل | X1A |
| مواد | ABS |
| DC Voltage حد | تر 500V پورې |
| AC Voltage حد | تر 500V پورې |
| د مقاومت سلسله | 0Ω تر 20MΩ |
| د فریکونسی رینج | تر 1000Hz پورې |
| د بریښنا رسول | ۶ x ۱.۵V AAA بیټرۍ (شامل نه دي) |
10. تضمین
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or contact the retailer.
11. ملاتړ
For technical assistance, product inquiries, or service requests, please contact the retailer or manufacturer's customer support. Contact information can usually be found on the product packaging or the retailer's website. When contacting support, please have your product model (X1A) and purchase details ready.
