د خوندیتوب مهم معلومات
Please read these instructions carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer. Check carefully to ensure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose not explicitly specified by the manufacturer.
- د وزن ظرفیت: Do not exceed the maximum weight capacity specified for your TV stand model. Exceeding this limit may result in instability and potential injury.
- د تلویزیون اندازه: Ensure your TV's size and VESA pattern are compatible with the stand.
- ثبات: Always ensure the stand is placed on a stable, level surface. Avoid placing the stand near edges where it could be easily knocked over.
- ماشومان: Keep children away from the TV stand during assembly. Small parts can be a choking hazard.
- وسیلې: د اسمبلۍ لارښوونو کې مشخص شوي مناسب وسایل وکاروئ.
د بسته محتويات
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact PERLESMITH customer support.
Typical Components Include:
- Base Plate (Tempered Glass or Metal)
- د ملاتړ کالم
- د تلویزیون غځولو قوسونه
- VESA Adapters (if applicable)
- د هارډویر کټ (مختلف پیچونه، واشیرونه، فاصلې)
- Assembly Tools (e.g., Hex Key)
تنظیم او نصب کول
Follow these steps for proper assembly and installation of your PERLESMITH Universal Swivel TV Stand Base.
Step 1: Assemble the Base and Support Column
- ټول اجزا په احتیاط سره خلاص کړئ او په نرم، پاک سطح باندې یې واچوئ ترڅو د سکریچونو مخه ونیول شي.
- Attach the support column to the base plate using the provided screws and tools. Ensure all connections are secure.
Image: The stand features a strong tempered glass base and a thicker support column for enhanced stability.
Step 2: Attach TV Mounting Brackets to Your Television
- د خپل تلویزیون په شا کې د VESA نصب کولو سوري وپیژنئ.
- د هارډویر کټ څخه مناسب پیچونه، واشیرونه او سپیسرونه غوره کړئ چې ستاسو د تلویزیون VESA نمونې سره سمون ولري.
- Attach the vertical TV mounting brackets to the back of your television. Ensure they are level and securely fastened. Do not overtighten.
Step 3: Mount the Television onto the Support Column
- With assistance, carefully lift your television and hook the attached mounting brackets onto the support column's mounting plate.
- د خوندیتوب پیچونو یا چمتو شوي لاک کولو میکانیزمونو په کارولو سره تلویزیون سټینډ ته خوندي کړئ.
- For model PSTVS13, assembly is designed for ease with fewer bolts required for installation.
Image: PSTVS13 features an easy assembly design, requiring only 4 bolts for fast installation compared to other models.
عملیاتي لارښوونې
سویول فعالیت
Both PSTVS13 and PSTVS09 models feature a swivel function to optimize your viewتجربه
- Gently grasp the sides of your television and rotate it to the desired angle.
- The stand allows for a swivel range of up to 30 degrees left or right (total 60 degrees).
- Avoid forcing the TV beyond its natural swivel limits.
Image: The TV stand allows for a swivel of up to 30 degrees left or right, providing flexible viewزاویې
Height Adjustment (PSTVS13 Only)
The PSTVS13 model offers multiple height adjustment positions for an elevated view.
- The PSTVS13 provides 9 different height adjustment positions, allowing for a total of 8 inches of vertical movement.
- To adjust the height, you may need to temporarily remove the TV from the stand or loosen specific bolts on the support column (refer to the detailed assembly diagram for your specific model).
- Always ensure the TV is securely re-fastened at the new height.
Image: The PSTVS13 model features a taller pillar design, offering a 15% higher elevated view compared to other stands.
ساتنه
منظم ساتنه ستاسو د تلویزیون سټینډ د اوږد عمر او خوندي فعالیت ډاډمن کولو کې مرسته کوي.
- پاکول: Use a soft, dry cloth to clean the stand. For stubborn marks on the glass base, a mild glass cleaner can be used, applied to the cloth first, not directly to the stand. Avoid abrasive cleaners or solvents.
- اړیکې چیک کړئ: Periodically check all screws and bolts to ensure they remain tight. Loose connections can compromise stability.
- معاینه: Inspect the stand for any signs of wear, damage, or corrosion. If any issues are found, discontinue use and contact customer support.
د ستونزو حل کول
که تاسو د خپل تلویزیون سټینډ سره ستونزې سره مخ شئ، لاندې عام ستونزو او حلونو ته مراجعه وکړئ.
Problem: TV is not stable or wobbles.
- حل لاره: Ensure all assembly screws are tightened securely. Verify the stand is on a flat, level surface. Check that the TV's weight and VESA pattern are within the stand's specifications.
Problem: TV does not fit the mounting brackets.
- حل لاره: Confirm your TV's VESA pattern (distance between mounting holes) matches the stand's compatibility. Ensure you are using the correct screws and spacers for your TV model.
Problem: Difficulty with swivel function.
- حل لاره: Ensure no cables are obstructing the swivel mechanism. Do not force the TV; the swivel is designed for smooth, controlled movement.
مشخصات
Detailed specifications for PERLESMITH Universal Swivel TV Stand Bases.
| فیچر | د PSTVS13 | د PSTVS09 |
|---|---|---|
| د مطابقت وړ تلویزیون اندازه | ۱۲.۶" - ۳۸.۲" | ۱۲.۶" - ۳۸.۲" |
| د اعظمي بار ظرفیت | ۱۱.۵۷ پونډه (۵.۲۵ کیلو ګرامه) | ۱۱.۵۷ پونډه (۵.۲۵ کیلو ګرامه) |
| VESA Compatibility (mm) | 200x100, 200x200, 300x200, 300x300, 400x300, 400x400, 600x200, 600x400 | 100x100, 200x100, 200x200, 200x300, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400 |
| د انګړ سلسله | ±۳۵° (ټولټال ۷۰ درجې) | ±۳۵° (ټولټال ۷۰ درجې) |
| د لوړوالی سمون | 9 positions, 8" total movement | Not applicable (fixed height) |
| مواد | Alloy Steel, Tempered Glass Base | |
| رنګ | تور | |

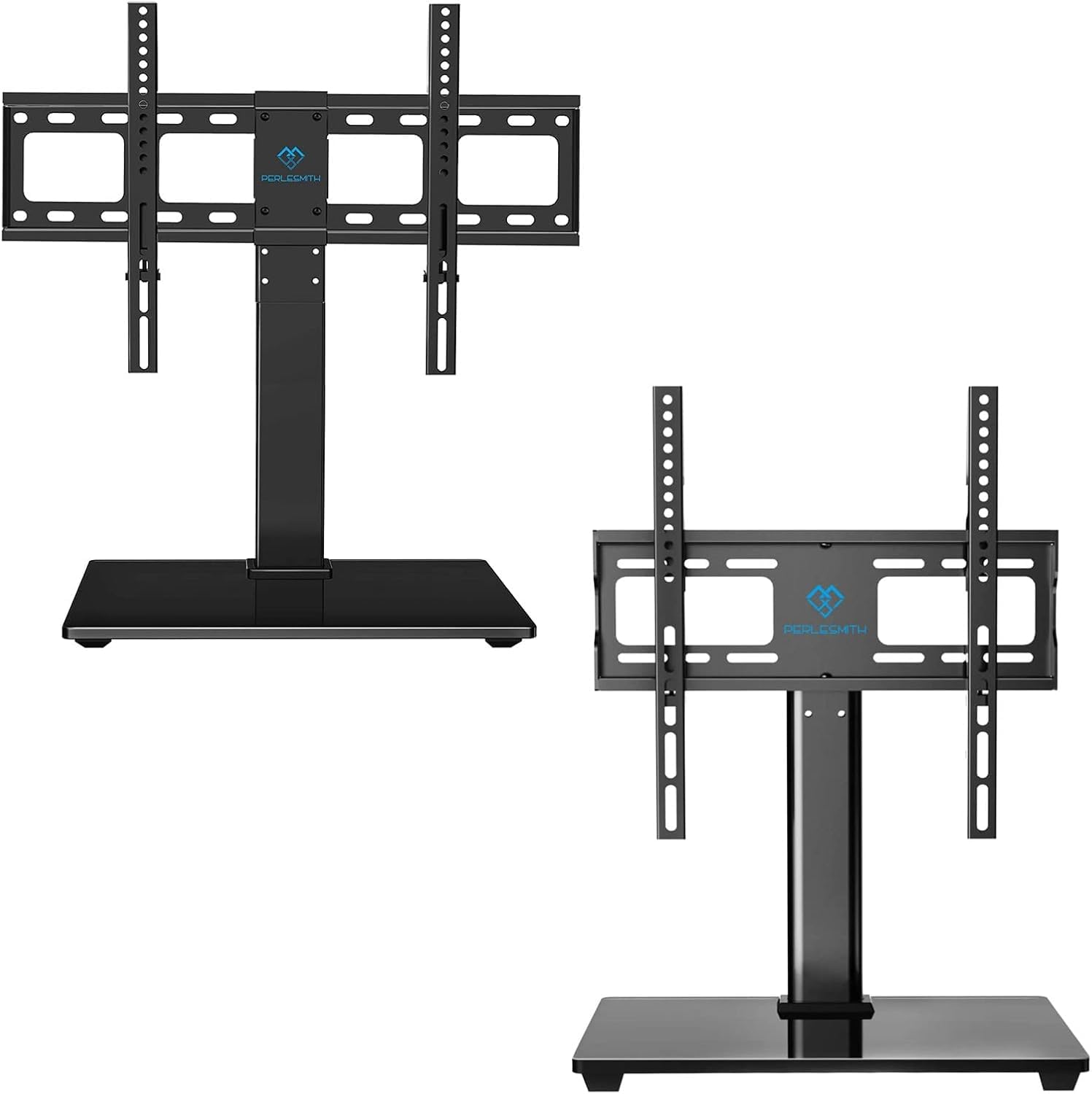

Image: PSTVS13 compatibility for 37"-75" TVs, max 99 lbs, and various VESA patterns.
Image: PSTVS09 compatibility for 32"-60" TVs, max 88 lbs, and various VESA patterns.
Image: The stand has passed a 4X load capacity test, demonstrating sturdy TV support.
د تضمین معلومات
PERLESMITH products are manufactured with quality and care. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official PERLESMITH webد تضمین د تفصيلي شرایطو او مقرراتو لپاره سایټ.
د پیرودونکي ملاتړ
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact PERLESMITH customer support. Our team is available to help you.
- Webسایټ: Visit the official PERLESMITH webد FAQs، محصول معلوماتو، او د اړیکو اختیارونو لپاره سایټ.
- بریښنالیک: د خپل محصول بسته بندۍ یا PERLESMITH ته مراجعه وکړئ webد پیرودونکو خدماتو بریښنالیک پتې لپاره سایټ.
- تلیفون: Contact numbers may be available on the PERLESMITH webسایټ یا محصول اسناد.
