د LOKITHOR J1000 جمپ سټارټر کارونکي لارښود

1. محصول ختم شوview

The LOKITHOR J1000 is a powerful and compact 12V jump starter designed for emergency vehicle starting. It features advanced LiFePO4 battery technology, ensuring safety and extended lifespan. This device is capable of delivering 1000A starting current, suitable for gasoline engines up to 6.0L and diesel engines up to 3.0L. It also functions as a portable power bank with 60W two-way fast charging capabilities.

Image 1.1: The LOKITHOR J1000 Jump Starter in use, connected to a car battery. The display shows battery voltage او حالت.

کلیدي ځانګړتیاوې:

• لوړ فعالیت: 1000A starting current for up to 6.0L gas and 3.0L diesel engines.
• د LiFePO4 بیټرۍ: Utilizes Lithium Iron Phosphate technology for enhanced safety, stability, and a longer cycle life (2000 cycles).
• سمارټ ټیکنالوژي: Integrated BMS (Battery Management System) provides 10 types of protection, including spark-proof, mistake-proof, and reverse-polarity protection.
• چټک چارج کول: 60W two-way fast charging allows a full charge in approximately 25 minutes, and a 3-minute charge can provide enough power for a jump start.
• دوامدار ډیزاین: IP65 water-resistant and 94V0 flame retardant enclosure for robust performance in various conditions.
• اوږد مهاله وخت: Maintains charge for up to 24 months on a single full charge.

۲. په بکس کې څه دي؟

د کڅوړې د پرانیستلو پر مهال، مهرباني وکړئ ډاډ ترلاسه کړئ چې لاندې ټول توکي شتون لري:

• LOKITHOR J1000 Portable Lithium Car Battery Jump Starter Unit
• LO-CLAMP-Pro (Smart Jumper Cables)
• د 12V موټر اډاپټر
• د کارن لارښود
• USB-C ته USB-C کیبل
• USB-A ته USB-C کیبل

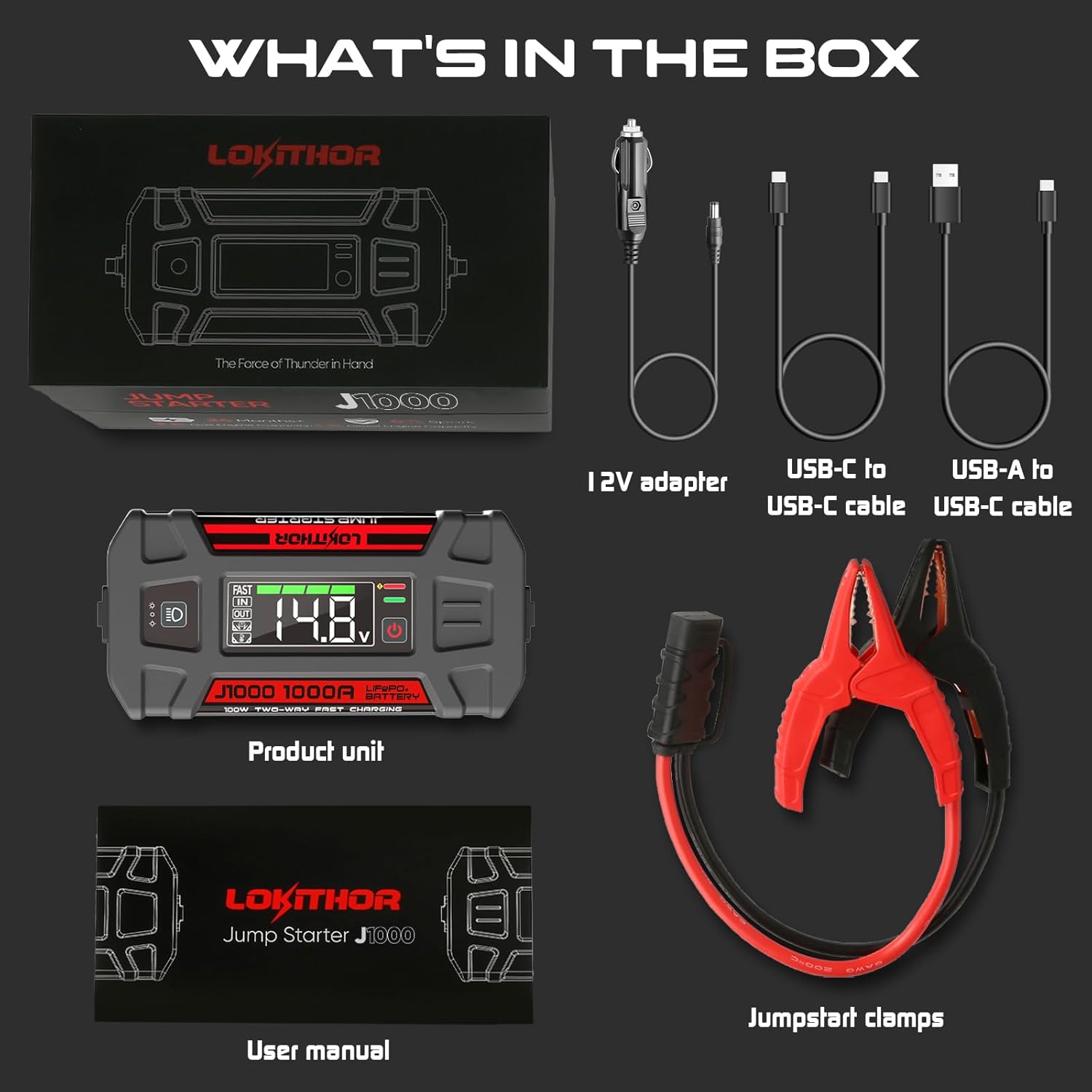

Image 2.1: A visual representation of all items included in the LOKITHOR J1000 Jump Starter package, including the main unit, jumper cables, cables, and adapter.

3. تنظیم او چارج کول

3.1 ابتدايي چارج

Before first use, fully charge the LOKITHOR J1000. The device comes with a partial charge, but a full charge ensures optimal performance and readiness for emergencies.

3.2 Charging the J1000

The J1000 supports 60W two-way fast charging via its USB-C port. Use the provided USB-C to USB-C cable and a compatible 60W (or higher) USB-C power adapter (not included) for the fastest charging. Alternatively, you can use the 12V car adapter.

1. Connect one end of the USB-C cable to the J1000's USB-C input/output port.
2. Connect the other end of the USB-C cable to a suitable power source (e.g., wall adapter, car adapter).
3. The display will indicate charging status. A full charge typically takes about 25 minutes with a 60W charger.

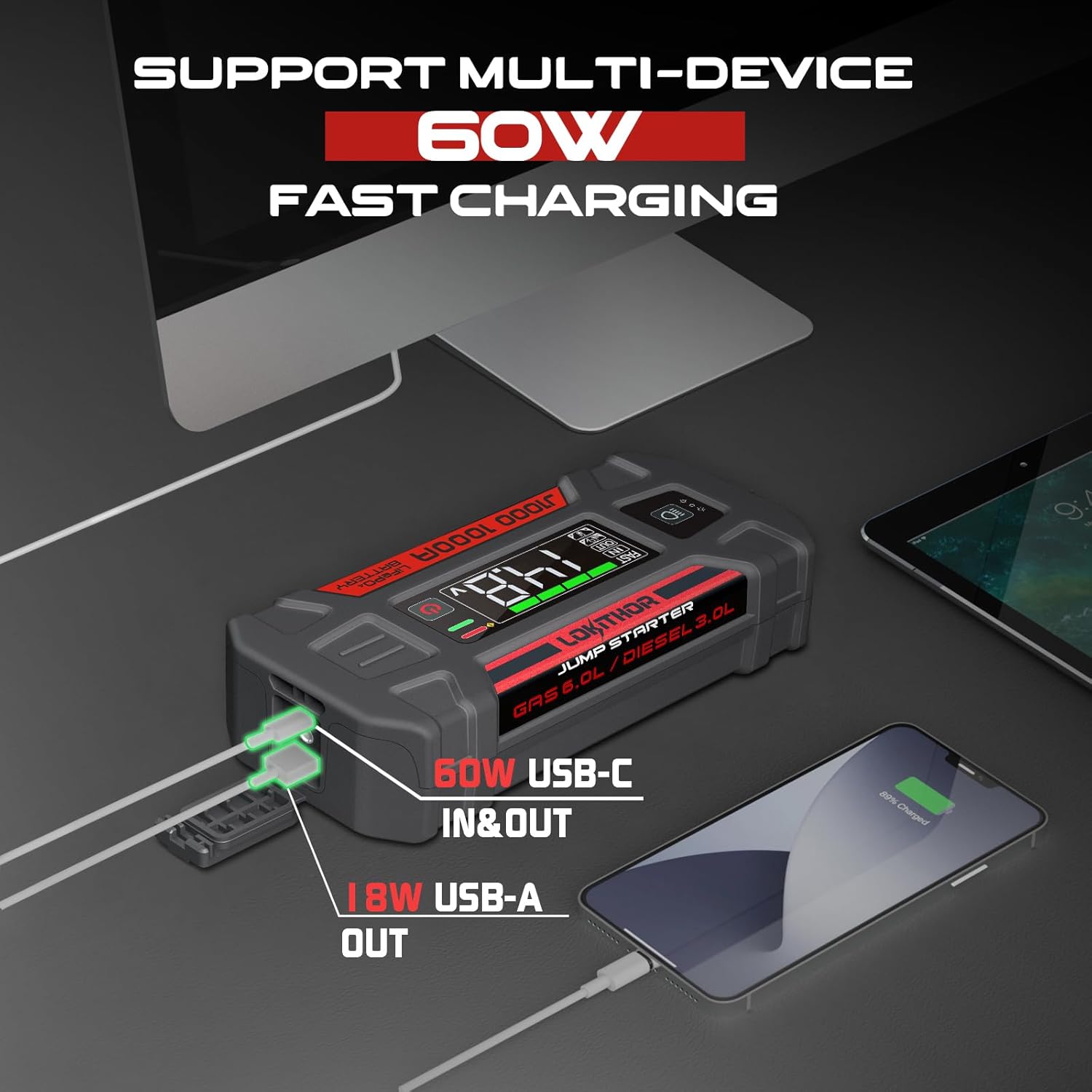

Image 3.1: The LOKITHOR J1000 Jump Starter connected via its USB-C port for 60W fast charging, demonstrating its power bank capabilities for other devices.

4. عملیاتي لارښوونې

4.1 Jump Starting a Vehicle (Normal Start)

Use this method when the vehicle battery voltage د 8V څخه پورته دی.

1. Ensure the J1000 is sufficiently charged.
2. Connect the LO-CLAMP-Pro jumper cable harness into the jump starter's port.
3. سور cl ضمیمه کړئamp د موټر د بیټرۍ مثبت (+) ترمینل ته.
4. تور cl ضمیمه کړئamp د موټر د بیټرۍ منفي (-) ترمینل ته.
5. Observe the J1000's display. Wait for the green light indicator to come on and start flashing, indicating it's ready to start.
6. خپل موټر پیل کړئ.
7. Once the vehicle starts, immediately remove the jumper cables from the vehicle battery, then disconnect them from the J1000.

4.2 Jump Starting a Vehicle (Force Start)

Use this method when the vehicle battery voltage is below 8V or if the normal start fails.

1. Ensure the J1000 is sufficiently charged.
2. Connect the LO-CLAMP-Pro jumper cable harness into the jump starter's port.
3. سور cl ضمیمه کړئamp د موټر د بیټرۍ مثبت (+) ترمینل ته.
4. تور cl ضمیمه کړئamp د موټر د بیټرۍ منفي (-) ترمینل ته.
5. Long press the Power Button and the LED Button simultaneously on the J1000. The display will show a specific indicator for force start mode.
6. Start your vehicle within 30 seconds.
7. Once the vehicle starts, immediately remove the jumper cables from the vehicle battery, then disconnect them from the J1000.

Image 4.1: A visual guide illustrating the three steps for both Normal Start (for batteries above 8V) and Force Start (for batteries below 8V) using the LOKITHOR J1000.

۶.۳ د پاور بانک په توګه کارول

The J1000 can charge various electronic devices via its USB-A (18W output) and USB-C (60W two-way) ports.

1. Connect your device to the appropriate USB-A or USB-C port on the J1000 using a compatible charging cable.
2. The J1000 will automatically begin charging your device.

۴.۶ د LED فلش لائټ فعالیت

The J1000 includes an integrated LED flashlight with multiple modes.

• Press the LED button once to turn on the flashlight.
• Press again to cycle through modes: Flashlight, Strobe, SOS.
• Press and hold the LED button to turn off the flashlight.

۷. د خوندیتوب معلومات او محافظتونه

The LOKITHOR J1000 is equipped with multiple safety features to protect both the user and the vehicle.

• د LiFePO4 بیټرۍ: Inherently safer and more stable than traditional lithium-ion batteries.
• سمارټ BMS: The intelligent Battery Management System provides comprehensive protection.
• 10 Types of Protection: په کې شامل دي ډیر حجمtage, Over Current, Over Load, High-Temp & Low-Temp, Short Circuit, Spark-Proof, Reverse-Charge, Over Charge, and Reverse-Polarity Protection.
• IP65 د اوبو په وړاندې مقاومت: Provides protection against dust and low-pressure water jets.
• 94V0 Flame Retardant: The enclosure material meets high standards for flame resistance.

Image 5.1: A visual breakdown of the 9 types of safety protection integrated into the LOKITHOR J1000's Smart BMS system, including over-voltage, over-current, and reverse-polarity protection.

6. ساتنه او ذخیره کول

6.1 عمومي ساتنه

• وسیله پاکه او وچه وساتئ. د نرم، ډ سره مسح کړئamp د اړتیا په صورت کې ټوکر.
• سخت کیمیاوي توکي او کثافات پاکونکي مه کاروئ.
• Regularly inspect cables and clamps for any damage. Replace if worn or damaged.

6.2 ذخیره کول

The J1000 has an impressive standby time of up to 24 months on a single full charge, making it ideal for long-term storage.

• Store the jump starter in a cool, dry place away from direct sunlight and extreme temperatures.
• Ensure the device is fully charged before storing for extended periods to maximize battery life.
• Periodically check the charge level, especially if stored for more than 6-12 months, and recharge if necessary.

Image 6.1: A graphic illustrating the LOKITHOR J1000's ability to maintain a charge for up to 24 months in standby mode, highlighting its low self-discharge rate.

7. ستونزه حل کول

If you encounter issues with your LOKITHOR J1000, refer to the following common problems and solutions:

For issues not listed here, please contact LOKITHOR customer service.

8. تخنیکي مشخصات

۷. تضمین او د پیرودونکو ملاتړ

9.1 د تضمین معلومات

The LOKITHOR J1000 Jump Starter comes with a 12-month limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

9.2 د پیرودونکي خدمت

For any questions, technical support, or warranty claims, please contact LOKITHOR customer service. Our support team is available 24/7 to assist you.

Please refer to the contact information provided on the LOKITHOR official webد خورا تازه ملاتړ چینلونو لپاره سایټ یا ستاسو د پیرود اسناد.
