BSIDE A1 Voltagد ټیسټر کارن لارښود

پیژندنه

The BSIDE A1 Voltage Tester is a compact and intelligent multimeter designed for a wide range of electrical measurements. It combines non-contact voltage detection with traditional multimeter functions, offering convenience and safety for both professional and home use. Its automatic identification feature simplifies operation, making it an ideal tool for various electrical tasks.

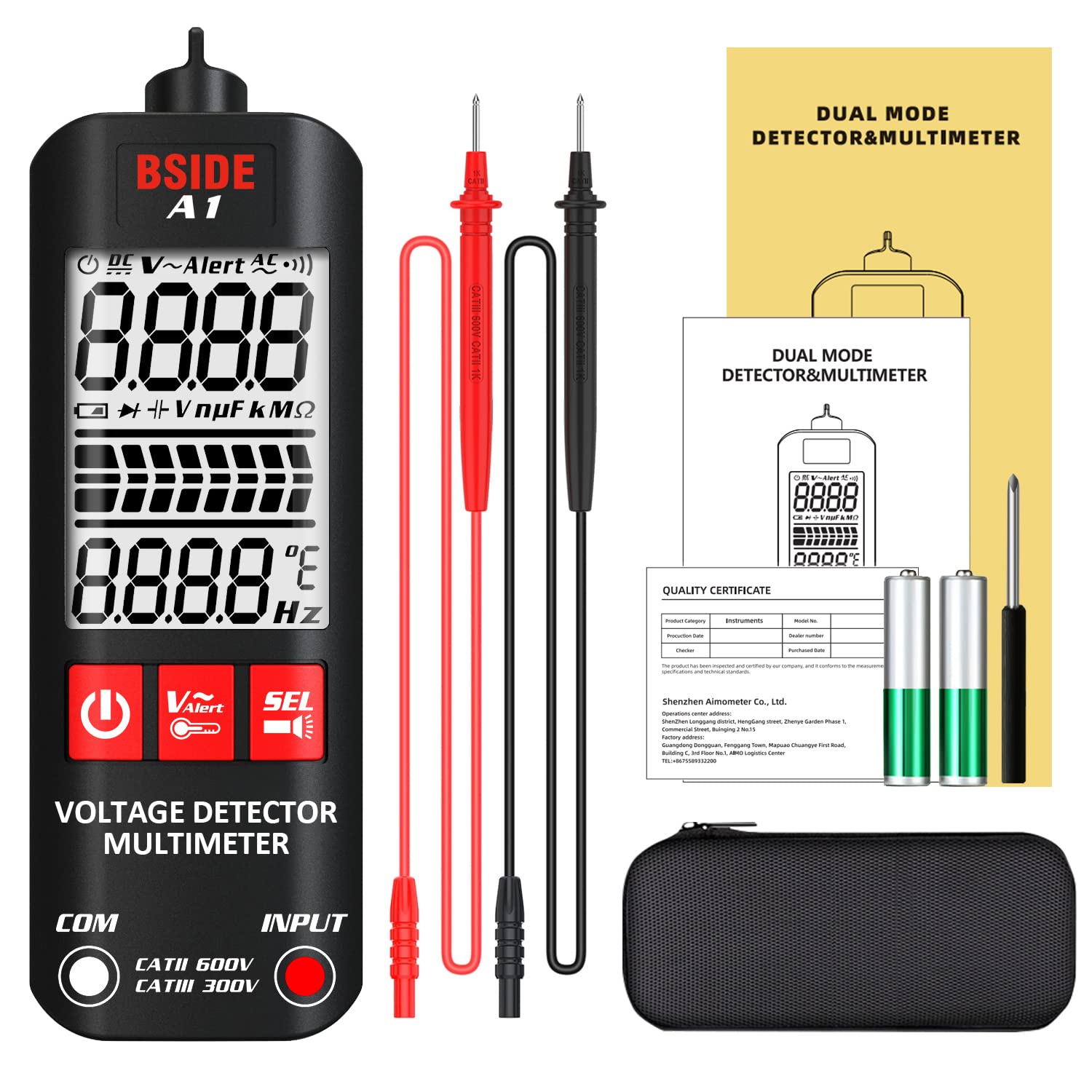

Figure 1: BSIDE A1 Voltage Tester and included accessories.

د بسته محتويات

مهرباني وکړئ د لاندې توکو لپاره په بسته کې وګورئ:

• 1 x BSIDE A1 Voltage ټیسټر
• ۲ x ټیسټ لیډونه (سور او تور)
• 2 x AAA بیټرۍ
• 1 x د بار وړلو قضیه
• 1 x سکرو ډرایور
• 1 x د کارونکي لارښود

Figure 2: All items included in the BSIDE A1 Voltage Tester package.

کلیدي ځانګړتیاوې

• Red and Green Backlight: The smart digital voltmeter features a large display screen with red and green backlight, enhancing readability.
• د کارولو لپاره اسانه: Automatic identification design allows the multimeter to automatically identify tested parameters and select the required range.
• Sensitivity Adjustable: Adjustable sensitivity makes measurements more convenient, allowing for more accurate distinction in complex circuits when set to low sensitivity.
• Triple-Mode Alarm: Provides backlight flashing, LCD display analog bar, and continuous beeping sounds when detecting AC voltage.
• د لیږد قضیه: Includes a high-quality carrying case for portability and protection.

Figure 3: The A1's display features both red and green backlighting for clear indication.

چمتو کول

د بیټرۍ نصب کول

1. د آلې په شا کې د بیټرۍ کڅوړه ومومئ.
2. Use the included screwdriver to open the battery cover.
3. دوه (2) AAA بیټرۍ دننه کړئ، د سم قطبیت ډاډ ترلاسه کړئ (+/-).
4. د بیټرۍ پوښ بدل کړئ او د سکرو سره یې خوندي کړئ.

د ټیسټ لیډونو سره وصل کول

1. تور ټیسټ لیډ د 'COM' (عام) ان پټ جیک کې دننه کړئ.
2. Insert the red test lead into the 'INPUT' jack for voltage، مقاومت، او فریکونسي اندازه کول.

عملیاتي لارښوونې

The BSIDE A1 features an intelligent auto-identification mode, simplifying most measurements. For specific functions, manual mode can be selected.

پاور آن/بند

د بریښنا ت buttonۍ فشار کړئ (U) to turn the device on or off. The device will automatically power off after a period of inactivity to conserve battery life.

د اتوماتیک حالت عملیات

In auto mode, the multimeter automatically detects and measures AC/DC voltage, resistance, and continuity. Simply connect the test leads to the circuit or component, and the device will display the appropriate reading.

Figure 4: The A1's auto mode simplifies measurement selection.

غیر اړیکه AC Voltage Detection (V-Alert)

د AC حجم کشفولو لپارهtage without direct contact, simply bring the tip of the tester near the wire or outlet. The device will indicate the presence of AC voltage through visual (backlight flashing, analog bar) and audible (beeping) alarms. This feature is ideal for quickly checking for live circuits for safety (refer to video segment 0:14-0:22).

Figure 5: Non-contact AC voltagپه عمل کې کشف.

AC Voltage او د فریکونسی اندازه کول

سور او تور ټیسټ لیډونه هغه نقطو ته وصل کړئ چیرې چې تاسو غواړئ د AC حجم اندازه کړئtage and frequency. The device will display both values simultaneously (refer to video segment 0:26-0:30).

شکل ۳: د حجم اندازه کولtage in an automotive application.

Live Wire Check

To distinguish between live and neutral wires, use the V-Alert function or the test leads. The device will provide a stronger signal (red backlight, faster beeping) for the live wire compared to the neutral wire (green backlight, slower beeping or no alarm) (refer to video segment 0:31-0:35).

Figure 7: Distinguishing a neutral wire (green backlight).

Figure 8: Distinguishing a live wire (red backlight).

د دوام ازموینه

To check for continuity, connect the test leads across the component or circuit. If the resistance is less than 30Ω, the beeper will sound, indicating continuity (refer to video segment 0:36-0:41).

د مقاومت اندازه کول

To measure resistance, ensure the circuit is de-energized. Connect the test leads across the component. The device will display the resistance value (refer to video segment 0:42-0:47).

د فلش لائټ فعالیت

The integrated LED flashlight can be activated to illuminate dark work areas. This feature is useful for working in dimly lit environments (refer to video segment 0:48-0:54).

Figure 9: The built-in flashlight provides illumination for dark work areas.

د محصول رسمي ویډیو

مشخصات

ساتنه

• پاکول: وسیله په وچ، نرم ټوکر سره پاک کړئ. د کثافاتو پاکوونکي یا محلولونه مه کاروئ.
• ذخیره کول: ملټي میټر په یخ او وچ ځای کې د مستقیم لمر وړانګو او سختو تودوخې څخه لرې وساتئ. که چیرې د اوږدې مودې لپاره ذخیره کوئ، نو د لیکیدو مخنیوي لپاره بیټرۍ لرې کړئ.
• د بیټرۍ بدلول: کله چې د ټیټ بیټرۍ شاخص په ډسپلې کې څرګند شي نو بیټرۍ بدل کړئ ترڅو دقیق لوستل ډاډمن شي.

د ستونزو حل کول

• وسیله نه فعالیږي: وګورئ چې بیټرۍ په سمه توګه نصب شوي او کافي چارج لري. که اړتیا وي نو بدل یې کړئ.
• ناسم لوستل: Ensure test leads are properly connected. Verify the device is in the correct mode (though auto-mode handles most). Check battery level.
• No V-Alert detection: Ensure the V-Alert function is active. The sensitivity might need adjustment in complex environments.
• د دوام غږ نشته: Ensure the circuit is de-energized. Check if the resistance is above 30Ω, which would not trigger the beep.

تضمین او ملاتړ

Specific warranty information is not provided in the product details. For warranty claims, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official BSIDE webسایټ
