د KIMO بریښنایی اغیزې رنچ کارونکي لارښود

1. د خوندیتوب لارښوونې

مهرباني وکړئ د دې وسیلې له چلولو دمخه د خوندیتوب ټول اخطارونه او لارښوونې ولولئ او پوه شئ. د اخطارونو او لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور، او/یا جدي ټپي کیدو لامل شي.

• د کاري ساحې خوندیتوب: Keep your work area clean and well lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating a power tool.
• بریښنایی خوندیتوب: د بریښنا د وسایلو پلګونه باید د ساکټ سره سمون ولري. هیڅکله پلګ په هیڅ ډول مه بدلوئ. د بدن د ځمکې یا ځمکې لاندې سطحو سره د تماس څخه ډډه وکړئ، لکه پایپونه، ریډیټرونه، رینجونه، او یخچالونه.
• شخصي خوندیتوب: Always wear eye protection. Use personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection when appropriate. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the tool.
• د وسایلو کارول او ساتنه: د بریښنا وسیله مه مجبوروئ. د خپل غوښتنلیک لپاره سم بریښنا وسیله وکاروئ. د هر ډول سمون کولو، لوازمو بدلولو، یا د بریښنا وسیلو ذخیره کولو دمخه د بریښنا وسیلې څخه د بیټرۍ پیک جلا کړئ. بې کاره بریښنا وسایل د ماشومانو له لاسرسي څخه لرې وساتئ او هغه خلکو ته اجازه مه ورکوئ چې د بریښنا وسیلې یا دې لارښوونو سره نا اشنا وي د بریښنا وسیله چلولو لپاره.
• د بیټرۍ وسیله کارول او ساتنه: یوازې د جوړونکي لخوا مشخص شوي چارجر سره چارج کړئ. یوازې د ځانګړي شوي بیټرۍ پیکونو سره د بریښنا وسایل وکاروئ. کله چې د بیټرۍ پیک په کارولو کې نه وي، نو دا د نورو فلزي شیانو څخه لرې وساتئ.
• خدمت: خپل د بریښنا وسیله ولرئ چې د ترمیم وړ کس لخوا یوازې د ورته ځای پرځای کولو برخو په کارولو سره خدمت وکړئ. دا به ډاډ ترلاسه کړي چې د بریښنا وسیلې خوندیتوب ساتل کیږي.

2. محصول ختم شوview

The KIMO Electric Impact Wrench QM-3603 is a versatile cordless tool designed for various fastening and drilling tasks. It features a powerful motor, multiple operating modes, and a lightweight design for enhanced usability.

2.1 د بسته محتويات

• Electric Impact Wrench Body
• 4000mAh Battery (QM-3603-4.0 Battery)
• ګړندی چارجر
• Bit Set (3 pieces)
• Wood Drill Bit Set (3 pieces)
• Metal Drill Bit Set (3 pieces)
• Adapter Socket for Drills
• Impact Sockets (15mm, 17mm, 19mm, 21mm)
• O-ring (1 piece)
• د ذخیره کولو کڅوړه
• د کارن لارښود

2.2 کلیدي ځانګړتیاوې

• Long Operation & Fast Charging: Equipped with a 20V 4000mAh lithium-ion battery, providing 20-40 minutes of continuous use and a 120-minute full charge time. Features a battery level indicator.
• Intelligent Auto-Stop Function: Prevents over-tightening and damage to bolts/nuts, ideal for tire changes. Enhances safety and extends tool lifespan.
• Three-in-One Versatility: Functions as an impact wrench, electric drill, and electric driver. Includes various impact sockets and drill bits for wood, metal, and screws.
• Optimized with 3 Modes: Auto-stop mode for safety, high-efficiency mode (0-2600rpm) for tough tasks, and power-saving mode (0-1600rpm) for delicate work and extended battery life.
• Industry-Leading Power: Delivers a maximum torque of 550 N·m, capable of loosening rusted or stubborn bolts. Suitable for automotive repair, construction, and heavy-duty tasks.
• Stepless Speed & Forward/Reverse: Adjustable speed from 0-2600rpm via trigger pressure. Forward/reverse switch for easy tightening and loosening.
• Lightweight & Illuminated Work Area: Weighs only 1.1kg for comfortable one-handed operation. Integrated LED light illuminates dark work areas.
• د ټیټ شور ډیزاین: Significantly reduces operational noise, making it suitable for use in residential areas or early morning/late night.

3. ترتیب کول

3.1 د بیټرۍ چارج کول

د لومړي کارولو دمخه ، بیټرۍ په بشپړ ډول چارج کړئ.

1. Connect the fast charger to a power outlet.
2. Insert the battery pack into the charger. The indicator light on the charger will show charging status.
3. Once fully charged (approximately 120 minutes), remove the battery from the charger.

Image: The KIMO 4000mAh battery being charged by the rapid charger. The battery features a 4-stage LED indicator for charge level.

3.2 Attaching/Detaching the Battery

1. To attach: Align the battery pack with the base of the tool and slide it in until it clicks into place.
2. To detach: Press the battery release button (usually on the side of the battery) and slide the battery out.

3.3 Installing Sockets/Bits

The impact wrench uses a 1/2" square drive.

1. ډاډ ترلاسه کړئ چې وسیله بنده ده او بیټرۍ لرې شوې ده.
2. Push the desired impact socket or bit onto the square drive until it locks securely.
3. To remove, pull back the collar (if present) or simply pull the socket/bit off firmly.

Image: The KIMO Electric Impact Wrench shown with its full set of accessories, including various sockets and drill bits.

4. عملیاتي لارښوونې

4.1 بریښنا کول / بندول

The tool is activated by pressing the trigger. Release the trigger to turn off.

4.2 د سرعت کنټرول

The tool features stepless speed control. The speed increases as you press the trigger further.

۴.۳ مخ په وړاندې/ برعکس گردش

A switch located near the trigger controls the direction of rotation.

1. For tightening (forward rotation), push the switch to the left.
2. For loosening (reverse rotation), push the switch to the right.
3. For safety, set the switch to the center position to lock the trigger and prevent accidental starting.

Image: Close-up of the KIMO Electric Impact Wrench showing the forward and reverse rotation switch, indicating how to select tightening or loosening modes.

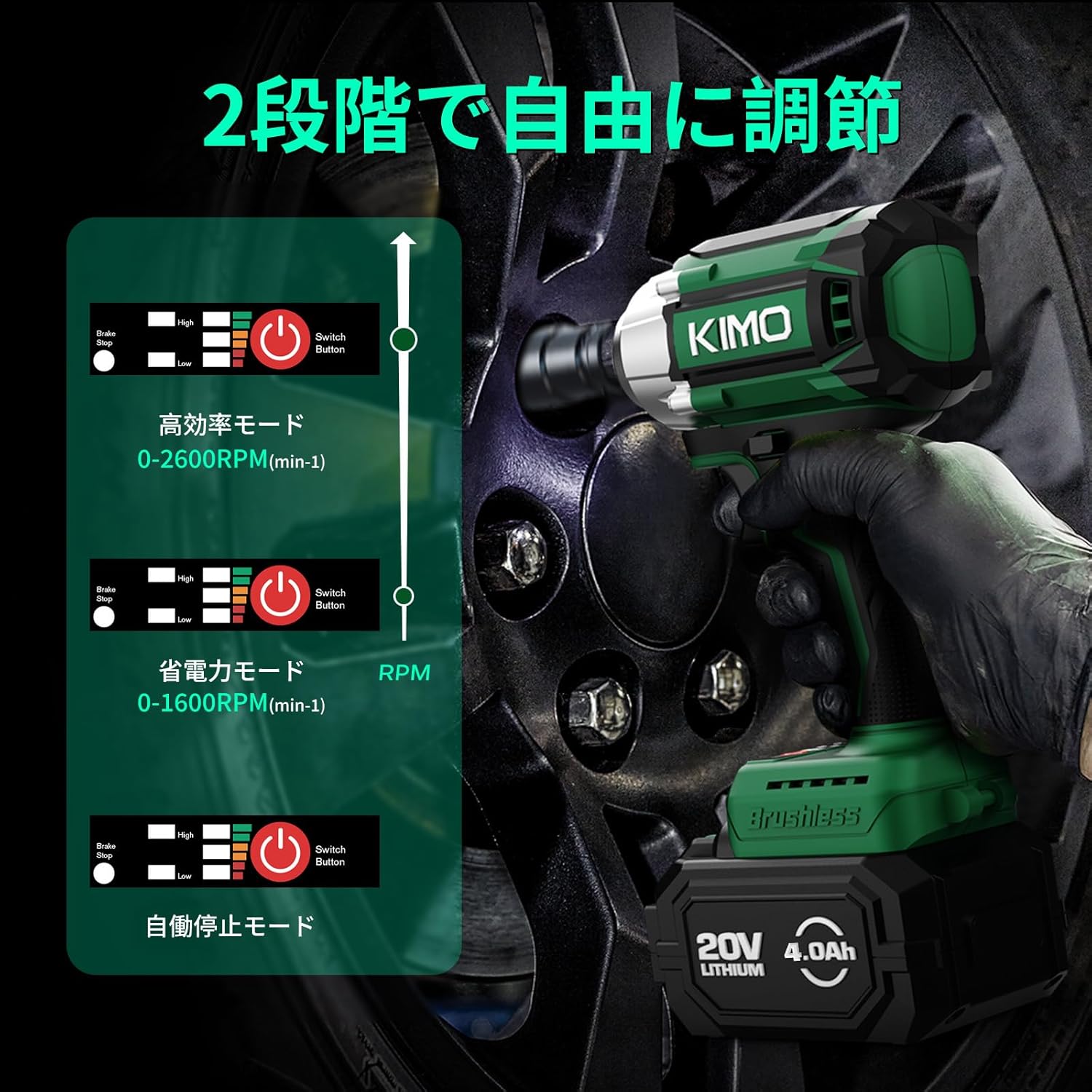

4.4 د حالت انتخاب

The tool offers three operating modes:

1. Automatic Stop Mode: When loosening, the tool automatically stops rotation once the nut/bolt is sufficiently loose to prevent it from falling off. This mode is only available in reverse rotation.
2. High-Efficiency Mode (0-2600rpm): Provides maximum power for stubborn fasteners.
3. Power-Saving Mode (0-1600rpm): Offers stable, lower speed operation, ideal for delicate tasks and extending battery life. This mode is only available in forward rotation.

Image: Diagram illustrating the three operational modes of the KIMO Electric Impact Wrench: Automatic Stop Mode, High-Efficiency Mode, and Power-Saving Mode, with their respective RPM ranges.

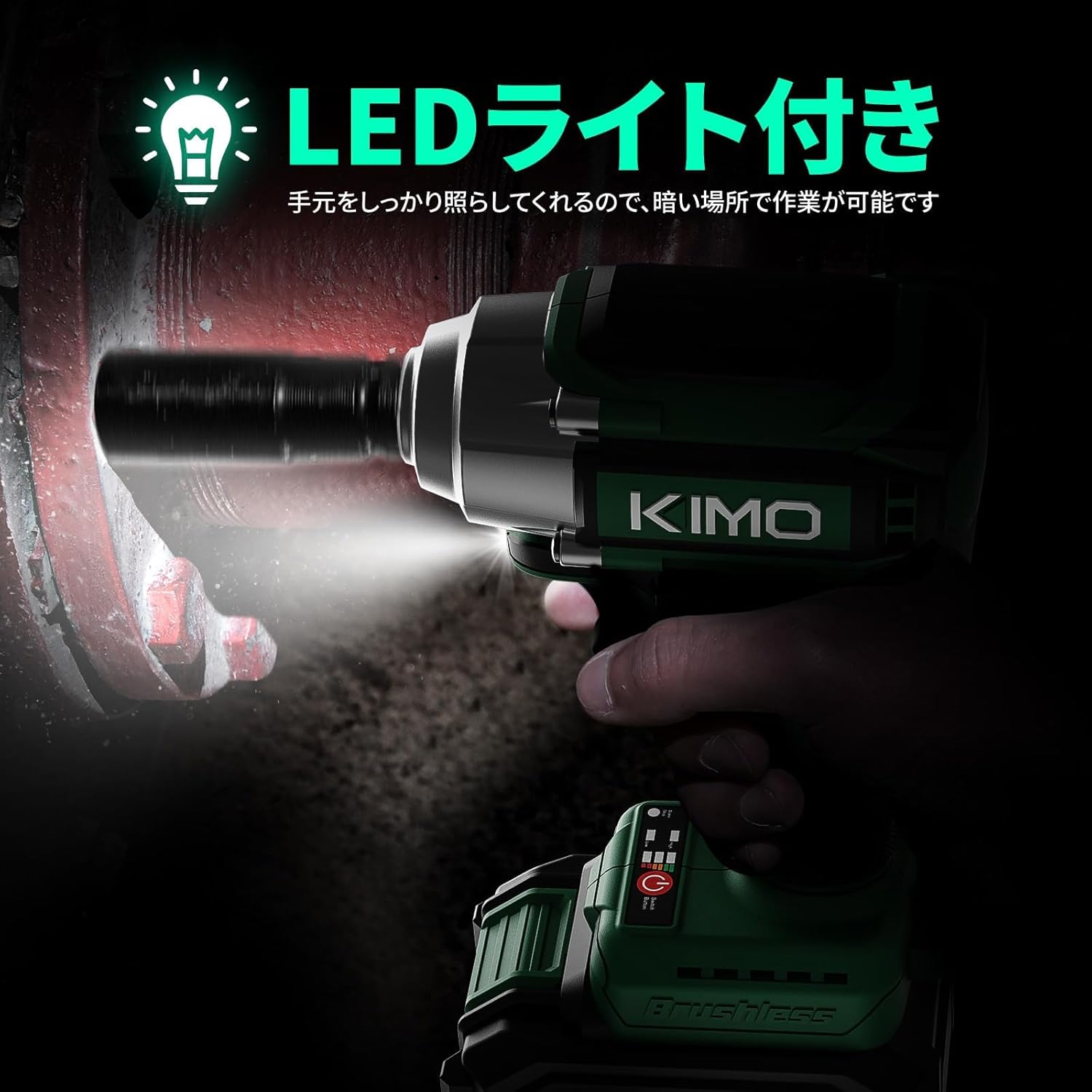

4.5 د LED څراغ کارول

The integrated LED light illuminates the work area when the trigger is pressed, improving visibility in dark or confined spaces.

Image: The KIMO Electric Impact Wrench with its LED light activated, illuminating a dark work area, demonstrating its utility in low-light conditions.

5. ساتنه

5.1 پاکول

د وسیلې د هوا د تویولو دروازې په منظم ډول پاکې کړئ ترڅو د ډیر تودوخې مخه ونیسئ. نرم، ډamp ټوکر د سختو کیمیاوي موادو یا خړوبولو پاکونکو څخه کار مه اخلئ.

5.2 د بیټرۍ پاملرنه

بیټرۍ په یخ او وچ ځای کې د مستقیم لمر وړانګو او سختې تودوخې څخه لرې وساتئ. د اوږدې مودې لپاره په بشپړه توګه خارج شوي بیټرۍ مه ساتئ.

5.3 ذخیره کول

When not in use, store the tool and accessories in the provided storage bag in a dry, secure location out of reach of children.

6. ستونزه حل کول

7. مشخصات

8. تضمین او ملاتړ

KIMO ensures that each product undergoes strict quality inspection before shipment.

If you encounter any issues with the product or have questions, please contact KIMO customer support.

For support, please refer to the contact information provided in the included user manual or visit the official KIMO webسایټ

Visit the KIMO Brand Store on Amazon د نورو معلوماتو او ملاتړ لپاره.
