MULIN Bidet Sprayer for Toilet

پیژندنه

Thank you for choosing the MULIN Bidet Sprayer. This handheld bidet sprayer is designed to provide a convenient and hygienic cleaning solution for various purposes, including personal hygiene, cloth diaper cleaning, and general bathroom tasks. Constructed from durable brushed nickel stainless steel, it offers reliable performance and easy operation. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

د محصول اجزا

The MULIN Bidet Sprayer kit includes all necessary components for installation and immediate use. Please verify that all parts listed below are present in your package.

شکل 1: Complete MULIN Bidet Sprayer Kit. This image displays all components included in the package: the handheld sprayer head, flexible hose, T-valve for water connection, and mounting accessories including screws, anchors, and plumber's tape.

• Handheld Sprayer Head: Features a comfortable grip and a lever for water flow control.
• Flexible Bidet Sprayer Hose: Connects the sprayer head to the T-valve, providing flexibility for use.
• T-Valve Adapter: Connects to your toilet's water supply line, allowing water diversion to the bidet sprayer.
• Hook Bracket: For convenient storage of the sprayer head, can be mounted on the wall or toilet tank.
• د نصبولو هارډویر: Includes screws and wall anchors for wall mounting, and plumber's tape for leak-proof connections.

شکل 2: Individual components of the bidet sprayer kit. This image shows the sprayer head, hose, T-valve, and mounting bracket with accessories separated for clear identification.

تنظیم او نصب کول

The MULIN Bidet Sprayer offers two primary mounting options: wall-mounted or toilet tank-mounted. Choose the option that best suits your bathroom setup. Ensure the main water supply to the toilet is turned off before beginning installation.

اړین اوزار (شامل نه دي):

• د تنظیم وړ رنچ
• Screwdriver (for wall mounting)

د نصبولو مرحلې:

1. د اوبو رسولو بندول: Locate the water supply valve for your toilet (usually on the wall behind or near the toilet) and turn it clockwise until the water flow stops completely. Flush the toilet to drain the tank.
2. Disconnect Toilet Supply Line: Unscrew the flexible water supply line from the bottom of your toilet tank. Have a small bucket or towel ready to catch any residual water.
3. د ټي والو نصب کړئ:
   • Apply plumber's tape (included) to the threads of the T-valve.
   • Connect the T-valve to the toilet tank's fill valve (where you just disconnected the supply line). Hand-tighten first, then use an adjustable wrench to secure, ensuring not to overtighten.
   • Connect your toilet's flexible water supply line to the bottom of the T-valve. Hand-tighten, then use a wrench to secure.
4. Connect Bidet Hose: Attach one end of the bidet sprayer hose to the side outlet of the T-valve. Hand-tighten, then use a wrench to secure.
5. Connect Sprayer Head: Attach the other end of the bidet sprayer hose to the handheld sprayer head. Hand-tighten firmly.
6. هولډر نصب کړئ:
   • Toilet Tank Mounted: Slide the hook bracket onto the edge of your toilet tank.
   • دیوال نصب: Choose a suitable location on the wall. Mark the drilling points, drill holes, insert wall anchors, and then screw the bracket firmly into place.
7. د اوبو رسولو بیا رغونه: Slowly turn the main water supply valve back on (counter-clockwise). Check all connections for leaks. If leaks occur, tighten the connections slightly.

شکل 3: Mounting Options. This image illustrates both the wall-mounted and toilet tank-mounted installation configurations for the bidet sprayer, showing how the hose and sprayer are positioned in each setup.

شکل 4: Detailed Installation Diagrams. This image provides step-by-step visual guides for both toilet tank mounted and wall mounted installations, indicating the connection points for the hand bidet, bidet holder, flexible hose, and mixer valve.

عملیاتي لارښوونې

The MULIN Bidet Sprayer is designed for ease of use with adjustable water pressure and spray modes.

د اوبو د فشار کنټرول:

The T-valve connected to your toilet's water supply line has a handle or knob that controls the water flow to the bidet sprayer. Turn this handle to adjust the water pressure from gentle to strong, according to your preference. Always ensure the T-valve is turned off when the bidet is not in use to prevent accidental leaks or pressure build-up.

Switchable Spray Modes:

The sprayer head features two distinct spray modes: Soft Spray and Jet Spray. You can switch between these modes by rotating the nozzle of the sprayer head.

• Soft Spray: Provides a gentle, wider spray, ideal for personal hygiene and delicate cleaning tasks.
• جیټ سپری: Delivers a more focused, powerful stream, suitable for stubborn cleaning, such as rinsing cloth diapers or cleaning the toilet bowl.

شکل 5: Switchable Water Outlet Mode. This image demonstrates the two available spray patterns: a soft spray for gentle cleaning and a powerful jet spray for more intensive tasks, illustrating how to switch between them by rotating the nozzle.

څو اړخیزه کارول:

Beyond personal hygiene, the MULIN Bidet Sprayer is versatile for various cleaning needs:

• Baby Cloth Diaper Cleaning: Efficiently rinses soiled cloth diapers before washing.
• Pet Shower: Provides a convenient way to wash pets in the bathroom.
• Toilet Cleaning: Helps in rinsing and cleaning the toilet bowl and surrounding areas.
• د موپ پاکول: Useful for rinsing mops or cleaning buckets.
• Floor Washing: Can be used for targeted cleaning of bathroom floors.

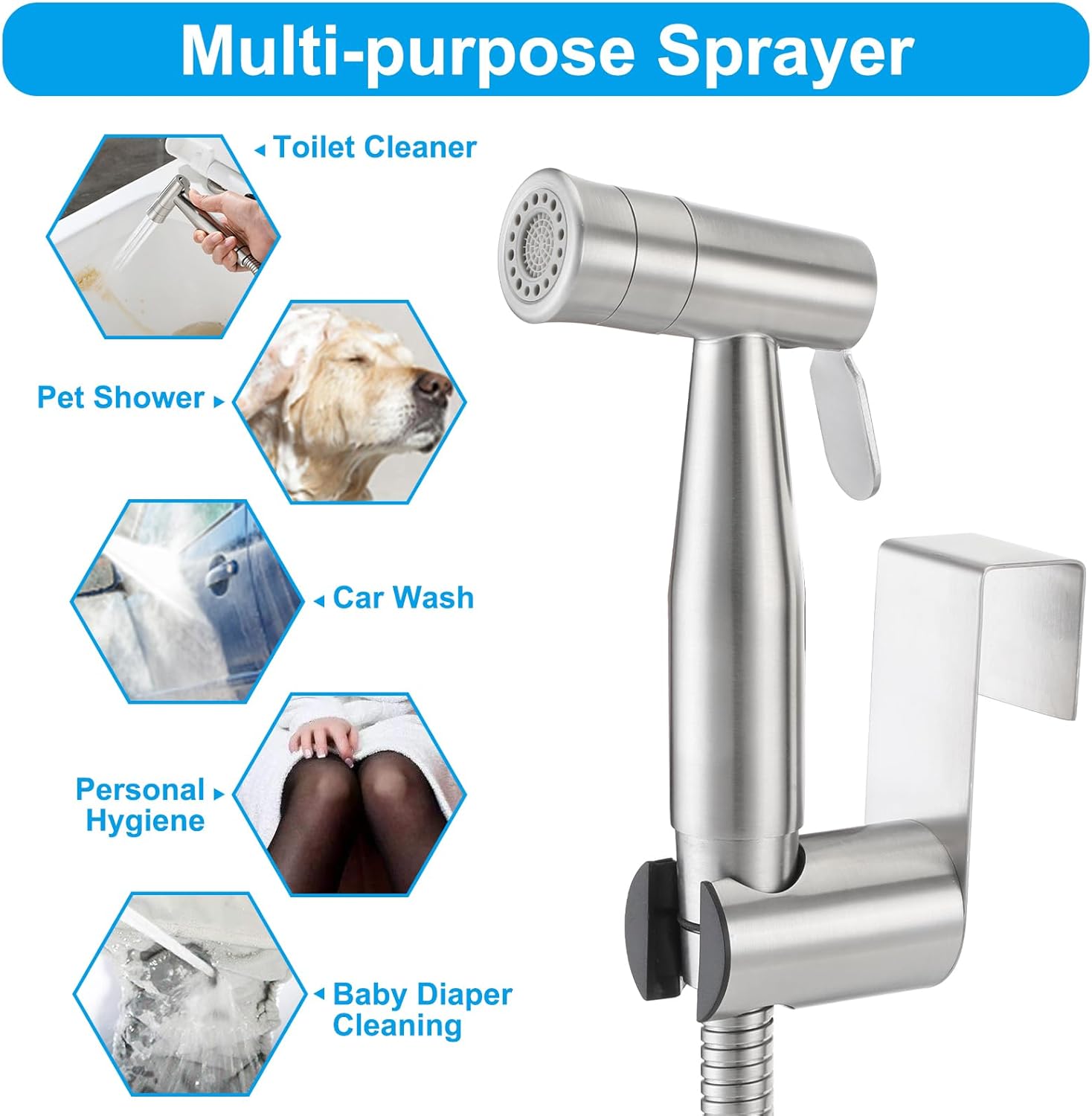

شکل 6: Multi-purpose Sprayer. This image showcases the versatility of the bidet sprayer for tasks such as personal hygiene, cleaning baby cloth diapers, pet showers, toilet cleaning, and general floor washing.

ساتنه

Regular maintenance will ensure the longevity and optimal performance of your MULIN Bidet Sprayer.

• ورځنی استعمال: Always turn off the T-valve after each use to relieve pressure from the hose and sprayer head. This prevents potential leaks and extends the product's lifespan.
• پاکول: Clean the exterior of the sprayer and hose with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid harsh chemicals or abrasive scrubbers, as they can damage the brushed nickel finish.
• د نوزل ​​پاکول: If the spray becomes uneven, the nozzle may be clogged. Gently unscrew the nozzle (if removable) or use a small brush (like a toothbrush) to clear any mineral deposits or debris from the spray holes.
• د لیک چکونه: Periodically inspect all connections for any signs of leaks. If a leak is detected, gently tighten the connection. If tightening does not resolve the issue, check the rubber washers for wear and replace if necessary.

د ستونزو حل کول

If you encounter issues with your MULIN Bidet Sprayer, refer to the following common problems and solutions:

مشخصات

Detailed technical specifications for the MULIN Bidet Sprayer Model HM-BS9002.

شکل 7: Product Size. This diagram provides detailed measurements for the T-valve and the product packaging, indicating the dimensions of key components.

تضمین او ملاتړ

The MULIN Bidet Sprayer comes with a limited warranty. For specific warranty details, please refer to the warranty card included in your product packaging or contact MULIN customer support.

If you have any questions, require technical assistance, or need to report a missing part, please contact MULIN customer support through the retailer's platform or the contact information provided with your purchase. Please have your model number (HM-BS9002) and purchase date ready when contacting support.
