BSIDE A5X Smart Digital Multimeter User Manual

1. پیژندنه

Thank you for choosing the BSIDE A5X Smart Digital Multimeter. This advanced, rechargeable multimeter is designed for both professional and DIY use, offering a wide range of measurement capabilities with intelligent automatic identification. It features a color LCD display, a built-in rechargeable battery, and a durable design. This manual provides detailed instructions for safe and effective operation of your device.

Figure 1: BSIDE A5X Smart Digital Multimeter and Included Accessories

This image displays the BSIDE A5X Smart Digital Multimeter in its red and black casing, along with its essential accessories. These include red and black test leads, a USB-C charging cable, a thermocouple for temperature measurements, and a protective EVA carrying case. The multimeter features a large color LCD screen showing various measurement modes and readings.

2. د خوندیتوب معلومات

د میټر خوندي عملیات او خدمت ډاډ ترلاسه کولو لپاره ، دا لارښوونې تعقیب کړئ. د دې اخطارونو په نه لیدو کې پاتې راتلل د سخت ټپ یا مرګ لامل کیدی شي.

• تل ډاډ ترلاسه کړئ چې میټر د اندازه کولو لپاره په سمه فعالیت او حد کې دی.
• که چیرې میټر خراب ښکاري یا د ازموینې لیډونه زیانمن شوي وي نو مه کاروئ.
• د ټاکل شوي حجم څخه ډیر مه پلي کوئtage، لکه څنګه چې په میټر کې نښه شوې، د ترمینل یا د هر ترمینل او ځمکې ځمکې ترمنځ.
• د حجم سره کار کولو پرمهال خورا احتیاط وکاروئtagد 30V AC RMS، 42V چوکۍ، یا 60V DC څخه پورته. داسې حجمtagد شاک خطر رامنځته کوي.
• Keep your fingers behind the finger guards on the test leads during measurements.
• Disconnect the circuit power and discharge all high-voltage capacitors مخکې له دې چې د مقاومت، دوام، diodes، یا capacitance ازموینه وکړي.
• میټر په چاودیدونکو ګازو، بخاراتو یا دوړو چاپیریال کې مه چلوئ.
• تل د محلي او ملي خوندیتوب کوډونو ته غاړه کیږدئ.

3. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي. که کوم توکي ورک یا زیانمن شوي وي، مهرباني وکړئ له خپل پرچون پلورونکي سره اړیکه ونیسئ.

• BSIDE A5X Smart Digital Multimeter
• د ازموینې لیډونه (سور او تور)
• د ایوا د لیږد قضیه
• Thermocouple
• د USB ډول - سي چارج کیبل
• د انګلیسي کارونکي لارښود

4. د محصول ب Featuresې

The BSIDE A5X Multimeter is equipped with a range of features designed for convenience and accuracy:

• Automatic and Easy to Use: Defaults to intelligent mode upon power-on, automatically detecting AC/DC voltage, AC/DC current, resistance, continuity, diode, and frequency. Ideal for beginners.
• د رنګ LCD ښودنه: Inverted color LCD screen with 3 test results: test value, analog bars, and frequency (Hertz). Displays ambient temperature.
• د چارج وړ بیټرۍ: Built-in 700mA rechargeable Li-ion battery with Type-C charging cable, eliminating the need for disposable batteries.
• څو اړخیزه: اندازه کول AC/DC حجمtage, AC/DC current, resistance, capacitance, diode, continuity, frequency, temperature, and duty cycle.
• د VFC دنده: Measures the output voltage of inverters, useful for planning speeds of pumps, elevators, and air conditioners.
• NCV (غیر تماس والی جلدtage) کشف: High and low sensitivity settings for precise identification of complex lines and easy detection of electrical cables in walls.
• Live/Null Wire Verification: Identifies live and null wires.
• Automatic Range & Auto Power Off: Simplifies operation and conserves battery life.
• د ټیټ بیټرۍ نښې: Alerts when battery needs recharging.
• رڼا: په تیاره چاپیریال کې د کار کولو لپاره مدغم فلش لائټ.
• دوامدار ډیزاین: Comes with a removable silicone leather case and a robust, shock-resistant EVA case.

5. مشخصات

6. ترتیب کول

6.1 د بیټرۍ چارج کول

The BSIDE A5X Multimeter comes with a built-in 700mAh rechargeable Li-ion battery. Before first use, or when the low battery indicator appears, charge the device using the provided USB Type-C cable.

1. Connect the USB Type-C end of the charging cable to the multimeter's charging port.
2. Connect the USB-A end of the cable to a standard USB power adapter (e.g., phone charger, computer USB port).
3. The charging indicator on the multimeter will show the charging status. Once fully charged, the indicator will change (refer to the device's display for specific charging icons).

شکل ۷: د ملټي میټر چارج کول

This image illustrates the BSIDE A5X Multimeter being charged. The device is shown with its back cover removed, revealing the internal 700mAh Li-ion battery. A USB-C cable is connected to the multimeter and then to a laptop, indicating the charging process. A green battery icon with an arrow suggests the battery is being replenished.

۶.۲ د ټیسټ لیډونو نښلول

Always ensure test leads are securely connected before taking measurements.

• تور ټیسټ لیډ د "COM" (عام) ان پټ جیک کې دننه کړئ.
• د حجم لپاره سور ټیسټ لیډ "VΩHz" ان پټ جیک کې دننه کړئtage، مقاومت، فریکونسۍ، ظرفیت، ډایډ، او دوام اندازه کول.
• For current measurements (mA), insert the red test lead into the "600mA" input jack.

7. عملیاتي لارښوونې

۸ پاور آن/بند

د بریښنا ت buttonۍ فشار کړئ (⑂) to turn the multimeter on or off. The device will automatically enter intelligent mode upon power-on.

7.2 Intelligent Automatic Identification Mode

In intelligent mode, the multimeter automatically identifies and measures AC/DC voltage, AC/DC current, resistance, continuity, diode, and frequency without manual range selection.

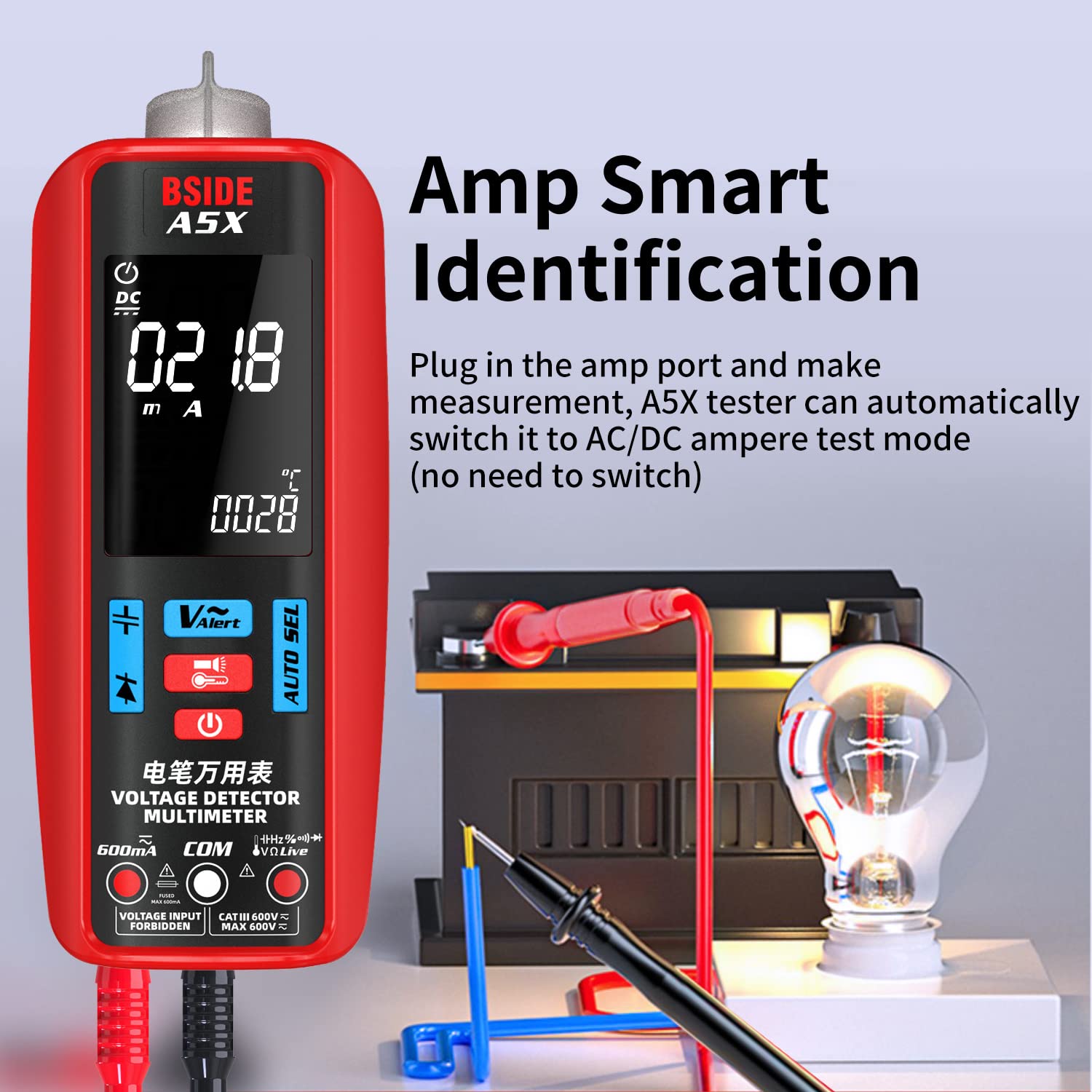

شکل 3: Amp Smart Identification

دا انځور ښیي چې Amp Smart Identification feature of the BSIDE A5X Multimeter. The multimeter is connected to a circuit with a light bulb and a battery. The display shows a current reading in mA, indicating that the device has automatically switched to AC/DC ampere test mode upon connecting the test leads to the amp port, eliminating the need for manual mode selection.

7.3 Manual Mode Selection (Using Buttons)

The multimeter features five buttons for easier function switching. Press the "AUTO SEL" button to cycle through different measurement modes if you wish to manually select a specific function.

۴.۳ د اندازه کولو ځانګړي طریقې

7.4.1 ټوکtagد e اندازه کول (AC/DC)

د حجم اندازه کولو لپارهtage, connect the red test lead to the "VΩHz" jack and the black test lead to the "COM" jack. Apply the test leads across the circuit or component you wish to measure. The meter will automatically detect AC or DC voltage.

شکل 4: AC Voltage اندازه کول

This image shows the BSIDE A5X Multimeter being used to measure AC voltage within an electrical panel. The display clearly indicates an AC voltage reading of 380.0V and a frequency of 050.0 Hz, demonstrating the device's capability to automatically measure AC voltage او فریکونسۍ.

۶.۲ د اوسني اندازه کول (AC/DC)

For current measurements, ensure the red test lead is in the "600mA" jack and the black lead in "COM". Connect the multimeter in series with the circuit. The meter will automatically detect AC or DC current.

7.4.3 د مقاومت اندازه کول

Ensure the circuit is de-energized before measuring resistance. Connect the test leads across the component. The meter will automatically display the resistance value.

7.4.4 د ظرفیت اندازه کول

خبرداری: د ظرفیت اندازه کولو دمخه، ډاډ ترلاسه کړئ چې کپیسیټر په بشپړ ډول خارج شوی ترڅو میټر ته زیان یا ټپي کیدو مخه ونیسي.

Connect the test leads across the capacitor terminals. The meter will display the capacitance value.

Figure 5: Capacitance Test

This image shows the BSIDE A5X Multimeter performing a capacitance test on a large cylindrical capacitor. The multimeter's display shows a reading of 31.05 µF, indicating the measured capacitance. A crucial safety reminder is included: "Before measuring capacitance, please discharge the capacitor first."

7.4.5 د فریکونسی اندازه کول

The meter can measure frequency in AC voltage mode. Connect the test leads to the circuit, and the frequency will be displayed along with the voltage.

7.4.6 دحرارت اندازه کول

Connect the provided thermocouple to the appropriate input jacks (refer to the manual for specific thermocouple connection points, usually marked for temperature). Place the thermocouple probe at the desired measurement point. The display will show the temperature in Celsius or Fahrenheit.

Figure 6: Dual-Way Temperature Test

This image illustrates the BSIDE A5X Multimeter's capability for dual-way temperature measurement. The display shows two temperature readings: "Thermometer Temperature" (0-1000°C / 32-1832°F) and "Environment Temperature" (0-50°C / 32-122°F). The multimeter is shown with a thermocouple probe measuring a component, while the ambient temperature is also displayed.

7.4.7 د ډایډ ټیسټ

Ensure the circuit is de-energized. Connect the red test lead to the anode and the black test lead to the cathode of the diode. The meter will display the forward voltage غورځول. د خلاص سرکټ د چک کولو لپاره لیډونه برعکس کړئ.

7.4.8 د دوام ازموینه

Ensure the circuit is de-energized. Connect the test leads across the component or wire. If the resistance is below 30Ω, the audible buzzer will sound, indicating continuity.

۵.۴ NCV (غیر اړیکې والیومtage) کشف

To use NCV, select the NCV mode (if not automatically detected). Hold the top of the multimeter near the wire or outlet. The meter will indicate the presence of AC voltage with visual and audible alerts. Use high sensitivity for detecting wires in walls and low sensitivity for precise identification.

7.4.10 VFC (Variable Frequency Control) Test

The VFC function allows for accurate measurement of output voltage from variable frequency drives (VFDs) or inverters. Select the VFC mode and connect the test leads to the inverter's output.

Figure 7: VFD Test

This image shows the BSIDE A5X Multimeter performing a VFD (Variable Frequency Drive) test. The multimeter is connected to an inverter, and its display shows an AC voltage reading of 220.0V, demonstrating its ability to accurately measure the output voltage of inverters. This function is crucial for assessing the performance of devices like pumps, elevators, and air conditioners.

7.4.11 Live Wire Test

To identify live wires, select the Live Wire Test mode. Place the red test lead into the "Live" input jack (if available, otherwise use NCV or specific live wire detection feature). Touch the probe to the wire. The meter will indicate if the wire is live.

Figure 8: Automotive Circuit Test

This image depicts the BSIDE A5X Multimeter conducting a test on an automotive circuit, specifically connected to a car battery. The display shows a DC voltage reading of 12.8V, indicating the battery's voltage. This demonstrates the multimeter's versatility for use in automotive diagnostics and electrical system checks.

8. ساتنه

8.1 پاکول

قضیه د اعلان سره پاک کړئamp ټوکر او نرم صابون. د کثافاتو او محلولونو څخه کار مه اخلئ.

8.2 ذخیره کول

When not in use, store the multimeter in its protective carrying case in a dry, cool place, away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.

9. ستونزه حل کول

10. تضمین او ملاتړ

The BSIDE A5X Smart Digital Multimeter comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact the seller or manufacturer directly. The product description mentions "technical support in Spanish" which implies direct support from the seller/manufacturer.

• پلورونکی: AIMOmeter-UK (as per buybox_winner.fulfillment.third_party_seller)
• ASIN: B0C3VZ72C4
• د ماډل شمیره: A5X Rechargeable Automatic Multimeter

Please have your product model number and ASIN ready when contacting support.
