EKO Aroma Touchless Automatic Soap Dispenser (Model EK6088L)

1. پیژندنه

Thank you for choosing the EKO Aroma Touchless Automatic Soap Dispenser. This device is designed to provide a hygienic and convenient handwashing experience with its advanced sensor technology and adjustable dispensing settings. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Figure 1: EKO Aroma Touchless Automatic Soap Dispenser (Dark Grey)

2. ترتیب کول

2.1 ابتدايي پاور آن

The first time you use the dispenser, press and hold the power button located on the back for 3 seconds until a blue light appears on the top. This indicates the device is powered on.

۴.۱ د ډسپنسر ډکول

1. Ensure the dispenser is powered off to prevent accidental activation.
2. Press the top cover to pop it open and remove it.
3. Pour liquid soap into the reservoir, ensuring the air vent is clear for a smooth fill. The clear window on the front allows you to monitor the soap level.
4. Place the cover back on and press it down firmly to lock.
5. Turn the power back on by holding the power button for 3 seconds.

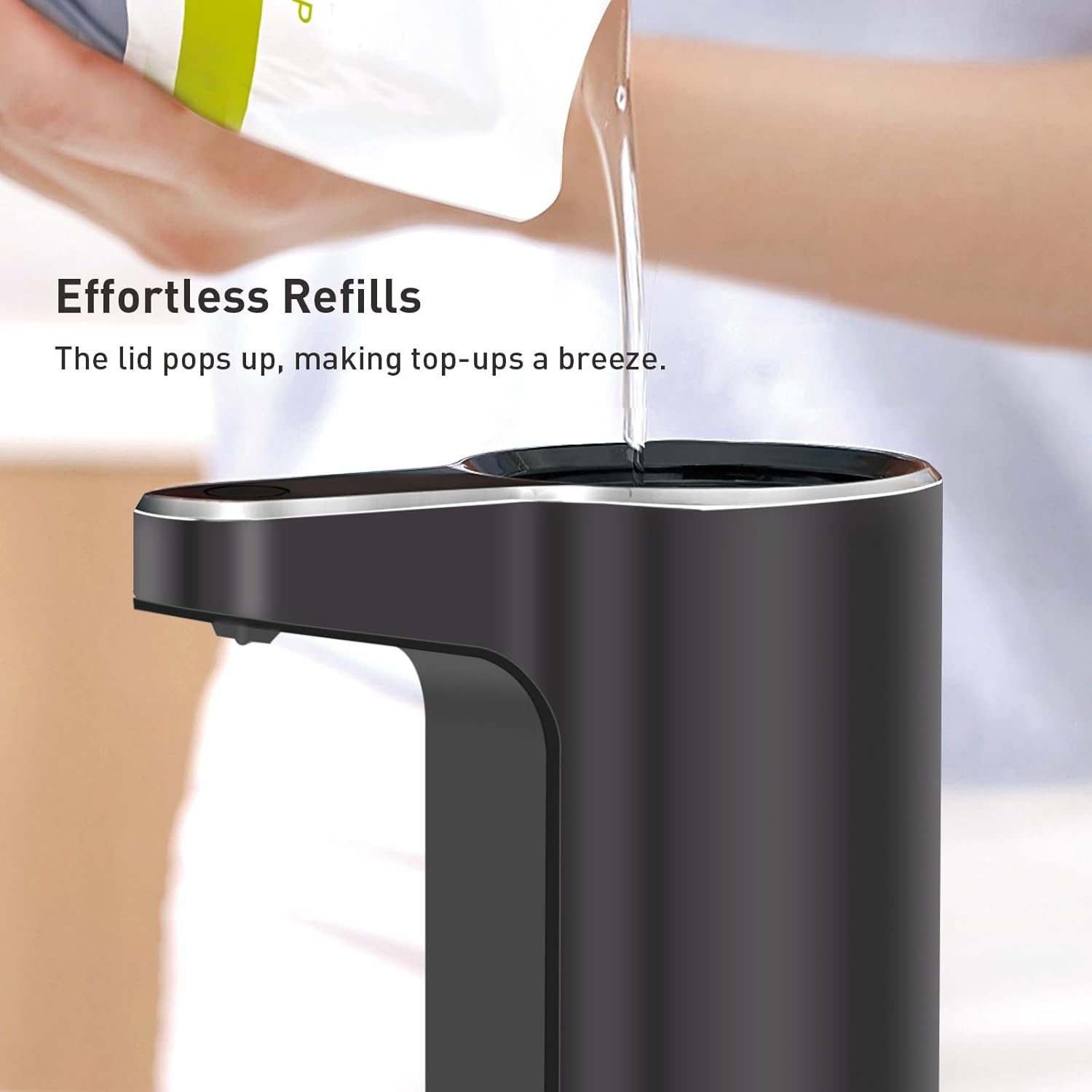

Figure 2: Effortless Refills with Pop-Up Lid

2.3 Charging the Dispenser

If the indicator light turns red during use or the dispenser does not power on, it needs to be charged. The dispenser features a water-resistant charging port.

1. Locate the charging port on the back of the dispenser.
2. Plug in the included USB cable. The indicator light will turn red while charging.
3. A full charge takes approximately two hours. The indicator light will turn solid blue when fully charged.
4. After charging, ensure the rubber cap is securely closed to maintain water resistance.

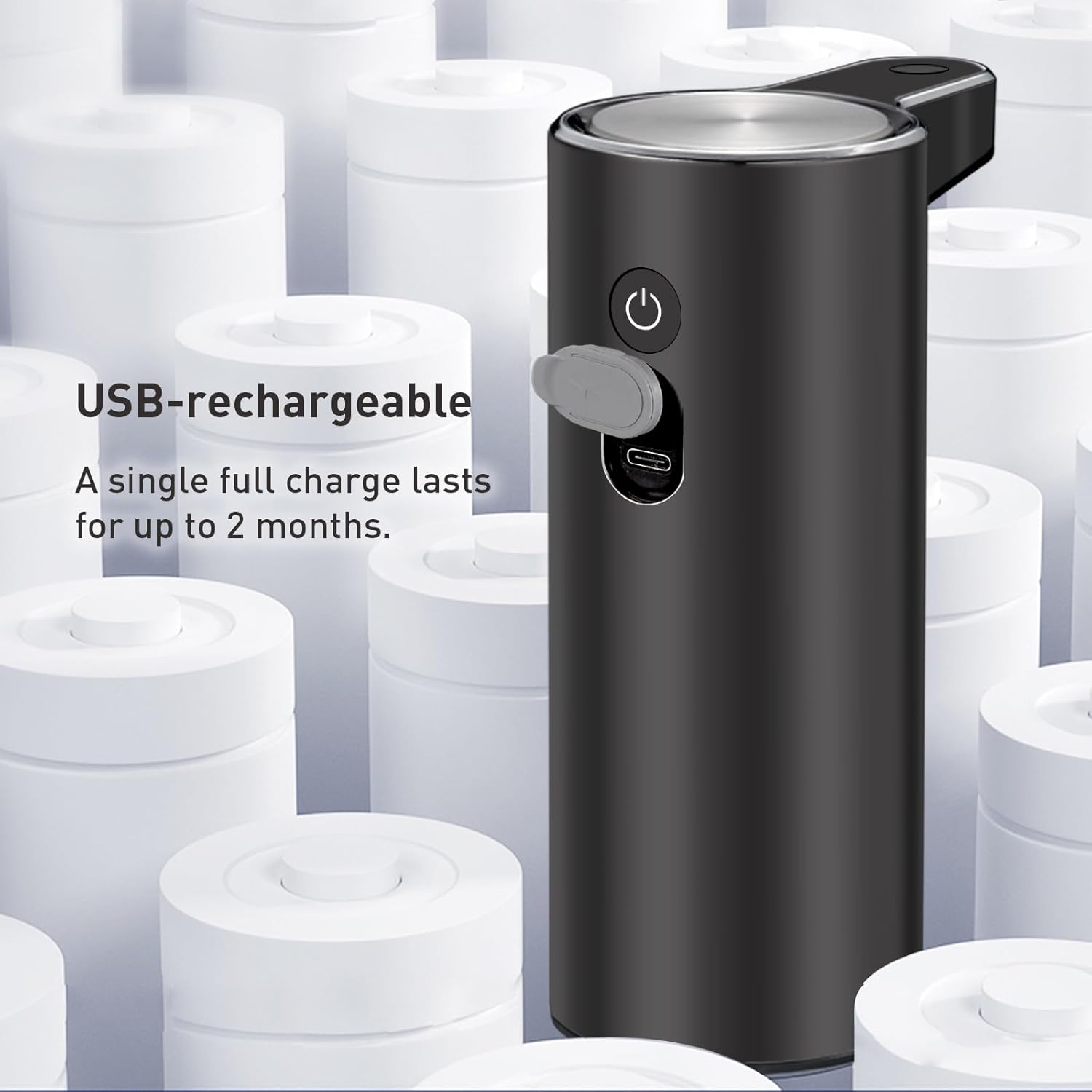

Figure 3: USB-Rechargeable Design

3. عملیاتي لارښوونې

3.1 Using the Sensor

The EKO Aroma dispenser features touchless technology for sanitary operation. Simply place your hand under the nozzle within 3 inches, and the sensor will detect it, dispensing liquid soap in just 0.2 seconds.

Figure 4: Touchless Operation

3.2 Adjusting Dispense Volume

The dispenser offers 3 adjustable settings to customize the amount of soap dispensed:

• کچه 1: Press the power button once. The blue light flashes once, dispensing 0.8 ml (0.03 fl. oz) of liquid.
• کچه 2: Press the power button again. The blue light flashes twice, dispensing 1.4 ml (0.05 fl. oz) of liquid.
• کچه 3: Press the power button a third time. The blue light flashes three times, dispensing 2 ml (0.07 fl. oz) of liquid.

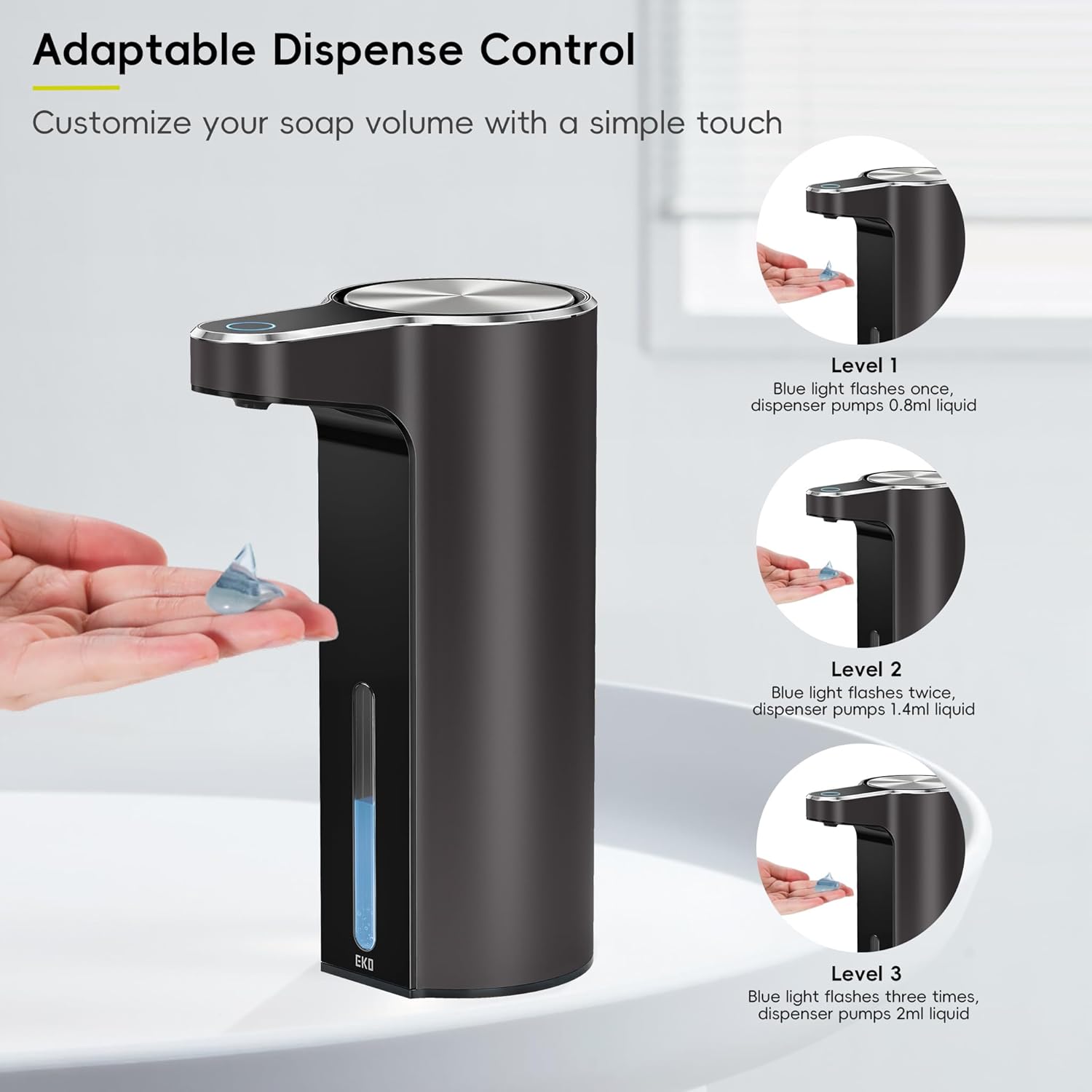

Figure 5: Adaptable Dispense Control

4. ساتنه

۲ د ځان پاکولو حالت

The dispenser features an innovative self-cleaning mode to maintain its internal mechanism and ensure longevity. Refer to the product packaging or manufacturer's website for specific instructions on activating this mode.

4.2 عمومي پاملرنه

To clean the exterior of the dispenser, wipe it with a soft, damp cloth. Avoid using abrasive cleaners or solvents. The water-resistant design allows for easy cleaning without concern for splashes.

5. ستونزه حل کول

• د صابون نه ورکول: If no soap comes out initially after filling, trigger the sensor a few times to prime the pump. Ensure the dispenser is powered on and fully charged.
• Indicator Light Red: The dispenser requires charging. Refer to Section 2.3 for charging instructions.
• غیر متناسب توزیع: Ensure the soap reservoir is adequately filled. Very thick liquid soaps may require thinning with a small amount of water to improve flow.

6. مشخصات

7. تضمین او ملاتړ

For warranty information and customer support, please refer to the product packaging or visit the official EKO webسایټ. د هر ډول تضمین ادعا لپاره خپل د پیرود رسید وساتئ.
