EMKE 300W Bathroom Radiator Heating Element User Manual

۱.۱. د خوندیتوب مهم معلومات

Please read this manual carefully before installation and operation. Keep it for future reference. Failure to follow these instructions may result in electric shock, fire, or injury.

• Ensure the power supply matches the specifications of the heating element.
• Installation must be performed by a qualified electrician or competent person in accordance with local wiring regulations.
• Do not operate the heating element if the cable or plug is damaged.
• Do not immerse the heating element or its control unit in water.
• د کار کولو پرمهال ماشومان له وسیلې څخه لرې وساتئ.
• The heating element must always be installed at the bottom of the bathroom radiator.
• Ensure the radiator is filled with liquid before operating the heating element.

2. محصول ختم شوview

The EMKE 300W Bathroom Radiator Heating Element is designed to provide efficient and controlled heating for your bathroom radiator, allowing for towel drying and ambient warmth. It features a digital display and intelligent thermostat for precise temperature management.

Figure 2.1: The EMKE 300W Heating Element, showing the main unit with its digital display and the coiled power cord leading to a standard plug.

Figure 2.2: Close-up of the control panel, highlighting the user-friendly design with an angled screen for easy viewing او عملیات.

3. مشخصات

Figure 3.1: Guide for selecting the correct heating element power and physical dimensions (in mm).

۵. نصب کول (تنظیم)

The installation of the heating element is designed to be straightforward and can be performed at home. However, if you are unsure, consult a qualified professional.

1. د مطابقت چک: Ensure your bathroom radiator has a G1/2 inch connection thread. The 300W heating element is suitable for bathroom radiators with a power output between 300-600 watts.
2. موقعیت: The heating element must always be installed at the bottom of the bathroom radiator. This ensures proper heat distribution and safe operation.
3. Filling the Radiator: Before installing the heating element, ensure the radiator is properly filled with the appropriate liquid (e.g., water or heat transfer fluid) according to your radiator's instructions.
4. خوندي نصب کول: Carefully screw the heating element into the G1/2 inch port at the bottom of the radiator. Ensure it is tightened securely to prevent leaks.
5. بریښنایی پیوستون: Plug the coiled power cord into a suitable 230V ± 10% electrical outlet. The cable length is approximately 1400-1500 mm.
6. د خوندیتوب احتیاط: For safety reasons, the heating element does not heat up within 3-4 cm of the power supply connection point.

Figure 4.1: The electric heating element with thermostat correctly installed on a bathroom radiator.

4.2 شکل: یو پخوانیample of the heating element integrated into a modern bathroom radiator setup.

5. عملیات

The EMKE heating element features intelligent temperature control with six distinct operating modes, allowing for precise temperature management from 30 °C to 70 °C. The digital display provides real-time information on current temperature and settings.

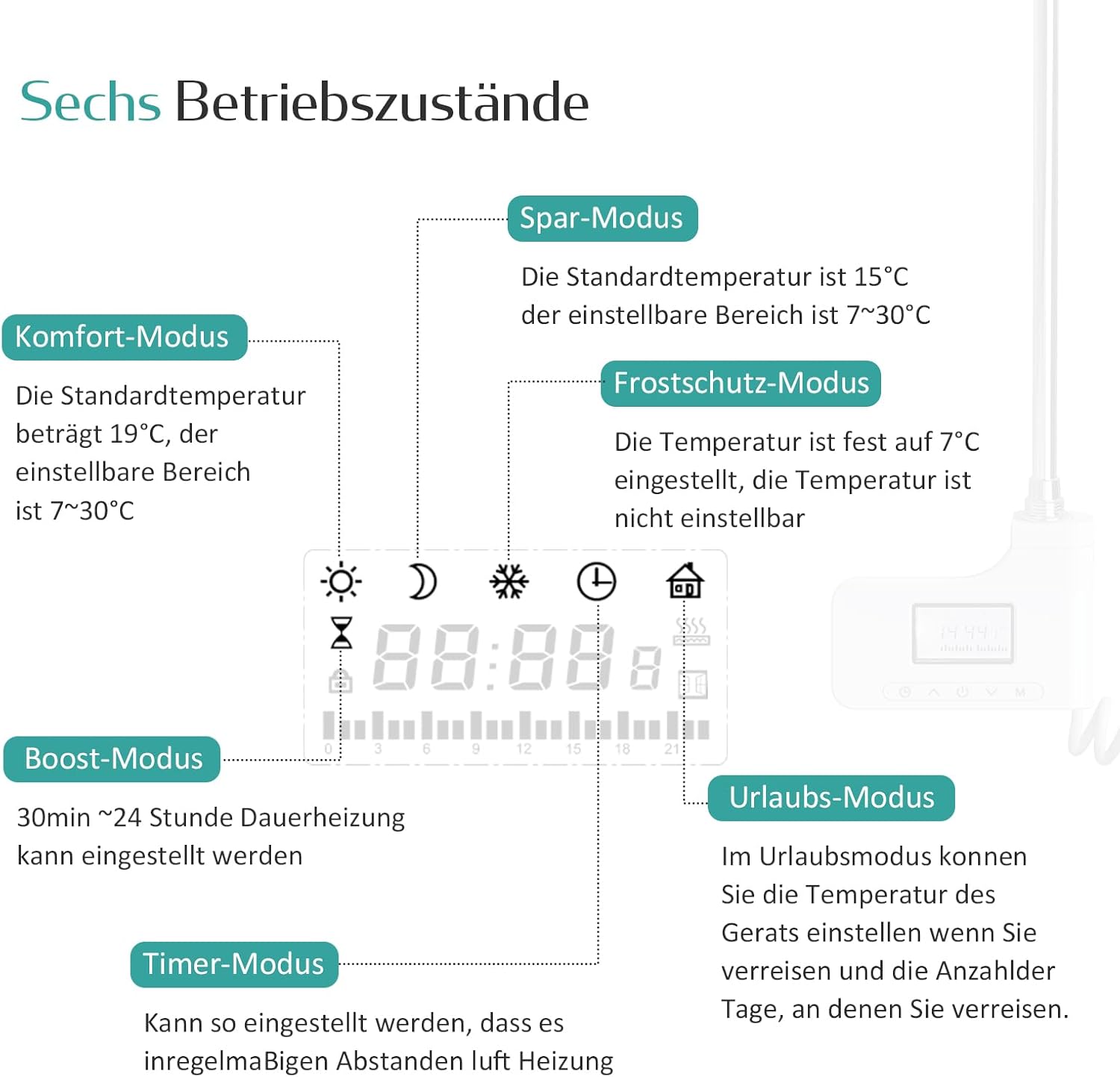

شکل 5.1: پایview of the six operating modes and their respective settings.

عملیاتي طریقې:

• د اقتصاد حالت: Standard temperature is 15 °C. Adjustable range is 7-30 °C.
• د آرامۍ حالت: Standard temperature is 19 °C. Adjustable range is 7-30 °C.
• د یخنۍ د ساتنې حالت: Temperature is fixed at 7 °C and is not adjustable.
• د ودې حالت: Allows for 30 minutes to 24 hours of continuous heating.
• د ټایمر حالت: Can be set to heat at regular intervals.
• د رخصتۍ حالت: Allows you to set the device's temperature when you are away and specify the number of days you will be gone.

د ماشومانو د قفل فعالیت:

The thermostatic heating rods are equipped with a touch protection program (child lock function) to ensure a safe environment. Refer to the device's specific instructions for activating and deactivating the child lock.

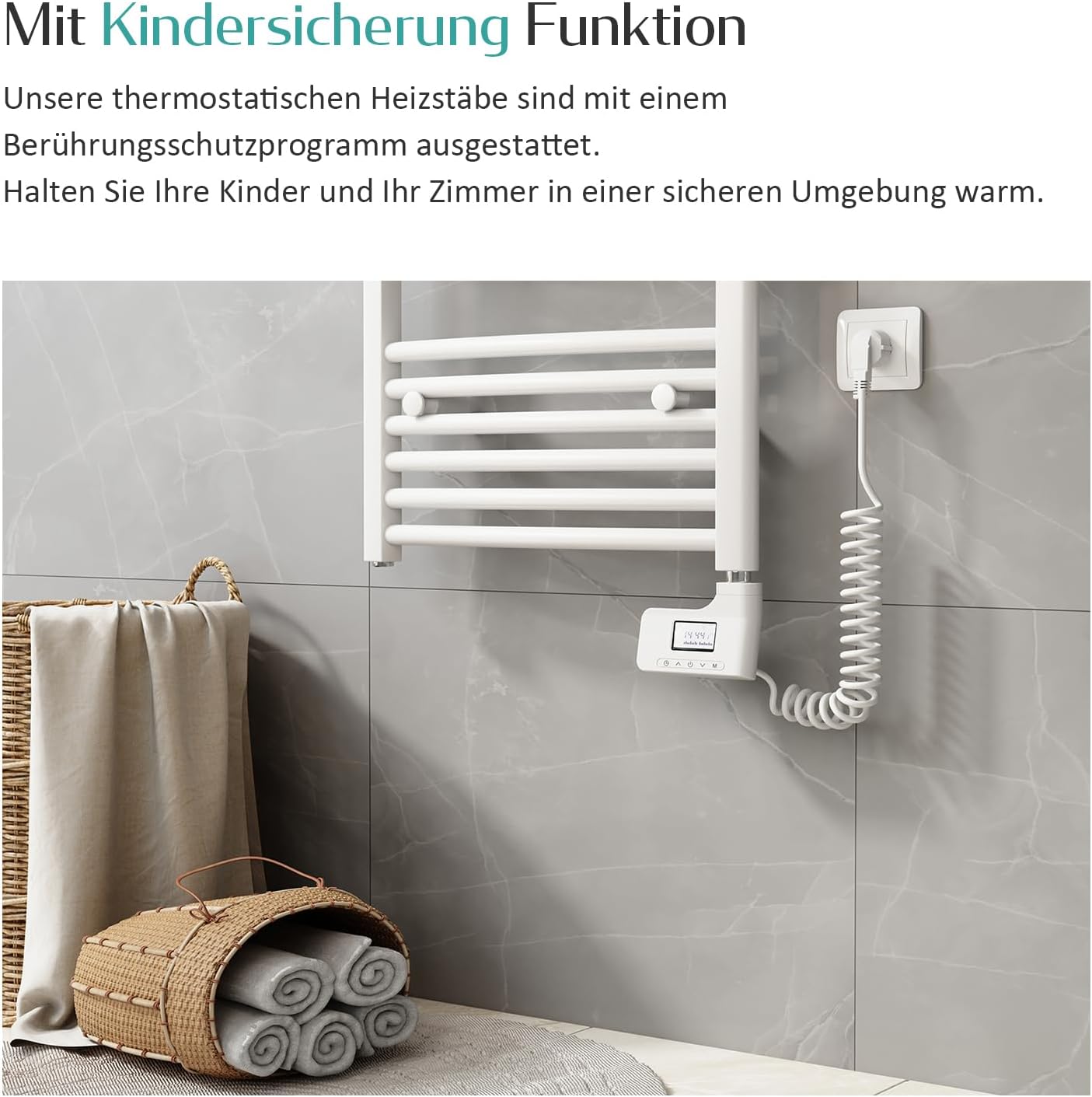

Figure 5.2: The heating element features a child lock function for enhanced safety.

6. ساتنه

Regular maintenance ensures the longevity and efficient operation of your EMKE heating element.

• پاکول: Disconnect the power before cleaning. Wipe the exterior of the heating element and control unit with a soft, damp ټوکر د کثافاتو پاکوونکي یا محلول مه کاروئ.
• معاینه: Periodically check the power cord for any signs of damage. Ensure the connection to the radiator is secure and free from leaks.
• د مایع کچه: Ensure the liquid level in your radiator is maintained as per the radiator manufacturer's guidelines.

7. ستونزه حل کول

If you encounter issues with your EMKE heating element, refer to the following common solutions:

• ځواک نشته: Check if the power plug is securely inserted into the outlet. Verify that the circuit breaker has not tripped.
• نه تودوخه: Ensure the desired temperature is set above the current room temperature. Check if the heating element is in an active heating mode (e.g., Comfort, Boost). Verify the radiator is filled with liquid.
• د ښودلو مسلې: If the digital display is not functioning correctly, try unplugging the unit for a few minutes and then plugging it back in to reset it.
• لیکونه: If you notice any leaks, immediately disconnect power and tighten the connection thread. If the leak persists, contact customer support.

For persistent problems or issues not covered here, please contact EMKE customer support.

8. تضمین او ملاتړ

EMKE provides comprehensive services to ensure a smooth experience with your product.

• د راستنیدو پالیسي: د 14 ورځو بیرته ستنیدو پالیسي وړاندې کیږي.
• د ترمیم خدمت: The product includes a 2-year repair service.
• د پیرودونکي ملاتړ: If you have any questions or require assistance, please contact EMKE customer service. Contact details can typically be found on the product packaging or the official EMKE webسایټ
