د ماسټر کرافټ کښتۍ ټرانسوم ګراب ریل | ماریسټار ۲۳۰ ټو بار کارونکي لارښود

1. محصول ختم شوview

The MasterCraft Boat Transom Grab Rail, part number 523278, is a heavy-duty billet aluminum component designed for Maristar 230 MasterCraft Boats. This versatile part functions as both a transom grab rail for passenger safety and a tow bar for various water sports activities. Its robust construction and brushed finish ensure durability and a sleek appearance on your vessel.

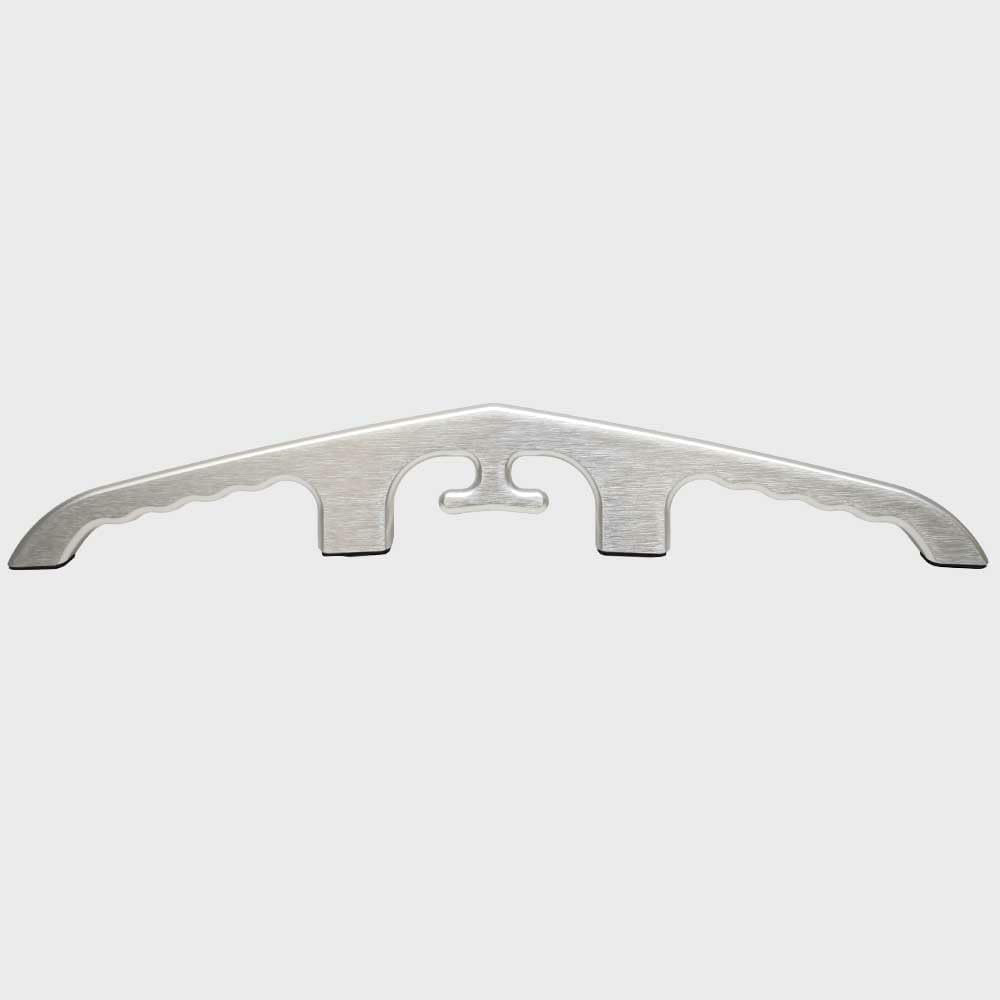

شکل 1: مخکی view of the MasterCraft Transom Grab Rail.

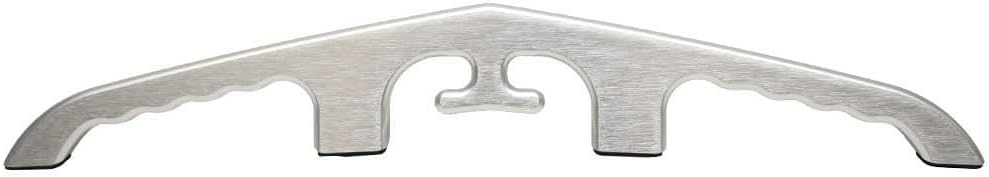

شکل ۳: زاویه لرونکی view of the MasterCraft Transom Grab Rail, highlighting its design.

2. د نصب لارښود

This transom grab rail is designed for direct mounting onto the boat's transom. It features four 1/4" ID threaded mounting holes for secure attachment. Please note that mounting hardware is نه included with this product and must be sourced separately.

۳.۱. اړین وسایل او توکي (شامل نه دي)

• Appropriate 1/4" diameter threaded fasteners (e.g., bolts, screws) suitable for marine environments and transom material.
• Drill with appropriate drill bits (if new holes are required).
• Measuring tape or ruler.
• Marker or pencil for marking drill points.
• Wrench or screwdriver set compatible with chosen fasteners.
• Marine sealant (recommended for waterproofing mounting holes).

2.2. د نصبولو پړاوونه

1. لومړی خوندیتوب: Ensure the boat is stable and secure before beginning installation. Wear appropriate personal protective equipment (PPE) such as safety glasses.
2. د نصبولو ځای وپیژنئ: Determine the precise location on the transom where the grab rail will be installed. Ensure it is easily accessible and provides adequate support. Refer to your boat's specific manual for recommended mounting areas for accessories.
3. اندازه کول او نښه کول: Carefully measure the dimensions of the grab rail and the spacing of its mounting holes. Transfer these measurements to the transom, marking the exact points where the holes will be drilled. The rail measures approximately 23" W x 3 5/8" H x 3/4" D overall.
4. د پیلوټ سوري ډرل کړئ (که اړتیا وي): If new holes are required, use a drill bit slightly smaller than the diameter of your chosen fasteners to create pilot holes. Ensure holes are straight and perpendicular to the transom surface.
5. سیلانټ تطبیق کړئ: Apply a marine-grade sealant around and inside the drilled holes to prevent water intrusion into the transom core.
6. موقعیت او خونديتوب: Align the grab rail with the marked holes. Insert the fasteners through the grab rail's 1/4" ID threaded mounting holes and into the transom. Tighten the fasteners securely, but do not overtighten, which could damage the rail or the transom.
7. وروستی چک: After installation, gently pull on the grab rail to ensure it is firmly attached and does not wobble. Wipe away any excess sealant.

شکل 3: لاندې view of the grab rail, illustrating the four 1/4" ID threaded mounting holes.

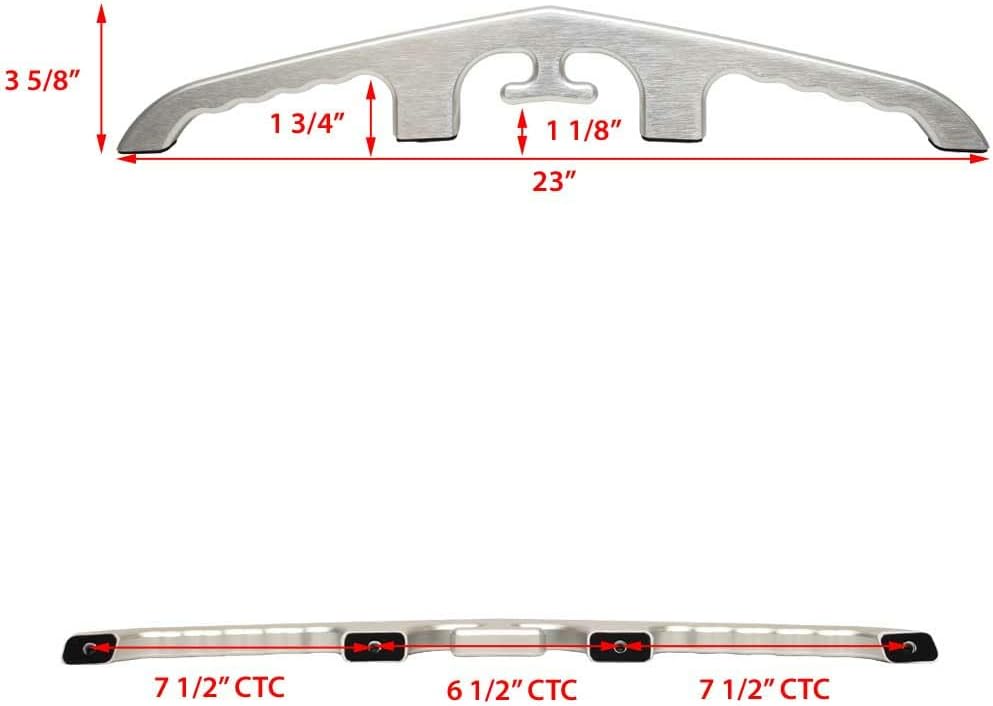

Figure 4: Dimensional drawing of the grab rail, showing overall width and height, and mounting hole spacing.

3. Operation and Intended Use

The MasterCraft Transom Grab Rail serves two primary functions:

• Grab Rail: Provides a secure handhold for passengers entering or exiting the boat, or for stability while moving around the transom area, especially in choppy waters.
• Tow Bar: Designed to function as a tow point for various water sports activities, such as tubing or wakeboarding. Ensure that any tow ropes or equipment used are compatible with the rail's design and that the rail is securely mounted before towing.

Always ensure the rail is free from obstructions and that all mounting points are secure before use, particularly when using it as a tow bar.

4. پاملرنه او ساتنه

Proper care and maintenance will extend the life and preserve the appearance of your MasterCraft Transom Grab Rail.

• پاکول: Regularly clean the aluminum surface with mild soap and fresh water. Rinse thoroughly to remove any soap residue. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed finish.
• معاینه: Periodically inspect the grab rail for any signs of wear, corrosion, or damage. Pay close attention to the mounting points and fasteners. Ensure all fasteners remain tight. If any corrosion or damage is observed, address it promptly to prevent further deterioration.
• د مالګې اوبو سره مخ کیدل: If used in saltwater environments, rinse the rail with fresh water after each use to minimize salt buildup and prevent corrosion.

5. ستونزه حل کول

This section addresses common issues that may arise with the transom grab rail.

5.1. Loose Rail

• نښې: The grab rail feels loose or wobbly after installation or during use.
• احتمالي لامل: Mounting fasteners have loosened over time due to vibration or improper tightening during installation.
• حل لاره: Carefully re-tighten all mounting fasteners. Do not overtighten. If fasteners continue to loosen, consider using thread-locking compound (suitable for marine use) or replacing the fasteners.

5.2. Surface Discoloration or Corrosion

• نښې: The brushed aluminum finish appears dull, discolored, or shows signs of pitting.
• احتمالي لامل: Exposure to harsh elements, salt residue, or improper cleaning agents.
• حل لاره: Clean the surface thoroughly with mild soap and fresh water. For stubborn stains or light corrosion, specialized aluminum cleaners designed for marine use may be applied, following the product's instructions. Regular rinsing, especially after saltwater exposure, is crucial.

For issues not covered here, or if you suspect structural damage, it is recommended to consult with a qualified marine technician.

6. د محصول مشخصات

Detailed specifications for the MasterCraft Boat Transom Grab Rail (Part Number 523278).

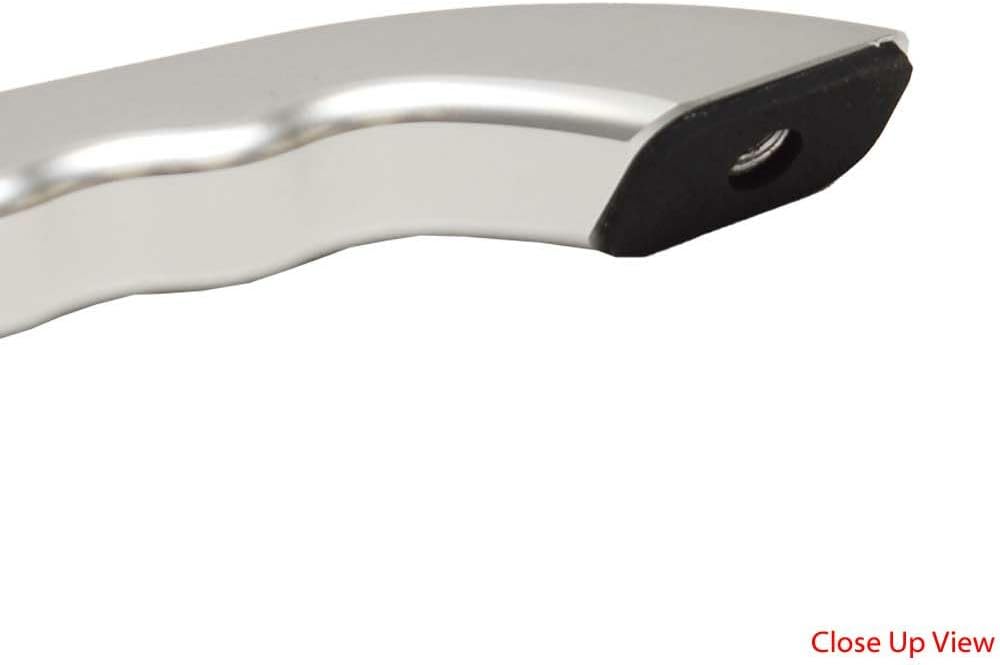

5 شکل: تړل view of the grab rail's end, showing the brushed finish and material thickness.

Figure 6: Image displaying the product's part number and description for identification.

7. د تضمین معلومات

Specific warranty details for the MasterCraft Boat Transom Grab Rail (Part Number 523278) are not provided with the product information. For warranty inquiries, please contact the original seller or the manufacturer, MasterCraft, directly. It is advisable to retain your proof of purchase for any warranty claims.

8. د پیرودونکي ملاتړ

For further assistance, technical support, or questions regarding the MasterCraft Boat Transom Grab Rail, please reach out to the following:

• Original Seller: Refer to your purchase documentation for contact information of the seller (e.g., Great Lakes Skipper).
• جوړونکی: MasterCraft Boat Company. Visit their official webد اړیکو توضیحاتو او ملاتړ سرچینو لپاره سایټ.

کله چې د ملاتړ سره اړیکه ونیسئ، مهرباني وکړئ د خپل محصول ماډل شمیره (۷۳۳۱۷۵۶۷۱۶۴۴) او د پیرود توضیحات په اسانۍ سره شتون ولرئ.
