پیژندنه
This manual provides detailed instructions for the safe and effective operation of your BAOFENG UV-17 Tri-Band Ham Radio. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.
The BAOFENG UV-17 is a versatile tri-band two-way radio featuring 999 channels, USB-C charging, NOAA weather alerts, and a robust design suitable for various communication needs.
د بسته محتويات
ډاډ ترلاسه کړئ چې ټول توکي ستاسو په کڅوړه کې شتون لري:
- BAOFENG UV-17 Tri-Band Portable Radio
- 1800mAh بیټرۍ
- لوړ ګین اینټینا
- د چارجر اساس
- د بیلټ کلیپ
- د لاس پټه
- د کارونکي لارښود (دا سند)
- د ډول-C USB چارج کیبل
- د پروګرام کولو کیبل
- 771 انتن
- مایکروفون
- هیډسیټ
محصول پای ته ورسیدview
Familiarize yourself with the components of your BAOFENG UV-17 radio.

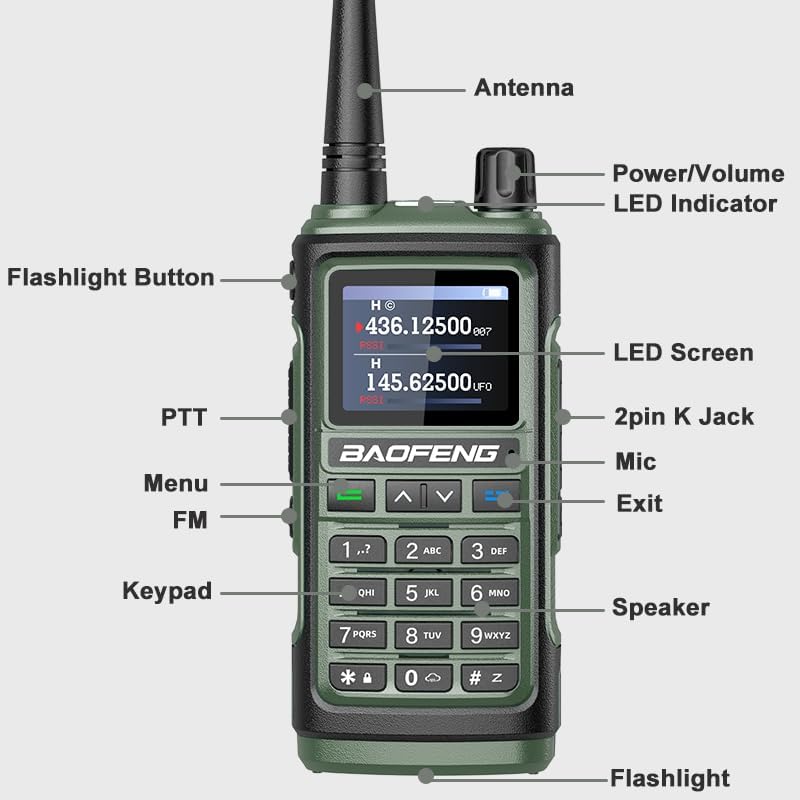

انځور: Detailed diagram illustrating the various parts of the BAOFENG UV-17 radio, including the antenna, power/volume knob, LED indicator, flashlight button, PTT button, menu button, FM button, keypad, speaker, microphone, 2-pin K jack, exit button, LED screen, and flashlight.
- انتن: د سیګنالونو لیږدولو او ترلاسه کولو لپاره.
- ځواک/حجم نوب: راډیو چالان/بندوي او حجم تنظیموي.
- د LED شاخص: Shows radio status (e.g., transmitting, receiving, charging).
- د فلش لائټ تڼۍ: جوړ شوی فلش لائټ فعالوي.
- د PTT (د خبرو اترو لپاره فشار) تڼۍ: د لیږدولو لپاره فشار ورکړئ او ونیسئ، د ترلاسه کولو لپاره خوشې کړئ.
- د مینو تڼۍ: د راډیو د مینو ترتیباتو ته لاسرسی لري.
- FM تڼۍ: Activates the FM radio function.
- کیپیډ: For entering frequencies, channel numbers, and menu selections.
- سپیکر: آډیو ترلاسه شوي محصولات.
- مایک: Built-in microphone for voice transmission.
- 2-pin K Jack: For connecting external accessories like headsets or programming cables.
- د وتلو تtonۍ: له مینو یا اوسني فعالیت څخه وځي.
- د ایل ای ډي سکرین: Displays frequency, channel, and other operational information.
- رڼا: روښانتیا برابروي.
چمتو کول
۱. د بیټرۍ نصب او چارج کول
The BAOFENG UV-17 comes with an 1800mAh rechargeable Lithium-Ion battery. Ensure the battery is fully charged before first use.
انځور: The BAOFENG UV-17 radio with its back cover removed, revealing the 1800mAh battery. A fixing screw is visible, designed to secure the battery firmly in place.
- بیټرۍ ولګوه: Align the battery with the grooves on the back of the radio and slide it into place until it clicks. Ensure the fixing screw is tightened for firmness.
- د بیټرۍ چارج کول:
- Using Charger Base: Place the radio (with battery installed) into the provided charger base. Ensure the charging contacts align. The LED indicator on the charger will show charging status.
- د USB-C کیبل کارول: Connect the Type-C USB cable to the radio's USB-C port and to a compatible power source (e.g., power bank, PC, car charger, wall adapter).
انځور: The BAOFENG UV-17 radio connected to a USB-C charging cable. Icons indicate compatibility with car chargers, PC USB ports, and power banks for convenient charging. The image also shows approximate battery life (5 days), stand-by time (10 days), and charging time (3 hours).
A full charge typically takes approximately 3 hours. The 1800mAh battery provides approximately 5 days of battery life and up to 10 days of standby time.
۴.۲. د انتن ضمیمه
Screw the provided high-gain antenna clockwise onto the antenna connector on top of the radio until it is finger-tight. Do not overtighten.
عملیاتي لارښوونې
۵.۱. د بریښنا فعالول/بندول او د حجم تنظیمول
- پاور آن: Rotate the Power/Volume knob clockwise until you hear a click. The screen will illuminate.
- بندول: Rotate the Power/Volume knob counter-clockwise until you hear a click. The screen will turn off.
- د حجم سمون: د حجم زیاتولو لپاره د پاور/حجم نوب د ساعت په لور او د حجم کمولو لپاره د ساعت په مخالف لوري وګرځوئ.
۱. اساسي اړیکه
- Select Channel/Frequency: Use the keypad to enter a desired frequency or channel number. Use the up/down arrow keys to navigate through channels.
- لېږدول: Press and hold the PTT button on the side of the radio. Speak clearly into the microphone. The LED indicator will glow red.
- ترلاسه کول: Release the PTT button to listen. The LED indicator will glow green when receiving a signal.
3. Tri-Band Operation
The UV-17 supports tri-band frequencies, including UHF, VHF, and Amateur bands.
انځور: The BAOFENG UV-17 radio screen showing active frequencies in both UHF (436.12500 MHz) and VHF (145.62500 MHz) bands. The image highlights the radio's tri-band capability, covering UHF (420-450MHz), VHF (144-148MHz), and Amateur FM frequencies, along with features like anti-interference, noise cancelling, and strong confidentiality.
- د فریکونسی رینج:
- VHF: 144-148MHz
- UHF: 420-450MHz
- Amateur FM
- Switch between bands using the designated menu options or quick keys as per the on-screen display.
4. Wireless Frequency Copy
The UV-17 features a direct frequency copy function, allowing you to copy frequencies from another radio without a programming cable.
انځور: Two BAOFENG UV-17 radios positioned side-by-side, with arrows indicating a direct frequency transfer between them. The text emphasizes "Frequency Copy Direct" and "One Key Copy Frequency," stating that it eliminates the need for complicated programming or cables.
- Refer to the radio's on-screen menu for the "Wireless Copy" or "Frequency Copy" option.
- Follow the prompts to initiate the copying process between two compatible UV-17 radios.
۵. د NOAA د هوا خبرتیا
The UV-17 can receive NOAA weather alerts for up to 10 U.S.A. weather forecast channels.
- Access the NOAA function through the radio's menu.
- Scan or select desired NOAA weather channels to receive real-time weather warnings.
۳. د VOX فعالیت (د غږ سره چلول شوی تبادله)
The VOX function allows for hands-free transmission. When enabled, the radio will transmit automatically when it detects your voice.
- Activate VOX via the radio's menu.
- د ناڅاپي لیږد یا له لاسه ورکړل شوي غږ فعالولو مخنیوي لپاره د VOX حساسیت کچه تنظیم کړئ.
7. ایف ایم راډیو
The radio includes an FM broadcast receiver.
- فشار ورکړئ FM د FM راډیو حالت ته د بدلولو لپاره تڼۍ.
- Use the keypad or arrow keys to tune to desired FM stations.
- فشار ورکړئ FM button again to exit FM radio mode.
8. فلش لائټ
The UV-17 features a built-in flashlight for illumination.

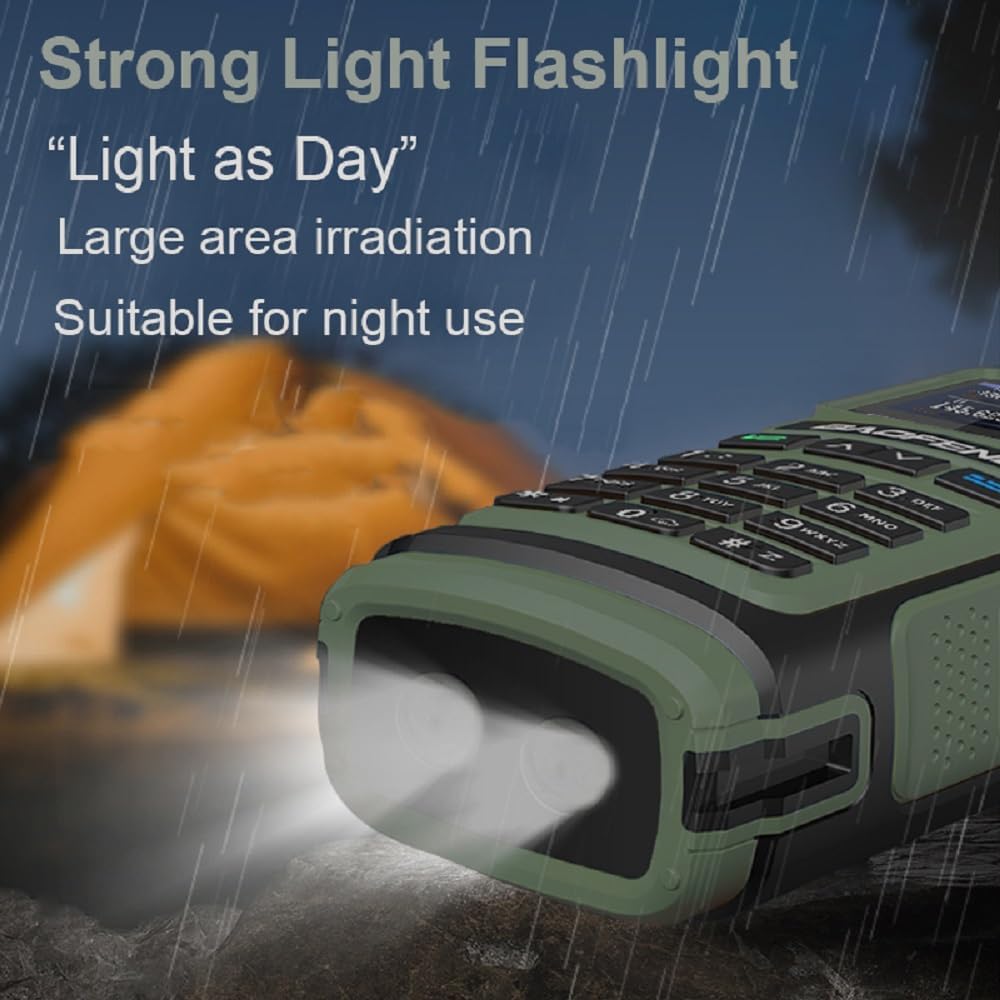

انځور: The BAOFENG UV-17 radio's flashlight is shown emitting a bright beam in a dark, outdoor environment, illustrating its "Strong Light Flashlight" capability for "Large area irradiation" and suitability for "night use."
- Press the dedicated Flashlight button to turn the flashlight on/off.
ساتنه
- پاکول: یو نرم استعمال کړئ، دamp د راډیو بهرنۍ برخه پاکولو لپاره ټوکر. سخت کیمیاوي مواد یا محلول مه کاروئ.
- د بیټرۍ پاملرنه: کله چې بیټرۍ نه کارول کیږي، په یخ او وچ ځای کې وساتئ. د اوږدې مودې لپاره د بیټرۍ په بشپړه توګه چارج کولو څخه ډډه وکړئ.
- د اوبو مقاومت: The radio is IP54 waterproof, meaning it is protected against dust and splashing water. Do not immerse the radio in water.
- انتن: ډاډ ترلاسه کړئ چې انتن په خوندي ډول تړل شوی دی. راډیو د انتن پرته مه چلوئ.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| راډیو نه چالانېږي. | بیټرۍ ټیټه ده یا په سمه توګه نه ده نصب شوې. | بیټرۍ چارج کړئ یا یې په سمه توګه بیا نصب کړئ. |
| لیږدول یا ترلاسه کول نشي کیدی. | غلط فریکونسي/چینل، انتن نه دی تړل شوی، یا له حد څخه بهر دی. | Verify frequency/channel settings. Ensure antenna is attached. Move closer to the other radio. |
| ضعیف غږ کیفیت. | Low battery, weak signal, or incorrect volume. | Charge battery. Check signal strength. Adjust volume. |
| د USB-C چارج کول کار نه کوي. | Cable or power source issue, or port is dirty. | Try a different USB-C cable or power source. Clean the USB-C port gently. |
مشخصات
| فیچر | تفصیل |
|---|---|
| د ماډل شمیره | UV-17 |
| برانډ | BAOFENG |
| د فریکونسی رینج | 144-148MHz (VHF), 420-450MHz (UHF), Amateur FM |
| د چینلونو شمیر | 999 |
| د بیټرۍ ظرفیت | 1800mAh لیتیم آیون |
| ننوتۍ جلدtage | DC 7.4V |
| د اعظمي حد | 6.1 miles (approx.) |
| د عملیاتي حرارت درجه | له 10 درجو څخه تر 60 درجو پورې |
| د اوبو د مقاومت کچه | IP54 (د دوړو او شیندنې په وړاندې مقاومت لرونکی) |
| د ښودلو ډول | LCD |
| ځانګړي ځانګړتیاوې | 999 Channels, FM Radio, NOAA Weather Alert, Tri-Band, USB-C Charging, Wireless Frequency Copy, VOX |
| د توکي وزن | 27.69 ounces / 785 g (approx.) |
تضمین او ملاتړ
تضمین: A 1-year warranty is provided exclusively through "Shiqun Electronics Co., Ltd." Please retain your proof of purchase for warranty claims.
ملاتړ: For technical assistance, troubleshooting, or warranty inquiries, please contact the seller, "Shiqun Electronics Co., Ltd.", directly through your purchase platform or their official contact channels.
For additional resources and product information, you may visit the official BAOFENG store: BAOFENG Store
