Bigzzia S1 Under Desk Walking Pad Treadmill User Manual

1. پیژندنه

Thank you for choosing the Bigzzia S1 Under Desk Walking Pad Treadmill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before use and retain it for future reference.

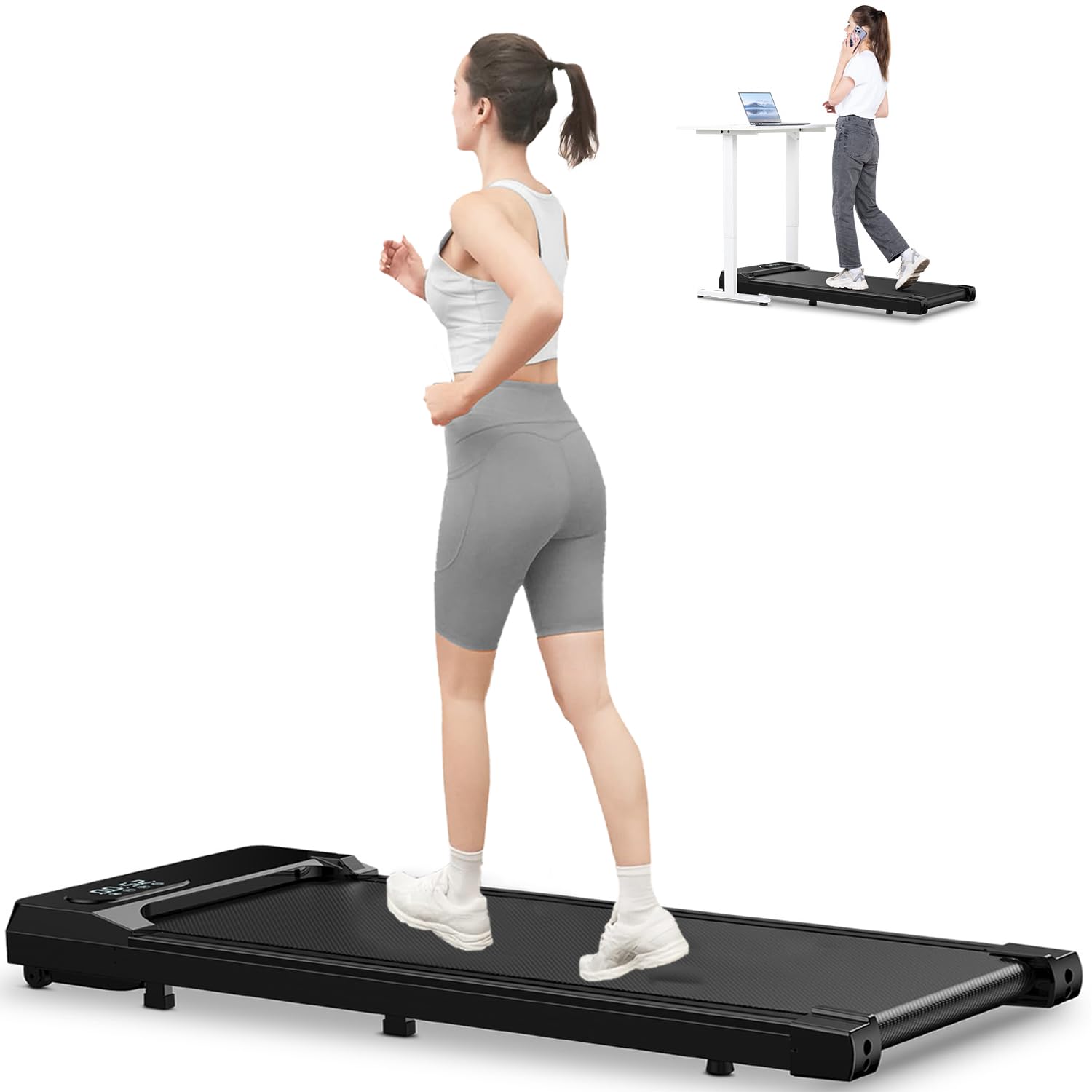

Image: The Bigzzia S1 Walking Pad Treadmill positioned under a standing desk, with a person walking on it while working on a laptop.

2. د خوندیتوب لارښوونې

د خپل خوندیتوب ډاډمن کولو او د خپل ټریډمل د ژوند اوږدولو لپاره، مهرباني وکړئ لاندې احتیاطي تدابیر په پام کې ونیسئ:

• د تمرین کوم پروګرام پیل کولو دمخه د ډاکټر سره مشوره وکړئ.
• Place the treadmill on a flat, stable surface. Ensure adequate clearance around the unit.
• ماشومان او څاروي د عملیاتو په جریان کې د ټریډمیل څخه لرې وساتئ.
• مناسب ورزشي بوټان واغوندئ. د ټریډمل لوڅې پښې یا په خلاصو جامو کې مه کاروئ.
• کله چې کمربند حرکت کوي، نو په ټریډمل باندې مه قدم ږدئ یا ترې مه وځئ.
• In case of emergency, press the 'OFF' button on the remote control immediately.
• که چیرې ټریډمل زیانمن شوی وي یا خراب شوی وي نو مه یې کاروئ.
• د کارونکي اعظمي وزن ظرفیت: ۳۰۰ پونډه (۱۳۰ کیلوګرامه).

۲. په بکس کې څه دي؟

د خلاصولو پر مهال، مهرباني وکړئ تصدیق کړئ چې ټولې برخې شتون لري:

• Bigzzia S1 Under Desk Walking Pad Treadmill
• ریموټ کنټرول
• هیکس سپنر
• لبنیکی
• د کارونکي لارښود (دا لاسوند)

4. د محصول مشخصات

Image: The LED display shows speed, distance, time, and calories. The remote control is also visible.

5. ترتیب کول

The Bigzzia S1 Walking Pad Treadmill arrives fully assembled and ready for use. Simply remove it from the packaging and place it on a flat, stable surface.

1. Unpack the treadmill and all accessories.
2. Place the treadmill on a level floor, ensuring there is sufficient space around it for safe operation.
3. د برښنا تار په یو ځمکني بریښنایی پلورنځي کې ولګوه.
4. Turn on the main power switch, usually located near the power cord connection point on the treadmill.

6. عملیاتي لارښوونې

6.1 د ریموټ کنټرول فعالیتونه

The treadmill is operated using the included remote control. Ensure the remote has working batteries.

• د فعال / بند تڼۍ: Press to start or stop the treadmill. A 3-second countdown will initiate before the belt begins to move.
• '+' تڼۍ: Increases the speed of the treadmill.
• '-' تڼۍ: Decreases the speed of the treadmill.
• 'M' تڼۍ (موډ): Cycles through different display modes (Time, Distance, Calories, Speed).

6.2 د سرعت تنظیم کول

The treadmill offers a speed range of 0.6 to 5.0 MPH, suitable for both walking and light jogging.

• د چلولو حالت: Speeds typically range from 0.6 to 3.0 MPH.
• د منډې وهلو حالت: Speeds typically range from 3.0 to 5.0 MPH.

Image: Illustration of the treadmill being used for walking under a desk and for jogging in an open space.

6.3 د معلوماتو ښودل

د LED ښودنه ستاسو د ورزش په اړه په ریښتیني وخت کې فیډبیک چمتو کوي:

• وخت: ستاسو د تمرین موده.
• واټن: ټول واټن پوښل شوی.
• کالوري: اټکل شوي کالوري سوځول.
• سرعت: د ټریډمل کمربند اوسنی سرعت.

7. ساتنه

Regular maintenance ensures optimal performance and longevity of your treadmill.

7.1 د چلولو بیلټ تنظیم کول

If the running belt deviates to one side, it needs adjustment. Use the provided Hex Spanner.

Adjusting Belt Deviation to the Left:

1. Start the treadmill at a low speed (e.g., 3 km/h).
2. Use the hex wrench to insert into the hole on the left side. Rotate approximately 90 degrees clockwise to tighten the running belt.
3. At the same time, rotate anti-clockwise on the right side accordingly to loosen the belt a bit.
4. After adjustment, let the treadmill run for about 3-5 minutes without anyone stepping on it to check if it works.

Adjusting Belt Deviation to the Right:

1. Start the treadmill at a low speed (e.g., 3 km/h).
2. Use the hex wrench to insert into the hole on the right side. Rotate approximately 90 degrees clockwise to tighten the running belt.
3. At the same time, rotate anti-clockwise on the left side accordingly to loosen the belt a bit.
4. After adjustment, let the treadmill run for about 3-5 minutes without anyone stepping on it to check if it works.

Video: Visual guide on how to adjust the running belt if it deviates to the left or right, ensuring proper alignment for safe operation.

7.2 غوړول

Regular lubrication of the running belt is crucial for smooth operation and to prevent wear. Use the provided lubricant as instructed in the separate lubrication guide or refer to the general guidelines below:

• د ټریډمل بند او خلاص کړئ.
• Lift the edge of the running belt and apply a small amount of lubricant to the center of the deck.
• په بل اړخ کې تکرار کړئ.
• Run the treadmill at a low speed for a few minutes to spread the lubricant evenly.

8. ستونزه حل کول

If you encounter issues with your treadmill, refer to the following common solutions:

که چیرې د دې حل لارو هڅه کولو وروسته هم ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.

9. ذخیره کول

The Bigzzia S1 Walking Pad Treadmill is designed for easy storage due to its lightweight and compact design, featuring built-in wheels for portability.

• Turn off the treadmill and unplug it from the power outlet.
• Utilize the front-mounted wheels to easily roll the treadmill to your desired storage location.
• It can be stored flat under furniture (e.g., a bed or sofa) or upright against a wall to save space.

Image: Various storage options for the Bigzzia S1 Walking Pad Treadmill, including under a desk, under a sofa, and upright.

10. تضمین او ملاتړ

The Bigzzia S1 Under Desk Walking Pad Treadmill comes with a ۱-کلن تضمین.

For warranty claims, technical support, or any questions not covered in this manual, please contact Bigzzia customer service through the retailer where you purchased the product or visit the official Bigzzia webد اړیکو معلوماتو لپاره سایټ.
