پیژندنه
The BAOFENG UV-18L is a versatile 4-band ham radio designed for reliable two-way communication. Featuring a 1.77-inch LCD screen, 999 programmable channels, and USB-C charging, this radio offers enhanced functionality for various applications. It supports VHF and UHF frequencies, includes NOAA weather alerts, and is built with a waterproof design for durability.
مخکی view of the BAOFENG UV-18L two-way radio, showcasing its keypad, display, and antenna.

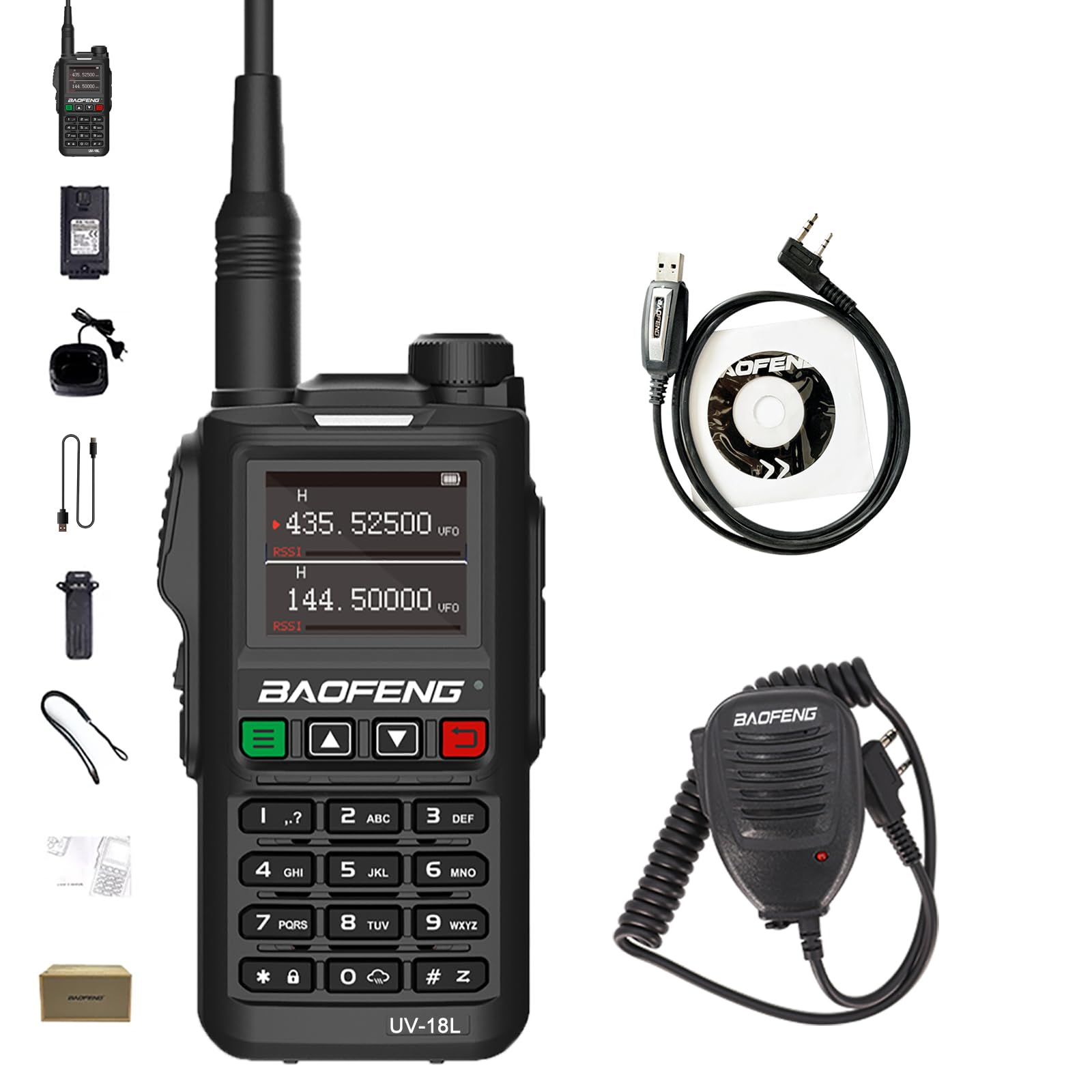

د بسته محتويات
مهرباني وکړئ بسته په دقت سره وګورئ ترڅو ډاډ ترلاسه کړئ چې ټول توکي شتون لري:
- BAOFENG UV-18L Portable Radio
- USB-C کیبل
- لوړ ګین اینټینا
- د 1800mAh لوی ظرفیت بیټرۍ
- د بیلټ کلیپ
- Battery Charger (Dock and US Adapter)
- د لاس پټه
- د کارن لارښود
- د اوږو سپیکر مایکروفون
- د پروګرام کولو کیبل
د محصول ځانګړتیاوې
The BAOFENG UV-18L radio is equipped with a range of features to enhance your communication experience:
- ښکاره کول: 1.77-inch LCD screen for clear information display.
- چینلونه: ۲۰۰ د پروګرام وړ حافظې چینلونه.
- بندونه: Four-band operation including FM, VHF (144-148MHz), and UHF (420-450MHz).
- چارج کول: Convenient USB-C direct charging and traditional charger base compatibility.
- د بریښنا تولید: 5 Watts for effective long-range communication.
- بیټرۍ: 1800mAh high-capacity Lithium-Ion battery.
- د اوبو مقاومت: Waterproof design for use in various environments.
- سکینګ: Three scan modes (time/carrier/search), channel scan, CTCSS/DCS scan, VFO scan range setting.
- د هوا خبرتیا: NOAA weather alarm function with 10 dedicated channels.
- د غږ فعالول: VOX (Voice Operated Exchange) for hands-free operation.
- سیګنال ورکول: DTMF (Dual-Tone Multi-Frequency) capability.
- دوه ګونی څار: په یو وخت کې دوه فریکونسۍ وڅارئ.
- د لاسوهنې ضد: Frequency hopping function for anti-interference and anti-crosstalk.
Graphic summarizing the main features of the BAOFENG UV-18L radio: 1.77-inch LCD screen, USB-C charger, 999 channels, NOAA weather alarm, waterproof rating, and four-band operation.
چمتو کول
1. د بیټرۍ نصب کول
- ډاډ ترلاسه کړئ چې راډیو بنده ده.
- د راډیو شاته د بیټرۍ کڅوړه ومومئ.
- Align the 1800mAh Lithium-Ion battery with the compartment's contacts.
- بیټرۍ په نرمۍ سره ځای په ځای کړئ تر هغه چې دا په خوندي ډول کلیک وکړي.
۴.۲. د انتن ضمیمه
- Take the high-gain antenna from the package.
- انتن د ساعت په لور د راډیو په سر کې د نښلونکي سره ونښلوئ تر هغه چې د ګوتو سره کلک شي. ډیر مه کلک کوئ.
3. د بیټرۍ چارج کول
The UV-18L offers two charging methods:
- د USB-C مستقیم چارج کول: Connect the provided USB-C cable directly to the radio's USB-C port and to a power source (e.g., wall adapter, power bank, car charger, laptop). The charging indicator will illuminate.
- د چارج کولو ډاک: Place the radio into the charging dock, ensuring the contacts align. Connect the US adapter to the dock and plug it into a power outlet. The indicator light on the dock will show charging status.
A full charge typically takes several hours. The charging indicator will change color or turn off when charging is complete.
Image illustrating the BAOFENG UV-18L radio's strong power for extended range and its versatile USB-C charging capability, compatible with car chargers, laptops, and power banks.
عملیاتي لارښوونې
Close-up image of the BAOFENG UV-18L radio's 1.77-inch full LCD screen, displaying frequency and channel information.
1. بریښنا فعال/بند
To power on the radio, rotate the volume knob clockwise until you hear a click. To power off, rotate it counter-clockwise until it clicks off.
2. د حجم کنټرول
Adjust the volume by rotating the volume knob. Clockwise increases volume, counter-clockwise decreases it.
3. Channel Selection (MR Mode)
In Channel Mode (MR), use the UP/DOWN arrow keys or the numeric keypad to select one of the 999 programmed channels. The display will show the channel number and frequency.
4. Frequency Mode (VFO Mode)
فشار ورکړئ VFO/MR button to switch to Frequency Mode. You can directly input frequencies using the numeric keypad. The radio supports VHF (144-148MHz) and UHF (420-450MHz) amateur bands.
Image showing the BAOFENG UV-18L radio display with frequency information, highlighting its four-band capabilities including FM, VHF (144-148MHz), and UHF (420-450MHz) for amateur use.
5. مینو نیویگیشن
فشار ورکړئ مینو button to access the radio's settings. Use the UP/DOWN arrow keys to scroll through options and the مینو button again to confirm selections. Press وتون د مینو پرېښودو لپاره.
۶.۶. د سکین کولو دندې
The UV-18L offers various scanning modes:
- د چینل سکین: Scans through programmed channels.
- Frequency Scan (VFO Scan): د یوې ټاکل شوې فریکونسۍ رینج له لارې سکین کوي.
- د CTCSS/DCS سکین: Detects sub-tones on a received signal.
To activate scanning, refer to the specific menu options for 'Scan' or 'S-SCAN'.
۵. د NOAA د هوا خبرتیا
The radio can receive NOAA weather alerts. Access the NOAA menu option to enable this feature and select from the 10 available NOAA channels to receive local weather broadcasts and alerts.
۲۱. د VOX فعالیت
VOX (Voice Operated Exchange) allows for hands-free transmission. When enabled, the radio will transmit automatically when it detects your voice. Adjust the VOX sensitivity level in the menu to prevent accidental transmissions.
9. DTMF
DTMF (Dual-Tone Multi-Frequency) signaling can be used for various functions, such as controlling repeaters or accessing remote systems. Input DTMF tones using the numeric keypad during transmission.
Image depicting the BAOFENG UV-18L radio with visual representations of frequency hopping, indicating anti-interference and anti-crosstalk features, alongside DTMF functionality.
10. ایف ایم راډیو
The UV-18L includes a built-in FM radio for entertainment. Press the FM button to switch to FM radio mode. Use the arrow keys to tune to desired stations.
Diagram showing the internal speaker components of the BAOFENG UV-18L, emphasizing an upgraded listening experience for clearer calls and reduced noise in various environments.
ساتنه
1. پاکول
د راډیو بهرنۍ برخه په نرم، دamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the USB-C port cover is properly sealed to maintain waterproofing.
2. د بیټرۍ پاملرنه
To prolong the life of your 1800mAh Lithium-Ion battery:
- د بیټرۍ په مکرر ډول د بشپړ چارج کولو څخه ډډه وکړئ.
- Charge the battery regularly, even if the radio is not in use.
- بیټرۍ په خورا تودوخې کې مه ښکاره کوئ.
3. ذخیره کول
When storing the radio for extended periods, ensure the battery is partially charged (around 50%). Store the radio in a cool, dry place within the recommended working temperature range of -20℃ to +60℃.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| راډیو نه چالانېږي. | بیټرۍ مړه ده یا په سمه توګه نصب شوې نه ده. | بیټرۍ چارج کړئ یا یې په سمه توګه بیا نصب کړئ. |
| لیږدول یا ترلاسه کول نشي کیدی. | غلط فریکونسي/چینل، انټینا نه ده تړل شوې، یا ټیټ بیټرۍ. | Verify frequency/channel, attach antenna securely, charge battery. |
| ضعیف غږ کیفیت. | Low signal strength, incorrect squelch setting, or damaged speaker/mic. | Move to an area with better reception, adjust squelch level, check speaker/mic connections. |
| د USB-C چارج کول کار نه کوي. | Cable or power source issue, or port obstruction. | Try a different USB-C cable or power source. Ensure the port is clean. |
مشخصات
| فیچر | مشخصات |
|---|---|
| ماډل | UV-18L |
| د بریښنا تولید | 5 واټ |
| چینلونه | 999 |
| د بیټرۍ ظرفیت | 1800mAh لیتیم آیون |
| د فریکونسی بندونه | FM; VHF: 144-148MHz; UHF: 420-450MHz |
| د NOAA چینلونه | 10 |
| ښودل | 1.77 انچه LCD |
| د کار د حرارت درجه | -20 ℃ تر +60 ℃ |
| خالص وزن | 705g / 24.86 Ounces |
| د اوبو د مقاومت کچه | پنروک |
| والیtage | 7.4 ولټه (DC) |
| د خبرو کولو حد اعظمي | ۳۵ میله |
| ځانګړي ځانګړتیاوې | DTMF, Four-Band, NOAA Weather Alarm, USB-C Charger, Waterproof |
د تضمین معلومات
The BAOFENG UV-18L radio comes with a 1 کلن تضمین. This warranty is provided exclusively through Shiqun Electronics Co., Ltdمهرباني وکړئ د هر ډول تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
ملاتړ
For further assistance, technical support, or inquiries not covered in this manual, please contact the vendor or manufacturer directly. Refer to your purchase documentation for specific contact details.
