1. پیژندنه
This manual provides detailed instructions for the setup, operation, and maintenance of your CLXEAST 18-inch Illuminated Outdoor/Indoor Atomic Analog Wall Clock. This clock features atomic time synchronization, a smart LED light sensor for automatic illumination, and integrated temperature and humidity displays. Designed for both indoor and outdoor use, it is UV resistant and weatherproof.
شکل 1: مخکی view of the CLXEAST 18-inch Atomic Analog Wall Clock.
2. د خوندیتوب معلومات
- Ensure the clock is mounted securely to prevent falling.
- یوازې د بیټرۍ ټاکل شوي ډولونه وکاروئ او د نصبولو پرمهال سم قطبي والی ډاډمن کړئ.
- Do not expose the clock to extreme temperatures beyond its operating range (-40°F to 140°F).
- Avoid direct, prolonged exposure to harsh elements like intense sunlight or constant heavy rain to maximize product lifespan, despite its weatherproof design.
- بیټرۍ د ماشومانو له لاسرسي لرې وساتئ.
3. د بسته محتويات
- 1 x CLXEAST 18 Inch Illuminated Outdoor/Indoor Atomic Analog Wall Clock
- 1 x د لارښوونې لارښود
- Note: Batteries (1 x AA, 4 x D) are not included.
4. ترتیب کول
4.1 د بیټرۍ نصب کول
- Locate the battery compartments on the back of the clock.
- Insert 1 AA battery into the central compartment for the clock's atomic movement. Ensure correct polarity.
- Insert 4 D-size batteries into the two larger compartments (two in each) for the LED light sensor. Ensure correct polarity.
- Securely close all battery covers.
شکل 2: شاته view of the clock with battery compartments.
4.2 Time Zone and Daylight Saving Time (DST) Settings
- On the back of the clock, locate the time zone selector switch (P, M, C, E for Pacific, Mountain, Central, Eastern). Slide the switch to your desired time zone.
- Locate the DST (Daylight Saving Time) switch. Set it to 'ON' for automatic adjustment or 'OFF' to disable DST adjustment.
Figure 3: Time zone and DST adjustment switches.
4.3 Atomic Time Synchronization
After battery installation and setting the time zone, the clock will automatically attempt to synchronize with the WWVB radio transmission from Fort Collins, CO. This process ensures accurate timekeeping to the second. The clock hands may move rapidly as it searches for the signal and sets itself. Allow up to 24 hours for initial synchronization, especially in areas with weak signals.
Figure 4: Clock face with atomic signal indicator.
4.4 Thermometer & Hygrometer Calibration
The built-in thermometer and hygrometer sensors require approximately 3 hours to fully calibrate to the ambient environment. For accurate readings, allow this time after placing the clock in its desired location.
شکل 5: مفصل view of temperature and humidity gauges.
4.5 پورته کول
The clock features a keyhole slot on the back for easy wall mounting. Choose a location that is visible and, for outdoor use, ideally protected from direct, prolonged exposure to extreme weather conditions to ensure longevity.
Figure 6: Clock displayed in an outdoor patio setting.
Figure 7: Clock displayed in an indoor living room setting.
Video 1: This video demonstrates the battery installation, setting of time zones, and the automatic time synchronization feature of the CLXEAST 18-inch Outdoor Lighted Atomic Clock with Temperature & Humidity.
5. عملیاتي لارښوونې
5.1 Smart LED Light Sensor

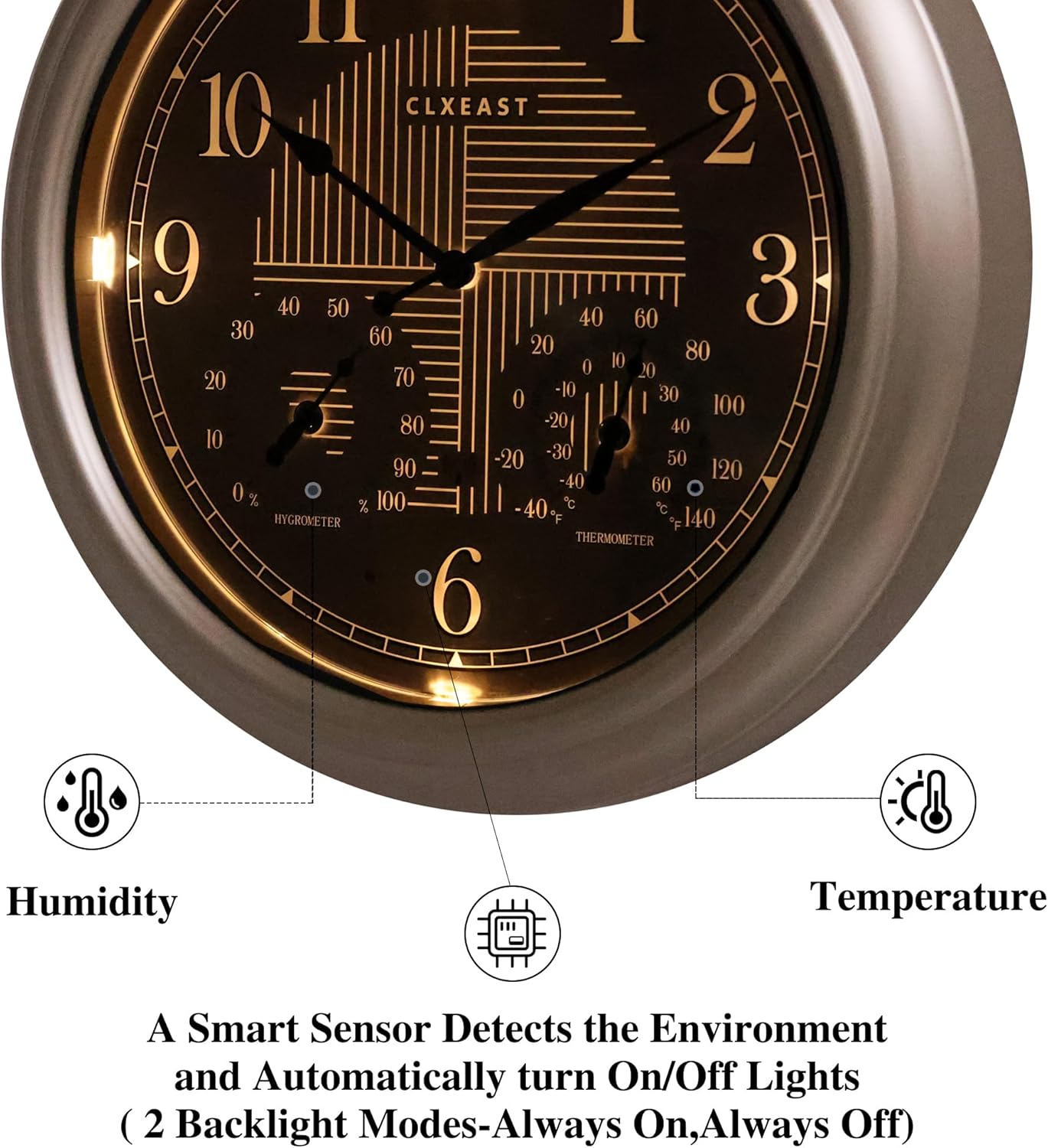

The clock is equipped with a smart light sensor that automatically activates a warm, ambient dial backlight during dark conditions and turns off in normal daylight. There are two backlight modes: 'Always On' and 'Always Off'. You can select your preferred mode using the switch on the back of the clock.
Figure 8: Daytime and illuminated nighttime view د ساعت.
Figure 9: Close-up of the illuminated clock face.
5.2 Reading Time, Temperature, and Humidity
The large analog display clearly shows the current time. The smaller gauges on the clock face indicate the ambient temperature in Fahrenheit and Celsius, and the relative humidity percentage.
6. ساتنه
- پاکول: ساعت په نرم، دamp cloth. Avoid using abrasive cleaners or solvents that may damage the finish or display.
- د بیټرۍ بدلول: Replace batteries when the clock hands stop moving or the LED illumination dims significantly. It is recommended to replace all D-size batteries simultaneously for optimal LED performance.
7. ستونزه حل کول
| مسله | احتمالي لامل | د حل لاره |
|---|---|---|
| Clock not setting time automatically | Weak atomic signal, incorrect time zone, or dead battery. | Ensure clock is in an area with good signal reception. Verify time zone setting. Replace AA battery. Press the 'RESET' button on the back. |
| د LED څراغ نه روښانه کوي | Dead D-size batteries, light sensor switch off, or insufficient darkness. | Replace D-size batteries. Ensure the LED light sensor switch is set to 'ON'. Test in a completely dark environment. |
| د تودوخې/رطوبت ناسمې شمېرې | Sensors not fully calibrated or exposed to direct elements. | Allow 3 hours for sensors to calibrate after placement. Ensure clock is not in direct sunlight or extreme heat/cold sources. |
| Clock hands stuck or moving erratically | Low battery or mechanical obstruction. | Replace AA battery. Gently check for any obstructions to the clock hands. |
8. مشخصات
| فیچر | تفصیل |
|---|---|
| برانډ | CLXEAST |
| د ماډل شمیره | T2888S10-N-RC |
| د ښودلو ډول | انلاګ |
| ابعاد | ۱۷" څراغ x ۱۷" ح |
| د بریښنا سرچینه | 1 x AA battery (for clock movement), 4 x D batteries (for LED light sensor) |
| ځانګړي ځانګړتیاوې | Atomic Time, Daylight Saving Time by WWVB, Illuminated, Temperature & Humidity Display, Waterproof, Weatherproof |
| د کور دننه / بهر کارول | بهر |
| مواد | Acrylic, Acrylonitrile Butadiene Styrene (ABS), Glass |
| د حرارت درجه | -40°F څخه تر 140°F |
| د رطوبت اندازه | نسبي رطوبت له %1 څخه تر 99% پورې |
| د توکي وزن | 5.3 پونډه |
9. تضمین او ملاتړ
For information regarding product warranty, returns, or technical support, please refer to the retailer's policy or visit the official CLXEAST store. Extended protection plans may be available for purchase through the retailer.
