د لارښوونې لارښود

1. پیژندنه

Thank you for choosing the GLOBE Motion Sensor Security Flood Light. This product is designed to enhance the security and illumination of your outdoor spaces with its advanced motion detection and adjustable lighting features. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

Figure 1: GLOBE Motion Sensor Security Flood Light (Model 17000138)

2. د خوندیتوب معلومات

خبرداری: To avoid electric shock, ensure power is turned off at the circuit breaker before installation or servicing. All wiring connections must be made in accordance with local and national electrical codes.

• This product is designed for outdoor use and is weather-resistant. However, ensure all connections are properly sealed to prevent water ingress.
• Use only bulbs that meet the specified requirements (2x Standard Base Dimmable E26 PAR38 Shape 120W Max Bulbs, sold separately).
• د محصول د تعدیل هڅه مه کوئ. هر ډول تعدیل ممکن تضمین باطل کړي او د خوندیتوب خطرونه رامینځته کړي.
• ماشومان د نصب کولو ساحې څخه لرې وساتئ.
• که تاسو د نصب کولو پروسې د کومې برخې په اړه ډاډه نه یاست، نو د وړ بریښنایی متخصص سره مشوره وکړئ.

Figure 2: The flood light is designed to be outdoor rated and weather resistant.

3. ترتیب او نصب کول

The GLOBE Motion Sensor Security Flood Light features a Dual Mount system, allowing for both wall and eave mounting. All necessary mounting hardware is included.

3.1. مخکې له دې چې تاسو پیل کړئ

• ډاډ ترلاسه کړئ چې په سرکټ بریکر کې بریښنا بنده ده.
• Unpack all components and verify that all parts are present.
• Acquire two Standard Base Dimmable E26 PAR38 Shape 120W Max Bulbs (sold separately).

3.2. د نصبولو اختیارونه

The adjustable arm design allows for flexible positioning of the motion sensor and lamp heads for optimal coverage.

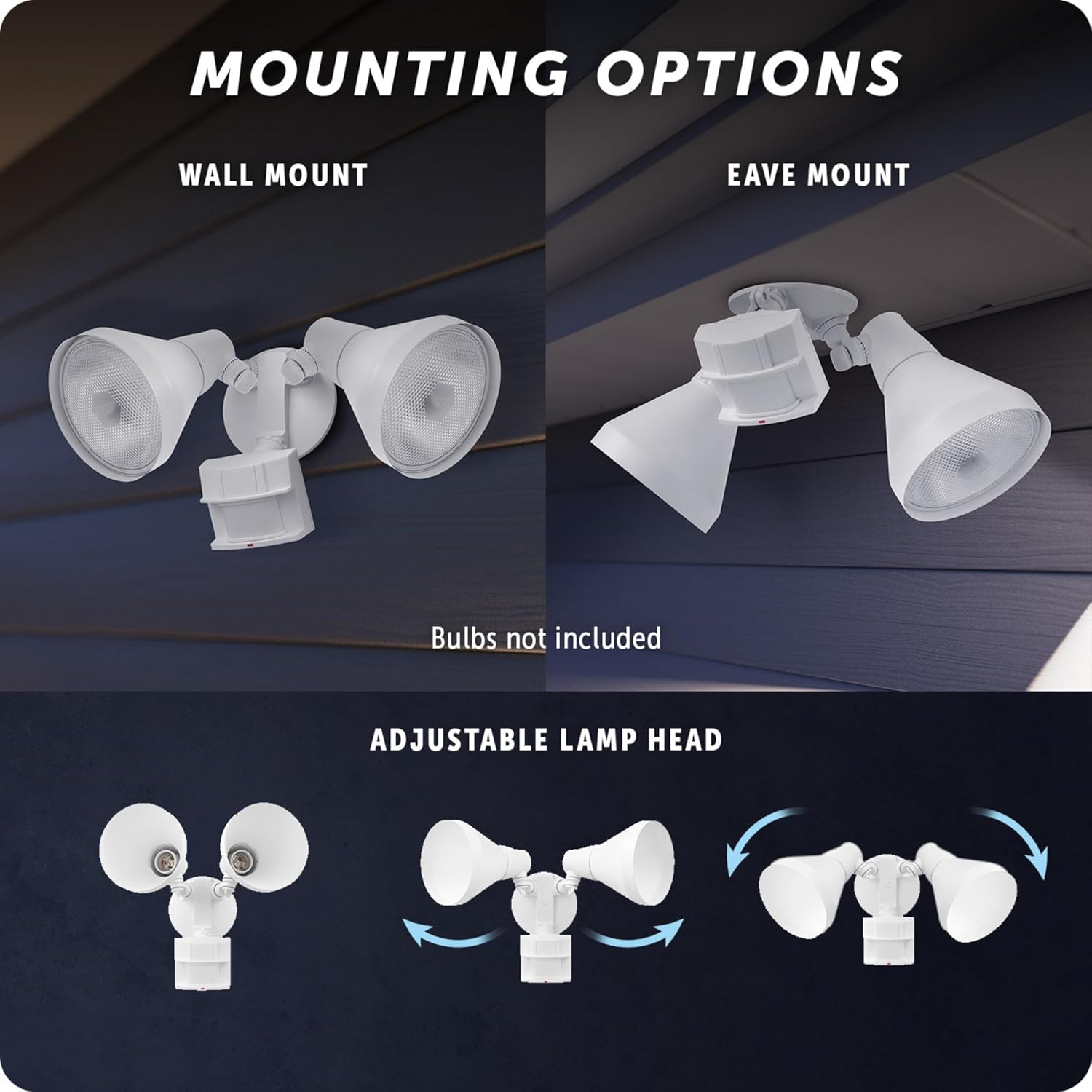

Figure 3: Wall Mount and Eave Mount configurations. The lamp heads are adjustable.

3.3. Wiring and Bulb Installation

1. Connect the flood light's wiring to your household electrical system according to local electrical codes. This is a hardwired unit.
2. Once the unit is securely mounted and wired, screw in the two E26 PAR38 bulbs into the lamp سرونه
3. l تنظیم کړئamp heads to direct light as desired. The swivel arm design allows for directional light.

Figure 4: The flood light is hardwired for reliable outdoor illumination.

4. عملیاتي لارښوونې

This flood light features advanced motion detection and the MotionBright 2-level lighting system.

4.1. د حرکت کشف

• The motion sensor has a 180° detection zone and can detect motion up to 70 feet (21 meters).
• An LED indicator light confirms when motion is detected.
• The light will automatically turn off after a selected duration of 1, 5, or 20 minutes if no further motion is detected.

Figure 5: The motion sensor provides a wide detection zone for enhanced security.

4.2. MotionBright 2-Level Lighting

When dimmable bulbs are used, the MotionBright feature provides energy-saving ambient lighting and full brightness when motion is detected:

• Low Ambient Light: When no motion is detected, the light will remain at a constant low ambient setting.
• بشپړ روښانتیا: Upon detection of motion, the light will automatically switch to full brightness.

A photocell ensures that the light operates only during nighttime hours.

Figure 6: MotionBright feature provides both ambient and full brightness lighting.

5. ساتنه

The GLOBE Motion Sensor Security Flood Light is constructed from durable materials designed for outdoor environments. Regular maintenance is minimal.

5.1. پاکول

• Clean the light fixture periodically with a soft, damp ټوکر
• Do not use abrasive cleaners or solvents, as they may damage the finish or components.

5.2. بلب بدلول

• Ensure power is OFF at the circuit breaker before replacing bulbs.
• بلبونو ته اجازه ورکړئ چې د لاس وهلو دمخه په بشپړه توګه یخ شي.
• Replace with 2x Standard Base Dimmable E26 PAR38 Shape 120W Max Bulbs.

6. ستونزه حل کول

If your flood light is not operating as expected, refer to the following common issues and solutions:

7. مشخصات

Detailed specifications for your GLOBE Motion Sensor Security Flood Light:

شکل ۲: د نصبولو پلان جوړولو لپاره د محصول ابعاد.

8. تضمین او ملاتړ

The GLOBE Motion Sensor Security Flood Light is backed by a 2 کلن تضمین, demonstrating Globe Electric's commitment to quality.

For technical support, warranty claims, or further assistance, please contact Globe Electric customer service. Refer to the product packaging or Globe Electric's official Amazon store د نورو معلوماتو لپاره.
