BSIDE S30X+X1 Digital Multimeter and Voltage Detector Pen Kit Instruction Manual

1. پیژندنه

This manual provides detailed instructions for the safe and effective use of your BSIDE S30X Digital Multimeter and BSIDE X1 Voltage Detector Pen Kit. This kit is designed to meet the majority of testing needs for household circuits, electronic components, various diode types, LED lighting, industrial temperature measurement, electrical inspections, and automotive repairs. Please read this manual thoroughly before operation and keep it for future reference.

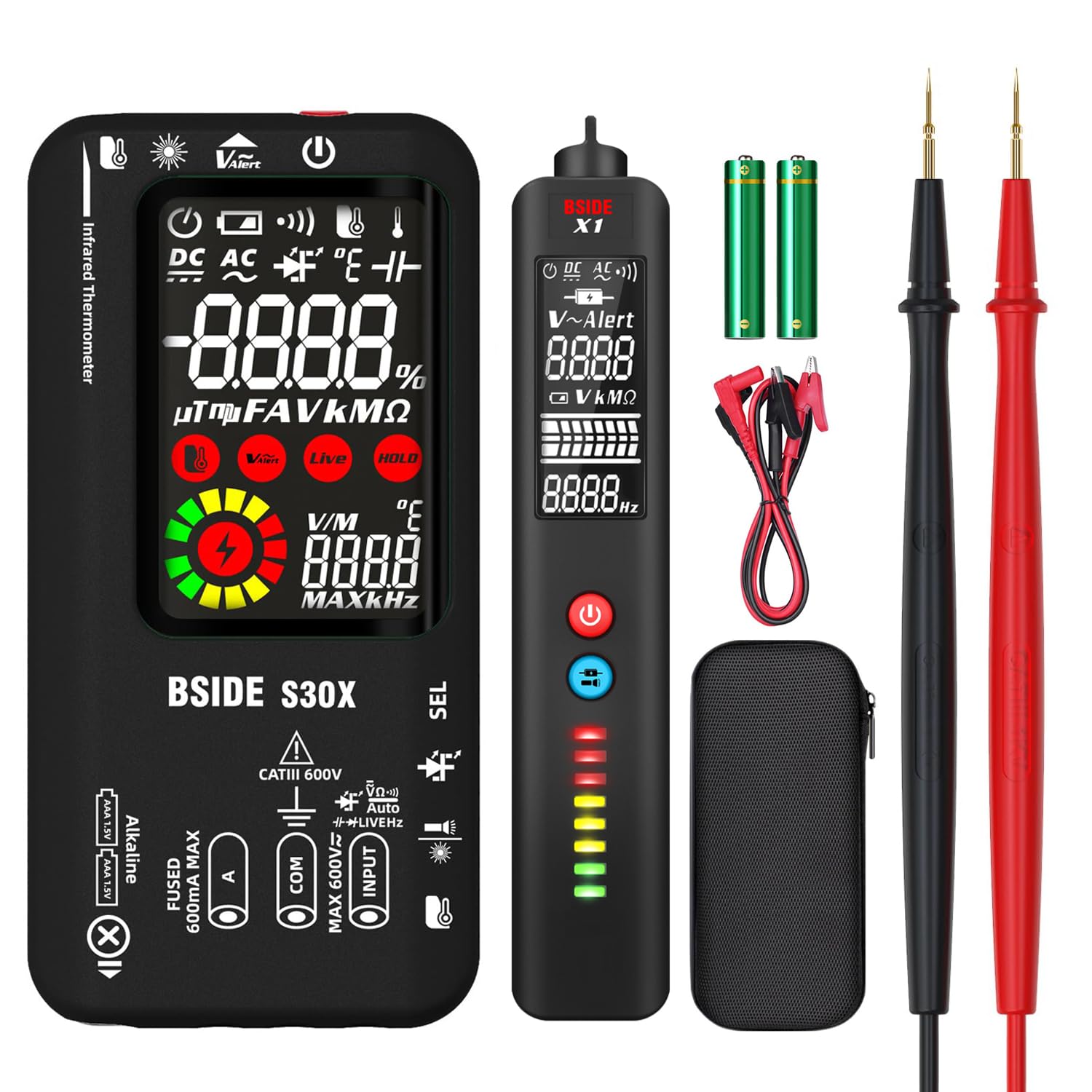

Image: The BSIDE S30X Digital Multimeter and BSIDE X1 Voltage Detector Pen Kit.

2. محصول ختم شوview: BSIDE S30X Digital Multimeter

The BSIDE S30X is an automatic digital multimeter featuring a high-speed chip for rapid and accurate measurements. It offers a wide range of functions for various electrical and electronic testing scenarios.

کلیدي ځانګړتیاوې:

• اتومات اندازه کول: Automatically identifies AC/DC voltage، مقاومت، فریکونسي، او دوام.
• دوه ګونی بریښنا رسول: Operates on a built-in rechargeable lithium-ion battery or two 1.5V AAA batteries.
• جامع اندازه ګیرۍ: Measures AC/DC current, capacitance, low and high voltage diodes, and identifies live/neutral wires.
• Non-Contact Infrared Temperature: Provides non-contact temperature measurement.
• غیر تماس والیtagد (NCV) کشف: د حجم کشف کويtage without direct contact, with an audible buzzer.
• مدغم شوي وسایل: Includes a laser pointer and a flashlight for improved visibility.
• Large Color LCD: Displays up to 9999 counts with three test results simultaneously.
• د خوندیتوب ځانګړتیاوې: Equipped with a replaceable ceramic anti-burn fuse.
• اسانتیا: Features automatic shutdown and low battery indication.

Image: The BSIDE S30X Multimeter showing its dual mode power system with rechargeable lithium battery and AAA battery slots.

Image: The BSIDE S30X Multimeter displaying its auto mode selection for various measurements.

3. محصول ختم شوview: BSIDE X1 Voltage Detector Pen

The BSIDE X1 is a compact and lightweight voltage detector pen, ideal for quick and safe voltage detection without direct contact.

کلیدي ځانګړتیاوې:

• اتوماتیک ازموینه: Automatically tests AC/DC voltage، مقاومت، او دوام.
• Adjustable NCV Sensitivity: Features NCV with adjustable sensitivity for AC voltage (90V-1000V / 6V-1000V).
• بصری شاخصونه: 8 LEDs in 3 colors differentiate voltagد شدت.
• د تار پیژندنه: Checks live/neutral wires and helps find breakpoints.
• EBTN LCD Display: Shows three test results clearly.
• جوړ شوی فلش لائټ: په کم رڼا لرونکو سیمو کې د کار کولو لپاره.
• اسانتیا: Automatic shutdown to conserve battery life.

Image: The BSIDE X1 Voltage Detector Pen detecting voltage near an electrical connection.

Image: The BSIDE X1 Voltage Detector Pen being used with test leads for measurement.

4. ترتیب کول

4.1. د بیټرۍ نصب کول

BSIDE S30X Multimeter: The S30X can be powered by its internal rechargeable lithium-ion battery or two 1.5V AAA batteries. Ensure the correct polarity when inserting AAA batteries. For recharging, connect the provided charging cable to the device and a suitable USB power source.

BSIDE X1 Voltage Detector Pen: The X1 requires two 1.5V AAA batteries. Open the battery compartment, insert the batteries observing the correct polarity, and close the compartment securely.

4.2. Test Lead Connection (BSIDE S30X)

For most measurements with the S30X, connect the red test lead to the 'INPUT' terminal and the black test lead to the 'COM' terminal. For current measurements, refer to the specific current input terminals (e.g., 'mA' or 'A') as indicated on the device.

5. عملیاتي لارښوونې

5.1. BSIDE S30X Digital Multimeter

1. پاور آن/بند: د بریښنا تڼۍ فشار ورکړئ ترڅو وسیله چالان یا بند کړئ.
2. اتومات اندازه کول: The S30X defaults to automatic measurement mode, identifying voltage، مقاومت، فریکونسي، او دوام.
3. Manual Mode Selection: Press the 'SEL' button to cycle through different measurement functions (e.g., AC Voltage، DC Voltage, Resistance, Capacitance, Frequency, Diode, Continuity, NCV, Live).
4. والیtagد اندازه کولو (AC/DC): مناسب حجم غوره کړئtage mode (AC V or DC V) or use auto mode. Connect test leads in parallel to the circuit.
5. اوسنی اندازه کول (AC/DC): Select the appropriate current mode (AC A or DC A). Connect the multimeter in series with the circuit. Ensure correct input terminals are used for current.
6. د مقاومت اندازه کول: Select resistance mode. Connect test leads across the component.
7. د ظرفیت اندازه کول: Select capacitance mode. Connect test leads across the capacitor.
8. د دوام ازموینه: Select continuity mode. Touch test leads to the points to be tested. An audible beep indicates continuity.
9. د ډایډ ټیسټ: Select diode mode. Connect test leads across the diode.
10. غیر تماس والیtagد (NCV) کشف: Select NCV mode. Bring the top of the multimeter near the conductor. The device will beep and display a visual indication if voltage کشف شوی دی.
11. د ژوندۍ تار کشف: Select Live mode. Insert the red test lead into the live wire. The display will indicate 'LIVE' and provide a visual/audible alert.
12. د انفراریډ د حرارت درجه اندازه کول: Point the IR sensor at the target object. The temperature will be displayed.
13. Flashlight/Laser Pointer: Use the dedicated buttons to activate the flashlight or laser pointer.

Image: The BSIDE S30X Multimeter demonstrating its integrated infrared thermometer function.

Image: The BSIDE S30X Multimeter automatically identifying and measuring current in Amp Smart Identification mode.

Image: The BSIDE S30X Multimeter being used for electronic maintenance, measuring capacitance on a circuit board.

Image: The BSIDE S30X Multimeter testing high-voltage diodes, showing the display and test leads.

5.2. BSIDE X1 Voltage Detector Pen

1. پاور آن/بند: د وسیله فعالولو لپاره د بریښنا تڼۍ فشار ورکړئ.
2. اتوماتیک کشف: The X1 automatically detects AC/DC voltage، مقاومت، او دوام.
3. NCV Sensitivity Adjustment: Use the sensitivity button to switch between high (6V-1000V) and low (90V-1000V) sensitivity modes for Non-Contact Voltage detection. Low sensitivity is for precise phase/neutral discrimination, while high sensitivity is for detecting wires behind walls.
4. د ژوندۍ/بې طرفه تار پیژندنه: Insert the tip of the pen into the socket or near the wire. The device will indicate live or neutral based on the visual and audible alerts.
5. د وقفې نقطې کشف: Move the pen along a cable to identify breaks in the circuit.
6. رڼا: Press the flashlight button to illuminate the work area.

6. ساتنه

• پاکول: وسایل په نرم، دamp ټوکر د کثافاتو پاکوونکي یا محلول مه کاروئ.
• د بیټرۍ مدیریت: Recharge the BSIDE S30X when the low battery indicator appears. Replace the AAA batteries in both devices promptly when they are depleted to ensure accurate readings and proper operation.
• Fuse Replacement (S30X): The S30X is equipped with a replaceable ceramic anti-burn fuse. If the fuse blows, replace it with a fuse of the same type and rating as specified in the technical specifications.
• ذخیره کول: Store the kit in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the AAA batteries from both devices to prevent leakage.

7. ستونزه حل کول

• وسیله نه فعالیږي: Check battery levels. For S30X, ensure the rechargeable battery is charged or replace AAA batteries. For X1, replace AAA batteries.
• ناسم لوستل: Ensure test leads are properly connected and in good condition. Verify that the correct measurement mode is selected. For X1, adjust NCV sensitivity if in a noisy electrical environment.
• د NCV کشف نشته: Ensure the device is powered on and in NCV mode. Bring the tip of the device as close as possible to the conductor. Check battery levels.
• د ښودنې ستونزې: If the display is dim or flickering, check battery levels.

8. مشخصات

8.1. BSIDE S30X Digital Multimeter

8.2. BSIDE X1 Voltage Detector Pen

9. تضمین او ملاتړ

For warranty information and technical support, please refer to the documentation included with your product or visit the official BSIDE webسایټ. د هر ډول تضمین ادعا لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.
