HOFTRONIC Q-Series LED Wet Room Lamp 150 سانتي متره

1. پیژندنه

Thank you for choosing the HOFTRONIC Q-Series LED Wet Room Lamp. This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your new luminaire. Please read this manual thoroughly before installation and retain it for future reference.

The HOFTRONIC Q-Series LED Wet Room Lamp is designed for demanding environments, offering robust protection against water, dust, and impact. Its energy-efficient LED technology provides bright, neutral white light suitable for various applications.

2. د خوندیتوب معلومات

• بریښنایی خوندیتوب: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Always disconnect power at the main circuit breaker before installation, maintenance, or repair.
• د محصول بشپړتیا: Do not modify or disassemble the luminaire. Any modifications will void the warranty and may pose a safety risk.
• عملیاتي چاپیریال: Ensure the operating temperature range of -20°C to +40°C is respected. Do not expose the luminaire to corrosive chemicals not specified in its protection ratings.
• تاوان: If the luminaire or its cable is damaged, do not use it. Contact a qualified technician for repair or replacement.
• تخریب: Dispose of the product responsibly at the end of its lifespan, following local regulations for electronic waste.

3. د بسته محتويات

د نصبولو دمخه ډاډ ترلاسه کړئ چې ټولې برخې شتون لري او زیانمن شوي ندي:

• HOFTRONIC Q-Series LED Wet Room Lamp (integrated LED)
• د پورته کولو کلپونه (2x)
• پیچونه او دیوال پلګونه
• د لارښوونې لارښود

4. ترتیب او نصب کول

۴.۱ د لومینیر نصب کول

The luminaire is designed for wall or ceiling mounting. Use the provided mounting clips, screws, and wall plugs.

1. نښه کول: Determine the desired mounting location. Mark the positions for the mounting clips on the surface. Ensure the distance between the clips matches the luminaire's mounting points.
2. برمه کول: Drill holes at the marked positions. Insert the wall plugs into the drilled holes.
3. Attaching Clips: Secure the mounting clips to the surface using the provided screws.
4. Mounting Luminaire: Carefully click the luminaire into the attached mounting clips. Ensure it is securely fastened.

انځور: Mounting steps for the HOFTRONIC Q-Series LED Wet Room Lamp. The diagram illustrates drilling, inserting wall plugs, attaching mounting clips, and then clicking the lamp ځای ته

4.2 بریښنایی پیوستون

The HOFTRONIC Q-Series features a quick connect system for fast and tool-free electrical installation. It also supports linking multiple luminaires.

• د بریښنا قطع کول: Before making any electrical connections, ensure the main power supply is switched off.
• Accessing Quick Connect: Rotate the end cap of the luminaire to access the quick connect terminals.
• تارونه: Insert the stripped ends of your power cable (220-240V AC) into the quick connect terminals. Ensure a secure connection for Live, Neutral, and Earth wires.
• خوندي کول: Once connected, rotate the end cap back to its original position to seal the connection and maintain the IP65 rating.

انځور: The quick connect system allows for fast and secure electrical installation by rotating the end cap to reveal the terminals.

4.3 Linking Multiple Luminaires

Up to 8 HOFTRONIC Q-Series luminaires can be linked together using the integrated PG11 cable glands for a continuous lighting solution.

1. کیبلونه چمتو کړئ: Use appropriate electrical cables with a diameter between 5 mm and 9 mm for linking.
2. Connect First Luminaire: Connect the first luminaire to the main power supply as described in Section 4.2.
3. Link Luminaires: Connect the linking cable between the PG11 cable glands of the first and second luminaire. Ensure proper wiring (Live to Live, Neutral to Neutral, Earth to Earth).
4. خوندي اړیکې: Tighten the PG11 cable glands to ensure a watertight seal and maintain the IP65 rating.
5. تکرار کړئ: Repeat the linking process for additional luminaires, up to a maximum of 8 units.

انځور: Multiple HOFTRONIC Q-Series lamps can be linked together using a connecting cable through the PG11 cable glands, supporting up to 8 fixtures.

5. عملیاتي لارښوونې

The HOFTRONIC Q-Series LED Wet Room Lamp is designed for straightforward operation.

• پاور آن/بند: Once correctly installed and wired, the luminaire will turn on when power is supplied to its circuit and turn off when power is disconnected. This is typically controlled by a wall switch connected to the circuit.
• غیر منحل کیدونکی: This luminaire is not dimmable. Do not connect it to a dimmer switch, as this may cause damage to the product and void the warranty.
• Diffuse Light: The Q-Series lamp provides diffuse light, which minimizes glare and creates a comfortable lighting environment, ideal for workshops, garages, and warehouses.

انځور: The HOFTRONIC Q-Series provides diffuse light, which reduces glare compared to non-diffuse light sources, enhancing visual comfort.

6. ساتنه

The HOFTRONIC Q-Series LED Wet Room Lamp لږترلږه ساتنې ته اړتیا لري.

• پاکول: Ensure the power is off before cleaning. Wipe the luminaire with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or compromise the IP rating.
• معاینه: Periodically inspect the luminaire for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
• د کارونکي د خدمت وړ برخې نشته: The integrated LED light source is not replaceable by the user. Do not attempt to open the sealed unit.

7. ستونزه حل کول

If you encounter issues with your HOFTRONIC Q-Series LED Wet Room Lampلاندې جدول ته مراجعه وکړئ:

If the problem persists after attempting these solutions, please contact HOFTRONIC customer support or a qualified electrician.

8. مشخصات

Detailed technical specifications for the HOFTRONIC Q-Series LED Wet Room Lamp:

انځور: Dimensional drawing of the HOFTRONIC Q-Series LED Wet Room Lamp.

انځور: EU Energy Label for HOFTRONIC Q-Series LED Wet Room Lamp, Model 2710033. The label indicates an energy efficiency class E and an energy consumption of 48 kWh/1000h.

د نورو تفصيلي محصول معلوماتو لپاره، مهرباني وکړئ د EPREL ډیټابیس ته مراجعه وکړئ: https://eprel.ec.europa.eu/qr/1783929

9. غوښتنلیکونه

The HOFTRONIC Q-Series LED Wet Room Lamp is suitable for a wide range of indoor and outdoor applications due to its robust design and high protection ratings:

• Workshops and Garages
• Warehouses and Storage Facilities
• Basements and Cellars
• Cold Rooms and Refrigeration Units
• Industrial Kitchens
• Car Washes and Humid Environments
• Public Spaces (due to IK08 vandal resistance)

انځور: Examples of the HOFTRONIC Q-Series LED lamp in use, including a car wash, warehouse, cold storage, and fruit storage.

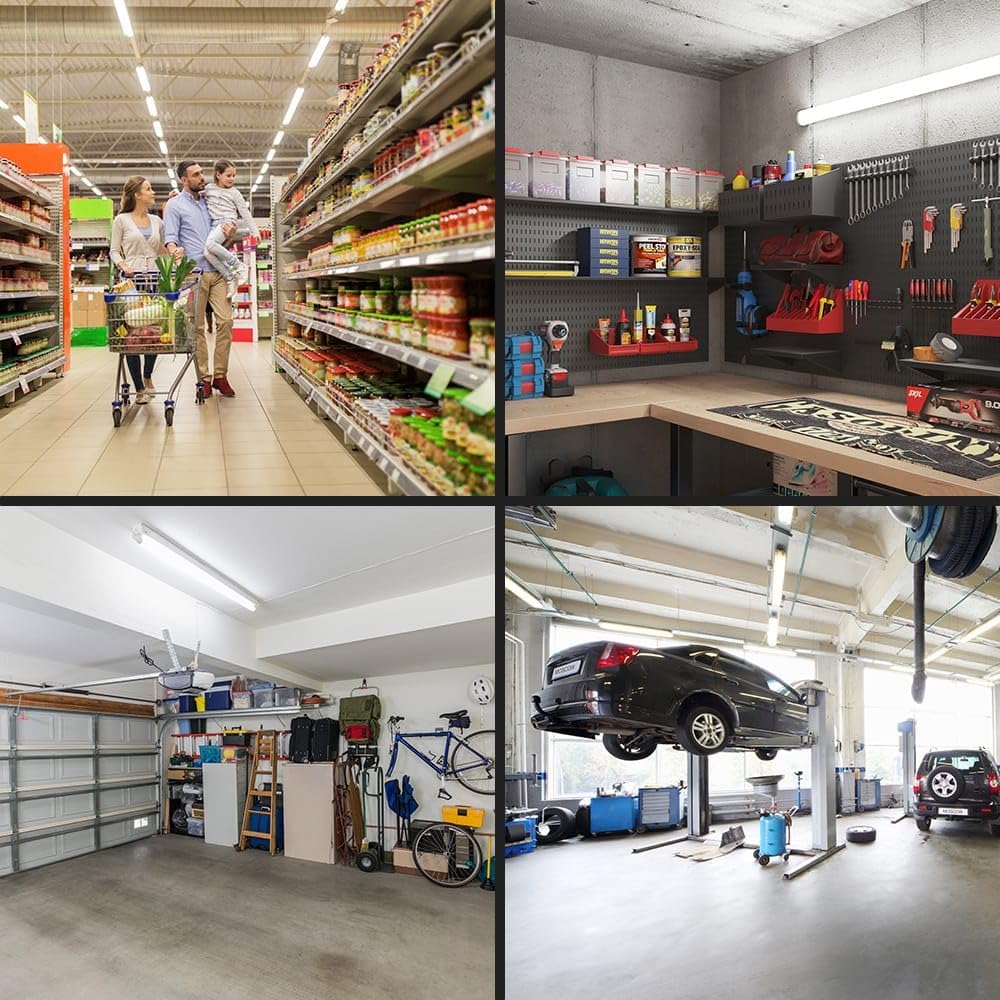

انځور: نور غوښتنلیک examples, demonstrating the lamp's versatility in a supermarket, workshop, home garage, and auto repair shop.

10. تضمین او ملاتړ

HOFTRONIC products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official HOFTRONIC webسایټ

For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or HOFTRONIC customer service. Ensure you have your model number (2710033) and proof of purchase available.

11. د چاپیریال معلومات

This product contains electronic components and should not be disposed of with general household waste. Please recycle it at designated collection points for electrical and electronic equipment (WEEE) in accordance with local regulations. Proper disposal helps prevent potential negative consequences for the environment and human health.
