ARREGUI Magna 590090 Furniture Safe User Manual

1. محصول ختم شوview

This manual provides instructions for the safe and secure operation of your ARREGUI Magna 590090 Furniture Safe. This robust safe is designed for home or commercial use, offering secure storage with a dual-factor security lock system.

Key features include a reinforced steel construction with a 6mm thick front and 2mm thick body, a 71-liter capacity, a removable interior shelf, and a 10cm high base that contains a hidden storage compartment. The safe is equipped with an automatic LED interior light and a 2-factor security lock requiring both an electronic code and a key for opening.

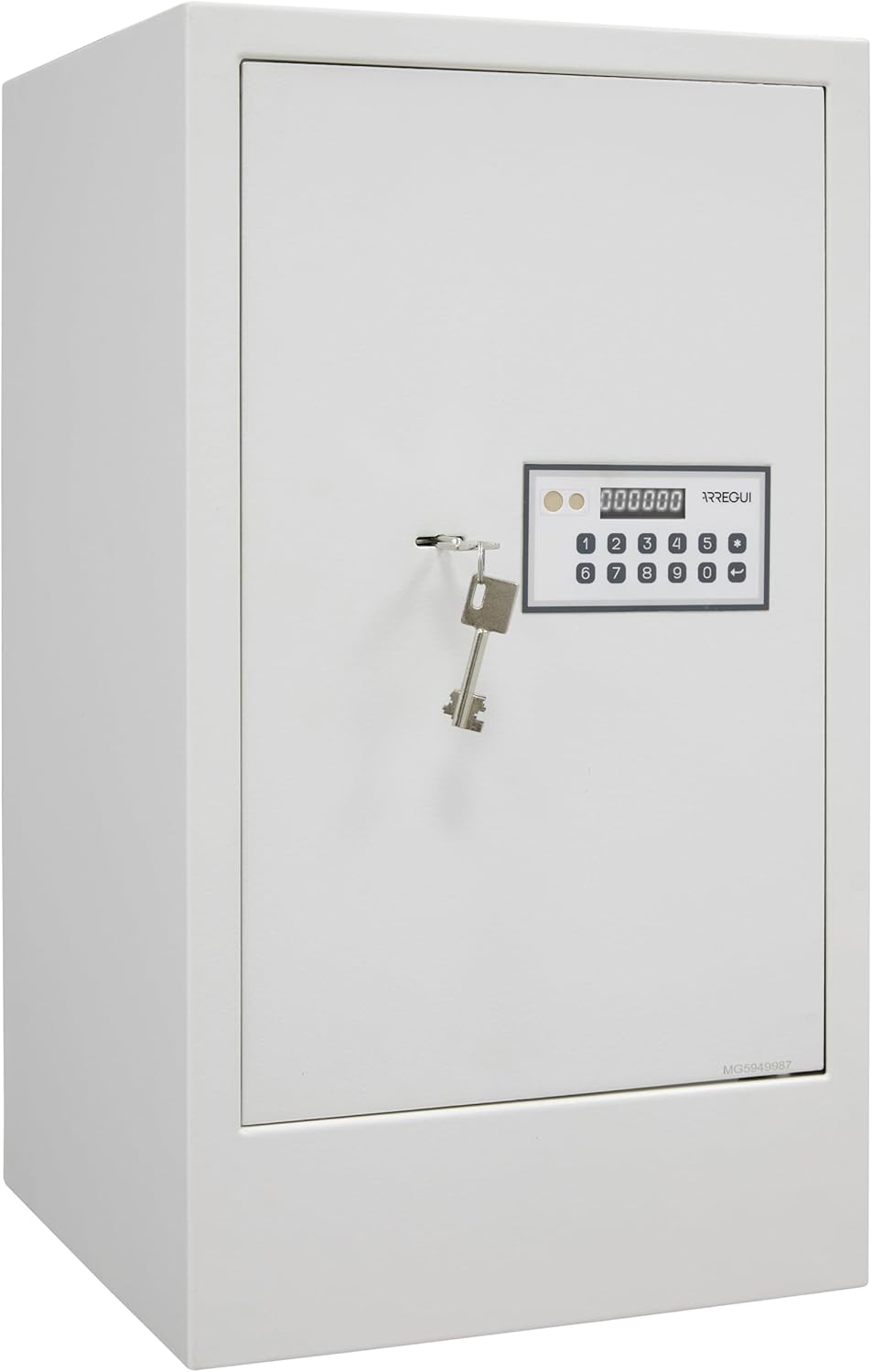

انځور: مخکینۍ برخه view of the ARREGUI Magna 590090 Furniture Safe, showing the electronic keypad and key lock.

2. ترتیب کول

2.1 پیک کول

Carefully remove the safe from its packaging. Inspect the safe for any signs of damage. Retain all packaging materials until you have confirmed the safe is in working order.

2.2 د بیټرۍ نصب کول

The safe requires 4 AA 1.5V alkaline batteries (not included) for the electronic lock. The battery compartment is typically located on the inside of the safe door. Open the safe using the emergency key (refer to Section 3.3 if needed), locate the battery compartment, insert the batteries according to the polarity markings, and close the compartment.

۳.۳ د سیف لنگر کول

For maximum security, it is strongly advised to anchor the safe to a wall, floor, or shelf. The safe is equipped with two pre-drilled holes in the base and two in the rear wall, each 9 mm in diameter. Mounting screws and anchors are included.

1. Choose a suitable location for the safe, ensuring it is on a stable surface.
2. Mark the drilling points through the pre-drilled holes in the safe's base or rear.
3. د خپل دیوال / فرش موادو لپاره د مناسب ډرل بټ په کارولو سره سیف حرکت ورکړئ او په نښه شوي ځایونو کې سوري ډرل کړئ.
4. چمتو شوي لنگرونه په سوراخ شوي سوري کې دننه کړئ.
5. Position the safe back over the holes and secure it tightly using the provided mounting screws.

Image: Diagram showing the external dimensions of the safe and the locations of the anchoring holes on the base and rear wall.

2.4 د شیلف نصب کول

The safe includes a removable interior shelf. Position the shelf on the internal supports at your desired height. The shelf can be removed if more vertical storage space is required.

انځور: داخلي view of the safe, illustrating the removable shelf and the hidden compartment within the 10cm high base.

3. عملیاتي لارښوونې

3.1 Setting/Changing the Code

The safe supports two 6-digit opening codes: one master code and one user code, offering 1 million possible combinations. Refer to the specific instructions provided with your safe for the exact procedure to set or change these codes. Generally, this involves pressing a reset button inside the safe (with the door open), entering the new code on the keypad, and confirming it.

3.2 Opening the Safe (Normal Operation)

The ARREGUI Magna 590090 safe features a 2-factor security lock. To open the safe:

1. Enter your 6-digit user or master code on the electronic keypad. The 6-digit display will show help messages during entry.
2. Once the correct code is entered and confirmed, turn the key in the lock clockwise.
3. دروازه خلاصه کړه.

Image: Illustration of entering the code on the keypad and turning the key to open the safe.

3.3 Emergency Opening

In situations such as forgotten codes, depleted batteries, or keypad damage, the safe can be opened using emergency methods:

Using the Emergency Key

Locate the emergency keyhole, usually hidden behind a cover on the keypad panel. Insert the emergency key and turn it to open the safe. This bypasses the electronic lock entirely.

Using External Power Supply (9V Battery)

If the internal batteries are depleted, you can temporarily power the keypad using a 9V battery. Locate the external power contacts on the keypad panel. Press a 9V battery firmly against these contacts. While holding the 9V battery, enter your code on the keypad and then turn the key to open the safe. Once open, replace the internal AA batteries.

4. ساتنه

4.1 د بیټرۍ بدلول

The safe's display will indicate a low battery level. To ensure continuous operation, replace the 4 AA 1.5V alkaline batteries promptly when this indicator appears. Follow the battery installation steps in Section 2.2.

4.2 پاکول

د سیف بهرنۍ برخه د نرم، ډ سره پاکه کړئamp ټوکر. د کثافاتو پاکوونکو یا محلولونو کارولو څخه ډډه وکړئ، ځکه چې دا کولی شي پای ته زیان ورسوي. د پاکولو محلولونه په مستقیم ډول په کیپډ یا قلف میکانیزم مه سپری کوئ.

5. ستونزه حل کول

• سیف د کوډ سره نه خلاصیږي:
      - Ensure batteries are not depleted. Use external 9V power or emergency key if necessary.
      - Verify the code entered is correct.
• کیپډ غیر ځواب ورکوونکی دی:
      - Check battery level. Replace batteries if low.
      - If 3 incorrect codes were entered, the safe will lock for 5 minutes. Wait for the lockout period to expire.
• Forgotten code:
      - Use the emergency key to open the safe. Once open, you can reset the user or master code.
• Interior LED light not working:
      - Check battery level. The LED light is powered by the same batteries as the keypad.

6. مشخصات

Image: Diagram highlighting key features such as body and front thickness, internal light, 6-digit display, removable shelf, emergency key, and locking bolts.

7. تضمین او ملاتړ

7.1 د تضمین معلومات

The ARREGUI Magna 590090 Furniture Safe comes with a 3-year warranty. Please retain your proof of purchase for warranty claims.

7.2 د پیرودونکي ملاتړ

For technical assistance, spare parts, or any inquiries regarding your safe, please contact ARREGUI customer support. You may need the serial number of your safe, which is typically located on the inside of the door or on the product label, for assistance with key duplication or specific troubleshooting.
