1. پیژندنه
Thank you for choosing the KIMO QM-3603-500N·m Electric Impact Wrench. This powerful and versatile cordless tool is designed for a wide range of applications, from automotive maintenance like tire changes to various DIY projects and professional tasks. Featuring a high-capacity 4000mAh battery, intelligent control modes, and robust construction, it provides efficient and reliable performance. Please read this manual thoroughly before operation to ensure safe and optimal use of your new tool.
2. د خوندیتوب لارښوونې
خبرداری: د دې بریښنا وسیلې سره چمتو شوي ټول خوندیتوب اخطارونه ، لارښوونې ، توضیحات او مشخصات ولولئ. د لاندې لست شوي ټولو لارښوونو په تعقیب کې پاتې راتلل ممکن د بریښنا شاک، اور، او/یا جدي ټپي کیدو پایله ولري.
- تل مناسب شخصي محافظتي تجهیزات واغوندئ، پشمول د خوندیتوب عینکې، د اوریدلو محافظت، او دستکشې.
- د کار ساحه پاکه او ښه رڼا وساتئ. تیاره یا تیاره سیمې حادثې ته بلنه ورکوي.
- په چاودیدونکي فضا کې د بریښنا وسیلې مه کاروئ، لکه د سوځیدونکي مایعاتو، ګازونو یا دوړو په شتون کې.
- د بریښنا وسیله چلولو پرمهال ماشومان او لیدونکي لرې وساتئ. ګډوډي کولی شي ستاسو د کنټرول له لاسه ورکولو لامل شي.
- ډاډ ترلاسه کړئ چې د بیټرۍ کڅوړه د کارولو دمخه په بشپړ ډول چارج شوې ده.
- د بریښنا وسیله مه مجبوروئ. د خپل غوښتنلیک لپاره د بریښنا سمه وسیله وکاروئ.
- د هر ډول سمون کولو، لوازمو بدلولو، یا د بریښنا وسیلو ذخیره کولو دمخه د بیټرۍ کڅوړه د بریښنا وسیلې څخه جلا کړئ.
- بې کاره بریښنا وسیلې د ماشومانو له لاسرسي څخه لرې وساتئ او هغه اشخاصو ته اجازه مه ورکوئ چې د بریښنا وسیلې یا دې لارښوونو سره نا اشنا وي چې د بریښنا وسیلې چلوي.
- د بریښنا وسایل او لوازم ساتل. د حرکت کولو برخو غلط تنظیم یا پابند کول ، د برخو ماتول ، او کوم بل حالت چې ممکن د بریښنا وسیلې فعالیت اغیزه وکړي چیک کړئ.
- د دې لارښوونو سره سم د بریښنا وسیله، لوازم او د وسیلې بټونه وکاروئ، د کاري شرایطو او د ترسره کولو کار په پام کې نیولو سره.
- باران یا لوند شرایطو ته د بریښنا وسیلې مه اخلئ. د بریښنا وسیلې ته د اوبو ننوتل به د بریښنا شاک خطر ډیر کړي.
3. محصول ختم شوview
3.1 اجزا
The KIMO QM-3603-500N·m Electric Impact Wrench comes with the following components:
- KIMO QM-3603-500N·m Impact Wrench Unit
- 20V 4000mAh لیتیم آیون بیټرۍ
- ګړندی چارجر
- Impact Sockets (15mm, 17mm, 19mm, 21mm)
- Drill Bits (for wood, metal, screws)
- د ذخیره کولو کڅوړه
- د کارن لارښود
Image: KIMO Electric Impact Wrench and its complete accessory set, including battery, charger, various sockets, and drill bits.
3.2 کلیدي ځانګړتیاوې
- لوړ تورک تولید: Delivers a maximum torque of 500N·m, capable of loosening stubborn bolts and nuts.
- Long-lasting Battery & Fast Charging: Equipped with a 20V 4000mAh lithium-ion battery, providing approximately 20-40 minutes of continuous use. The included fast charger fully charges the battery in just 120 minutes.
- Intelligent Automatic Stop Mode: Prevents overtightening and damage to bolts/nuts by automatically stopping rotation when the fastener is loose. This feature is active in forward rotation only.
- Multi-functional 3-in-1 Design: Functions as an impact wrench, electric drill, and electric driver, making it suitable for a wide array of tasks.
- درې عملیاتي طریقې: Easily switch between Automatic Stop Mode, High Efficiency Mode (0-2600 RPM), and Power Saving Mode (0-1600 RPM) to optimize performance for different materials and tasks.
- Stepless Speed Control & Forward/Reverse: Adjust rotation speed by varying pressure on the trigger. A convenient lever allows for quick switching between forward (tightening) and reverse (loosening) rotation.
- سپک او ارګونومیک ډیزاین: Weighing only 1.1kg, it reduces arm fatigue during prolonged use, making it comfortable for all users.
- مدغم LED څراغ: Illuminates the work area, providing clear visibility in dark or confined spaces.
- د ټیټ شور عملیات: Engineered for reduced noise levels, allowing for more comfortable use in various environments.
Image: Visual representation of the KIMO Impact Wrench's 500N·m maximum torque and its impact on product life, power, spark, and noise.
Image: Close-up of the KIMO Impact Wrench's 4000mAh battery, highlighting its large capacity and the integrated battery level indicator.
Image: Illustration of the KIMO Impact Wrench's three adjustable modes: High Efficiency Mode, Power Saving Mode, and Automatic Stop Mode.

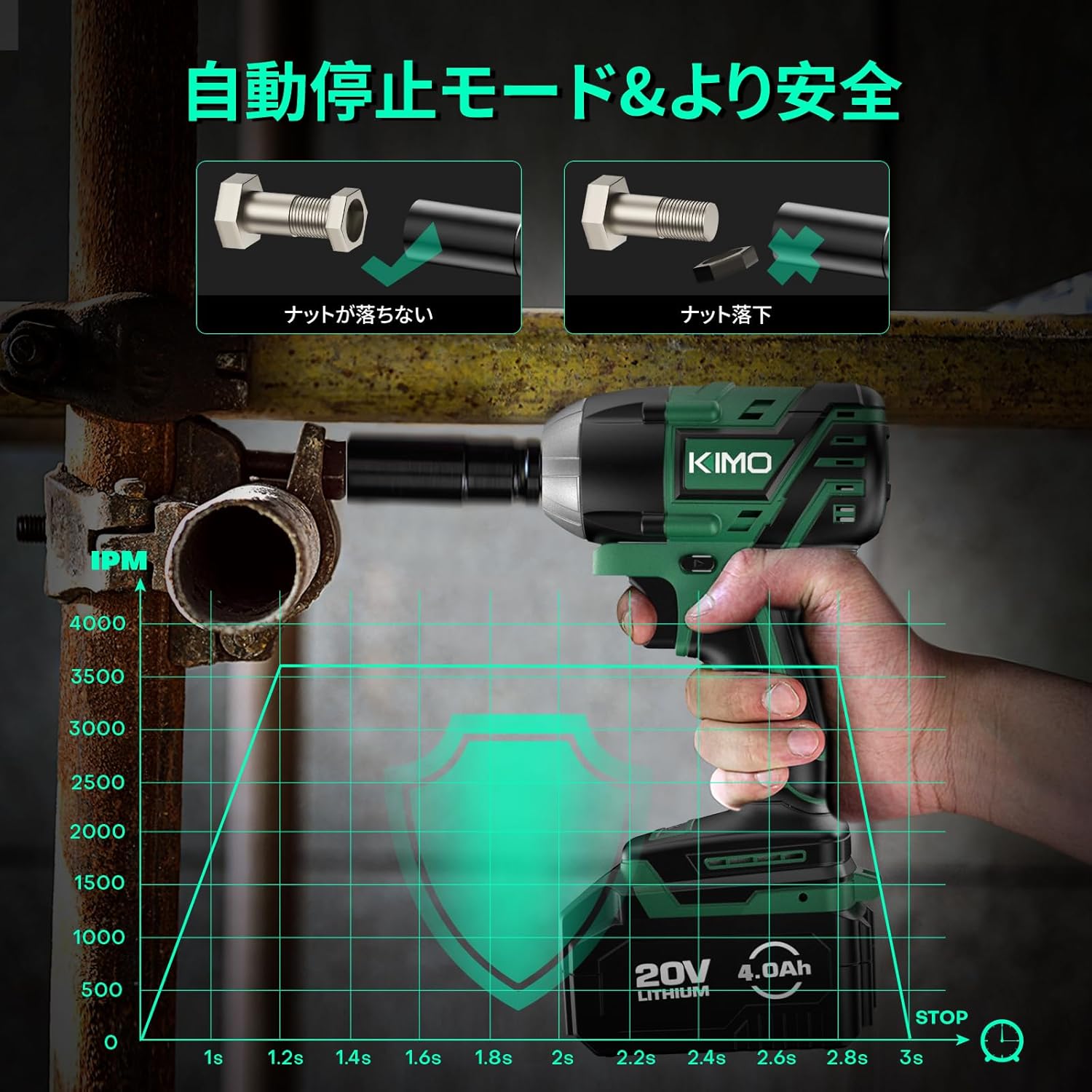

Image: Depiction of the KIMO Impact Wrench's automatic stop mode, showing how it prevents bolts from falling off or overtightening for enhanced safety.
Image: The KIMO Impact Wrench in use, demonstrating its integrated LED light illuminating a dark work area for improved visibility.
Image: Diagram illustrating the forward (F) and reverse (R) rotation capabilities of the KIMO Impact Wrench for tightening and loosening nuts.
4. ترتیب کول
4.1 د بیټرۍ چارج کول
- Ensure the battery pack is securely inserted into the fast charger.
- چارجر په معیاري بریښنا پلورنځي کې ولګوئ.
- The indicator lights on the charger will show the charging status. A full charge typically takes 120 minutes.
- Once fully charged, disconnect the charger from the power outlet and remove the battery pack.
4.2 Attaching Sockets/Bits
- Ensure the tool is off and the battery pack is removed before attaching or removing accessories.
- For impact sockets, align the square drive of the socket with the anvil on the tool and push firmly until it clicks into place.
- For drill bits or screwdriver bits, use the appropriate adapter (if necessary) and insert the bit into the chuck. Tighten the chuck securely to hold the bit in place.
- To remove, pull the socket or bit firmly away from the anvil/chuck.
5. عملیاتي لارښوونې
5.1 بریښنا کول / بندول
To power on the tool, simply press the trigger. The tool will start rotating. To power off, release the trigger.
5.2 Changing Modes
The tool features three operating modes: Automatic Stop Mode, High Efficiency Mode, and Power Saving Mode. Press the mode selection button on the tool to cycle through these modes. The indicator lights will show the currently selected mode.
- Automatic Stop Mode: Ideal for loosening nuts and bolts. The tool will automatically stop rotation once the fastener is loose to prevent it from flying off. This mode only works in forward rotation.
- High Efficiency Mode: Provides maximum speed (0-2600 RPM) for heavy-duty tasks and quick fastening/loosening.
- د بریښنا خوندي کولو حالت: Operates at a lower speed (0-1600 RPM) to conserve battery life and for more precise work. This mode is ideal for delicate adjustments or re-tightening.
۴.۳ مخ په وړاندې/ برعکس گردش
A lever located near the trigger allows you to switch between forward and reverse rotation:
- Push the lever to the left (F) for forward rotation (tightening).
- Push the lever to the right (R) for reverse rotation (loosening).
Ensure the tool has come to a complete stop before changing the direction of rotation.
5.4 Tightening and Loosening
- Select the appropriate socket or bit for the fastener.
- Choose the desired operating mode (e.g., High Efficiency for initial loosening, Automatic Stop for controlled loosening).
- Set the forward/reverse lever to the correct direction.
- Place the socket/bit firmly onto the fastener.
- Gradually press the trigger to start rotation. Apply more pressure for higher speed.
- For tightening, always finish with a torque wrench to ensure proper torque specifications are met, especially for critical applications like wheel nuts.
6. ساتنه
6.1 پاکول
- تل د پاکولو دمخه د بیټرۍ کڅوړه جلا کړئ.
- یو نرم استعمال کړئ، دamp د وسیلې بهرنۍ برخه د پاکولو لپاره ټوکر. سخت کیمیاوي توکي یا د کثافاتو پاکوونکي مه کاروئ.
- Keep the ventilation openings clear of dust and debris. Use compressed air if necessary.
6.2 د بیټرۍ پاملرنه
- د بیټرۍ کڅوړې په یخ او وچ ځای کې د مستقیم لمر وړانګو او سختې تودوخې څخه لرې وساتئ.
- Do not store battery packs in a discharged state for extended periods. Recharge them periodically if not in use.
- Avoid dropping or physically damaging the battery pack.
6.3 ذخیره کول
- Store the tool and accessories in the provided storage bag or a suitable case.
- Keep the tool in a secure location, out of reach of children and unauthorized users.
7. ستونزه حل کول
If you encounter issues with your KIMO Electric Impact Wrench, please refer to the table below for common problems and solutions.
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| وسیله نه چالانیږي. | بیټرۍ چارج شوې نه ده یا په سمه توګه نه ده داخل شوې. | ډاډ ترلاسه کړئ چې بیټرۍ په بشپړه توګه چارج شوې او په خوندي ډول دننه شوې ده. |
| Low power or inconsistent operation. | د بیټرۍ چارج ټیټ دی. | بیټرۍ چارج کړئ. |
| Socket/bit falls off. | Not properly attached or worn anvil/chuck. | Ensure secure attachment. If issue persists, contact support for inspection. |
| وسیله ډیره ګرمیږي. | د اوږدې مودې لپاره دروند استعمال یا د هوا بندیدل. | وسیله ته اجازه ورکړئ چې سړه شي. د هوا د بهېدو لارې پاکې کړئ. |
If the problem persists after attempting these solutions, please contact KIMO customer support for further assistance.
8. مشخصات
| مشخصات | ارزښت |
|---|---|
| برانډ | کیمو |
| د ماډل شمیره | QM-3603 |
| د محصول ابعاد | 28.4 x 18.4 x 18.1 سانتي متره |
| د توکي وزن | 1.1 کیلو ګرامه |
| رنګ | شین |
| مواد | پلاستیک |
| والیtage | 20 ولټه |
| واټtage | 4.9 W |
| تورک | 500 نیوټن متره |
| د اعظمي گردش سرعت | 2600 RPM |
| د بیټرۍ ظرفیت | 4000mAh |
| د چارج کولو وخت | نږدې 120 دقیقې |
9. تضمین او ملاتړ
KIMO conducts thorough quality inspections on every product before shipment to ensure it meets our high standards. In the unlikely event that you encounter any issues with your product or have questions, please do not hesitate to contact our customer support team. We are committed to providing excellent after-sales service and will respond to your inquiries in the order they are received.
For support, please refer to the contact information provided in your product packaging or visit the official KIMO webسایټ
