پیژندنه
This manual provides detailed instructions for the safe and efficient use of your TCL 58V6B 58-inch 4K Ultra HD Smart TV. Please read this manual thoroughly before operating the device and retain it for future reference. This television integrates 4K HDR technology, Google TV, Dolby Audio, and Chromecast built-in, offering an enhanced viewتجربه
چمتو کول
1. خلاصول
Carefully remove the television and all accessories from the packaging. Ensure all components listed in the packing list are present. Retain the packaging for potential future transport or service.
2. د سټینډ نصب کول
If using the included stand, place the TV screen-down on a soft, flat surface to prevent scratches. Attach the stand components to the designated slots on the bottom of the TV using the provided screws. Ensure the stand is securely fastened before placing the TV upright.

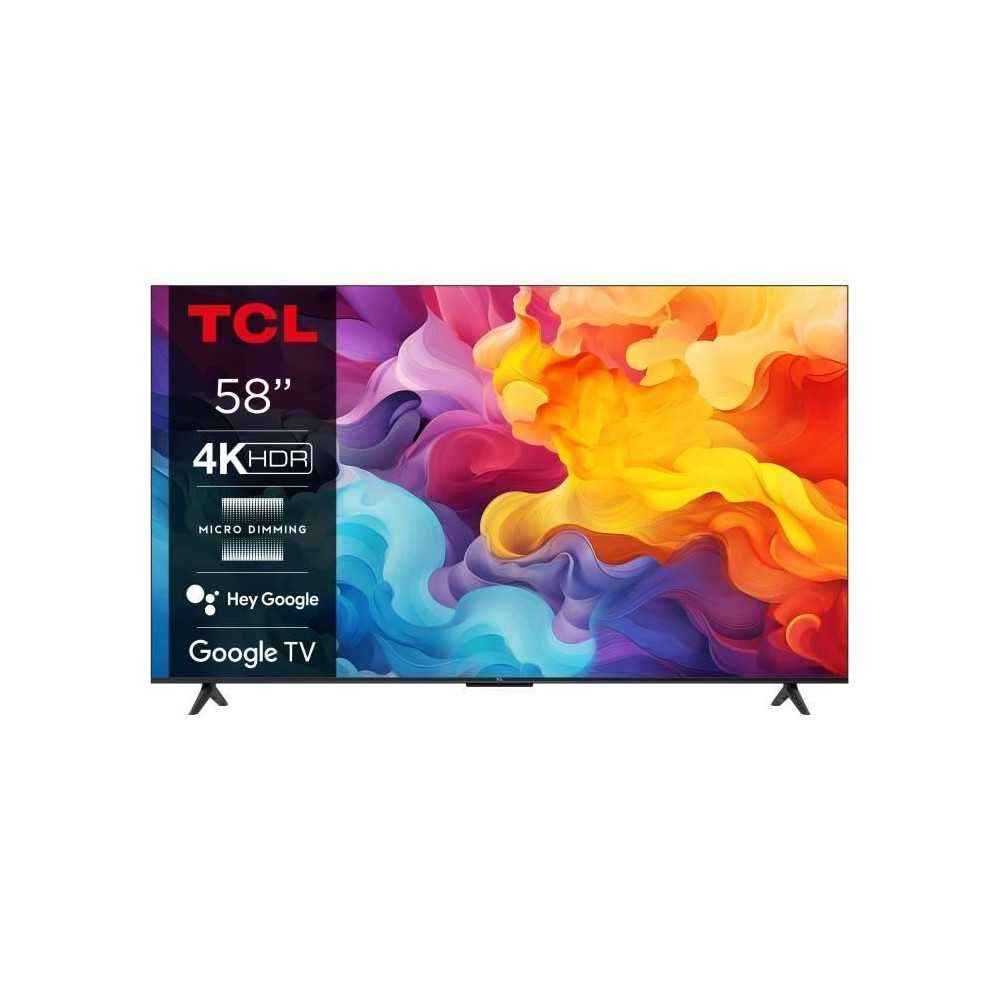

Image: The TCL 58V6B 58-inch Smart TV shown with its stand, ready for placement.
۳. دیوال نصب کول (اختیاري)
For wall mounting, consult a professional installer and use a VESA-compatible wall mount kit (not included). Refer to the wall mount kit's instructions for proper installation. Ensure adequate ventilation around the TV when wall-mounted.

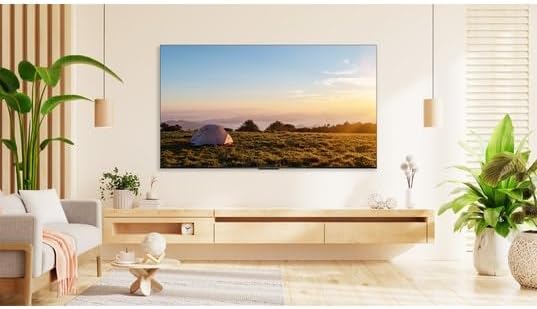

Image: The TCL 58V6B TV displayed mounted on a wall in a modern living room environment.
4. د پردیو نښلول
Connect your external devices such as set-top boxes, gaming consoles, or sound systems to the TV's ports. The TV features multiple HDMI inputs, a USB port, LAN, and optical audio output.
- HDMI: د لوړ تعریف ویډیو او آډیو لپاره.
- USB: د USB ذخیره کولو وسیلو څخه د میډیا پلې بیک لپاره.
- لین: د تار لرونکي انټرنیټ اتصال لپاره.
- نظري: د غږ بارونو یا د کور تیاتر سیسټمونو ته د ډیجیټل آډیو آوټ پټ لپاره.
- AV ننوت: د زړو وسیلو لپاره چې مرکب ویډیو او سټیریو آډیو کاروي.
- هیډفون: د شخصي اوریدلو لپاره.
Image: A detailed diagram illustrating the placement and types of connectivity ports available on the TCL 58V6B television.
۲. د بریښنا لومړنی فعالول او د لومړي ځل لپاره تنظیم کول
After connecting the power cable, press the power button on the remote control or the TV. Follow the on-screen instructions to complete the initial setup, which includes language selection, network connection (Wi-Fi or LAN), and Google TV account login. This process will guide you through setting up Google Assistant and Chromecast.
عملیات
۳. د ریموټ کنټرول اوورview
The remote control allows access to all TV functions. Familiarize yourself with the buttons for power, volume, channel, input selection, navigation, and dedicated app buttons.
۲. د ګوګل تلویزیون انٹرفیس نیویګیشن
The Google TV interface organizes content from various streaming services and live TV into a personalized home screen. Use the directional pad on your remote to navigate through menus, select apps, and browse content. The "For You" tab provides personalized recommendations.
Image: The TCL 58V6B TV screen showing the Google TV home interface with popular streaming applications and content recommendations.
3. سمارټ ځانګړتیاوې
- د سټریمینګ غوښتنلیکونه: Access pre-installed apps like Netflix, Prime Video, Disney+, and YouTube. More apps can be downloaded from the Google Play Store.
- د Chromecast جوړ شوی: Cast content from your compatible smartphone, tablet, or computer directly to the TV screen.
- د غږ کنټرول (ګوګل اسسټنټ): Press the Google Assistant button on your remote and speak commands to search for content, control smart home devices, or get information.
Image: Visual representation of the TCL 58V6B's core features, including 4K HDR, Google TV, and various connectivity options.
۳. د انځور او غږ ترتیبات
Access the TV settings menu to adjust picture modes (e.g., Standard, Dynamic, Movie), brightness, contrast, color, and sharpness. For audio, select sound modes (e.g., Standard, Music, Movie) and adjust equalizer settings. The TV supports Dolby Audio for an enhanced sound experience.
ساتنه
1. Cleaning the Screen and TV Body
Before cleaning, unplug the power cord. Use a soft, dry, lint-free cloth to gently wipe the screen and TV body. For stubborn marks, lightly dampen the cloth with water or a specialized screen cleaner. Avoid using harsh chemicals, abrasives, or alcohol-based cleaners, as these can damage the screen or finish.
2. د سافټویر تازه معلومات
The TV may receive automatic software updates to improve performance and add new features. Ensure your TV is connected to the internet to receive these updates. You can also manually check for updates in the TV's settings menu.
د ستونزو حل کول
که تاسو په خپل تلویزیون کې ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:
| ستونزه | د حل لاره |
|---|---|
| هیڅ ځواک نشته | وګورئ چې د برېښنا تار په خوندي ډول د تلویزیون او دیوال ساکټ دواړو سره نښلول شوی دی. ډاډ ترلاسه کړئ چې ساکټ فعال دی. هڅه وکړئ چې په تلویزیون کې د برېښنا تڼۍ فشار ورکړئ، نه یوازې په ریموټ کې. |
| انځور نشته / تور سکرین | Verify the correct input source is selected. Check all cable connections (HDMI, AV). Try restarting the TV and any connected devices. |
| نه غږ | Increase the volume. Check if the TV is muted. Ensure external audio devices (soundbar, receiver) are properly connected and powered on. Check audio output settings in the TV menu. |
| ریموټ کنټرول کار نه کوي | بیټرۍ بدل کړئ. ډاډ ترلاسه کړئ چې د ریموټ او د تلویزیون د IR سینسر ترمنځ هیڅ خنډ شتون نلري. که چیرې ریموټ بلوتوث ریموټ وي نو بیا یې جوړه کړئ. |
| د شبکې د اتصال ستونزې | Restart your router and modem. Check Wi-Fi password. If using a wired connection, ensure the LAN cable is properly connected. Try connecting to a different Wi-Fi network if available. |
مشخصات
Key technical specifications for the TCL 58V6B 58-inch 4K Ultra HD Smart TV:
- نښه: TCL
- د ماډل شمیره: 58V6B
- د سکرین اندازه: 58 انچونه (147 سانتي متره)
- د ښودلو ټیکنالوژي: LED
- قرارداد: 4K الټرا HD (3840 x 2160 پکسلز)
- د تازه کولو نرخ: 60 Hz
- عملیاتي سیسټم: ګوګل تلویزیون
- ځانګړي ځانګړتیاوې: 4K HDR, HDR10, Dynamic Color Enhancement, Micro Dimming, Dolby Audio, Chromecast built-in, Google Assistant, Voice Control, Motion Clarity, Wi-Fi, Bluetooth
- ارتباط: 3x HDMI, 1x USB, LAN, Optical Audio Out, AV Input, Headphone Jack, CI Slot
- ابعاد (د موقف سره): 30.1D x 128.5W x 80.1H سانتي متره
- رنګ: Brushed Titanium Metal Front
- شاملې برخې: Remote control, batteries, manual, power cable
Image: The energy efficiency label for the TCL 58V6B television, detailing power consumption and display resolution.
د تضمین معلومات
TCL د دې محصول لپاره محدود تضمین وړاندې کوي. مهرباني وکړئ د خپل محصول په بسته بندۍ کې شامل تضمین کارت ته مراجعه وکړئ یا رسمي TCL ته مراجعه وکړئ. webستاسو د سیمې لپاره د تضمین تفصيلي شرایطو او مقرراتو لپاره سایټ. د تضمین ادعاوو لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.
ملاتړ
For technical assistance, product registration, or further inquiries, please contact TCL Customer Support. You can find contact information on the official TCL webسایټ یا ستاسو د تلویزیون سره چمتو شوي اسنادو کې.
- آنلاین ملاتړ: لیدنه www.tcl.com for FAQs, support articles, and software downloads.
- د پیرودونکي خدماتو شمیره: خپل سیمه ایز TCL ته مراجعه وکړئ webد سیمه ییزو اړیکو شمیرو لپاره سایټ.
