KATOOL ME-T450/B620 د ټایر چینجر او ویل بیلانسر کامبو ماشین لارښوونې لارښود

1. پیژندنه

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your KATOOL ME-T450 Tire Changer and ME-B620 Wheel Balancer Combo Machine. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.

The KATOOL ME-T450/B620 combo machine is designed for professional tire repair and wheel changing in garage and workshop environments. It combines a robust tire changer with a precise wheel balancer to streamline your tire service operations.

Figure 1: KATOOL ME-T450 Tire Changer and ME-B620 Wheel Balancer Combo Machine.

2. د خوندیتوب لارښوونې

خبرداری: د دې خوندیتوب لارښوونو په تعقیب کې پاتې راتلل ممکن د جدي ټپي کیدو یا مرګ لامل شي.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and steel-toed boots.
• Ensure the machine is properly grounded and connected to the correct power supply as specified in the electrical requirements.
• Maintain a clear and well-lit work area. Keep children and unauthorized personnel away from the equipment.
• Do not operate the machine if any parts are damaged or missing. Contact customer support for replacement parts.
• Ensure adequate air pressure is supplied to the tire changer.
• Never place hands or tools near moving parts during operation.
• Always deflate tires completely before attempting to demount them.
• Use caution when handling heavy wheels and tires to prevent strain or injury.
• Regularly inspect air lines, electrical cords, and hydraulic components for wear or damage.

۲. په بکس کې څه دي؟

Your KATOOL ME-T450/B620 combo machine package includes the following main components:

• KATOOL ME-T450 Tire Changer Unit
• KATOOL ME-B620 Wheel Balancer Unit
• Mounting Head (for tire changer)
• Bead Breaker (for tire changer)
• Foot Pedals (for tire changer)
• ویل Clamps (for tire changer)
• Inflation Gauge with Pedal Control (for tire changer)
• Shaft and Mounting Accessories (for wheel balancer)
• د کارونکي لارښود (دا لاسوند)
• Necessary power cables and air hoses

4. تخنیکي مشخصات

4.1. KATOOL ME-T450 Tire Changer

4.2. KATOOL ME-B620T Car Wheel Balancer

5. ترتیب او نصب کول

5.1. خلاصول او معاینه کول

• Carefully unpack all components and verify against the 'What's in the Box' section.
• Inspect for any shipping damage. Report any damage immediately to the carrier and supplier.

5.2. د سایټ چمتو کول

• Choose a level, stable, and well-ventilated area for installation.
• Ensure sufficient space around both machines for safe operation and maintenance.
• Verify that the electrical supply matches the machine's requirements (220V/1PH for tire changer, 110V/1PH for wheel balancer).
• Ensure access to a compressed air supply with a minimum working pressure of 0.8MPA.

5.3. Assembly (General Guidelines)

While specific assembly steps may vary, generally:

• Attach the vertical column and swing arm to the tire changer base.
• Connect the air supply to the tire changer's filter/regulator unit.
• Mount the bead breaker and foot pedal assembly.
• For the wheel balancer, ensure the shaft and mounting accessories are securely in place.
• Connect both machines to their respective power outlets.

Figure 2: Wheel balancer shaft dimensions for proper wheel mounting.

Figure 3: The extension point on the balancer base helps prevent tipping with larger tires.

6. Operating the ME-T450 Tire Changer

6.1. Preparing the Wheel and Tire

• د ټایر د بشپړ پاکولو لپاره د والو کور لرې کړئ.
• Apply tire lubricant to both beads of the tire.

6.2. Bead Breaking

• Position the wheel on the bead breaker arm.
• Press the bead breaker pedal to activate the bead breaker shovel, separating the tire bead from the rim.
• Repeat for both sides of the tire.

Figure 4: The bead breaker effectively separates the tire from the rim.

6.3. Mounting the Wheel on the Turntable

• Place the wheel onto the turntable, ensuring it is centered.
• د cl فعالولو لپاره د پښو پیډل وکاروئamps, securing the wheel firmly to the turntable. The clamps are adjustable to adapt to various tire sizes.

Figure 5: Adjustable clamps on the turntable secure the wheel.

Figure 6: Foot pedals provide control over turntable rotation and clamping.

6.4. Demounting the Tire

• Position the mounting head just above the rim edge.
• Use a tire lever to pry the top bead over the mounting head.
• Rotate the turntable using the foot pedal to fully demount the top bead.
• د لاندې مڼې لپاره تکرار کړئ.

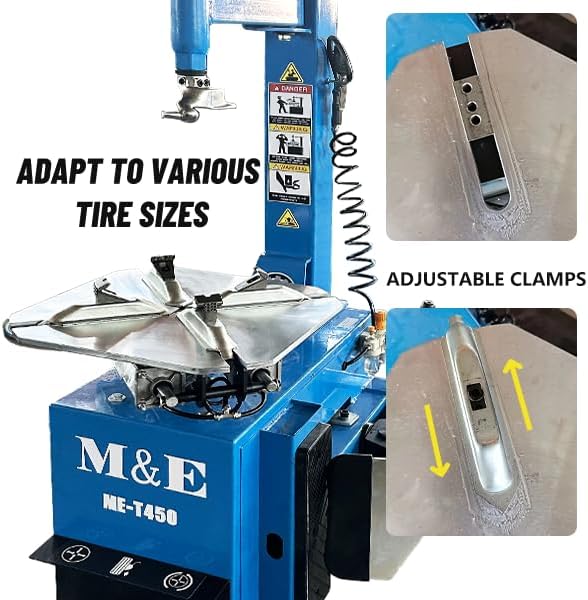

Figure 7: The tire changer adapts to various tire sizes with adjustable clamps.

6.5. Mounting a New Tire

• Apply tire lubricant to the beads of the new tire and the rim.
• Position the bottom bead under the mounting head.
• د ټرنټیبل وګرځوئ ترڅو لاندې مالګه نصب کړئ.
• Position the top bead under the mounting head and rotate the turntable to mount it.

۵. د ټایرونو انفلاسیون

• Reinstall the valve core.
• Use the integrated inflation gauge with pedal control to inflate the tire to the manufacturer's recommended pressure.
• Monitor the pressure carefully to avoid over-inflation.

7. Operating the ME-B620T Wheel Balancer

7.1. Mounting the Wheel

• Clean the wheel and tire assembly thoroughly.
• Mount the wheel onto the balancer's shaft, ensuring it is centered and securely fastened using the appropriate cones and quick-release nut.
• The φ36mm shaft thread is quenching treated for high strength.

Figure 8: Reverse fitting for wheel mounting on the balancer shaft.

7.2. Inputting Wheel Data

• Input the rim diameter, rim width, and distance from the machine to the rim using the control panel.
• The ME-B620T supports various balance modes for different rim types, ensuring precision.

7.3. Starting the Balancing Cycle

• Close the wheel guard (if applicable) and press the START button.
• The machine will spin the wheel and measure imbalances. Balancing time is typically 8-10 seconds.

7.4. Applying Balance Weights

• The display will indicate the amount and location for weight placement on both the inner and outer sides of the rim.
• Carefully apply the correct balance weights.
• Perform a re-spin to verify the balance. Repeat if necessary until the display shows zero or minimal imbalance.

8. ساتنه

Regular maintenance ensures the longevity and optimal performance of your KATOOL combo machine.

8.1. ورځنی ساتنه

• Clean the turntable, mounting head, and bead breaker of the tire changer.
• Wipe down the wheel balancer and ensure the shaft is clean.
• Check air pressure and oil levels in the lubricator (if applicable).

8.2. Weekly/Monthly Maintenance

• Lubricate moving parts of the tire changer (e.g., clamps, swing arm pivot points) as per manufacturer recommendations.
• Inspect all electrical connections and air hoses for wear, leaks, or damage.
• Check the tightness of all bolts and fasteners.
• For the wheel balancer, perform self-calibration as needed. The machine has built-in fault diagnosis and self-calibration programs.

8.3. مهم یادونه

• The mounting head is made of stainless steel, solution-treated and interface-polished, and includes a plastic cover to protect the rim.
• The top-level motor and pure copper winding ensure fast heat dissipation, low defect rate, and longer service life for both machines.
• The wheel balancer's computer board adopts advanced welding technology, making it moisture-proof, dust-proof, and anti-static for extended life.

9. ستونزه حل کول

This section outlines common issues and their potential solutions. For problems not listed here, contact customer support.

10. تضمین او ملاتړ

Your KATOOL ME-T450/B620 combo machine is backed by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical assistance, parts, or service inquiries, please contact KATOOL customer support through the following channels:

• Webسایټ: Visit the official KATOOL webد ملاتړ سرچینو او اړیکو معلوماتو لپاره سایټ.
• بریښنالیک: د پیرودونکي خدماتو بریښنالیک پتې لپاره د خپل پیرود اسنادو ته مراجعه وکړئ.
• تلیفون: Consult your product packaging or warranty card for the customer support phone number.

When contacting support, please have your product model (ME-T450/B620) and purchase date readily available.
