Rabitpos U27-W Wireless 1D 2D QR Barcode Scanner User Manual

1. پیژندنه

Thank you for choosing the Rabitpos U27-W Wireless 1D 2D QR Barcode Scanner. This manual provides detailed instructions for setting up, operating, and maintaining your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your scanner.

Image 1.1: The Rabitpos U27-W Wireless Barcode Scanner, shown held comfortably in a user's hand, highlighting its ergonomic design.

2. محصول ختم شوview

کلیدي ځانګړتیاوې:

• څو اړخیز سکینګ: Reads 1D, 2D, and QR barcodes from both paper and digital screens.
• بېسیم او تار لرونکی اتصال: Supports 2.4GHz wireless via USB dongle and wired USB connection.
• اوږدمهاله بیټرۍ: Equipped with a 2000mAh rechargeable battery for extended operation.
• د سکین کولو څو طریقې: Features Key Trigger and Auto-induction scanning modes.
• د معلوماتو د پورته کولو اختیارونه: Supports Instant Upload and Storage modes for flexible data management.
• پراخه مطابقت: Works with Windows, Mac, and Linux operating systems.

۴. د تنظیم لارښوونې

۴.۳ د سکینر سره نښلول

The Rabitpos U27-W scanner offers two connection methods: 2.4GHz wireless and wired USB. Both are plug-and-play, requiring no driver installation.

بېسیم اتصال (2.4GHz):

1. Insert the 2.4GHz USB receiver into an available USB port on your computer (PC, laptop, or POS system).
2. Turn on the barcode scanner. It will automatically pair with the receiver. A successful connection is indicated by a specific beep sound or LED indicator (refer to LED indicator section for details).

د تار سره نښلول (USB کیبل):

1. د ورکړل شوي USB کیبل یوه پای د سکینر USB پورټ سره وصل کړئ.
2. د USB کیبل بل پای ستاسو په کمپیوټر کې موجود USB پورټ سره وصل کړئ.
3. The scanner will be recognized as a standard HID keyboard device.

Image 3.1: Illustration of the scanner's 2-in-1 connection capability, demonstrating both wired USB 2.0 and 2.4GHz wireless options with a laptop.

4. عملیاتي لارښوونې

۳.۶.۳ د سکین کولو طریقې

The scanner supports two primary scanning modes to suit different operational needs:

• کلیدي محرک حالت: Press the trigger button to activate the scan beam and read a barcode. Release the button to stop scanning.
• د اتوماتیک انډکشن حالت: The scanner automatically detects a barcode within its scanning range and activates the beam to read it without requiring a trigger press. This mode is ideal for hands-free operation.

Image 4.1: Visual representation of the two scanning modes: Key Trigger Mode, where the user presses a button, and Auto-induction Mode, where scanning is automatic.

۶.۳ د معلوماتو د پورته کولو طریقې

Choose between two data upload modes based on your workflow:

• د فوري اپلوډ حالت: Scanned data is immediately transmitted to the connected device. This is the default mode and suitable for real-time inventory or POS operations.
• د ذخیره کولو حالت: Scanned data is stored internally in the scanner's memory. This mode is useful when working out of range of the receiver. Data can be uploaded later by scanning a specific command barcode (refer to the programming guide for details).

Image 4.2: Depiction of the two data upload modes: Instant Upload, where data is sent immediately, and Storage Mode, where data is saved for later batch upload.

۵.۲ د بارکوډ ډولونه ملاتړ شوي

The Rabitpos U27-W scanner is capable of decoding a wide range of 1D and 2D barcode symbologies:

• 1D بارکوډونه: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI Plessey, GS1, Databar (RSS), etc.
• 2D بارکوډونه: PDF417, Data Matrix, QR Code, Aztec Code, Micro QR Code, MaxiCode, etc.

The scanner also supports reading barcodes directly from digital screens, such as mobile phones or tablets.

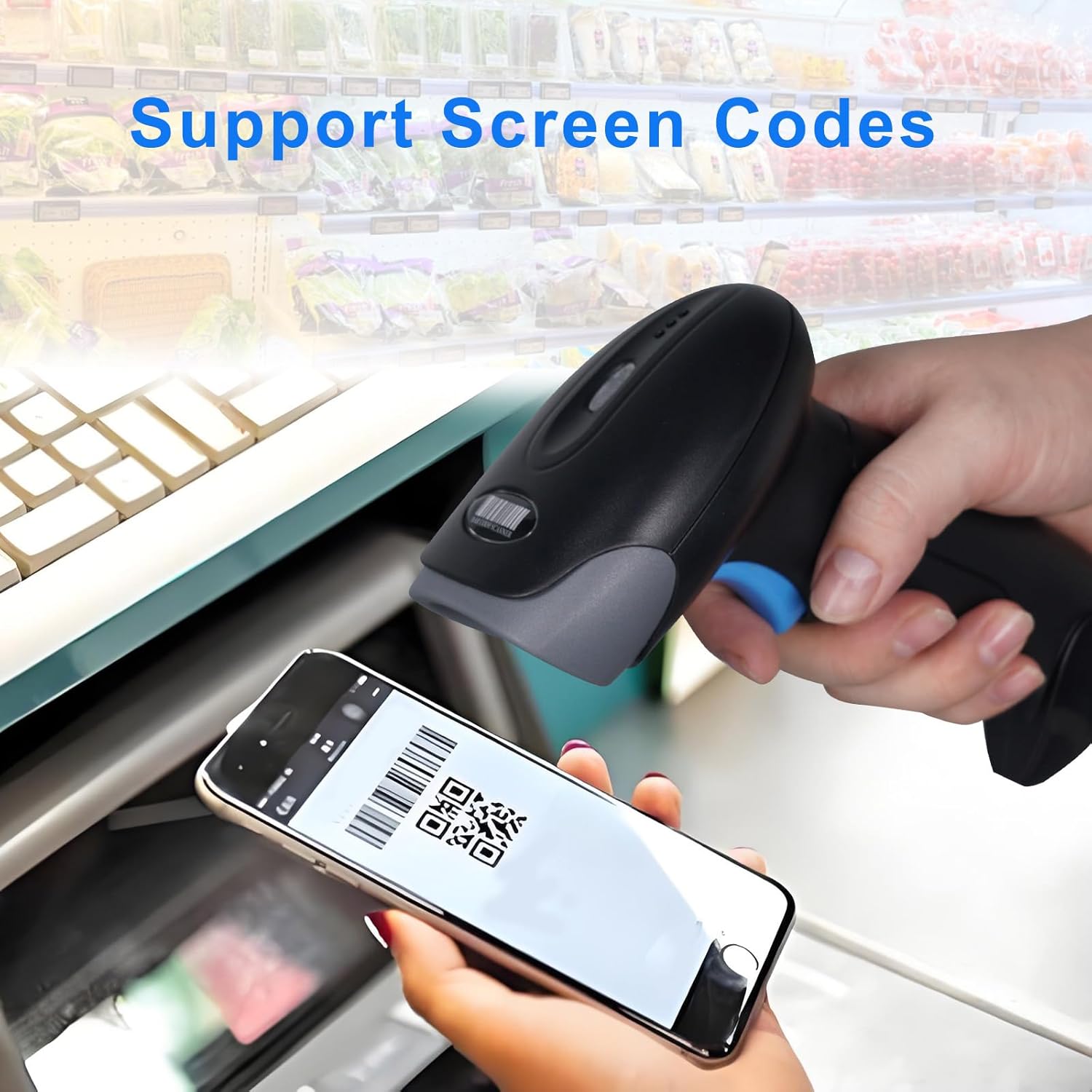

Image 4.3: The scanner demonstrating its ability to read QR codes and other barcodes directly from a mobile phone screen.

Image 4.4: The scanner's superior decoding ability is shown as it accurately reads a 1D barcode from a printed sheet.

4.4 Beep Settings

The scanner provides audible feedback for successful scans and other operations. You can configure the beep sound settings:

• Turn On Sound: Enables audible beeps.
• غږ بند کړئ: Disables audible beeps for silent operation.

Refer to the scanner's programming guide (usually a separate sheet of barcodes) to change these settings by scanning the appropriate configuration barcodes.

Image 4.5: Visual guide for adjusting the scanner's beep settings, allowing users to enable or disable sound feedback.

5. ساتنه

۶.۱ د سکینر پاکول

To maintain optimal scanning performance, keep the scanner's window clean. Use a soft, lint-free cloth, slightly dampened with water or a mild, non-abrasive cleaning solution. Avoid harsh chemicals or abrasive materials that could scratch the scanning window.

5.2 د بیټرۍ پاملرنه

The scanner is equipped with a 2000mAh rechargeable battery, providing approximately 72 hours of continuous operation and up to 1 month of standby time on a full charge. To prolong battery life:

• د لومړي استعمال څخه دمخه په بشپړه توګه بیټرۍ چارج کړئ.
• په منظم ډول د بیټرۍ په بشپړه توګه وچولو څخه ډډه وکړئ.
• سکینر په یخ او وچ ځای کې وساتئ کله چې د اوږدې مودې لپاره نه کارول کیږي.

Image 5.1: An illustration emphasizing the scanner's built-in rechargeable battery and its long-lasting capacity.

6. ستونزه حل کول

If you encounter issues with your Rabitpos U27-W scanner, refer to the following common problems and solutions:

7. مشخصات

8. تضمین او ملاتړ

Rabitpos products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your product packaging or visit the official Rabitpos website. Please have your model number (U27-W) and purchase details ready when contacting support.
