SCSETC S8X Motorcycle Bluetooth Intercom Helmet Headset User Manual

پیژندنه

This user manual provides comprehensive instructions for the SCSETC S8X Motorcycle Bluetooth Intercom Helmet Headset. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and user experience. The S8X is designed for clear communication, music streaming, and GPS navigation for motorcyclists, offering robust features like long-distance intercom, hands-free calling, and IP67 waterproof protection.

د بسته محتويات

مخکې له دې چې تاسو پیل کړئ، مهرباني وکړئ ډاډ ترلاسه کړئ چې ټولې برخې ستاسو په کڅوړه کې شتون لري:

• S8X Bluetooth Intercom Unit
• Headset with Speakers
• بوم مایکروفون
• د نرم تار مایکروفون
• Mounting Bracket (Clip-in)
• چپکۍ غر
• د USB چارج کیبل
• د کارونکي لارښود (دا لاسوند)

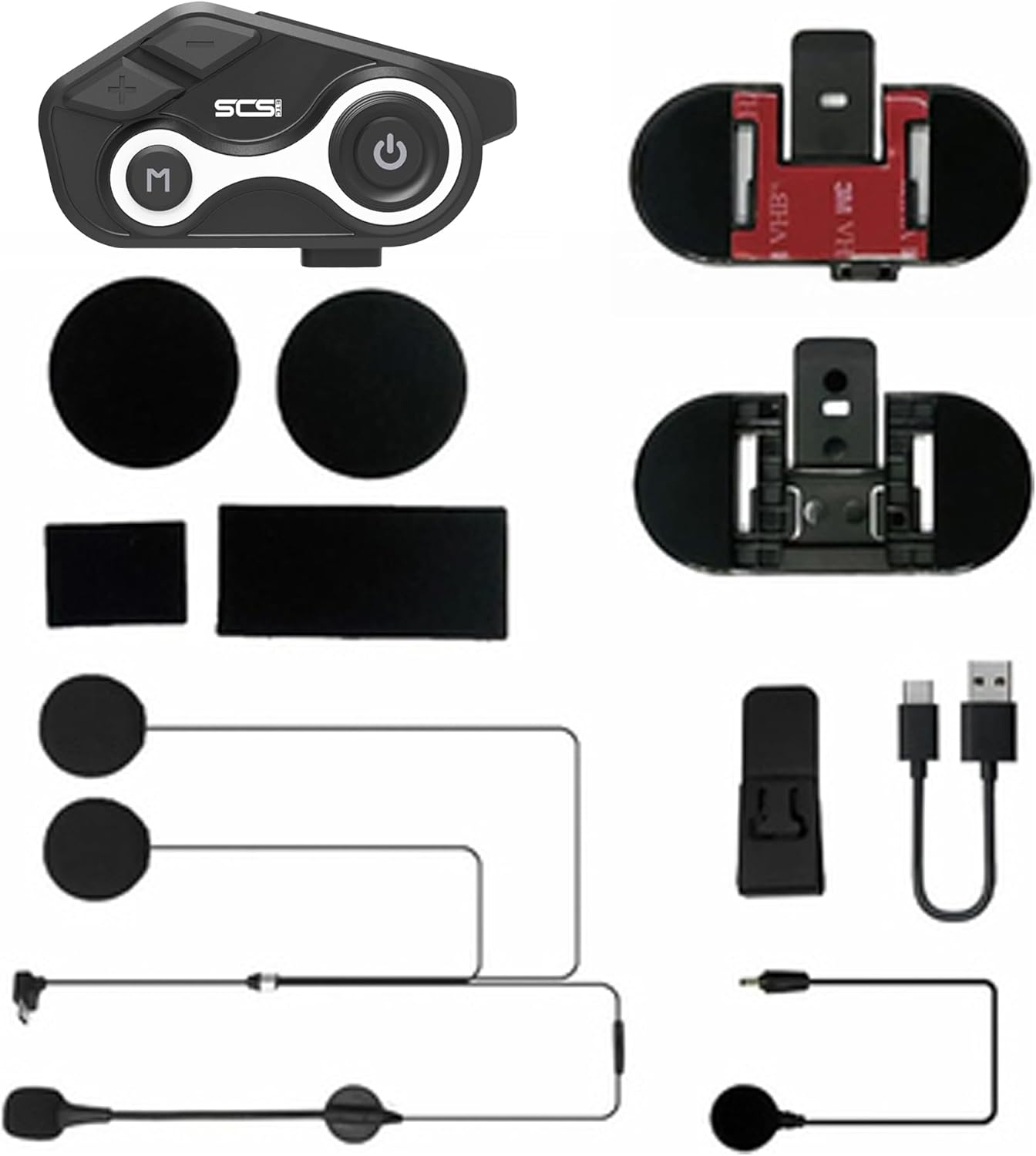

انځور: اوورview of the SCSETC S8X package contents, showing the main intercom unit, two types of microphones (boom and soft wire), speakers, mounting options (clip and adhesive), and a charging cable.

تنظیم او نصب کول

1. د وسیلې چارج کول

Before first use, fully charge the S8X unit. Connect the provided USB charging cable to the charging port on the intercom unit and a compatible USB power source. The charging indicator light will show the charging status. A full charge takes approximately 2 hours.

• • د بیټرۍ ظرفیت: 650mAh
• • Charging Time: Approximately 2 hours
• • Talk/Music Time: Up to 10 hours
• • Standby Time: Up to 15 days

Image: Visual representation of the S8X's battery life and charging capabilities, highlighting its 650mAh battery, 2-hour charging time, and 15-day standby duration.

2. Mounting the Intercom Unit

The S8X offers two mounting options for your helmet:

1. Clip-in Mount: Slide the clip-in bracket between the helmet shell and the inner padding. Ensure it is securely fastened.
2. چپکونکی غر: Clean the desired helmet surface thoroughly. Peel off the protective film from the adhesive mount and firmly press it onto the helmet for at least 30 seconds. Allow 24 hours for the adhesive to cure before attaching the intercom unit.

Once the bracket is installed, slide the S8X intercom unit onto the bracket until it clicks into place.

3. Installing Speakers and Microphone

The S8X comes with two microphone options to suit different helmet types:

• د سپیکر ځای په ځای کول: Attach the speakers to the helmet's ear pockets using the hook-and-loop fasteners. Ensure they are positioned directly over your ears for optimal sound quality.
• Microphone Selection & Placement:
  • د بوم مایکروفون: Ideal for open-face or modular helmets. Attach it to the inside of the helmet near your mouth, ensuring it is close but not touching.
  • Soft Wire Microphone: Suitable for full-face helmets. Position it inside the chin bar, close to your mouth.
• د کیبل مدیریت: Route all cables neatly under the helmet padding to prevent interference and ensure comfort. Connect the speaker/microphone cable to the corresponding port on the S8X unit.

عملیاتي لارښوونې

Image: The main control unit of the S8X intercom, featuring clearly labeled buttons for power, volume, and mode selection.

1. بریښنا فعال/بند

• پاور آن: Press and hold the Power button (usually the large circular button with a power icon) for approximately 3 seconds until you hear an audible prompt.
• بندول: Press and hold the Power button for approximately 3 seconds until you hear an audible prompt.

2. Bluetooth Pairing (Phone)

To pair your S8X with a mobile phone:

1. Ensure the S8X is powered off.
2. Press and hold the Power button for about 5-7 seconds until the indicator light flashes red and blue alternately, indicating pairing mode.
3. On your phone, enable Bluetooth and search for "S8X" in the list of available devices.
4. Select "S8X" to connect. Once paired, the indicator light will flash blue slowly.

The S8X uses Bluetooth 5.1 technology for stable and efficient wireless connectivity.

3. Intercom Communication (Rider-to-Rider)

The S8X supports communication between two riders up to 1000 meters (0.6 miles) in open terrain.

1. Ensure both S8X units are powered on and not connected to any other Bluetooth devices.
2. On one unit, press and hold the Intercom button (often the 'M' button or a dedicated intercom button) for 3 seconds until the indicator light flashes red and blue rapidly.
3. On the second unit, briefly press the Intercom button.
4. The units will automatically search and pair. Once connected, the indicator lights will flash blue slowly, and you will hear a confirmation tone.

Image: Illustrates the 1000-meter intercom range of the S8X, showing two riders maintaining communication while on their motorcycles.

4. Music Playback and FM Radio

• د موسیقۍ غږول: Once paired with your phone, open your music app. Use the volume buttons (+/-) on the S8X to adjust volume. The main knob or 'M' button may control play/pause and track skipping (refer to quick start guide for specific button functions).
• ایف ایم راډیو: Press the Mode button (often the 'M' button) to switch to FM radio mode. Use the volume buttons (+/-) to scan for stations or adjust frequency.

The S8X delivers Hi-Fi stereo sound quality with 40mm speakers and features CVC technology for noise suppression, ensuring clear audio even at high speeds.

Image: Explains the audio technology of the S8X, including Hi-Fi stereo sound and DSP & CVC noise cancellation, demonstrating its effectiveness in reducing background noise.

5. Hands-Free Calling and GPS Navigation

• د لاسونو څخه وړیا تلیفون کول: When a call comes in, the S8X will announce it. Briefly press the Power button to answer, or press and hold to reject. During a call, use the volume buttons to adjust the call volume.
• د GPS نیویګیشن: Once paired with your phone, GPS voice prompts from your navigation app will be transmitted through the S8X speakers.

ساتنه

Proper maintenance ensures the longevity and performance of your S8X intercom.

• پاکول: یونټ د نرم سره پاک کړئ ، دamp ټوکر د سختو کیمیاوي موادو یا خړوبولو پاکونکو څخه کار مه اخلئ.
• د اوبو ضد محافظت: The S8X has an IP67 waterproof rating, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. While designed for all-weather use, avoid prolonged submersion or high-pressure water jets.
• د بیټرۍ پاملرنه: To preserve battery life, avoid fully discharging the unit frequently. Charge it regularly, especially if storing for extended periods. Store in a cool, dry place.

Image: Demonstrates the S8X's IP67 waterproof protection, showing a rider confidently using the device in rainy conditions.

د ستونزو حل کول

If you encounter issues with your S8X, please refer to the following common solutions:

If the issue persists, please contact SCSETC customer support for further assistance.

مشخصات

تضمین او ملاتړ

For warranty information, technical support, or any inquiries regarding your SCSETC S8X Motorcycle Bluetooth Intercom Helmet Headset, please contact the manufacturer directly.

جوړونکی: SCSETC

You can visit the official SCSETC store on Amazon for more information and support: SCSETC Amazon Store
