BSIDE HX1 Thermal Imaging Camera User Manual

1. پیژندنه

This manual provides detailed instructions for the safe and effective operation of your BSIDE HX1 Thermal Imaging Camera. The HX1 is a high-resolution infrared imager designed for various applications, offering precise temperature measurements and clear thermal visualization.

The BSIDE HX1 features a 240x240 pixel infrared resolution, a wide temperature measurement range, and multiple color palettes for diverse inspection needs. It is equipped with a rechargeable battery and a laser pointer for enhanced usability.

شکل 1.1: مخ او خوا view of the BSIDE HX1 Thermal Imaging Camera, showcasinد دې ارګونومیک ډیزاین او ښودنه.

2. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې ټول لیست شوي توکي ستاسو په کڅوړه کې شتون لري:

• Infrared thermal imager (BSIDE HX1)
• EVA storage bag
• د USB چارج کیبل
• لارښود لارښود (دا سند)
• Silicone lanyard

شکل 2.1: The BSIDE HX1 Thermal Imaging Camera along with its storage bag, USB cable, and lanyard.

3. ترتیب کول

3.1 ابتدايي چارج کول

Before first use, fully charge the device. Connect the provided USB charging cable to the camera's charging port and a compatible USB power adapter (not included). The charging indicator will show the charging status. A full charge typically takes several hours.

3.2 بریښنا کول / بندول

To power on the device, press and hold the power button located below the display until the screen illuminates. To power off, press and hold the power button again until the screen shuts down.

۴.۲ د لینارډ ضمیمه

Attach the silicone lanyard to the designated loop on the camera to prevent accidental drops during use.

4. عملیاتي لارښوونې

4.1 ښکاره کولview

The 2.4-inch TFT LCD displays real-time thermal images. It automatically identifies and displays the maximum, minimum, and center temperatures on the screen, providing three key data points simultaneously.

شکل 4.1: The display interface showing automatic tracking of hot, cold, and central temperature spots.

4.2 دحرارت اندازه کول

The camera measures temperatures within a range of -20°C to 550°C (-4°F to 1022°F) with an accuracy of ±2°C. You can select the desired temperature unit (°C, °F, or Kelvin) through the device settings.

For accurate measurements, adjust the distance to the object and fine-tune the emissivity setting for specific materials. This ensures reliable temperature readings across various surfaces like cement or bricks.

شکل 4.2: Using the thermal imager to detect temperature variations in an engine compartment.

4.3 د رنګ پالټ

The HX1 offers 15 distinct color palettes to visualize thermal data. Select the palette that best highlights temperature differences for your specific application. Available palettes include:

• سپینه تودوخه
• تور تودوخه
• فیوژن 1
• رینبو
فیوژن 2
• د اوسپنې سره ۱۳
• د اوسپنې سره ۱۳
• سیپیا
• رنګ 1
• رنګ 2
• Ice and fire
• باران
• شنه تودوخه
• سور تودوخه
• خړ نیلي

شکل 4.3: Examples of the 15 available thermal color palettes for diverse visualization.

4.4 لیزر پوائنټر

The integrated laser pointer assists in precisely identifying the target area for temperature measurement. Activate the laser by pressing the trigger button.

شکل 4.4: Detail of the laser pointer on the BSIDE HX1, used for precise targeting.

4.5 Image Storage and Export

The device includes a 4GB built-in TF card capable of storing up to 30,000 images. Connect the camera to a computer using the USB cable to export stored thermal images for analysis and reporting.

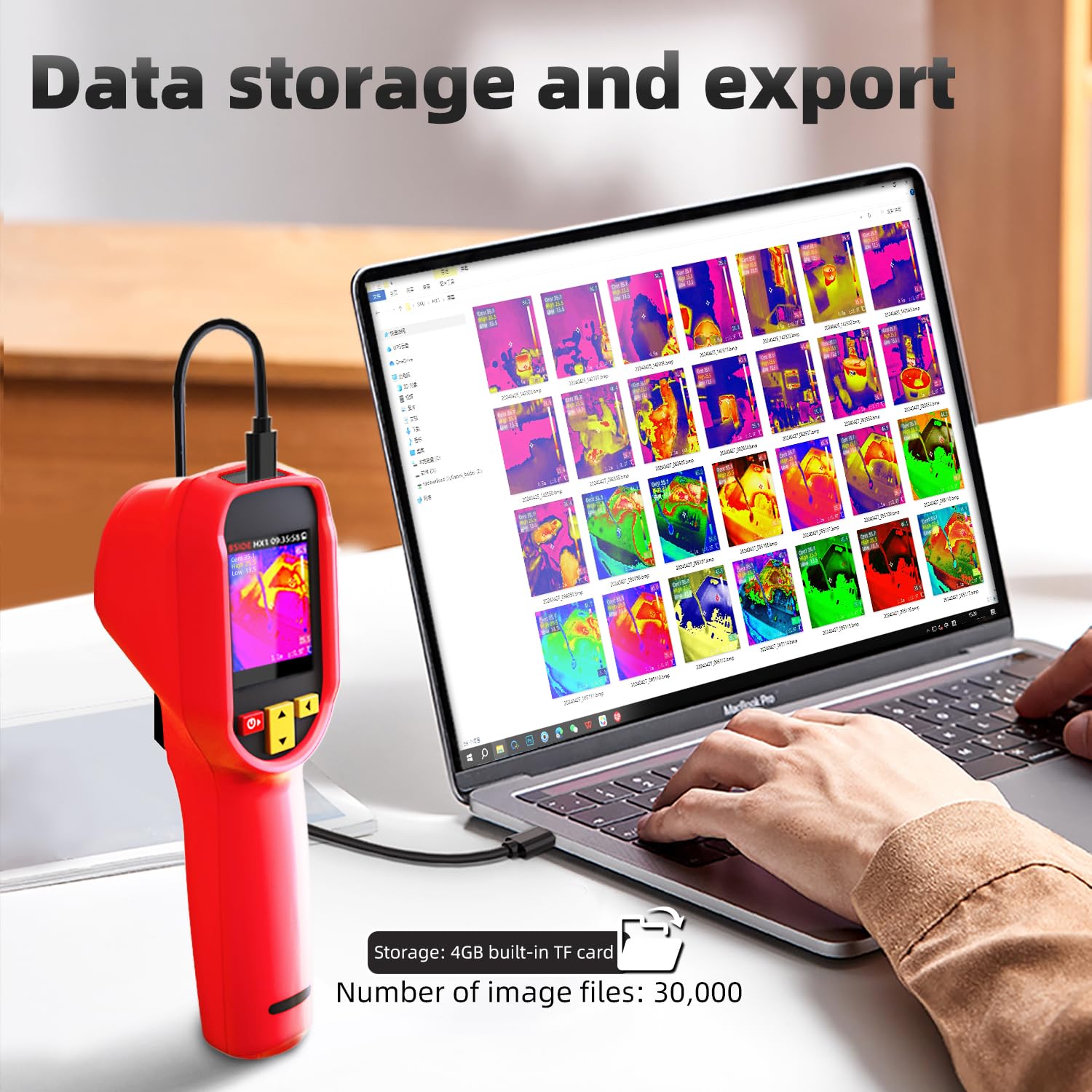

شکل 4.5: Connecting the thermal imager to a laptop to transfer and manage captured thermal images.

4.6 د لوړ / ټیټ حرارت الارم

The camera features an audible alarm that activates when detected temperatures exceed or fall below user-defined thresholds. This function assists in quickly identifying anomalies.

4.7 Auto Power-Off and Brightness

The device offers adjustable auto power-off settings (10/20/30/40/50/60 minutes) to conserve battery life. Screen brightness can also be adjusted for optimal viewد روښنايي په مختلفو شرایطو کې.

شکل 4.6: Display indicating battery status, auto power-off settings, and adjustable screen brightness.

5. ساتنه

5.1 پاکول

Regularly clean the camera body with a soft, dry cloth. For the lens, use a specialized lens cleaning cloth and solution to avoid scratches. Do not use abrasive cleaners or solvents.

5.2 ذخیره کول

When not in use, store the thermal imager in its EVA storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50%) for long-term storage to maintain battery health.

5.3 د بیټرۍ پاملرنه

The device is powered by a rechargeable Li-ion battery. To prolong battery life, avoid fully discharging the battery frequently and recharge it regularly. If the device will not be used for an extended period, charge it every few months.

6. ستونزه حل کول

This section addresses common issues you might encounter with your BSIDE HX1 Thermal Imaging Camera.

۶.۱ وسیله نه فعالېږي

• Ensure the battery is sufficiently charged. Connect the device to a power source and attempt to power on after a few minutes.
• ډاډ ترلاسه کړئ چې د بریښنا تڼۍ په سمه توګه فشار شوې او نیول شوې ده.

۱۰.۳ د تودوخې ناسمې مطالعې

• Check the emissivity setting. Different materials have different emissivities, which can affect accuracy. Adjust the emissivity value in the settings to match the target material.
• Ensure the measurement distance is within the recommended range (0.3m-3m adjustable focal length).
• Allow the camera to stabilize in the environment for a few minutes before taking critical measurements.

6.3 Screen Freezing or Unresponsive

• Perform a soft reset by pressing and holding the power button until the device powers off, then restart it.
• If the issue persists, ensure the device firmware is up to date (check manufacturer's webد تازه معلوماتو لپاره سایټ).

6.4 High/Low Temperature Alarm Not Functioning

The BSIDE HX1 Thermal Imaging Camera is equipped with a high/low temperature alarm that sounds when temperatures exceed or fall below set thresholds. If this feature is not working as expected, please:

• Verify that the alarm function is enabled in the device settings.
• Check that the high and low temperature thresholds are set correctly for your application.
• Ensure the device's volume is not muted or set too low.

7. مشخصات

8. تضمین او ملاتړ

8.1 د تضمین معلومات

For warranty details, please refer to the documentation provided with your purchase or visit the official BSIDE webسایټ. د تضمین شرایط معمولا د پیرود نیټې څخه د یوې ټاکلې مودې لپاره د تولید نیمګړتیاوې پوښي.

8.2 تخنیکي ملاتړ

If you encounter any issues not covered in this manual or require further assistance, please contact the retailer where you purchased the product or refer to the manufacturer's official support channels. Keep your purchase receipt and product serial number handy when seeking support.
