1. پیژندنه
This manual provides detailed instructions for the installation, operation, and maintenance of your WEILAILIFE 4K 8MP PoE Dome Security Camera System. Please read this manual thoroughly before use to ensure proper functionality and safety. This system is designed for reliable surveillance with high-resolution imaging and advanced features.
2. د بسته محتويات
ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په کڅوړه کې شامل دي. که کوم توکي ورک یا زیانمن شوي وي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.
- 4K 8-Channel Network Video Recorder (NVR) with 1TB HDD (x1)
- 8MP Dome Cameras (x2)
- LAN Cables for Cameras (18.2 meters, x2)
- NVR Power Adapter (48V2A, x1)
- Camera Power Adapters (x2)
- USB موږک (x1)
- HDMI Cable (1 meter, x1)
- LAN Cable (1 meter, x1)
- Mounting Screw Packs for Cameras (x2)
- Warning Labels (x1)
- لارښود لارښود (x1)
شکل 1: پایview of the WEILAILIFE 4K 8MP PoE Dome Security Camera System package contents.
Video 1: Product Introduction and Unboxing. This video demonstrates the contents of the package and initial setup steps.
3. محصول ختم شوview
The WEILAILIFE 4K 8MP PoE Dome Security Camera System offers advanced surveillance capabilities. Key features include:
- 4K 8MP Ultra-High Resolution: Captures clear and detailed images (3264x2488 pixels).
- ۱۳۰ درجې الټرا وایډ زاویه لینز: Provides extensive coverage, minimizing blind spots.
- دوه طرفه آډیو: د کیمرې له لارې د ریښتیني وخت اړیکو ته اجازه ورکوي.
- د پیر او دوه ګونی کشف: Advanced human detection algorithm combined with infrared sensors to reduce false alarms from non-human movements.
- PoE (په ایترنیټ باندې بریښنا): Simplifies installation by providing power and data through a single LAN cable.
- IP66 د هوا ضد: Suitable for both indoor and outdoor use, resistant to dust and water.
- د پراخیدو وړ سیسټم: تر لسو کیمرونو پورې ملاتړ کوي.
Figure 2: WEILAILIFE 4K 8MP PoE Dome Camera, highlighting its IP66 weatherproof design for outdoor use.
شکل 3: مفصل view of the multi-layered optical lens for enhanced image clarity.
۴. د تنظیم لارښوونې
4.1 فزیکي نصب کول
The dome cameras are designed for easy installation. Ensure the mounting surface is sturdy enough to support the camera's weight.
- د هرې کیمرې لپاره مناسب ځای غوره کړئ، ترڅو غوره ډاډ ترلاسه کړئ viewing angles and proximity to the NVR for cable connection.
- Use the provided mounting screws and anchors to securely attach the camera base to the wall or ceiling.
- Connect the LAN cable from the camera to an available PoE port on the NVR. The system supports PoE power, eliminating the need for separate power outlets at the camera location.
- د کیمرې زاویه تنظیم کړئ ترڅو د څارنې مطلوب ساحه پوښي.
Video 2: Camera Installation Guide. This video provides a visual guide for mounting the cameras.
4.2 د سیسټم پیوستون
Follow these steps to connect your NVR and cameras:
- Connect the NVR to a power source using the provided NVR power adapter.
- Connect the NVR to your router using the included LAN cable for network access and remote viewوړتیاوې.
- Connect the NVR to a monitor or TV using the HDMI cable for local viewing او ترتیب.
- د نیویګیشن لپاره د USB موږک د NVR USB پورټ سره ولګوئ.
- Connect the cameras to the NVR's PoE ports using the LAN cables. The cameras will power on automatically.

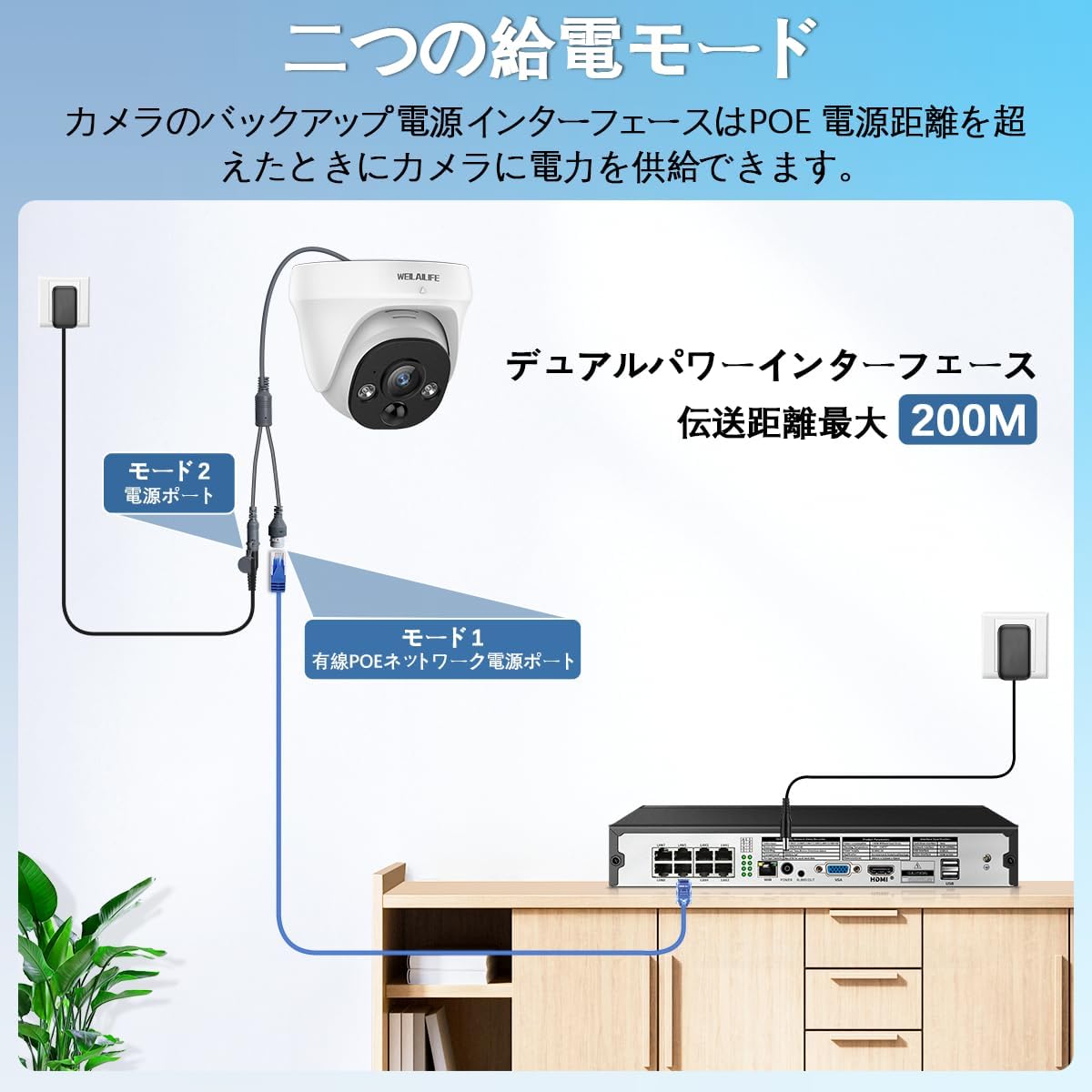

Figure 4: Illustration of the dual power interface for PoE cameras, allowing power supply even beyond standard PoE distance.
Figure 5: Diagram showing various connection ports on the NVR, including PoE ports for cameras, HDMI, VGA, USB, and network port.
4.3 ابتدايي ترتیب
Once all components are connected, the NVR will boot up. Follow the on-screen prompts for initial setup:
- Select your preferred language (Japanese is pre-set).
- Configure network settings (wired LAN or Wi-Fi).
- Set the date and time zone.
- Create a strong password for your NVR system.
- The cameras should automatically connect and display live feeds.
5. عملیاتي لارښوونې
5.1 ژوندی View او ثبتول
Access live camera feeds and manage recordings through the NVR connected to a monitor or via the mobile application.
- The NVR comes with a 1TB HDD for continuous recording.
- You can configure recording schedules and playback recorded footage directly from the NVR interface.
Figure 6: The system utilizes H.265+ video compression for efficient storage and bandwidth usage while maintaining 4K quality.
5.2 Motion Detection (PIR & Dual Detection)
The system features advanced PIR and dual detection technology to accurately identify human movement and minimize false alarms.
- Configure specific motion detection zones to focus on critical areas.
- کله چې حرکت کشف شي، په خپل سمارټ فون کې په ریښتیني وخت کې خبرتیاوې ترلاسه کړئ.
Figure 7: Illustration of PIR and AI dual detection, distinguishing human movement from other environmental factors like leaves or insects.
شکل 8: مثالample of a real-time alarm notification sent to your smartphone upon detection of suspicious activity.
Figure 9: Customizable motion detection zones allow you to define specific areas for surveillance, reducing unnecessary alerts.
۴.۴ دوه اړخیزه آډیو
The cameras are equipped with a microphone and speaker for two-way communication.
- Speak through the camera to visitors or deter intruders using the mobile app.
- د کیمرې له ځای څخه آډیو واورئ.
Figure 10: The two-way audio feature allows communication with individuals near the camera, such as delivery personnel.
Figure 11: Clear two-way audio ensures effective communication through the camera system.
۴.۳ ریموټ لاسرسی (د موبایل اپلیکیشن)
Monitor your property from anywhere using the dedicated mobile application.
- وړیا "صادق" ډاونلوډ کړئview" or "Eseecloud" app from the App Store (iOS) or Play Store (Android).
- د خپل NVR سیسټم اضافه کولو لپاره د اپلیکیشن دننه لارښوونې تعقیب کړئ.
- View live feeds, playback recordings, and receive alerts directly on your smartphone.
شکل ۱۴: لرې viewing is accessible on various devices, including smartphones, tablets, and computers, allowing you to monitor your property from anywhere.
Figure 13: Scan this QR code to access WEILAILIFE's LINE service for support and inquiries. Access LINE Service
۳.۶ د سیسټم پراخوالی
The NVR supports up to 8 cameras, allowing you to expand your surveillance coverage as needed.
- Additional WEILAILIFE PoE cameras can be purchased separately and easily integrated into your existing system.
Figure 14: The system is expandable, supporting up to 8 cameras for comprehensive coverage of your property.
Video 3: PTZ PoE Security Camera System Overview. This video demonstrates the features of a PTZ PoE system, which can be integrated into your NVR.
6. ساتنه
To ensure the longevity and optimal performance of your security camera system, follow these maintenance guidelines:
- د کیمرې لینزونه په منظم ډول د نرم، ډamp cloth to prevent dust and dirt buildup from affecting image quality.
- ډاډ ترلاسه کړئ چې ټول کیبل اتصالونه خوندي او له زیان څخه پاک دي.
- Check for firmware updates periodically through the mobile app or NVR interface to benefit from new features and security enhancements.
- The IP66 weatherproof rating ensures durability in various outdoor conditions, from -10°C to 50°C.
Figure 15: The IP66 waterproof and dustproof design ensures reliable operation in various weather conditions.
7. ستونزه حل کول
If you encounter any issues with your WEILAILIFE security camera system, please refer to the following common solutions:
- په مانیټر کې هیڅ انځور نشته: Check all power connections for the NVR and cameras. Ensure the HDMI/VGA cable is securely connected to both the NVR and the monitor. Verify the monitor input source is correct.
- د شبکې اړیکه نشته: Ensure the NVR's LAN cable is properly connected to your router. Check your router's internet connection. If using Wi-Fi, verify the Wi-Fi settings on the NVR.
- لرې لاسرسی نشته: Confirm the NVR is connected to the internet. Ensure the mobile app is correctly configured and the device is added. Check your smartphone's internet connection.
- د غلط حرکت الارمونه: Adjust the motion detection sensitivity settings in the NVR or app. Refine the motion detection zones to exclude areas with frequent non-human movement (e.g., trees swaying).
- د عکس ضعیف کیفیت: Clean the camera lens. Ensure the camera is properly focused (if adjustable). Check for obstructions in the camera's field of view.
If the problem persists, please contact WEILAILIFE customer support.
8. مشخصات
| فیچر | مشخصات |
|---|---|
| برانډ | WEILAILIFE |
| د ماډل شمیره | 日CSWL-03BP8MP02-PIR-2ch+3.5"1TB-W |
| د ویډیو نیول حل | 3264×2488 (4K) |
| د ارتباط ټیکنالوژي | تار لرونکی (PoE) |
| ځانګړي ځانګړتیاوې | 130° Ultra-Wide Angle, 4K 8MP Ultra-High Resolution, PIR & Dual Detection, Two-Way Audio, Free APP & No Monthly Fees |
| د چینل شمیره | 8 (د پراخیدو وړ) |
| د بریښنا سرچینه | د بریښنا تار |
| والیtage | 110 وولټ (AC) |
| واټtage | 45 W |
| د محصول ابعاد | 32 x 16 x 28 سانتي متره |
| د توکي وزن | 2.9 کیلوګرامه |
9. تضمین او ملاتړ
WEILAILIFE is committed to providing high-quality products and excellent customer service.
- تضمین: This product comes with a 12-month quality guarantee.
- د پیرودونکي ملاتړ: For any questions, concerns, or malfunctions during consideration or use, please feel free to contact us. Our Japanese-speaking support team is available via email.
- بریښنالیک: info-jp@weilailifetech.com (په ۲۴ ساعتونو کې ځوابونه)
- د دفتر پته: 1F Rose Avenue Inage Tendai, 5-8-9 Tendai, Inage-ku, Chiba City, Chiba Prefecture, Japan.
Figure 16: WEILAILIFE offers a 12-month warranty and dedicated customer support.
