Zomolither Android 13 Car Stereo User Manual

1. پیژندنه

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Zomolither Android 13 Car Stereo. This unit is designed specifically for Nissan Sentra models manufactured between 2013 and 2017. Please read this manual thoroughly before installation and use to ensure proper function and to maximize your experience.

The Zomolither Android 13 Car Stereo features an 8-core processor, 4GB RAM, and 64GB ROM, providing a responsive and stable user experience. It includes a 10.1-inch IPS touchscreen with 1280*720 resolution, wireless Apple CarPlay and Android Auto, GPS navigation, Bluetooth 5.0, DSP with 32-band EQ, FM/RDS radio, and supports a backup camera and steering wheel controls.

2. د بسته محتويات

ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي:

• Android Car Stereo (with Frame)
• د AHD بیک اپ کیمره
• بهرنی مایکروفون
• د بریښنا کیبل
• د نصبولو وسیله
• د GPS انتن
• USB Cable (2x: 6Pin and 4Pin)
• د RCA کیبل
• د کارن لارښود
• Rear Camera & CANBUS Box (if applicable)

Image: Contents of the Zomolither Android 13 Car Stereo package, showing the main unit, AHD rear camera, microphone, various cables (power, USB, RCA, GPS antenna), installation tools, and user manual.

3. د نصب لارښود

۱.۱ د مطابقت چک

Before proceeding with installation, ensure your vehicle's center console is compatible. This unit is designed for Nissan Sentra 2013-2017 models with a horizontal snap fastener for the radio frame. Refer to the image below for clarification.

Image: Diagram illustrating the correct horizontal snap fastener type (B) for the Nissan Sentra 2013-2017 center console, and an incompatible vertical snap fastener type (C). Also shows the dashboard before and after installation.

If your car's center console has vertical snap fasteners, this unit may not be compatible. Contact customer support for assistance.

3.2 د تارونو نښلول

Connect the provided cables to the corresponding ports on the car stereo and your vehicle's wiring harness. Ensure all connections are secure.

• د بریښنا کیبل: د موټر د بریښنا رسولو سره وصل کړئ.
• د GPS انټینا: په داسې ځای کې نصب کړئ چې روښانه وي view د غوره سیګنال استقبال لپاره د اسمان څخه.
• USB کیبلونه: Connect for external USB devices or wired CarPlay/Android Auto.
• د RCA کیبلونه: د آډیو/ویډیو ان پټ/آؤټ پټ اتصالاتو لپاره.
• بهرني مایکروفون: Connect for improved call quality.
• AHD Backup Camera: Connect the camera to the dedicated input. Ensure the trigger wire (labeled "back" or "reverse") is connected to the vehicle's reversing light positive for automatic display switching.

Image: A diagram illustrating the wiring connections for the AHD backup camera, including the video input to the monitor and the trigger wire connection to the reversing light positive.

3.3 CANBUS Box Configuration

The radio includes a CANBUS BOX to retain original car information display. After installation, you must manually match it in the settings:

1. ورتګ ترتیبات.
2. وټاکئ د فابریکې ترتیبات (Password: 1234).
3. ته لاړشئ د پروتوکول ترتیبات.
4. Select the brand of the protocol box (usually indicated on the box itself).
5. Choose your specific model information to complete the matching process.

3.4 Steering Wheel Control (SWC) Learning

To enable steering wheel controls, perform the learning process:

1. ورتګ ترتیبات.
2. وټاکئ د چلولو زده کړه.
3. Follow the on-screen prompts to assign functions to your steering wheel buttons. This typically involves pressing a button on the steering wheel and then selecting its corresponding function on the stereo's screen.

Image: Screenshot of the car stereo's interface for learning steering wheel controls, showing options to assign functions like Mode, Power, Volume, and Navigation.

4. عملیاتي لارښوونې

4.1 بنسټیز عملیات

The unit features a 10.1-inch IPS touchscreen. Navigate through menus and applications by tapping, swiping, and dragging on the screen. Physical buttons on the side of the unit provide quick access to essential functions like volume and home.

۴.۲ بېسیم/وایر لرونکی ایپل کارپلی او انډرایډ آټو

Connect your smartphone for seamless integration of navigation, music, and communication apps.

• بې سیم ایپل کار پلی:
  1. Pair your iPhone's Bluetooth with the car radio.
  2. Open the "CPZLink" app on the car stereo.
• Wired Apple CarPlay:
  1. Connect your iPhone to the car radio using the original USB cable.
  2. Open the "CPLink" app on the car stereo.
• بې سیم Android Auto:
  1. Install the "Android Auto" app on your Android phone.
  2. Pair your phone's Bluetooth with the car radio.
  3. Open the "Android Auto" app on the car stereo.
• د Android آټو وائرډ:
  1. Install the "Android Auto" app on your Android phone.
  2. Connect your phone to the car radio using the original USB cable.
  3. Open the "Android Auto" app on the car stereo.

Image: Display of the car stereo showing the Wireless CarPlay and Android Auto interfaces, along with connection methods (USB/Bluetooth) and compatible apps.

۵.۳ د GPS نیویګیشن او وای فای

The unit comes with pre-installed Google Maps. Connect to WiFi to access real-time traffic information and download offline map data for navigation without an internet connection.

With a WiFi connection, you can also download various applications from the app store, such as YouTube and TikTok, to expand your entertainment options.

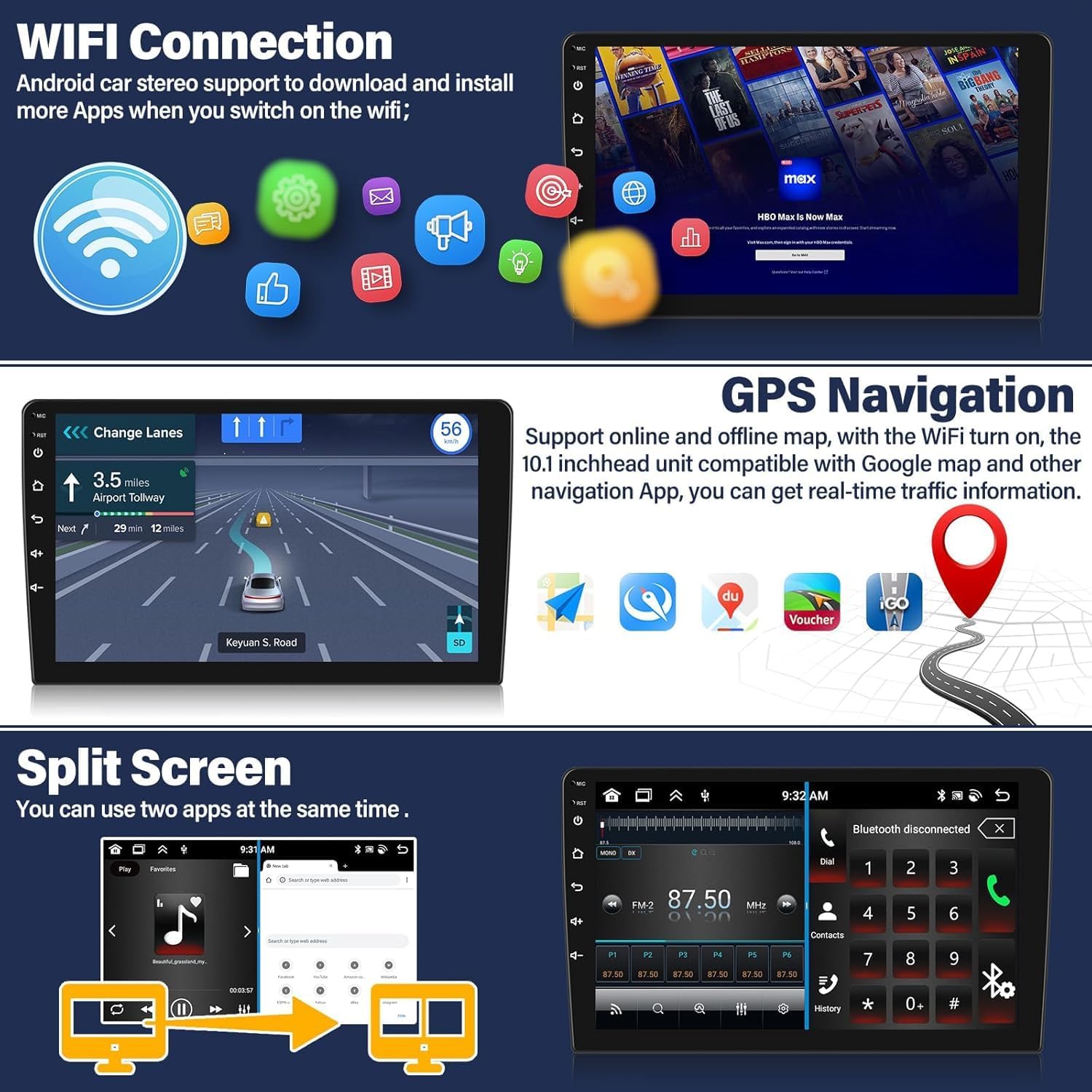

Image: Screenshots demonstrating GPS navigation with real-time traffic information and the WiFi connection interface for downloading apps.

4.4 بلوتوث 5.0

Bluetooth 5.0 ensures quick and stable connections for hands-free calling and music streaming. Pair your phone to make and receive calls directly from the stereo and stream audio wirelessly.

Image: Display of the Bluetooth 5.0 interface on the car stereo, showing options for dialing, contacts, and music playback.

4.5 DSP & 32-Band EQ

Utilize the built-in Digital Signal Processor (DSP) and 32-band equalizer to customize your audio experience. Adjust frequency, acoustic environment (AE), and sound type to optimize sound quality to your preference.

Image: Screenshots of the car stereo's DSP and 32-band equalizer settings, allowing detailed audio customization.

۴.۵ ایف ایم/آر ډي ایس راډیو

Access FM radio stations with RDS (Radio Data System) functionality. The unit supports 18 preset stations, providing access to news, traffic updates, and weather forecasts.

Image: Display of the FM/RDS radio interface on the car stereo, showing frequency tuning and preset station options.

۵.۹ د سپلایټ سکرین فعالیت

The split-screen feature allows you to run two applications simultaneously, such as navigation and music playback, enhancing multitasking capabilities.

Image: Screenshot of the car stereo demonstrating the split-screen function, with a navigation app on one side and the radio interface on the other.

4.8 د غږ کنټرول

Access functions hands-free using voice commands. Say "Hey Siri" or "OK Google" to activate your smartphone's voice assistant for tasks like making calls, sending messages, or getting directions.

Image: Display showing the voice control feature, with examples of commands for Siri and Google Assistant for navigation and calls.

4.9 UI Themes Customization

Personalize your driving experience by choosing from 59 different UI desktop themes. You can also rearrange app icons on your home screen to suit your preferences.

Image: A collage of various UI desktop themes available on the car stereo, demonstrating customization options.

۴.۷ د بیک اپ کیمرې عملیات

When the vehicle is shifted into reverse, the screen will automatically display the rear view from the AHD backup camera. The 170-degree wide-angle lens and night vision capabilities provide a clear view, and backup assist lines aid in parking maneuvers.

Image: Screenshot of the car stereo displaying the rear view from the AHD backup camera, complete with parking assist lines and icons indicating 1080p Full HD, waterproof, night vision, and wide-angle features.

5. ساتنه

To ensure the longevity and optimal performance of your Zomolither car stereo, follow these general maintenance guidelines:

• پاکول: Use a soft, dry cloth to clean the touchscreen and exterior surfaces. Avoid abrasive cleaners or solvents that could damage the screen or finish.
• د سافټویر تازه معلومات: په دوره یي ډول د سیسټم ترتیباتو یا د تولید کونکي له لارې د سافټویر تازه معلوماتو لپاره وګورئ. webسایټ ته مراجعه وکړئ ترڅو ډاډ ترلاسه کړئ چې تاسو وروستي ځانګړتیاوې او د بګ اصلاحات لرئ.
• د چاپیریال شرایط: د واحد د سختې تودوخې، د اوږدې مودې لپاره د مستقیم لمر وړانګو، یا ډیر رطوبت سره د مخ کیدو څخه ډډه وکړئ.

6. ستونزه حل کول

که تاسو د خپل موټر سټیریو سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:

For issues not covered here, please refer to the contact information in the Support section.

7. مشخصات

8. تضمین او ملاتړ

Zomolither offers a 1-year warranty for this product. In addition, you are eligible for a 30-day refund and 12-month replacement policy. Lifetime technical support is also provided.

For any concerns, compatibility questions, or technical assistance, please contact Zomolither customer support at Zomolither@126.com. Please confirm compatibility and wiring harness details before ordering if you have any doubts.

Image: Graphic indicating online support email (Zomolither@126.com) and a reminder to check compatibility for various car models.
