پیژندنه
This manual provides detailed instructions for the operation and maintenance of your WIITHINK WTB-795S Portable Cassette Player Recorder. This device combines classic audio playback with modern features, including AM/FM/SW radio, Bluetooth connectivity, USB/SD card playback, and MP3 conversion capabilities. Please read this manual thoroughly before using the product to ensure proper function and longevity.
د خوندیتوب معلومات
- د اور یا بریښنا شاک څخه د مخنیوي لپاره واحد باران یا رطوبت ته مه ښکاره کوئ.
- سي مه خلاصوهasinج. خدمتونه یوازې وړ پرسونل ته راجع کړئ.
- د تودوخې سرچینو ته نږدې یا مستقیم لمر وړانګو کې د واحد له ایښودلو څخه ډډه وکړئ.
- د هوا مناسبه هوا ورکول ډاډمن کړئ؛ د هوا د لارې خلاصې لارې مه بندوئ.
- یوازې ټاکل شوی بریښنا اډاپټر یا بیټرۍ وکاروئ.
- د ماشومانو د لاسرسي څخه لرې وساتئ.
د بسته محتويات
ډاډ ترلاسه کړئ چې ټول توکي په کڅوړه کې شتون لري:
- WIITHINK WTB-795S Portable Cassette Player Recorder
- د AC بریښنا کیبل
- د کارونکي لارښود (دا لاسوند)
محصول پای ته ورسیدview
The WIITHINK WTB-795S is a versatile audio device designed for both classic and modern listening experiences. It features a cassette player and recorder, AM/FM/SW radio, Bluetooth connectivity, and USB/SD card playback with MP3 conversion capabilities.
انځور: مخکینۍ برخه view of the WIITHINK WTB-795S Portable Cassette Player Recorder, showing the cassette deck, radio tuner, and speakers.

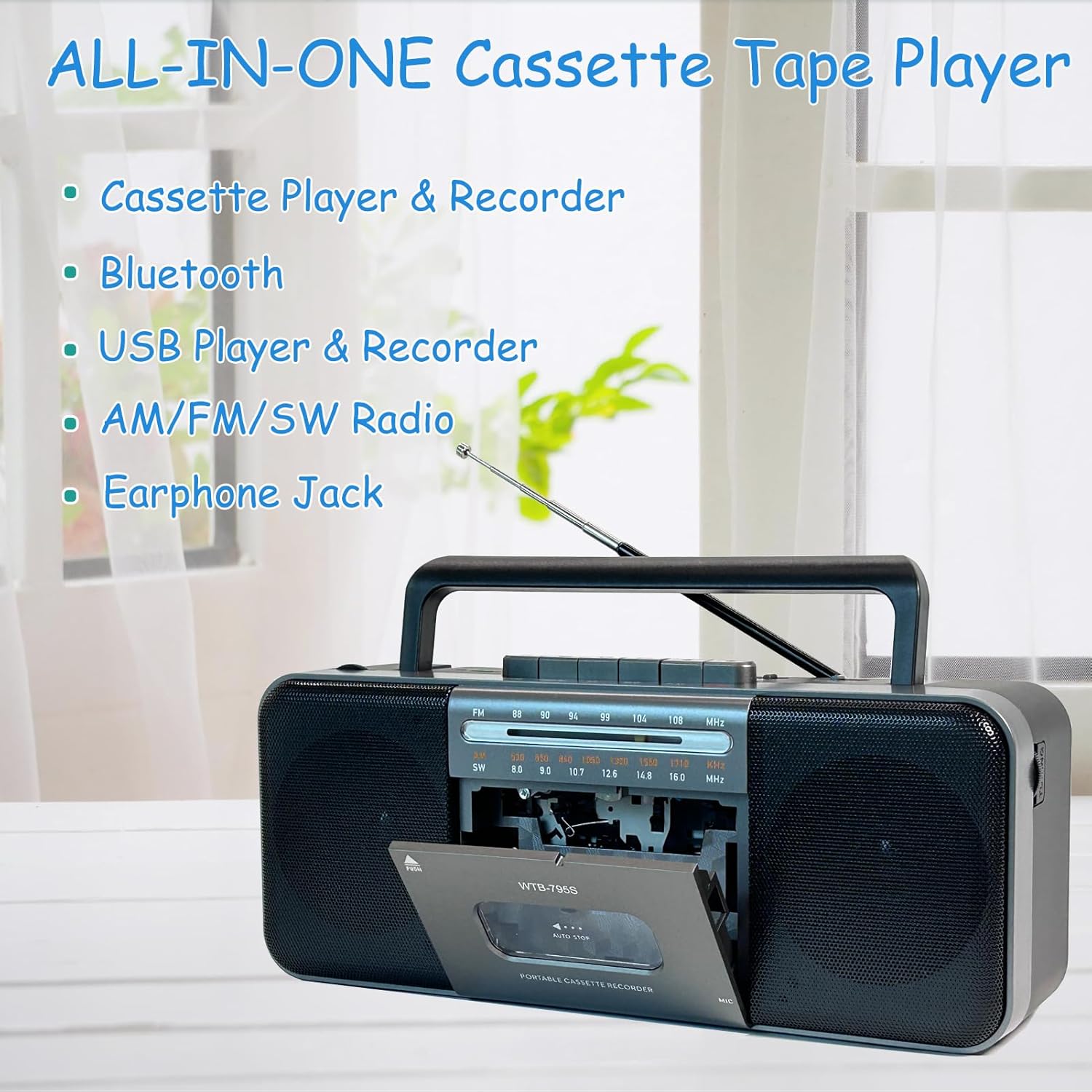

Image: Diagram highlighting the all-in-one features of the WTB-795S, including Cassette Player & Recorder, Bluetooth, USB Player & Recorder, AM/FM/SW Radio, and Earphone Jack.
کلیدي ځانګړتیاوې:
- Cassette Player & Recorder: Play and record audio to cassette tapes.
- AM/FM/SW Radio: Built-in tuner for receiving various radio bands.
- د بلوتوټ ارتباط: د مطابقت لرونکو وسیلو څخه بې سیم آډیو سټریمینګ.
- USB/SD Card Playback & Recording: غږ غږول files from USB drives and SD cards, and record to them.
- MP3 Converter: Convert cassette audio to MP3 format on USB/SD.
- جوړ شوی مایکروفون: For direct voice recording.
- 10W Dual Speakers: Provides clear and powerful stereo sound (radio is mono).
- د ایرفون جیک: د شخصي اوریدلو لپاره.
- د AC/DC ځواکمن: Operates with AC power cable or batteries for portability.
چمتو کول
د وسیلې ځواک ورکول:
The WTB-795S can be powered by either AC electricity or batteries.
د AC بریښنا:
- ډاډ ترلاسه کړئ چې واحد بند دی.
- Connect the supplied AC power cable to the AC input jack on the back of the unit.
- د AC بریښنا کیبل بله پای په معیاري دیوال آوټ لیټ کې ولګوئ.
د بیټرۍ ځواک:
For portable use, the unit requires 4 x D-size batteries (not included) or 2 x 18650 button-top rechargeable batteries (not included).
انځور: شاته view of the WTB-795S showing the battery compartments for 4 D-size batteries and 2 18650 button-top rechargeable batteries, along with the AC power input. Note: Only button-top 18650 batteries are compatible.
- د واحد په شا کې د بیټرۍ د کمپارټمینټ پوښ خلاص کړئ.
- Insert 4 D-size batteries or 2 18650 button-top rechargeable batteries, observing the correct polarity (+/-) as indicated inside the compartment.
- د بیټرۍ کمپارټ پوښ په خوندي ډول وتړئ.
- یادونه: The 18650 battery compartment only accommodates button-top battery models. Flat-top battery models cannot be used.
انتن:
Extend the telescopic antenna for optimal FM and SW radio reception. For AM reception, rotate the unit for best signal.
عملیاتي لارښوونې
1. Cassette Playback and Recording
Image: A person holding a cassette tape, with the WTB-795S in the foreground showing the open cassette deck, illustrating its cassette playback and recording function.
Playing a Cassette:
- فشار ورکړئ ودرول/ایستل د کیسټ دروازې خلاصولو لپاره تڼۍ.
- د کیسیټ ټیپ دننه کړئ چې خلاص څنډه یې پورته خوا ته وي.
- د کیسټ دروازه بنده کړه.
- فشار ورکړئ لوبه وکړئ د بيا غږولو پيلولو لپاره ت buttonۍ.
- تنظیم کړئ حجم غوټۍ ستاسو د خوښې کچې ته ورسوئ.
- کارول چټک مخ په وړاندې (FF) or ریونډ (ریو) د ټیپ د نیویګیټ کولو لپاره تڼۍ.
- مطبوعاتي ودرول/ایستل د لوبو بندولو لپاره.
په کیسیټ کې ثبت کول:
You can record from the built-in microphone, radio, or external sources (via Bluetooth/USB/SD).
- یو خالي یا د ثبت وړ کیسیټ ټیپ دننه کړئ.
- Select the desired source (e.g., Radio, Bluetooth, USB/SD).
- فشار ورکړئ ریکارډ تڼۍ (معمولا سور) په ورته وخت کې د لوبه وکړئ button. The recording will begin.
- For microphone recording, ensure the microphone is unobstructed.
- مطبوعاتي ودرول/ایستل ثبت کول پای ته رسولو لپاره.
2. Radio Operation (AM/FM/SW)
Image: An elderly man smiling while listening to the WTB-795S, which has its telescopic antenna extended, demonstrating its radio function.
- د فعالیت سویچ ته وټاکئ راډیو.
- Select the desired band: AM, FM، یا SW using the band selector switch.
- Extend the telescopic antenna for FM and SW reception. Rotate the unit for optimal AM reception.
- وګرځوئ TUNING knob to find your desired station.
- تنظیم کړئ حجم غوټۍ
3. د بلوتوث حالت
Image: A hand holding a smartphone displaying a music app, with the WTB-795S on a table in the background, indicating Bluetooth connectivity.
- د فعالیت سویچ ته وټاکئ بلوتوث. The unit will enter pairing mode, indicated by an audible prompt or flashing indicator.
- On your Bluetooth-enabled device (smartphone, tablet, etc.), search for available devices.
- Select "WTB-795S" from the list to pair.
- Once paired, you can stream audio from your device to the WTB-795S.
- Adjust volume on both the unit and your connected device.
4. USB/SD Card Playback and Recording
Image: The WTB-795S with a red USB flash drive inserted into its USB port, demonstrating its USB playback and recording capabilities.
Playing from USB/SD:
- په USB پورټ کې د USB فلش ډرایو یا د SD کارت سلاټ کې SD کارت دننه کړئ.
- د فعالیت سویچ ته وټاکئ USB/SD.
- دا واحد به په اتوماتيک ډول مطابقت لرونکی آډیو کشف او غږول پیل کړي files (MP3 بڼه).
- Use the playback control buttons (Play/Pause, Next, Previous) to manage your audio.
- یادونه: Compatible with FAT32 file systems only. NTFS is not supported.
Recording to USB/SD (MP3 Conversion):
You can convert audio from cassette tapes to MP3 format on a USB drive or SD card.
- Insert a USB flash drive or SD card.
- Insert the cassette tape you wish to convert.
- فشار ورکړئ لوبه وکړئ button on the cassette deck.
- فشار ورکړئ ریکارډ button (often labeled 'USB/SD Record' or similar, refer to unit markings) to start converting the cassette audio to MP3 on the inserted USB/SD media.
- مطبوعاتي ودروئ to end the conversion.
5. د ایرفون جیک
Image: A woman wearing headphones and listening to the WTB-795S, illustrating the use of the earphone jack for private listening.
Plug standard 3.5mm headphones into the earphone jack for private listening. The main speakers will be muted when headphones are connected.
ساتنه
د واحد پاکول:
- بهر د نرم، وچ ټوکر سره پاک کړئ.
- د کثافاتو پاکوونکي یا محلول مه کاروئ.
- For the cassette head and pinch roller, use a cotton swab lightly dampened with isopropyl alcohol. Clean gently to remove tape residue.
Cassette Tape Care:
- Store tapes away from direct sunlight and extreme temperatures.
- د ټیپ سطحې ته د لمس کولو څخه ډډه وکړئ.
- Periodically fast forward and rewind tapes to prevent sticking.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| هیڅ ځواک نشته | AC cable not connected; Batteries depleted or incorrectly inserted. | Check AC cable connection; Replace or correctly insert batteries. |
| غږ نشته | غږ ډېر ټیټ دی؛ هیډفونونه وصل دي؛ ناسم حالت غوره شوی دی. | Increase volume; Disconnect headphones; Select correct function mode. |
| د راډیو ضعیف استقبال | انتن نه دی غځول شوی؛ کمزوری سیګنال. | Extend telescopic antenna; Rotate unit for better signal. |
| Cassette playback distorted/slow | Tape head dirty; Tape worn out; Batteries low. | Clean tape head; Try a different tape; Replace batteries. |
| USB/SD نه غږېږي | غلط file format; Incompatible file system (NTFS); Media not inserted correctly. | ډاډ ترلاسه کړئ files are MP3; Format media to FAT32; Reinsert USB/SD card. |
| بلوتوث نه نښلي | Unit not in pairing mode; Device too far; Bluetooth off on source device. | Ensure unit is in Bluetooth mode; Bring devices closer; Enable Bluetooth on source device. |
مشخصات
| فیچر | تفصیل |
|---|---|
| ماډل | WTB-795S |
| د محصول ابعاد (L x W x H) | 11 x 5 x 2 انچه (27.9 x 12.7 x 5.1 سانتي متره) |
| د توکي وزن | ۶ پونډه (۳ کیلو ګرامه) |
| د ارتباط ټیکنالوژي | بلوتوث، USB |
| د سپیکر ډول | Stereo (2 x 5W) |
| د بریښنا سرچینه | AC Power (included adapter) or DC Battery (4 x D-size or 2 x 18650 button-top, not included) |
| د راډیو فریکونسۍ | AM: 530-1710kHz, FM: 88-108MHz, SW: 8.0-16.0MHz |
| USB/SD Compatibility | FAT32 file system, MP3 format |
تضمین او ملاتړ
WIITHINK is committed to customer satisfaction. This product comes with an 18-month replacement policy and lifetime technical support.
د ملاتړ سره اړیکه:
For any inquiries or issues, please contact WIITHINK customer support through your purchase platform (e.g., Amazon Buyer-Seller Message) or refer to the contact information provided with your product packaging.
د ساتنې اختیاري پلانونه:
د ساتنې پراخ شوي پلانونه ممکن په جلا توګه د پیرودلو لپاره شتون ولري:
- دوه کلن محافظتي پلان
- دوه کلن محافظتي پلان
- بشپړ محافظت (میاشتنی پلان چې وړ پیرودونه پوښي)
Please refer to the specific terms and conditions of these plans at the time of purchase.
