د WIITHINK کیسیټ ټیپ پلیر ریکارډر بوم باکس کارونکي لارښود

1. محصول ختم شوview

The WIITHINK Cassette Tape Player Recorder Boombox is a versatile audio device combining vintage appeal with modern functionality. It allows you to enjoy classic cassette tapes, listen to AM/FM/SW radio, stream music via Bluetooth, and play/record audio to USB drives and SD cards. Its portable design and dual power options make it suitable for various environments.

کلیدي ځانګړتیاوې:

• Cassette Player & Recorder: Play your favorite cassette tapes and record audio from the built-in microphone, external sources, or radio directly to cassette.
• د بلوتوټ ارتباط: په بې سیم ډول له خپل سمارټ فون، ټابلیټ، یا نورو بلوتوث فعالو وسیلو څخه آډیو جریان کړئ.
• USB/SD Player & Recorder: Play MP3, WAV, AAC, WMA files from USB flash drives and SD cards. Easily convert cassette audio to MP3 format on USB/SD.
• AM/FM/SW Radio: Enjoy a wide range of radio stations with excellent reception thanks to the long antenna and DSP upgrade chip.
• Premium 10W Sound: Equipped with dual 5W speakers for clear, powerful, and full sound quality.
• AC/DC Dual Power Supply: Operates on AC power (adapter included) or battery power (batteries not included) for true portability.
• د 3.5mm هیډفون جیک: د شخصي اوریدلو لپاره.

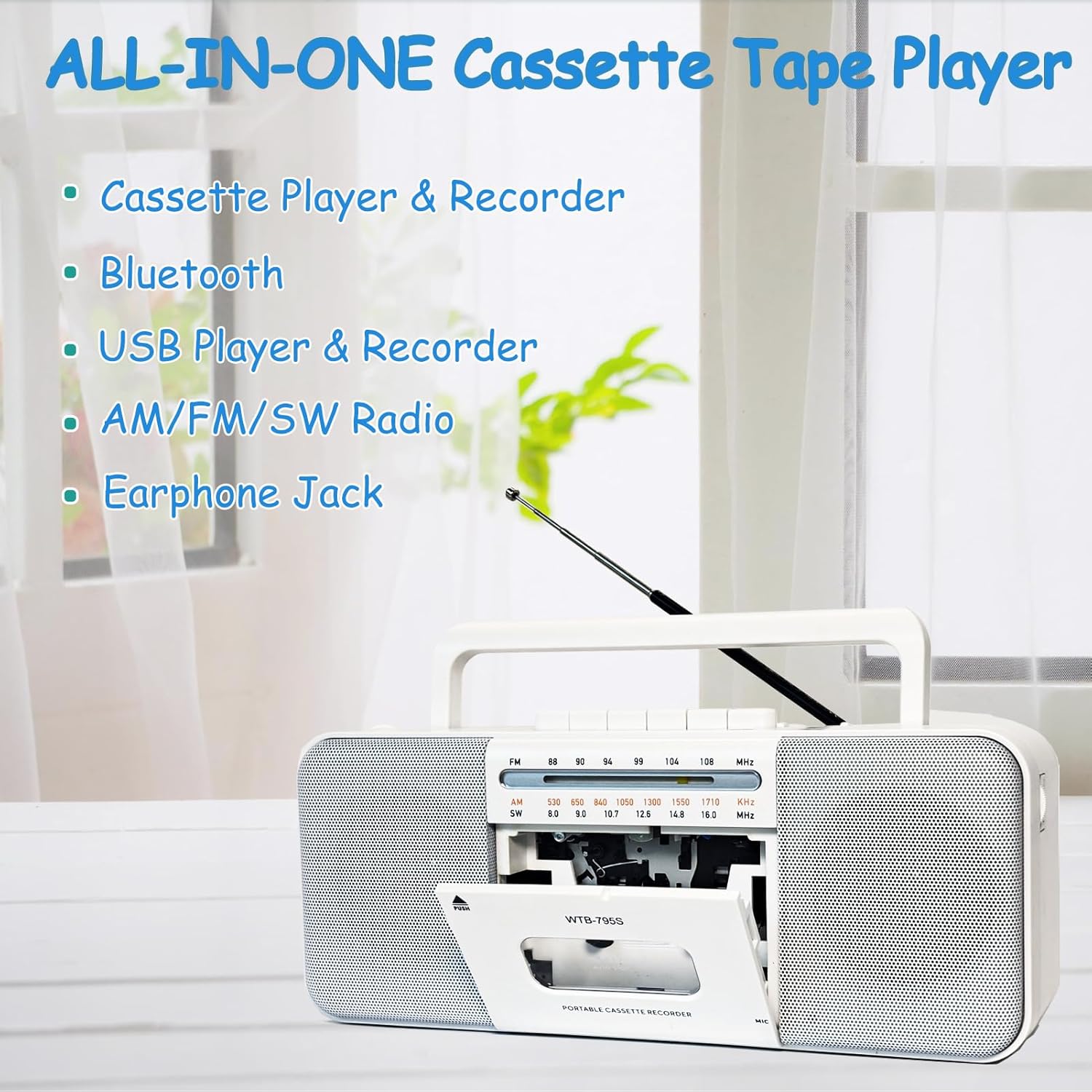

Image: The WIITHINK boombox highlighting its all-in-one capabilities including cassette, Bluetooth, USB, radio, and earphone jack.

2. د تنظیم کولو لارښود

2.1 فعالول

Your WIITHINK boombox can be powered by either AC electricity or batteries.

• د AC بریښنا: Connect the included AC power cable to the AC input jack on the back of the unit and plug the other end into a standard wall outlet.
• د بیټرۍ ځواک: For portable use, open the battery compartment on the back. Insert 4 x D-cell batteries (not included) or 2 x 18650 button-top rechargeable lithium-ion batteries (not included). Ensure correct polarity (+/-). Flat-top 18650 batteries are not compatible.

انځور: شاته view of the boombox illustrating its dimensions and the battery compartments for D-cell and 18650 batteries, along with the AC power input.

Image: A detailed diagram showing the battery types (D-cell and 18650 button-top) and the AC power connection for the boombox.

3. عملیاتي لارښوونې

۴.۳ د کیسیټ غږول او ثبت کول

1. To Play a Cassette: Press the 'PUSH' button to open the cassette door. Insert a cassette tape with the open edge facing upwards. Close the door. Select 'TAPE' mode using the function switch. Press the 'PLAY' button to begin playback. Use 'STOP', 'FF' (Fast Forward), and 'REW' (Rewind) buttons as needed.
2. To Record to Cassette:
   • From Built-in Microphone: Insert a blank cassette. Select 'TAPE' mode. Press the 'RECORD' button (red button) along with 'PLAY' simultaneously. The unit will start recording from its internal microphone.
   • From Radio: Tune to your desired radio station. Insert a blank cassette. Press 'RECORD' and 'PLAY' simultaneously. The radio broadcast will be recorded onto the cassette.
   • From External Source (e.g., AUX-in): Connect an external audio device to the AUX-in port (if available, refer to specifications). Select 'AUX' mode. Insert a blank cassette. Press 'RECORD' and 'PLAY' simultaneously. Play audio from your external device.

Image: A person holding a cassette tape, with the WIITHINK boombox in the foreground showing its open cassette compartment, ready for tape insertion.

3.2 AM/FM/SW Radio

1. د غوره استقبال لپاره ټیلسکوپیک انتن پراخ کړئ.
2. Set the function switch to 'RADIO'.
3. Select the desired band: AM, FM, or SW (Shortwave) using the band selector switch.
4. Rotate the 'TUNING' knob to find your desired radio station.

Image: An elderly man smiling while the WIITHINK boombox with its extended antenna is visible on a table, indicating its radio functionality.

3.3 د بلوتوت ارتباط

1. Set the function switch to 'BT' (Bluetooth) mode. The unit will enter pairing mode, indicated by an audible prompt or flashing indicator.
2. په خپل بلوتوث فعال شوي وسیله (سمارټ فون، ټابلیټ، او نور) کې، بلوتوث فعال کړئ او د شته وسایلو لټون وکړئ.
3. Select 'WIITHINK' or a similar name from the list of devices.
4. Once paired, you will hear a confirmation sound. You can now play audio from your device through the boombox.

Image: The WIITHINK boombox on a table, with a hand holding a smartphone displaying a music player interface, illustrating Bluetooth music streaming.

3.4 USB/SD Playback and Recording

1. To Play from USB/SD: Insert a USB flash drive into the USB port or an SD card into the SD card slot. Set the function switch to 'USB/SD' mode. The unit will automatically detect and begin playing compatible audio files (MP3, WAV, AAC, WMA).
2. To Record to USB/SD (MP3 Conversion):
   • Insert a USB flash drive or SD card.
   • Select the source you wish to record from (Cassette, Radio, or Microphone).
   • Press and hold the 'RECORD' button on the MP3 player section. The unit will start recording the audio source directly to the USB/SD card in MP3 format.
   • Recordings are typically saved in a directory named 'AB_REC' with filenames like AUX00xx.MP3 (for external/cassette/radio) or MIC00xx.MP3 (for microphone).

Image: The WIITHINK boombox on a wooden surface, with a USB flash drive inserted into its port, demonstrating its USB playback and recording capability.

Image: A diagram illustrating various recording options: Tape to USB, USB to Tape, and Radio to Tape, highlighting the versatility of the boombox's recording functions.

۶.۳ د هیډفون کارول

To enjoy private listening, plug your 3.5mm headphones into the headphone jack located on the unit. The internal speakers will automatically mute when headphones are connected.

Image: A young woman wearing headphones, smiling and looking upwards, with the WIITHINK boombox visible on a table, demonstrating the use of the earphone jack for personal listening.

4. ساتنه

• پاکول: د واحد بهرنۍ برخه پاکولو لپاره نرم، وچ ټوکر وکاروئ. د کثافاتو پاکوونکي یا محلولونه مه کاروئ.
• د کیسیټ د سر پاکول: Regularly clean the cassette tape heads, pinch roller, and capstan with a cotton swab lightly dampened with isopropyl alcohol to ensure optimal sound quality and prevent tape damage.
• ذخیره کول: When not in use for extended periods, remove batteries and store the unit in a cool, dry place away from direct sunlight and extreme temperatures.

5. ستونزه حل کول

6. تخنیکي مشخصات

7. تضمین او ملاتړ

This product comes with a standard manufacturer's warranty. For specific warranty details, duration, and terms, please refer to the documentation included with your purchase or visit the official WIITHINK webسایټ

If you encounter any issues or require technical assistance, please contact WIITHINK customer support through their official channels. You can typically find contact information on the product packaging, the WIITHINK brand store on Amazon, or their official webسایټ
