د انسکام ۴۵۱ لاسي انډوسکوپ لارښوونې لارښود

1. پیژندنه

Thank you for choosing the Inskam 451 Handheld Endoscope. This device is designed for visual inspection in hard-to-reach areas, offering clear imaging and ease of use. Please read this manual carefully before operating the device to ensure proper usage and to maximize its lifespan.

کلیدي ځانګړتیاوې:

• ۲.۰ انچه IPS سکرین: Provides instant, high-definition viewing of images and videos.
• 720p Camera: Captures clear visuals for detailed inspection.
• 5-meter Rigid Cable: Allows access to deep or distant areas.
• IP67 واټر پروف کیمره: Suitable for use in wet or submerged environments.
• ۱۲ د تنظیم وړ LED څراغونه: Illuminates dark inspection areas.
• 2000mAh بیټرۍ: Offers extended operating time.
• مدغم شوی سټینډ: Frees your hands for easier operation.

2. محصول ختم شوview او د کڅوړې مینځپانګې

Familiarize yourself with the components of your Inskam 451 Endoscope.

شکل 2.1: The Inskam 451 Handheld Endoscope, showing the main display unit and the attached flexible camera cable with its LED-equipped lens.

د بسته محتويات:

• 1 x Inskam 451 Handheld Endoscope Unit
• 1 x Lens Cable (5-meter rigid cable)
• 1 x د USB ډول-C چارج کیبل

3. ترتیب کول

3.1 د وسیلې چارج کول

Before first use, fully charge the endoscope. Connect the provided USB Type-C charging cable to the device's charging port and a suitable USB power adapter (not included).

شکل 3.1: The endoscope features a 2000mAh battery, providing approximately 3 hours of use on a full charge, with a charging time of about 2 hours.

3.2 Inserting TF Card (Optional)

To save images and videos, insert a Micro SD (TF) card (up to 32GB, not included) into the designated TF card slot on the side of the device. Ensure the device is powered off before inserting or removing the card.

شکل 3.2: Detail showing the USB Type-C charging port and the hidden TF card slot, covered by a silicone flap for protection.

3.3 Attaching the Lens Cable

Connect the rigid lens cable to the main unit. Ensure it clicks securely into place. The cable is detachable for easy storage and replacement.

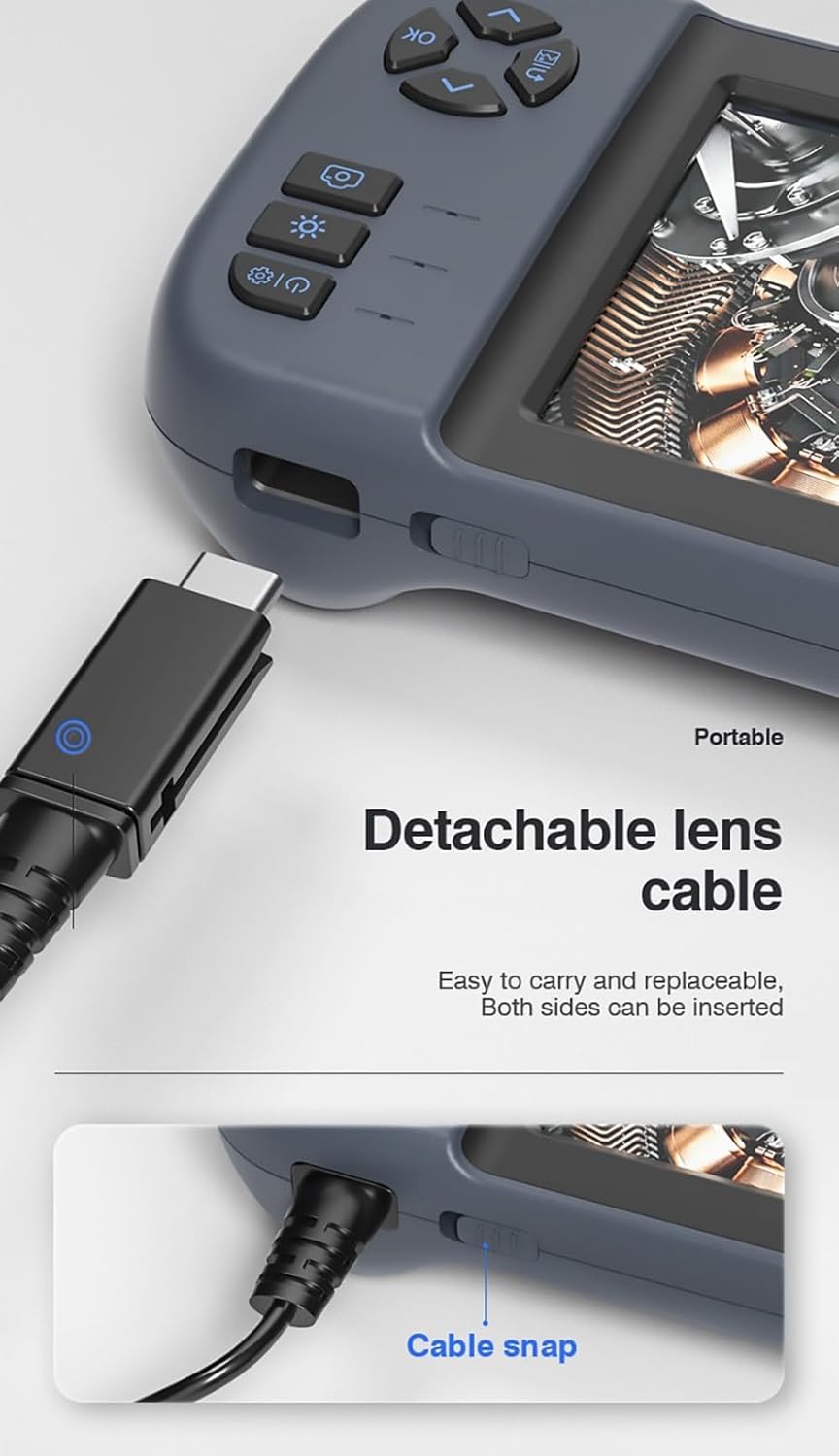

شکل 3.3: The detachable lens cable, designed for easy connection and removal. Both sides of the connector can be inserted.

۳.۲ د مدغم شوي سټینډ کارول

The Inskam 451 features a built-in bracket on the back, allowing it to stand upright on a flat surface. This frees your hands during inspection tasks.

شکل 3.4: The integrated bracket on the back of the device, which can be extended to allow the endoscope to stand on a desktop.

4. عملیاتي لارښوونې

4.1 بریښنا کول / بندول

Press and hold the power button (usually marked with ⑂) to turn the device on or off. The IPS screen will illuminate upon startup.

شکل 4.1: The 4.5-inch IPS HD screen provides vivid colors and a wide viewing angle for clear inspection.

۶.۵ د LED روښانتیا تنظیم کول

The camera head is equipped with 6 adjustable LED lights. Use the dedicated brightness control button (often marked with an asterisk or light icon) to cycle through different brightness levels or turn the lights off.

شکل 4.2: The IP67 waterproof camera head with 6 adjustable LED lights, suitable for harsh environments including submerged conditions.

۵.۴ د انځورونو نیول او ویډیو ثبتول

Once the device is powered on and the camera is positioned, use the dedicated buttons to capture still images or start/stop video recording. Refer to the on-screen icons for current mode (photo/video).

4.4 Viewد رسنیو

Navigate to the playback mode using the menu buttons to review captured images and videos stored on the TF card. You can scroll through files and play videos directly on the screen.

5. ساتنه

5.1 Cleaning the Lens and Screen

Gently wipe the camera lens and the IPS screen with a soft, lint-free cloth. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth (not directly to the lens/screen).

5.2 د بیټرۍ پاملرنه

د بیټرۍ د ژوند اوږدولو لپاره، د بیټرۍ په مکرر ډول د بشپړ چارج کولو څخه ډډه وکړئ. وسیله په منظم ډول چارج کړئ، حتی که د اوږدې مودې لپاره نه کارول کیږي (د مثال په توګه، په هرو دریو میاشتو کې یو ځل).

5.3 ذخیره کول

Store the endoscope in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the lens cable is neatly coiled without sharp bends.

۴.۲ د اوبو د مقاومت احتیاطي تدابیر

While the camera head is IP67 waterproof, the main unit is not. Do not submerge the main unit in water or expose it to heavy rain. Ensure the USB and TF card ports are properly sealed with their silicone covers when not in use, especially in damp چاپیریالونه

6. ستونزه حل کول

7. مشخصات

8. تضمین او ملاتړ

The Inskam 451 Handheld Endoscope comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and duration. For technical support, troubleshooting assistance, or warranty claims, please contact the retailer or manufacturer directly.

جوړونکی: انسکام

ASIN: B0DNFSDNXC

For further assistance, please visit the official Inskam webسایټ یا د دوی پیرودونکي خدمت سره اړیکه ونیسئ.
