1. پیژندنه
The SmallRig Adjustable Sling Handle with Focus Control (Model 4326) is designed to enhance the functionality and ergonomics of your DJI RS series gimbal stabilizer. This handgrip provides versatile control and comfortable handling for professional videography.
- Optimized for DJI RS Series: Specifically designed for DJI RS 2, RS 3 Pro, RS 4, and RS 4 Pro, offering shutter control, recording, joystick operation, mode switching, centering/locking, and power/sleep mode.
- Effortless Focus Control: Features a smooth dial with stepless adjustment for precise focus control and adjustment of the 3-axis system.
- Broad Accessory Compatibility: Equipped with 1/4"-20 threaded holes, 3/8"-16 locating holes, a cold shoe mount, a NATO rail, a QD socket, and strap slots for various accessories.
- Quick Setup and Storage: Designed for rapid assembly and disassembly, facilitating efficient on-the-go production and convenient storage.
- ارګونومیک ډیزاین: Made from soft silicone with a double-curve design for a non-slip, comfortable grip, reducing strain during extended use.
Image: SmallRig Adjustable Sling Handle with Focus Control, highlighting its optimization for DJI RS Series gimbals.
۲. په بکس کې څه دي؟
په بسته کې لاندې توکي شامل دي:
- د سلینګ لاستی × ۱
- د کارونکي لارښود × 1
Image: The SmallRig Adjustable Sling Handle (Model 4326) and user manual as packaged in the box.
3. ترتیب او نصب کول
Follow these steps to properly install your Adjustable Sling Handle:
- To mount the handgrip on the side of your DJI RS series stabilizer, use the included wrench.
- Ensure the M4 screws are tightened securely for a stable connection.
Image: Simple installation process of the SmallRig Adjustable Sling Handle to the gimbal, highlighting the M4 screw tightening.
3.1 Joystick Calibration Guide
If the joystick is not functioning properly, perform the following steps to calibrate it:
- Press the trigger button three times in a row, and keep pressing the fourth time.
- Then rotate the joystick more than 6 circles at the extreme position and stop.
- جویسټیک به د 20 ثانیو لپاره په مینځني حالت کې پرته له کوم عملیات څخه پاتې شي ، د کیلیبریشن بشپړیدو ته انتظار باسي.
Video: A demonstration of the joystick calibration process for the SmallRig 4326 Handle Sling.
4. عملیاتي لارښوونې
The handgrip supports various controls for enhanced shooting accuracy and efficiency:
- د شټر کنټرول: Initiate or stop recording directly from the handle.
- د جویسټیک عملیات: Control gimbal movement and camera parameters.
- د حالت بدلول: Easily switch between different gimbal modes.
- Centering/Locking: Quickly center or lock the gimbal's position.
- Power/Sleep Mode: Manage the gimbal's power state.
انځور: تفصیلي view of the control buttons and scroll wheel on the SmallRig Adjustable Sling Handle.
4.1 Adjustable Grip Angle and Flexible Angle Switching
The handle supports 135° flexible adjustment, allowing you to adjust the grip angle in real-time according to your needs. This boosts productivity and cuts strain by over 50%.
Image: The adjustable grip angle of the SmallRig Sling Handle, demonstrating its 135° range of motion.
Image: Flexible angle switching capability of the sling handle for low-angle and high-angle shooting positions.
Video: Demonstration of the dual handle with focus control in action, showcasing its ergonomic benefits and control features.
4.2 Quick Setup and Storage
The handle is designed for rapid assembly and disassembly, streamlining shooting sessions and providing convenient storage for efficient on-the-go production.

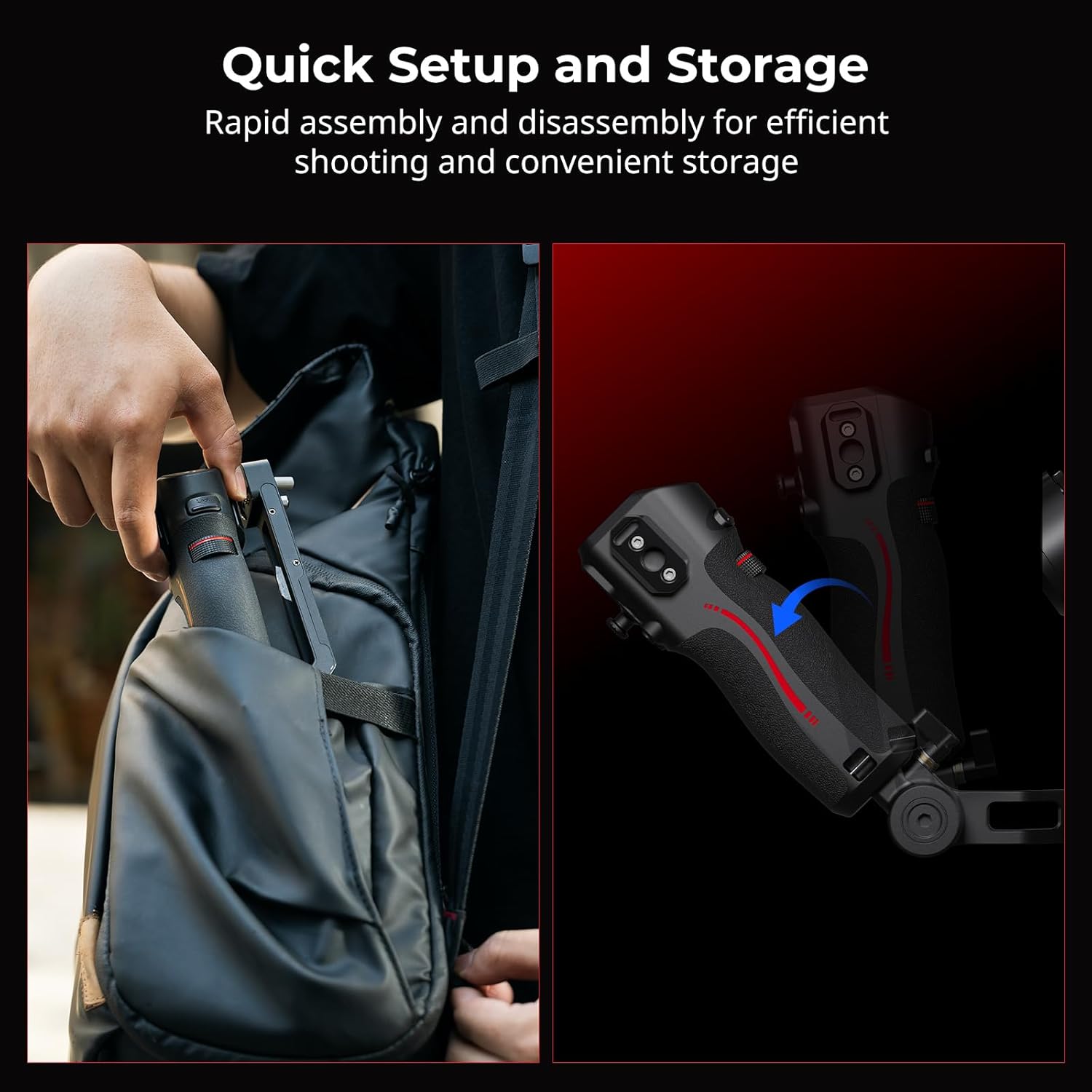

Image: The quick setup and compact storage features of the SmallRig Adjustable Sling Handle.
5. مشخصات
| فیچر | تفصیل |
|---|---|
| د محصول ابعاد | 2.62 x 3.02 x 2.62 inches (7.6 x 3.0 x 2.6in) |
| د توکي وزن | ۰.۹۸۶ اونس (۲۷.۹۴ ګرامه) |
| د توکي ماډل شمیره | 4326 |
| مواد | Aluminium Alloy, Plastic |
| مطابقت لرونکې وسیلې | DJI RS 2 / RS 3 Pro / RS 4 / RS 4 Pro |
| اعظمي بار | 6.0kg / 13.2lb |
6. ستونزه حل کول
If you encounter any issues with your Adjustable Sling Handle, please refer to the following common solutions:
- Joystick Malfunction: Perform the joystick calibration as described in Section 3.1.
- بې ثباته اړیکه: Ensure all M4 screws are securely tightened. Re-check the mounting points for any loose connections.
- Power-on Issues: The device requires a long-press of the power button to activate. Ensure the gimbal it is connected to is also powered correctly.
7. ساتنه
To ensure the longevity and optimal performance of your SmallRig Adjustable Sling Handle, follow these maintenance guidelines:
- پاکول: Wipe the handle with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- ذخیره کول: Store the handle in a cool, dry place away from direct sunlight and extreme temperatures. Utilize its compact folding design for convenient and safe storage.
- معاینه: Periodically check all screws and connections for tightness. Ensure the silicone grip is free from damage.
8. تضمین او ملاتړ
For warranty information, technical support, or service inquiries, please contact SMALLRIG directly through their official webسایټ یا مجاز توزیع کونکي. د پیرود ثبوت په توګه د پیرود رسید وساتئ.
9. Sustainable Choice
This product is a sustainable and carbon-friendly choice. Every purchase helps support international carbon offset projects. For more information, visit د اقلیم-id.com/R3UHE5.
