BAOFENG UV-9R Pro Speaker Microphone User Manual

پیژندنه

This manual provides detailed instructions for the BAOFENG UV-9R Pro Speaker Microphone. It covers product features, compatibility, setup, operation, maintenance, and technical specifications to ensure optimal performance and longevity of your device.

مطابقت

The BAOFENG UV-9R Pro Speaker Microphone is designed for use with a wide range of BAOFENG two-way radios. Compatible models include:

• UV-68 Mate Pro V2
• UV-9R Plus
• UV-9R PRO
• UV-9G
• UV-XR
• GT-3WP
• UV-82WP
• R760 Plus
• BF-A58
• BF-9700
• R760
• UV-S22 Pro
• UV-98 Pro
• GMRS-9R Series
• UV-9R MK1
• UV-9R Plus MK1 (UV-82 3rd Generation)

ځانګړتیاوې

The speaker microphone incorporates several features for enhanced usability and durability:

• Durable PTT Switch: The Push-To-Talk (PTT) button is designed for reliable and long-lasting use.
• ۳۶۰ درجې د څرخېدو وړ شاته کلیپ: A robust clip on the back allows for 360-degree rotation, enabling attachment to collars, coat pockets, or other gear for convenient access.
• High-Quality TPU Cable: The cable is constructed from high-quality TPU material, providing flexibility and resistance to breaking for extended product life.
• د آډیو آوټ پټ پاکول: Equipped with a 36mm loudspeaker, the microphone delivers high volume and clear sound.
• د پنروک ډیزاین: Features a built-in waterproof sealing ring to protect against moisture.
• د فشار راحت: Heavy-duty cable assembly includes strain relief to prevent damage at connection points.

Image: Key features including the PTT button, 360° rotatable clip, and cable protection.

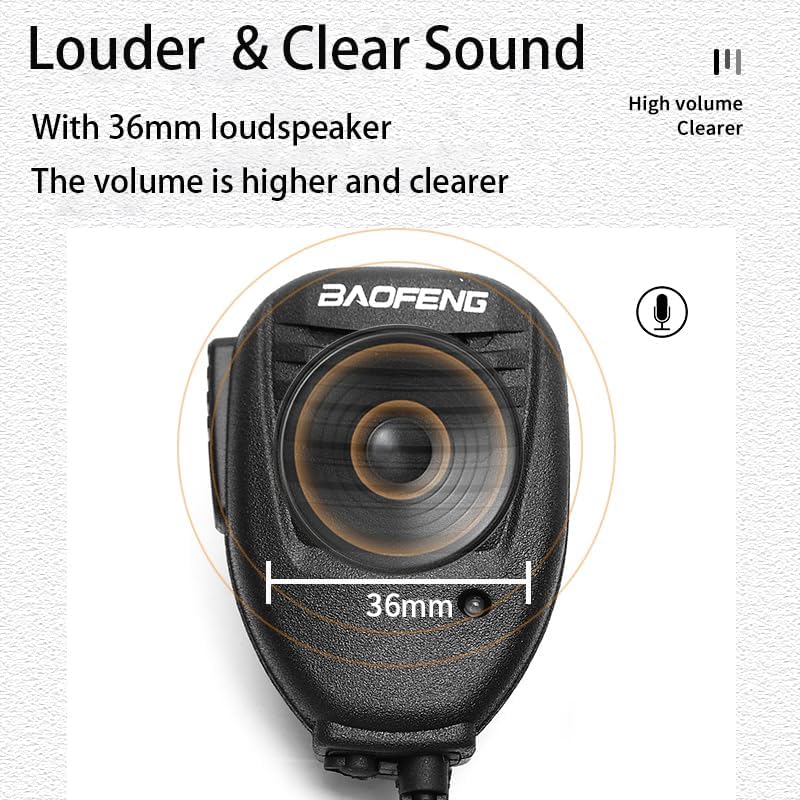

Image: Detail of the 36mm loudspeaker, designed for clear and loud audio output.

Image: The flexible TPU cable, engineered for durability and long-term use.

چمتو کول

To set up your BAOFENG UV-9R Pro Speaker Microphone:

1. له راډیو سره وصل شئ: Locate the accessory port on your compatible BAOFENG two-way radio. Align the microphone's connector with the radio's port and firmly insert it until it clicks into place. Ensure a secure connection to prevent audio issues.
2. موقعیت: Use the 360° rotatable back clip to attach the speaker microphone to your collar, lapel, or pocket. Adjust the position for comfortable access to the PTT button and optimal microphone placement for clear voice transmission.

Image: The speaker microphone properly connected to a BAOFENG UV-9R Plus radio.

عملیاتي لارښوونې

Operating the speaker microphone is straightforward:

1. د غږ ترلاسه کول: When the microphone is connected, incoming radio transmissions will be heard through the speaker on the microphone.
2. Transmitting Audio (PTT): To speak, press and hold the Push-To-Talk (PTT) button located on the side of the microphone. Speak clearly into the microphone. Release the PTT button when you are finished speaking to return to receive mode.

انځور: Examples of the speaker microphone in use, demonstrating practical application.

ساتنه

Proper maintenance ensures the longevity and performance of your speaker microphone:

• پاکول: Wipe the microphone's exterior with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure the speaker grille and microphone opening are free from dust and debris.
• ذخیره کول: مایکروفون په وچ او یخ ځای کې د مستقیم لمر وړانګو او سختې تودوخې څخه لرې وساتئ.
• د کیبل پاملرنه: Avoid sharp bends or excessive pulling on the cable to prevent internal damage. Utilize the strain relief features.
• د اوبو ښکاره کول: While the microphone has a waterproof sealing ring, it is not designed for submersion. Avoid prolonged exposure to heavy rain or water.

د ستونزو حل کول

If you encounter issues with your speaker microphone, consider the following:

• د آډیو محصول نشته:
  • Ensure the microphone is securely connected to the radio's accessory port.
  • د راډیو د غږ تنظیمات وګورئ.
  • Test the radio with its internal speaker or another accessory to confirm radio functionality.
• ناڅرګند یا تحریف شوی غږ:
  • Verify the microphone is positioned correctly and not obstructed.
  • Check for any debris in the speaker grille or microphone opening.
  • Ensure the radio's signal strength is adequate.
• د PTT تڼۍ ځواب نه ورکوي:
  • Confirm the microphone is fully plugged into the radio.
  • د لیدلو وړ زیان لپاره کیبل معاینه کړئ.

مشخصات

په بکس کې څه دي

د محصول بسته کې شامل دي:

• 1x Speaker Microphone

تضمین او ملاتړ

دا محصول د الف سره راځي د 3 میاشتو تضمین. The warranty is provided exclusively through "Shiqun Electronics Co., Ltd". For warranty claims or technical support, please contact the seller directly through your purchase platform.
