پیژندنه
د پیرودلو لپاره مننهasing the SeeYing JS-2S Turntable. This manual provides essential information for the proper setup, operation, and maintenance of your new record player. Please read these instructions carefully before use to ensure optimal performance and longevity of your device. This turntable features a belt-drive system, two-speed playback (33 1/3 and 45 RPM), an AT-3600L magnetic cartridge, Bluetooth connectivity, USB recording to PC, and includes a pair of 36-watt stereo bookshelf speakers.
د خوندیتوب لارښوونې
- د بریښنا سرچینه: یوازې چمتو شوی بریښنا اډاپټر وکاروئ. ډاډ ترلاسه کړئ چې حجمtage ستاسو د محلي بریښنا رسولو سره سمون لري.
- اوبه او رطوبت: واحد د باران، رطوبت یا مایعاتو سره مه مخ کوئ. په واحد کې هغه شیان مه کېږدئ چې د مایعاتو څخه ډک وي، لکه ګلدانونه.
- د تودوخې سرچینې: واحد د تودوخې سرچینو لکه ریډیټرونو، د تودوخې راجسترونو، بخاریو، یا نورو وسایلو څخه لرې وساتئ (په شمول د ampلایفیر) چې تودوخه تولیدوي.
- وینټیلیشن: د هوا مناسبه هوا ورکول ډاډمن کړئ. د هوا د بهېدو هیڅ لاره مه بندوئ.
- پاکول: د پاکولو دمخه د دیوال له ساکټ څخه واحد خلاص کړئ. یوازې نرم، وچ ټوکر وکاروئ.
- خدمت کول: د دې محصول پخپله خدمت کولو هڅه مه کوئ. ټول خدمتونه وړ خدماتي پرسونل ته راجع کړئ.
- ماشومان: Keep out of reach of children. Small parts may be a choking hazard.
د بسته محتويات
ډاډ ترلاسه کړئ چې لاندې ټول توکي ستاسو په بسته کې شامل دي:
- SeeYing JS-2S Turntable Unit
- د دوړو پوښ
- تالی
- د ډرایو بیلټ (مخکې نصب شوی یا جلا)
- د وزن ضد
- د سکیټینګ ضد وزن
- AT-3600L Magnetic Cartridge (pre-installed)
- Stereo Bookshelf Speakers (2 units)
- د سپیکر اتصال کیبلونه
- د بریښنا اډاپټر
- د کمپیوټر لینک لپاره USB کیبل
- د RPM اډیپټر
- سلیپمیټ
- د کارټریج د سمون ساتونکی
- د کارن لارښود
محصول پای ته ورسیدview
Familiarize yourself with the components of your SeeYing JS-2S Turntable.

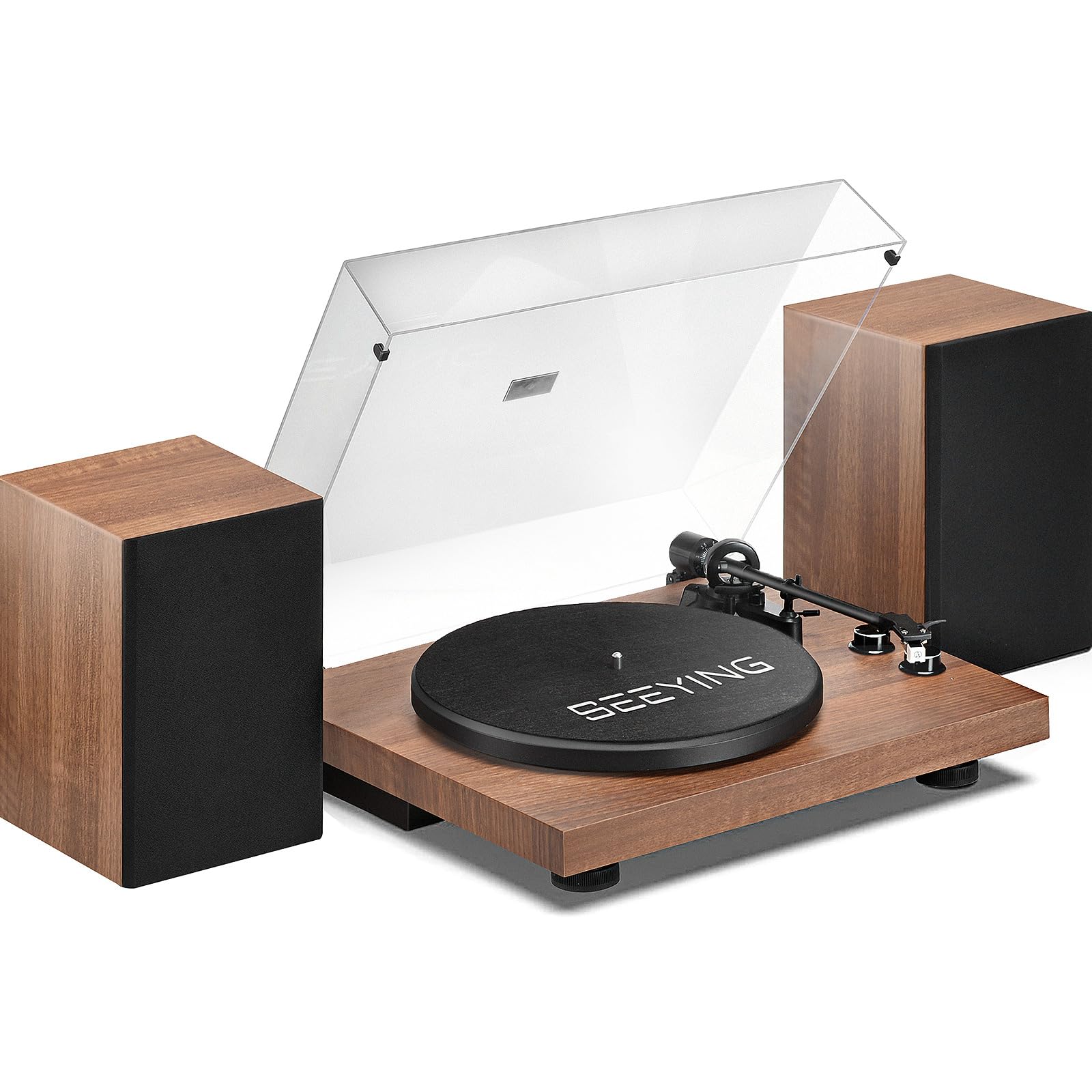

شکل 1: په ټوله کې view of the SeeYing JS-2S Turntable with included stereo bookshelf speakers.
د شا پینل پیوستون
شکل 2: تفصيلي view of the turntable's rear panel, showing RCA Jacks, Phono-Line Out Switch, USB-PC port, and External Speaker Jacks.
- RCA Jacks (L/R): د بهرني سره د نښلولو لپاره ampلایفیر یا فعال سپیکر.
- د فونو-لاین آوټ سویچ: Selects between PHONO (for phono input on an amplifier) and LINE (for auxiliary input on an amplifier or active speakers, utilizing the turntable's built-in preampژوندی).
- د USB-PC پورټ: For connecting to a computer to digitize vinyl records.
- External Speaker Jacks: Connects to the included passive stereo bookshelf speakers.
- په DC کې: د اډاپټر لپاره د بریښنا ان پټ.
Tonearm او کارتوس
شکل 3: Close-up of the pre-installed AT-3600L magnetic cartridge, responsible for reading the grooves of your vinyl records.
د سټیریو کتاب شیلف سپیکرونه
شکل 4: یوه چاودنه وشوه view illustrating the internal components of the included stereo bookshelf speakers, designed for natural sound reproduction.
چمتو کول
- بسته بندي کول: په احتیاط سره د بسته بندۍ څخه ټولې برخې لرې کړئ. د راتلونکي لیږد یا ذخیره کولو لپاره بسته بندي وساتئ.
- ځای په ځای کول: د ټرن میز په یوه مستحکم، هواره سطحه کې د مستقیم لمر وړانګو، تودوخې سرچینو او ډیر وایبریشن څخه لرې کیږدئ.
- Install Platter and Belt:
- پلیټ د ټرنټیبل په سپینډل کې ځای په ځای کړئ.
- Locate the drive belt (if not pre-installed) and stretch it around the motor pulley and the inner rim of the platter. Ensure the belt is flat and not twisted.
شکل 5: The turntable platter, showing the spindle and the area for belt placement.
- Install Slipmat: د پلیټ په سر کې د احساس شوي سلپ میټ ځای په ځای کړئ.
- د دوړو پوښ نصب کړئ: Insert the hinges of the dust cover into the slots at the rear of the turntable.
- سپیکرونه وصل کړئ: Connect the included stereo bookshelf speakers to the 'SPEAKERS' output terminals on the rear of the turntable using the provided speaker cables. Ensure correct polarity (red to red, black to black).
- بریښنا وصل کړئ: Connect the power adapter to the 'DC IN' port on the rear of the turntable, then plug it into a wall outlet.
- Balance Tonearm and Set Tracking Force:
- Gently remove the stylus protector.
- Place the counterweight onto the rear of the tonearm. Rotate it until the tonearm is balanced horizontally (floating freely).
- Once balanced, hold the counterweight steady and rotate the numbered ring until '0' aligns with the line on the tonearm.
- Rotate the entire counterweight (including the numbered ring) counter-clockwise to the recommended tracking force for the AT-3600L cartridge, which is typically 3.5 grams.
شکل 6: The adjustable counterweight for setting the precise tracking force of the stylus.
- Set Anti-skating: Attach the anti-skating weight to the tonearm's anti-skating post. The recommended setting is usually the first or second groove for the AT-3600L.
عملیاتي لارښوونې
د وینیل ریکارډ غږول
- ډاډ ترلاسه کړئ چې د ټرن میز فعال دی.
- یو ریکارډ په تخته کې ځای په ځای کړئ.
- Select the correct speed (33 1/3 or 45 RPM) using the speed selector switch, located near the volume knob. Use the 45 RPM adapter for singles if needed.
- د کیوینګ لیور په کارولو سره ټونرمام پورته کړئ.
- ټونرمام د ریکارډ د مطلوب پیل شوي نالی په سر کې ځای په ځای کړئ.
- د کیوینګ لیور په کارولو سره ټونرمام په نرمۍ سره ښکته کړئ. سټایلس به ریکارډ ته راښکته شي او پلې بیک به پیل شي.
- د حجم نوب په کارولو سره حجم تنظیم کړئ.
- At the end of the record, the auto-stop feature will engage, and the platter will stop spinning. Lift the tonearm and return it to the tonearm rest.
شکل 7: The turntable with speakers, highlighting the speed selection switch for 33 1/3 and 45 RPM records.
بلوتوث جریان
The built-in Bluetooth receiver allows you to stream music wirelessly from your smartphone, tablet, or other Bluetooth-enabled device through the turntable's speakers.
- ډاډ ترلاسه کړئ چې د ټرن میز فعال دی.
- Switch the turntable to Bluetooth mode (refer to your device's specific control for mode selection, often indicated by a blue LED).
- په خپل ګرځنده وسیله کې، بلوتوټ فعال کړئ او د شته وسایلو لټون وکړئ.
- Select 'SeeYing JS-2S' (or similar name) from the list to pair.
- Once paired, you can play music from your device, and the audio will output through the turntable's connected speakers.
شکل 8: A smartphone wirelessly connected to the turntable via Bluetooth, demonstrating the wireless input capability.
USB Recording to PC
You can convert your vinyl records into digital MP3 files using the USB-PC connection.
- Connect the turntable to your computer using the provided USB cable.
- Install appropriate recording software on your computer (e.g., Audacity, available for free online).
- Follow the instructions of your chosen recording software to set up the input device (the turntable) and begin recording.
- Play your vinyl record as described above. The audio will be sent to your computer for digitization.
ساتنه
- د سټایلس پاملرنه: Regularly clean the stylus using a soft brush, brushing gently from back to front. Avoid touching the stylus with your fingers. Replace the stylus when sound quality degrades (typically after 300-500 hours of playback).
- د ریکارډ پاملرنه: Keep your records clean and free of dust. Use a carbon fiber brush before each play. Store records vertically in their sleeves.
- د واحد پاکول: Wipe the turntable and dust cover with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive cleaners.
- Belt Maintenance: Periodically check the drive belt for wear or stretching. Replace if necessary to maintain consistent playback speed.
د ستونزو حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| هیڅ ځواک نشته | د برېښنا اډاپټر نه دی وصل شوی؛ د برېښنا ساکټ خراب دی. | ډاډ ترلاسه کړئ چې د بریښنا اډاپټر په خوندي ډول وصل دی او په کاري پلورنځي کې پلګ شوی دی. |
| نه غږ یا ټیټ حجم | Speakers not connected; Phono/Line switch incorrect; volume too low; stylus damaged. | Check speaker connections. Ensure Phono/Line switch is set correctly for your setup. Increase volume. Inspect stylus for damage. |
| د غږ پریښودل یا تحریف کول | Tracking force incorrect; record dirty/damaged; stylus worn; turntable not level. | Re-adjust tracking force. Clean record. Replace stylus. Ensure turntable is on a level surface. |
| بلوتوث نه نښلي | Turntable not in Bluetooth mode; device too far; previously paired device connected. | Ensure turntable is in Bluetooth mode. Move device closer. Disconnect from other Bluetooth devices. |
| د پلې بیک سرعت ناسم دی | Wrong speed selected; drive belt worn or dislodged. | Select correct speed (33 1/3 or 45 RPM). Check and re-seat or replace drive belt. |
مشخصات
- نښه: سیینګ
- ماډل: JS-2S
- د ډرایو ډول: بیلټ ډرایو
- سرعت: 33 1/3 RPM، 45 RPM
- کارتوس: AT-3600L Magnetic Cartridge
- ويناوال: 2 x 18W Stereo Bookshelf Speakers (36 Watts total)
- ارتباط: Bluetooth, RCA Line Out, RCA Phono Out, USB-PC
- ځانګړي ځانګړتیاوې: Adjustable Counterweight, Built-in Preamplifier, USB Recording, Auto Stop
- مواد: لرګي، پلاستيک
- رنګ: Wood Yellow
تضمین او ملاتړ
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or contact SeeYing customer support. If you encounter any issues not covered in this manual, please contact our customer service for assistance.
د پیرودونکي ملاتړ: Please refer to the contact information provided on the product packaging or the official SeeYing webد ملاتړ پوښتنو لپاره سایټ.
