KORG miniKORG 700Sm Analog Synthesizer User Manual

پیژندنه

This manual provides essential information for the safe and effective use of your KORG miniKORG 700Sm Analog Synthesizer. Please read this manual thoroughly before using the instrument to ensure proper operation and to prevent damage. Keep this manual in a safe place for future reference.

چمتو کول

خلاصول

Carefully remove the miniKORG 700Sm from its packaging. Ensure all components are present: the synthesizer unit, AC adapter, and this user manual. Inspect the unit for any signs of damage that may have occurred during shipping.

شکل 1: مخکی view of the KORG miniKORG 700Sm Analog Synthesizer.

د بریښنا پیوستون

1. Ensure the synthesizer's power switch is in the OFF position.
2. Connect the supplied AC adapter to the DC 12V input jack on the rear panel of the miniKORG 700Sm.
3. د AC اډاپټر په معیاري بریښنایی پلورنځي کې ولګوئ.

Figure 2: Rear panel connections including DC 12V input, USB, MIDI IN, and audio outputs.

د آډیو پیوستون

• محصول: Connect the L/MONO and R audio output jacks to your amplifier, mixer, or audio interface using standard 1/4-inch TS cables.
• هیډفونونه: Connect stereo headphones to the PHONES jack for private monitoring.
• آډیو په: External audio sources can be connected to the AUDIO IN jacks for processing through the miniKORG 700Sm's filters and effects.

USB and MIDI Connections

• USB: Connect the USB port to your computer for MIDI communication. This allows the miniKORG 700Sm to send and receive MIDI data.
• MIDI په کې: Use the MIDI IN port to connect external MIDI devices for controlling the synthesizer.

عملیاتي لارښوونې

بریښنا کول / بند کول

To power on the unit, flip the power switch located on the rear panel to the ON position. To power off, flip the switch to the OFF position. Always ensure volume is low before powering on or off to prevent sudden loud noises.

Basic Sound Generation

The miniKORG 700Sm is an analog synthesizer. Sound is generated by oscillators and shaped by filters and other modulation sources.

شکل 3: مفصل view of the control panel, highlighting sliders and knobs for sound shaping.

کلیدي کنټرولونه او ځانګړتیاوې

• 37-key Keyboard: Provides a 7-octave range for musical expression.
• اوسيلېټرونه: Adjust parameters like pitch and waveform to create the fundamental sound.
• Low/Highpass Filters: Shape the tonal characteristics by cutting off high or low frequencies. Experiment with the cutoff and resonance controls.
• Modulators: Use Modulator 1, 2, and 3 to add movement and expression to your sound.
• اغیزې: Engage onboard effects to enhance your sound.
• ارپګیجیوټر: Activate the arpeggiator to automatically play sequences of notes based on the keys held down. Adjust speed and pattern.

Figure 4: Close-up of the pitch bend and modulator controls for expressive playing.

Saving and Loading Sounds

Refer to the dedicated section in the full manual for detailed instructions on how to save and recall your custom sound programs.

ساتنه

پاکول

Wipe the exterior of the unit with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and then wipe dry. Do not use abrasive cleaners, waxes, or solvents, as these can damage the finish.

ذخیره کول

When not in use for extended periods, store the miniKORG 700Sm in a cool, dry place, away from direct sunlight and extreme temperatures. Consider using a protective case to prevent dust accumulation and physical damage.

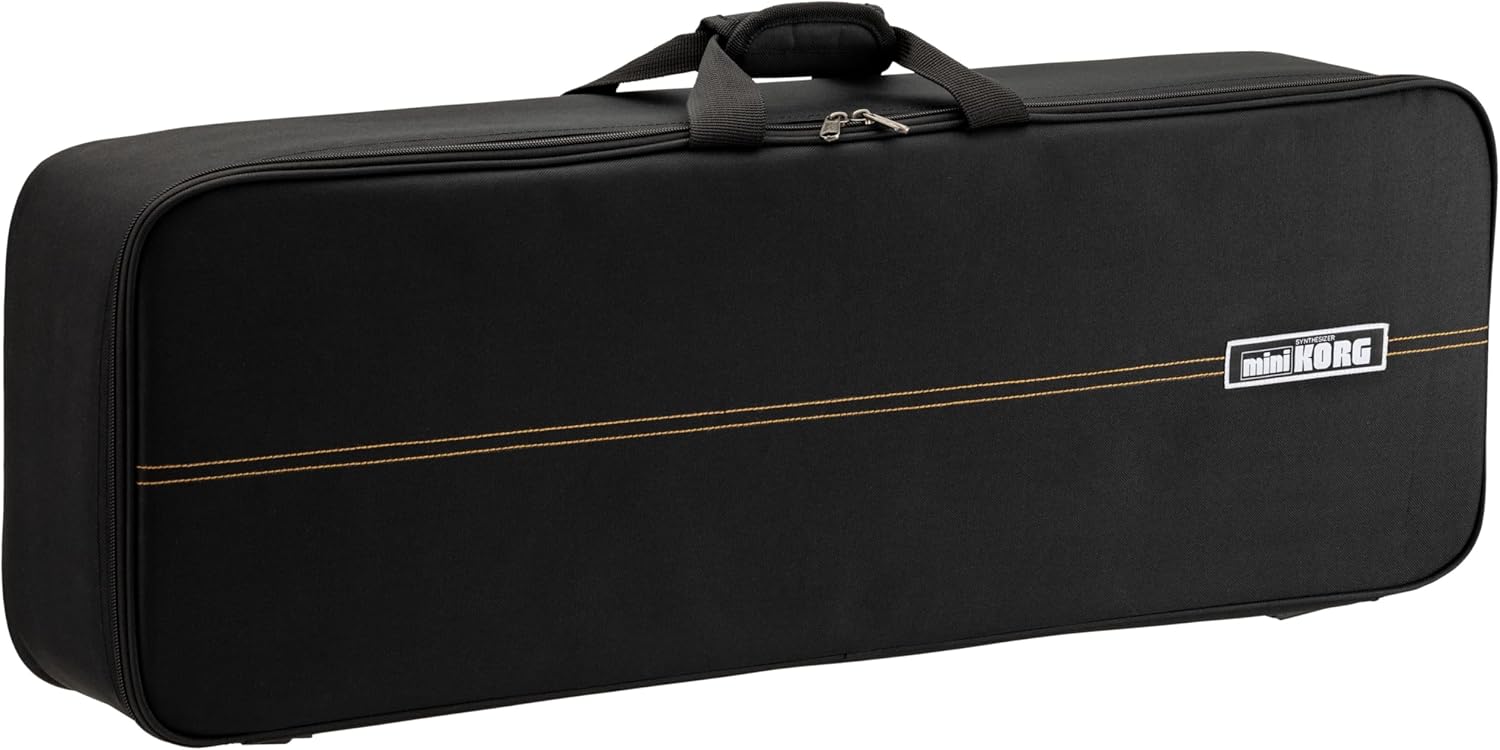

Figure 5: The miniKORG 700Sm fits securely in its protective soft case for storage and transport.

د ستونزو حل کول

د غږ محصول نشته

• Check if the power adapter is securely connected and the unit is powered on.
• Verify that the volume knob is turned up.
• Ensure audio cables are correctly connected to the output jacks and to your ampلیفایر / مکسر.
• Check the volume and input selection on your ampلیفایر / مکسر.
• که چیرې هیډفونونه کاروئ، ډاډ ترلاسه کړئ چې دوی په بشپړ ډول پلګ ان شوي او کار کوي.

MIDI ځواب نه ورکوي

• Confirm USB or MIDI cables are properly connected.
• Check MIDI settings on both the miniKORG 700Sm and your computer/external device.
• Ensure correct MIDI channels are selected.
• Install any necessary USB drivers for your operating system (if applicable).

غیر متوقع چلند

• Try powering the unit off and then on again.
• Ensure no liquids or foreign objects have entered the unit.
• If issues persist, consult the KORG support webسایټ یا د پیرودونکي خدمت سره اړیکه ونیسئ.

مشخصات

د تضمین معلومات

The KORG miniKORG 700Sm Analog Synthesizer comes with a 2 کلن تضمین. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and to register your product, please refer to the official KORG webسایټ یا د تضمین کارت ستاسو د پیرود سره شامل دی.

مهرباني وکړئ د تضمین ادعاګانو لپاره د پیرود ثبوت وساتئ.

د پیرودونکي ملاتړ

For further assistance, technical support, or to download the full detailed manual, please visit the official KORG webسایټ: www.korg.com.

You may also find helpful resources and FAQs on the KORG support pages.
