د پروټیمیټر سروې ماسټر دوه ګونی فعالیت رطوبت میټر - BLD5375 کارن لارښود

1. پیژندنه

The Protimeter SurveyMaster Dual-Function Moisture Meter (Model BLD5375) is a versatile instrument designed for accurately assessing moisture levels in various building materials. It features both pin and non-invasive measurement capabilities, allowing for comprehensive moisture evaluation both on and below the surface. This manual provides essential information for the proper setup, operation, and maintenance of your device.

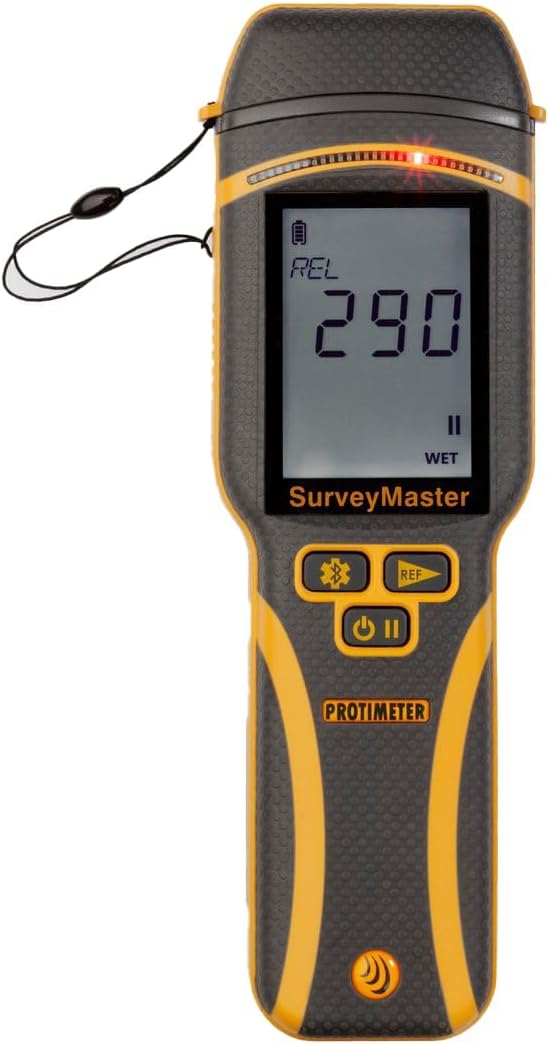

Figure 1: Protimeter SurveyMaster in non-invasive mode, displaying a relative moisture reading.

2. ترتیب کول

۲.۱. د بکس خلاصول او شامل شوي برخې

Upon opening the product packaging, verify that all components are present. The Protimeter SurveyMaster BLD5375 package typically includes:

• Protimeter SurveyMaster Instrument
• د لیږد قضیه
• Heavy Duty (HD) Moisture Content (MC) Pin Probe
• د چټک پیل لارښود
• Wood Calibration Chart
• سپیر پنونه
• د لاس لینیارډ

Figure 2: The Protimeter SurveyMaster and its standard accessories, including the carrying case and pin probe, as found in the product packaging.

2.2. د بیټرۍ نصب کول

The SurveyMaster operates on two AA batteries. These batteries are pre-installed at the factory. To activate the device for first use, locate the battery compartment on the back of the meter and remove the protective tab. Ensure the battery cap is securely clipped back into place after removing the tab.

شکل 3: اړخ view of the Protimeter SurveyMaster, highlighting the battery compartment and the port for external probes.

3. عملیات

۵.۱. د بریښنا فعالول او د حالت انتخاب

To power on the SurveyMaster, press and hold the lower button located on the front panel. The device features a large display for clear readings. Once powered on, you can switch between pin mode and non-invasive mode by pressing the right-hand button.

Figure 4: The Protimeter SurveyMaster in pin mode, displaying a moisture percentage reading. The protective cap is attached to the lanyard.

3.2. Non-Invasive Measurement

The non-invasive mode allows for moisture detection below surfaces such as vinyl, tile, and directly on building materials. This mode can measure up to 3/4 inch (19mm) deep and is designed to penetrate surface moisture, providing a significant advantage in various inspection scenarios.

Figure 5: An inspector using the non-invasive mode of the Protimeter SurveyMaster on a wooden floor to detect hidden moisture.

3.3. Pin Measurement

For direct moisture content readings, extend the pins from the top of the device. The pin mode provides precise measurements for materials like wood and drywall. Spare pins are included in the package for replacement. The included HD MC Pin Probe can be connected to the side port for extended reach or specialized applications.

Figure 6: The Protimeter SurveyMaster with the external HD MC Pin Probe connected, ready for pin measurements.

Figure 7: An inspector using the Protimeter SurveyMaster's integrated pins to measure moisture directly on a wall surface.

3.4. Bluetooth Connectivity and Protimeter Connect App

The SurveyMaster features Bluetooth capabilities, allowing it to connect with the Protimeter Connect app. This app enables users to save and download readings with time and date stamps, and also to take photos associated with the readings for comprehensive documentation. To activate or deactivate Bluetooth, press and hold the left-hand button. A flashing Bluetooth symbol indicates it's not connected, while a solid symbol indicates a successful connection.

3.5. Reference Mode

The reference mode allows you to store a "dry standard" reading. Subsequent measurements can then be compared against this stored reference, showing how many points above or below the original reading they are. This feature is useful for tracking changes in moisture levels relative to a known dry state. The reference reading remains in the meter's memory until the device is turned off.

3.6. Settings and Calibration

Access the settings menu by pressing the left-hand button. Here, you can adjust various parameters:

• ژبه: د ښودلو ژبه بدله کړئ.
• بیپر: Turn the audible beeper on or off.
• شاته رڼا: Adjust the display backlight intensity (e.g., set to 10 for bright outdoor conditions).
• اتومات بند: Configure the automatic shut-off time (0-10 minutes) or disable it.
• Dry/At Risk/Wet Indicators: Toggle the visual moisture indicators on or off.

The meter performs an automatic calibration check for the pin mode every 50 power cycles. Additionally, the non-invasive function can be field-calibrated to ensure accuracy. This provides confidence in the meter's readings at all times.

4. ساتنه

To ensure the longevity and accuracy of your Protimeter SurveyMaster, follow these maintenance guidelines:

• پاکول: Wipe the device with a dry, soft cloth. Avoid using abrasive cleaners or solvents.
• د پن بدلول: Replace worn or damaged pins using the spare pins provided.
• ذخیره کول: Store the meter in its provided carrying case in a dry, cool environment when not in use.
• د بیټرۍ پاملرنه: While the meter uses long-lasting AA batteries, replace them when the battery indicator shows low power to maintain optimal performance.

5. ستونزه حل کول

For detailed troubleshooting steps or if you encounter issues not covered in this manual, please refer to the full user manual available via the QR code on the back of the meter or in the Quick Start Guide. This QR code also provides access to instructional videos and additional support information.

6. مشخصات

7. تضمین او ملاتړ

The Protimeter SurveyMaster BLD5375 comes with a دوه کلن تضمین. For additional warranty information or to register your product, please visit the official Protimeter website. Online resources, including the full manual and instructional videos, are also available to assist with any operational or technical queries.

For further assistance, please contact Protimeter customer support through their official channels.
