ADVWIN Treadmill F380C User Manual

1. پیژندنه

Thank you for choosing the ADVWIN F380C Treadmill. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before using the treadmill and keep it for future reference.

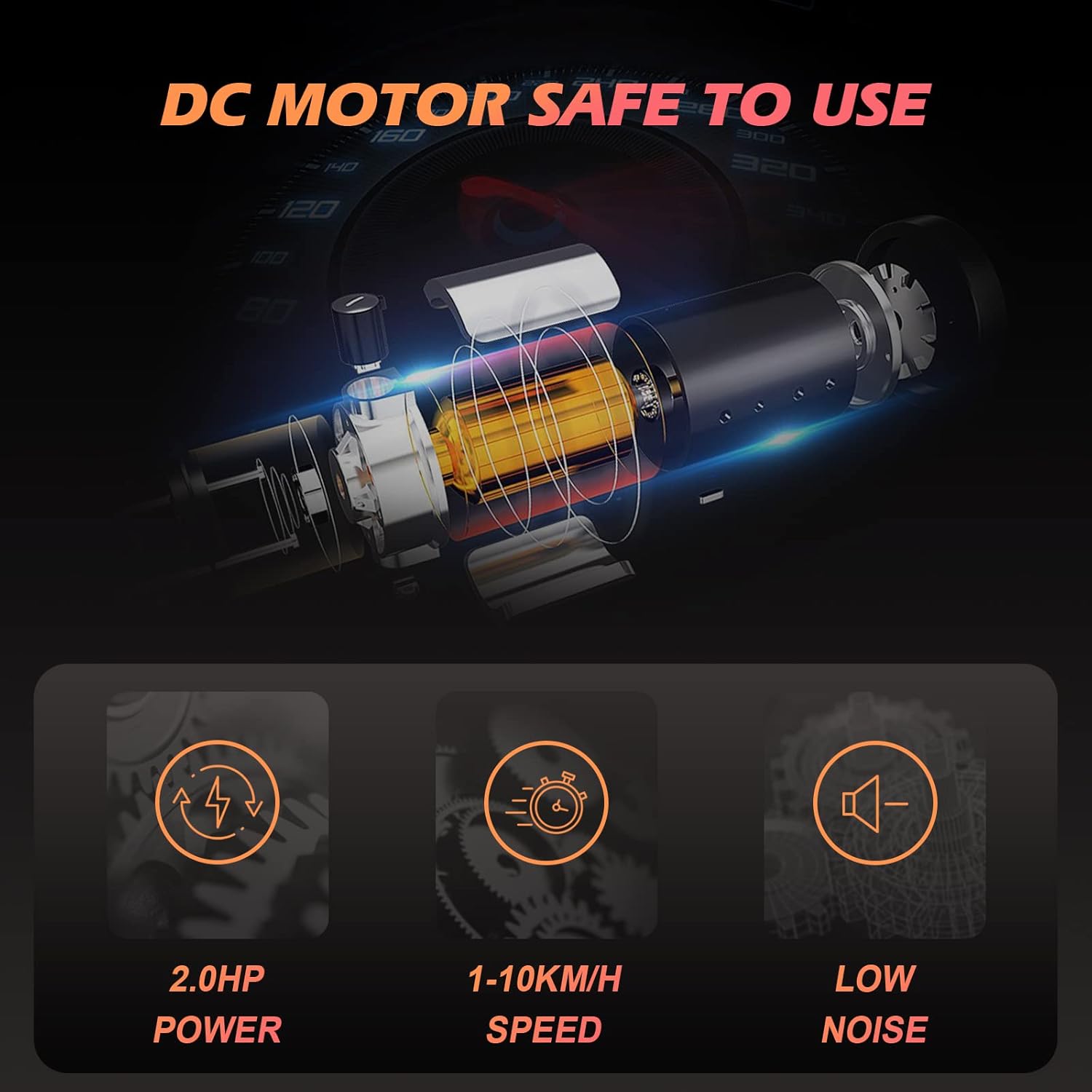

The ADVWIN F380C Treadmill is designed for home use, featuring a 2.0 HP motor, a speed range of 1-10 km/h, and 12 preset programs. It includes a 3.5-inch LCD display, Bluetooth connectivity for music and app control, and a convenient foldable design for easy storage.

2. د خوندیتوب مهمې لارښوونې

To reduce the risk of serious injury, read all instructions before using this treadmill. The manufacturer is not responsible for personal injury or property damage sustained by or through the use of this product.

• د تمرین کوم پروګرام پیل کولو دمخه خپل ډاکټر سره مشوره وکړئ.
• Always place the treadmill on a level surface with at least 0.6 meters (2 feet) of clear space around it.
• ماشومان او څاروي د عملیاتو په جریان کې د ټریډمیل څخه لرې وساتئ.
• Ensure the safety key is properly attached to both the treadmill and your clothing before starting. The treadmill will stop immediately if the safety key is disengaged.
• د تمرین مناسب جامې او ورزشي بوټان واغوندئ.
• که چیرې ټریډمل خراب شوی تار یا پلګ ولري، یا په سمه توګه کار نه کوي، نو مه یې چلوئ.
• د دې ټریډمل لپاره د کارونکي اعظمي وزن ظرفیت ۱۳۰ کیلوګرامه (۲۸۶ پونډه) دی.
• Remove the safety key when the unit is not in use to prevent accidental activation.

3. د بسته محتويات

Carefully unpack the box and ensure all items are present. If any parts are missing or damaged, please contact customer support.

• 1 x ADVWIN Treadmill
• 1 x Safety Key
• 1 x د بریښنا کیبل
• 1 x د کارونکي لارښود

4. ترتیب کول

The ADVWIN F380C Treadmill features a foldable design for minimal assembly. Follow these steps to set up your treadmill:

1. خلاص کړئ: Remove the treadmill and all components from the packaging.
2. مقام: Place the treadmill on a flat, stable surface. Ensure there is adequate space around the unit for safe operation.
3. ښکاره کول: Carefully unfold the treadmill from its compact storage position. Ensure all locking mechanisms are securely engaged.
4. بریښنا وصل کړئ: Plug the power cable into a grounded electrical outlet (AC 220-240V 50-60Hz).
5. د خوندیتوب کیلي ضمیمه کړئ: Place the safety key into its designated slot on the control panel.

5. عملیاتي لارښوونې

۸ پاور آن/بند

• To power on, ensure the power cable is connected and the safety key is in place. The LCD display will illuminate.
• To power off, remove the safety key and unplug the power cable from the outlet.

5.2 Using the Control Panel and LCD Display

The 3.5-inch LCD display provides real-time feedback on your workout metrics:

• سرعت: Current running speed (1-10 km/h).
• وخت: ستاسو د تمرین موده.
• واټن: ټول واټن پوښل شوی.
• کالوري: اټکل شوي کالوري سوځول.

Use the control buttons to:

• پیل / ودرول: Begin or end your workout.
• سرعت +/-: Adjust the running speed.
• Program/Mode: Select from 12 preset programs or 3 countdown modes (Time, Distance, Calories).

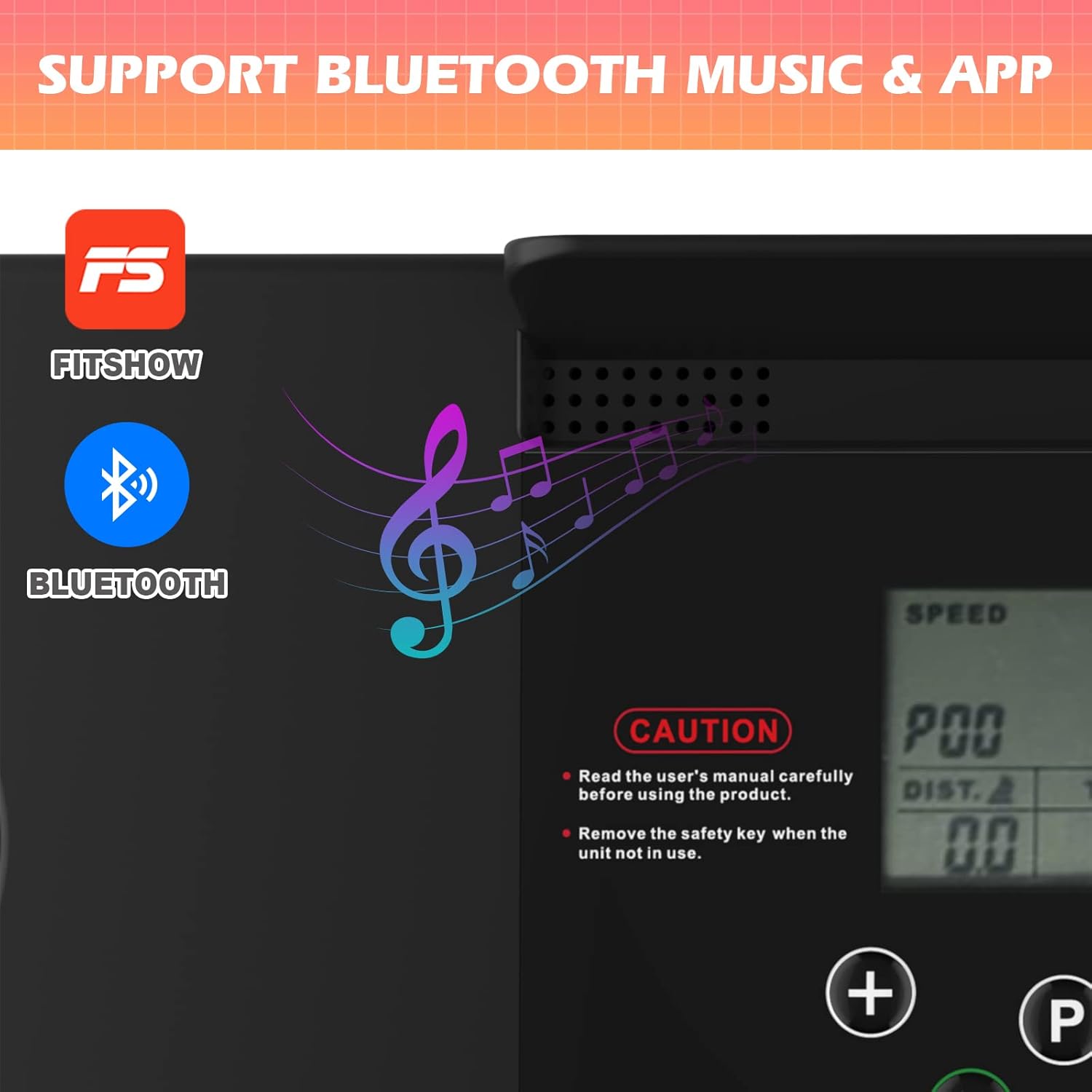

5.3 د بلوتوت ارتباط

The treadmill features built-in Bluetooth speakers for audio playback and app control.

• بلوتوټ آډیو: Activate Bluetooth on your mobile device and connect to the treadmill (usually named 'ADVWIN' or similar). You can then play music through the integrated speakers.
• FitShow App: Download the 'FitShow' application from your device's app store. Connect the app to your treadmill via Bluetooth to record and review training data, display statistics, and manage fitness plans. The app is compatible with both iPhone and Android devices.

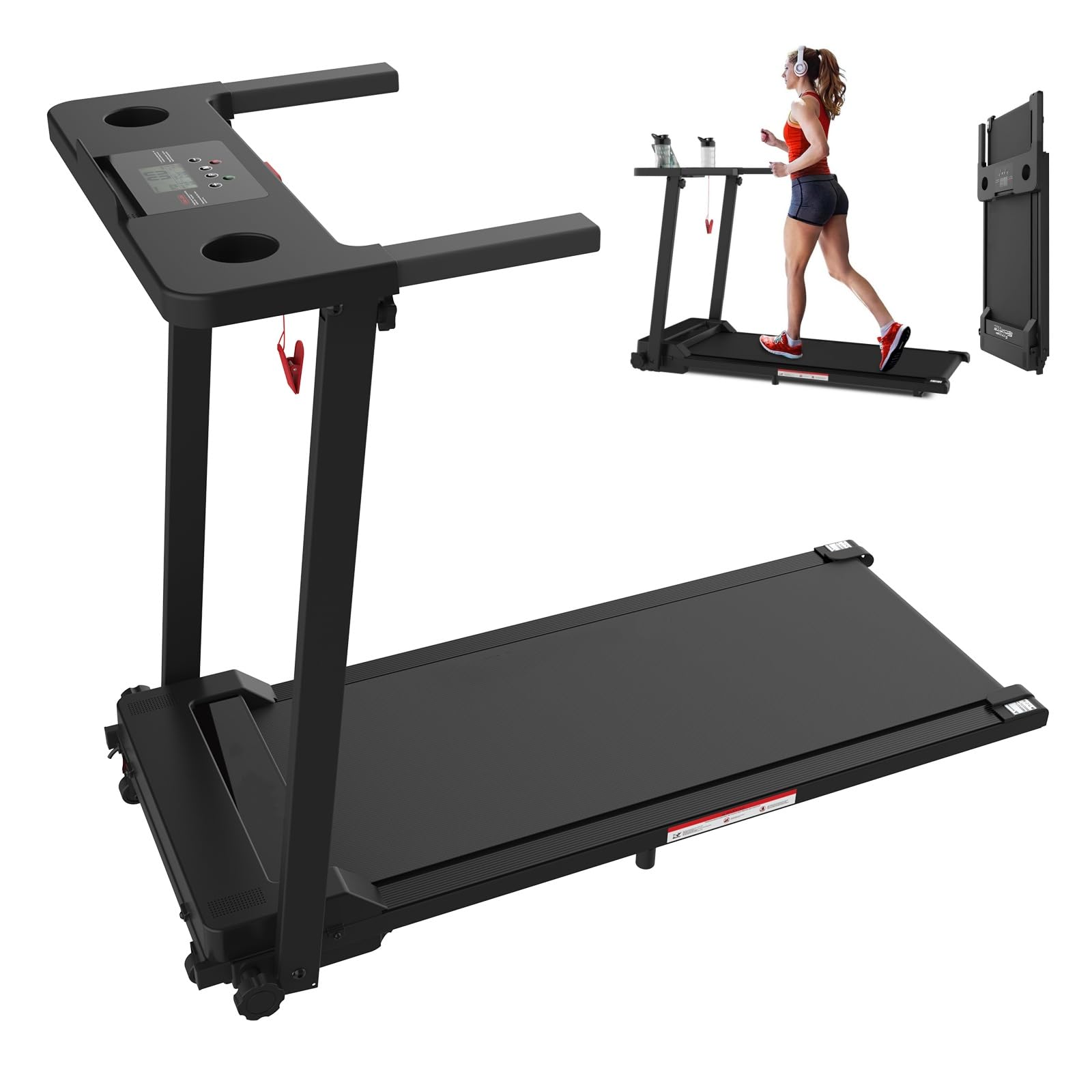

5.4 Using the iPad/Tablet Holder

The treadmill is equipped with an enlarged countertop and an iPad/tablet holder, allowing you to place your device for entertainment or work while exercising.

6. ساتنه

منظم ساتنه ستاسو د ټریډمل اوږد عمر او غوره فعالیت تضمینوي.

• پاکول: د ټریډمل سطحې د اعلان سره پاک کړئamp د هر استعمال وروسته ټوکر ومینځئ. د کثافاتو پاکوونکو کارولو څخه ډډه وکړئ.
• ذخیره کول: When not in use, fold the treadmill and store it in a dry, clean area. Always remove the safety key before storing.
• د کمربند غوړول: Periodically check the running belt for proper lubrication. Refer to the specific lubrication instructions provided with your treadmill or contact customer support for guidance.
• د کمربند فشار او سمون: Inspect the running belt for proper tension and alignment. If the belt feels loose or is drifting to one side, refer to the adjustment instructions in the full manual or contact customer support.

7. ستونزه حل کول

If you encounter issues with your ADVWIN F380C Treadmill, refer to the following common solutions:

• ټریډمل نه پیل کیږي: Ensure the power cable is securely plugged in and the safety key is correctly inserted into its slot. Check the power switch.
• ښودنه کار نه کوي: Verify power connection and safety key. If the issue persists, contact customer support.
• د چلولو کمربند چپه کول: The belt may require tension adjustment. Refer to the maintenance section or contact customer support.
• غیر معمولي غږونه: Stop the treadmill immediately. Inspect for any loose parts or obstructions. If the noise continues, contact customer support.

For more complex issues, please contact ADVWIN customer support.

8. مشخصات

9. تضمین او ملاتړ

This product includes a user manual. Please note that specific warranty information is not provided within this document. For warranty details, technical support, or service inquiries, please contact ADVWIN customer service through your purchase platform or the official ADVWIN webسایټ
