1. پیژندنه
This manual provides detailed instructions for the installation, operation, and maintenance of your NKPU 48-inch White Low Profile Ceiling Fan with Light. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
انځور 1.1: اوورview of the NKPU 48-inch White Low Profile Ceiling Fan, including the remote control and mobile app interface.
۱.۱. د خوندیتوب مهم معلومات
د دې وسیلې د نصبولو او چلولو په وخت کې تل د خوندیتوب لومړني احتیاطي تدابیر تعقیب کړئ ترڅو د اور، بریښنا شاک او شخصي ټپي کیدو خطر کم شي.
- د نصب کولو پیل کولو دمخه ټولې لارښوونې په دقت سره ولولئ.
- ډاډ ترلاسه کړئ چې د نصب یا خدمت کولو دمخه په سرکټ بریکر کې بریښنا بنده ده.
- ټول تارونه باید د ملي او محلي بریښنا کوډونو سره سم وي. که تاسو د تارونو سره بلد نه یاست، نو د یو وړ بریښنایی متخصص سره مشوره وکړئ.
- The fan must be mounted with a minimum of 7 feet (2.1 meters) clearance from the floor to the blade trailing edge.
- Do not connect the fan to a dimmer switch or a fan's gear switch. Use only conventional wall switches for ON/OFF control.
- د فین تیغونو په لاره کې شیان مه داخلوئ.
- ډاډ ترلاسه کړئ چې د نصب کولو جوړښت د فین وزن ملاتړ کولی شي.
3. د بسته محتويات
د نصبولو دمخه ډاډ ترلاسه کړئ چې ټولې برخې شتون لري او زیانمن شوي ندي.
- 1 x Ceiling Fan with Lights Kit
- 1 x د کارونکي لارښود
- 1 x ریموټ کنټرول
Image 3.1: The NKPU ceiling fan with its remote control and a smartphone displaying the control app, illustrating the various features like dimmable light, app control, remote control, 6 fan speeds, reversible motor, low profile, low noise, and 3 color temperatures.
۱. تنظیم او نصب کول
Detailed installation instructions and videos are available on the product page. This section provides an overview of key installation considerations.
4.1 د نصبولو اختیارونه
This ceiling fan is designed for د غرونو غر installation, suitable for average to large rooms (110 sq.ft - 170 sq.ft). Angle mount is not supported.
Image 4.1: Diagram showing the 48-inch ceiling fan dimensions (48"D x 48"W x 12.9"H) and illustrating the flush mount option as suitable, while an angle mount is not. Recommended room size is 110-170 sq.ft.
4.2 د تیغ نصب کول
The fan comes with dual-sided blades, offering two aesthetic options: one side in white and the other in wood grain. Choose the side that best matches your interior decor during installation.
انځور ۳.۱: نږدې انځور view of the dual-sided fan blades, showing one side in white (A-side) and the other in white wood grain (B-side), allowing for customizable aesthetics.
4.3 Wall Switch Compatibility
The fan is suitable for conventional wall switches to control the fan and light ON/OFF functions. Do not connect the fan to a dimmer switch or a fan's gear switch, as this can damage the unit.
Image 4.3: Illustration demonstrating that the fan is compatible with conventional wall switches for ON/OFF control, but explicitly warns against connecting it to dimmer switches or fan gear switches.
5. عملیاتي لارښوونې
Your NKPU ceiling fan can be controlled via the included remote control or a dedicated mobile application.
5.1 د ریموټ کنټرول فعالیتونه
The remote control allows for comprehensive management of the fan and light settings.
- په ټولیزه توګه آن/بند: Powers the entire unit on or off.
- څراغ فعال/بند: Controls the light independently.
- د رڼا حالت بدلولو تڼۍ: Cycles through 3 color temperatures (3000K Warm White, 4000K Natural White, 6000K Cool White).
- Light Brightness Increase/Decrease: Adjusts light intensity from 10% to 100%.
- Fan Gear (Speed): Selects one of 6 fan speeds.
- د فین وخت: د ۱، ۲ یا ۴ ساعتونو لپاره ټایمر تنظیموي.
- Fan Forward and Reverse: Changes the direction of blade rotation for summer or winter modes.
Image 5.1: The remote control and a smartphone displaying the 'Fan Lamp Pro' app, illustrating the various control options for the fan and light, including speed, brightness, color temperature, and timer settings.
Image 5.2: Detailed diagram of the remote control buttons and their functions, alongside visual representations of the three adjustable color temperatures (6000K Cool Light, 4500K Natural Light, 3000K Warm Light) and the 10-100% dimmable range.
۴.۱ د موبایل اپلیکیشن کنټرول
For enhanced control, download the "Fan Lamp Pro" app. Scan the QR code provided in the image below or visit http://www.jasonghost.com/fanlamppro/ د اپلیکیشن ډاونلوډ کولو لپاره.
- Scan the QR code to download the "Fan Lamp پرو" اپلیکیشن.
- وسیله اضافه کړئ.
- Choose Light Fan.
- Click to Pair: Click the "+" button to set the name of your fan light. Then, click the pair button 1-2 times within 3 seconds after the fan is powered on.
Image 5.3: Instructions for setting up app control, including a QR code to download the "Fan Lamp Pro" app, steps for adding a device, and pairing the fan with the app.
5.3 Reversible DC Motor
The fan features a reversible DC motor, allowing for two modes of operation to suit different seasons:
- Summer Season (Downdraft Mode): Blades rotate counter-clockwise, creating a direct breeze to make you feel cool.
- Winter Season (Updraft Mode): Blades rotate clockwise, circulating warm air trapped near the ceiling downwards, helping to keep the room warm.

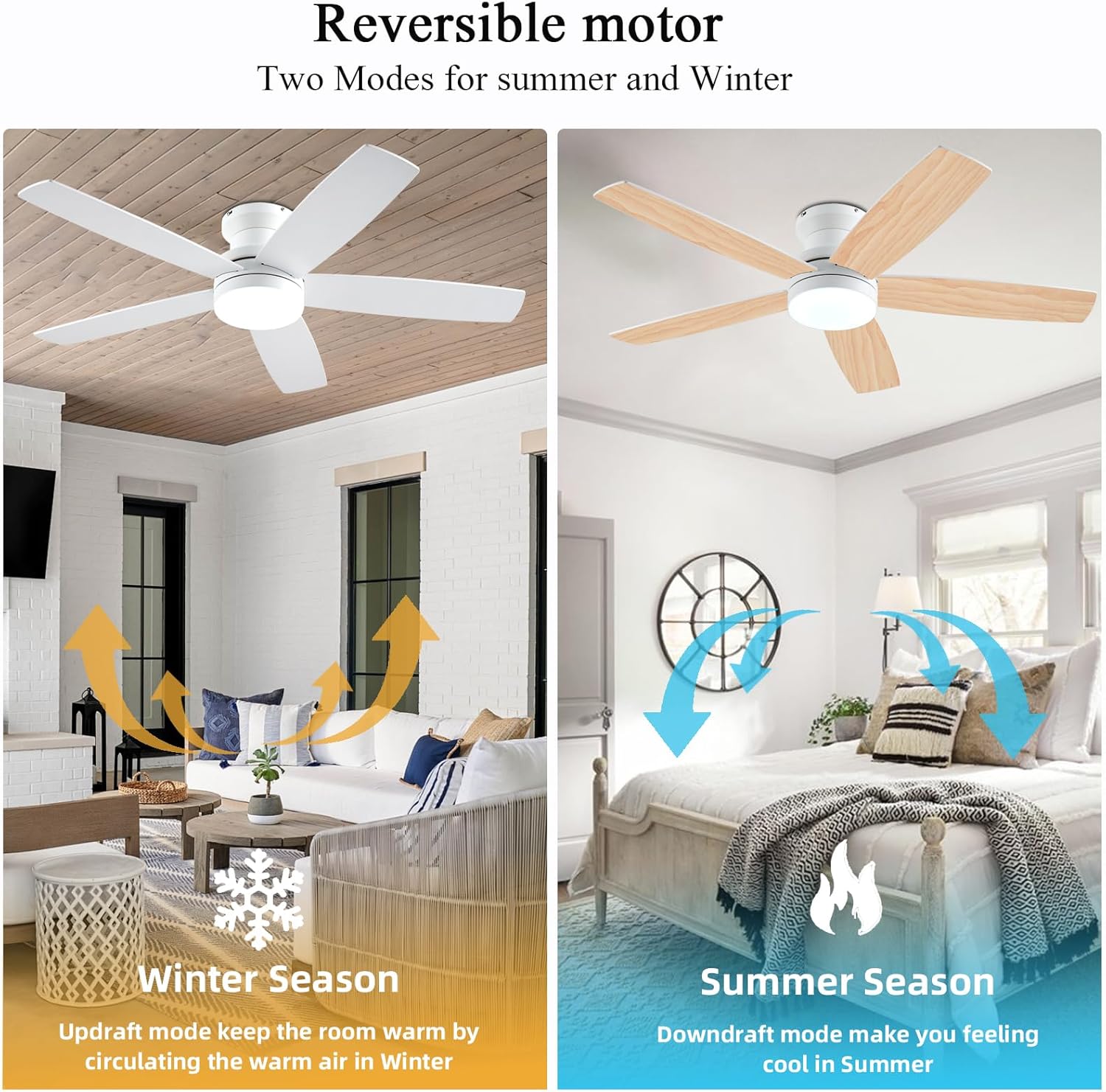

Image 5.4: Visual representation of the reversible motor's two modes: updraft for winter to circulate warm air, and downdraft for summer to create a cooling breeze.
5.4 3CCT Dimmable LED Light
The integrated LED light offers three color temperatures and dimming capabilities from 10% to 100%.
- 3000K ګرم سپین: Ideal for a cozy and relaxing ambiance.
- 4000K طبیعي سپین: Suitable for general illumination and daily activities.
- 6000K یخ سپین: Provides bright, crisp lighting for tasks or a modern feel.
Image 5.5: Display of the three color temperature options for the LED light: 3000K Warm White, 4500K Natural Light, and 6000K Cool Light, along with a dimming scale from 10% to 100%.
5.5 6-Speed Settings
The fan offers 6 distinct speed settings to provide the desired airflow for any occasion.
- کچه 1-2 (ټيټه): Comfortable wind for sleeping or reading.
- Level 3-4 (Medium): Natural wind for entertainment or parties.
- کچه 5-6 (لوړ): Cooling wind for sports or fitness activities.

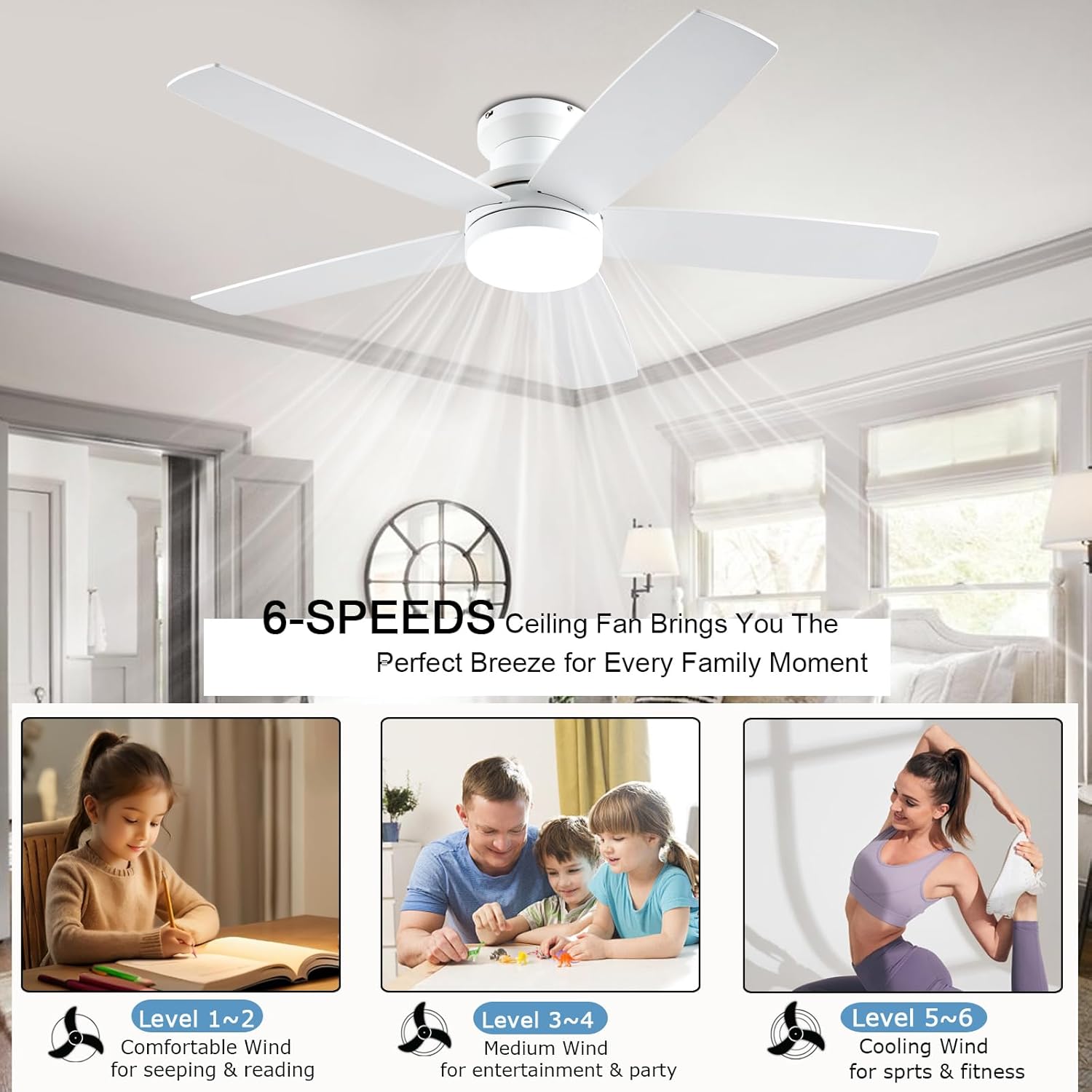

Image 5.6: Illustration of the 6-speed settings, categorized into Low (1-2 for comfort), Medium (3-4 for natural wind), and High (5-6 for cooling), with suggested activities for each level.
۵.۲ خاموش عملیات
The fan is equipped with a silent DC motor, ensuring a peaceful environment with a noise level below 30 dB, comparable to a library whisper.
Image 5.7: A graph comparing the fan's noise level (30 dB) to common sounds like normal conversation (50 dB), library whisper (35 dB), and feather drops (20 dB), highlighting its quiet operation.
6. ساتنه
منظم ساتنه ستاسو د چت فین اوږد عمر او غوره فعالیت تضمینوي.
- پاکول: د فین پاکولو لپاره، د نرم، d سره مسح کړئamp ټوکر. د کثافاتو پاکوونکي یا محلولونه مه کاروئ. د پاکولو دمخه ډاډ ترلاسه کړئ چې بریښنا بنده ده.
- د تیغ معاینه: Periodically check the fan blades for any dust buildup and clean them to maintain efficient airflow.
- کلکوالی: ټول پیچونه او اړیکې په دوره یي ډول وګورئ ترڅو ډاډ ترلاسه کړئ چې دوی خوندي دي.
Image 6.1: Close-up of the fan blades, emphasizing their durable and stylish solid wood construction, which is UV resistant, damp resistant, and features premium textures.
7. ستونزه حل کول
If you encounter issues with your ceiling fan, refer to the following common problems and solutions.
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| فین پیل نه کوي | په پنکه کې برېښنا نشته؛ د تارونو تړل خلاص دي؛ د ریموټ کنټرول بیټرۍ ټیټه ده. | Check circuit breaker; Ensure all connections are secure; Replace remote control batteries. |
| رڼا کار نه کوي | Loose wire connection; LED driver issue. | Check light wiring; Contact customer support if LED driver is suspected. |
| ریموټ کنټرول ځواب نه ورکوي | Batteries are dead; Remote not paired; Obstruction between remote and receiver. | Replace batteries; Re-pair the remote control (refer to app pairing instructions); Remove obstructions. |
| ډیر شور | خلاص د نصبولو پیچونه؛ غیر متوازن تیغونه. | Tighten all mounting screws; Ensure blades are properly installed and balanced. |
که چیرې د دې حل لارو هڅه کولو وروسته هم ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.
8. د محصول مشخصات
| فیچر | تفصیل |
|---|---|
| برانډ | د NKPU |
| د ماډل نوم | BR-SY69 / SY69-WHITE |
| رنګ | سپین |
| د محصول ابعاد | ۱۶"د x ۲۶"وچ x ۴۷"ح |
| د توکي وزن | 10.27 پونډه |
| د بریښنایی فین ډیزاین | د سیل کولو فین |
| د بریښنا سرچینه | DC |
| سټایل | عصري |
| د کوټې ډول | د خوب خونه، د ماشومانو خونه، د ناستې خونه، نرسري، د لوبو خونه |
| ځانګړی ځانګړنه | Adjustable Height, Adjustable Tilt, App Operable, LED Light, Remote Controlled |
| وړاندیز شوي استعمالونه | د هوا جریان، یخ کول، رڼا |
| د شور کچه | 30 dB |
| واټtage | ۴۵ واټه |
| د پای ډول | سپین |
| د تیغونو شمیر | 5 |
| سرعت | 6 RPM (6 Power Levels) |
| والیtage | 110 ولټه |
| د سویچ ډول | تڼۍ فشار کړئ |
| شاملې برخې | 1 x Ceiling Fan with Lights Kits, 1 x User Manual, Remote |
| د کور دننه / بهر کارول | دننه، بهر |
| د کنټرول طریقه | اپلیکیشن، ریموټ |
| موثریت | High Efficiency (up to 80% reduction in power loss compared to traditional fans) |
| بیټرۍ ته اړتیا ده؟ | هو (د ریموټ کنټرول لپاره) |
9. تضمین او ملاتړ
Your NKPU ceiling fan comes with a د 24 میاشتنۍ اندیښنه پرته تضمینموږ د پیرودونکو غوره خدمت چمتو کولو ته ژمن یو.
If you encounter any issues during the installation or use of the fan, please do not hesitate to contact us. Our د خرڅلاو وروسته ۲۴ ساعته ملاتړ team is available to assist you.
For warranty claims or technical assistance, please refer to the contact information provided with your purchase or on the official NKPU webسایټ
