NENEN HSH-DV3A Air Duct Temperature and Humidity Sensor User Manual

1. پیژندنه

Thank you for choosing the NENEN HSH-DV3A Air Duct Temperature and Humidity Sensor. This device is designed for precise environmental monitoring and management in various settings. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your sensor.

کلیدي ځانګړتیاوې:

• دقیق څارنه: Utilizes advanced detection technology to ensure accurate data collection for both temperature and humidity.
• څو اړخیز غوښتنلیک: Suitable for a wide range of environments including homes, offices, warehouses, and greenhouses.
• د انرژي سپما ډیزاین: Engineered for low power consumption, contributing to economical long-term operation.
• اسانه نصب کول: Designed for straightforward setup, allowing for quick deployment without complex procedures.
• Robust and Reliable: Constructed with high-quality materials to ensure long-lasting stability and dependable performance under various environmental conditions.

2. د خوندیتوب معلومات

Please read and understand all safety instructions before installing or operating the sensor. Failure to follow these instructions may result in electric shock, fire, or damage to the device.

• Ensure the power supply matches the specified working voltage (24V).
• Do not expose the sensor to extreme physical shock or vibration.
• Avoid installing the sensor in locations with corrosive gases or liquids.
• یوازې وړ پرسونل باید نصب او تارونه ولګوي.
• د هر ډول ساتنې یا تار لګولو دمخه بریښنا قطع کړئ.

3. د بسته محتويات

د بسته بندۍ پرانستلو پر مهال ډاډ ترلاسه کړئ چې ټول توکي شتون لري او زیانمن شوي نه دي:

• NENEN HSH-DV3A Air Duct Temperature and Humidity Sensor (1 unit)
• د کارونکي لارښود (دا لاسوند)
• (Additional mounting hardware or accessories may be included depending on the specific kit)

4. محصول ختم شوview

The NENEN HSH-DV3A sensor consists of a main housing containing the electronics and a probe designed for insertion into air ducts. The probe accurately measures temperature and humidity within the airflow.

شکل 4.1: زاویه view of the NENEN HSH-DV3A sensor, showing the main housing and the elongated probe for duct insertion.

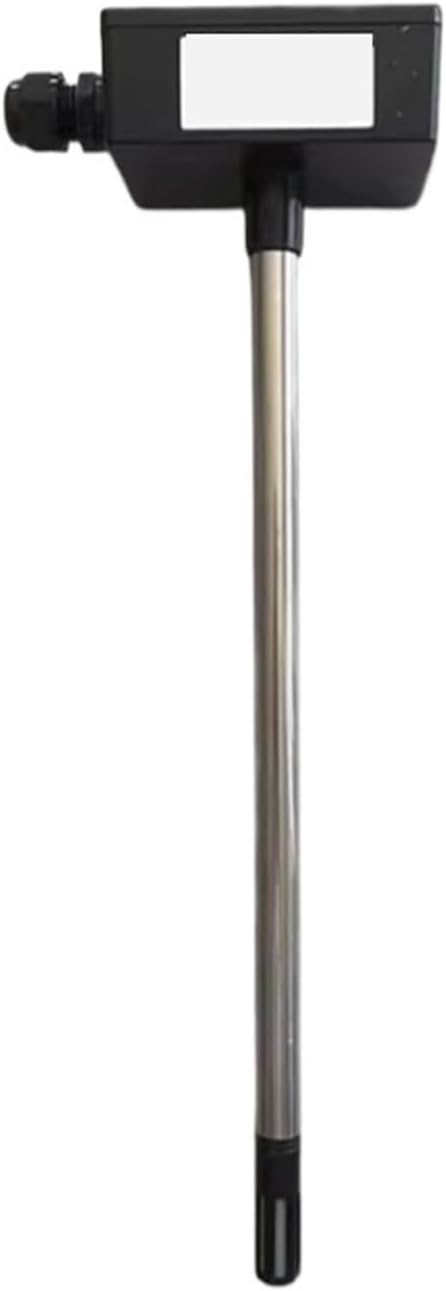

شکل 4.2: مخکی view of the NENEN HSH-DV3A sensor, illustrating the probe extending downwards from the main housing.

شکل 4.3: شاته view of the NENEN HSH-DV3A sensor, highlighting the mounting plate and cable gland connection point.

5. مشخصات

۱. تنظیم او نصب کول

The NENEN HSH-DV3A sensor is designed for easy installation. Follow these steps for proper setup:

1. ځای وټاکئ: Choose a suitable location within the air duct where temperature and humidity measurements are representative of the overall airflow. Avoid areas with stagnant air or direct exposure to heat sources/coolants.
2. د نصب کولو سوري چمتو کول: Drill an appropriately sized hole in the air duct for the sensor's probe. Ensure the hole is clean and free of debris.
3. د ماونټ سینسر: Insert the sensor probe into the prepared hole. Secure the main housing to the exterior of the duct using appropriate fasteners (not included, typically self-tapping screws or bolts) through the mounting plate. Ensure a tight seal to prevent air leakage.
4. تارونه: Connect the sensor to your control system or data logger. Refer to the wiring diagram provided with your specific control system for correct terminal connections. The sensor requires a 24V power supply. Ensure all connections are secure and insulated.
5. پاور آن: Once installation and wiring are complete, apply power to the sensor. The device will begin monitoring automatically.

یادونه: For optimal performance, ensure the sensor probe is fully immersed in the airflow.

7. عملیاتي لارښوونې

The NENEN HSH-DV3A sensor operates continuously once powered. It provides real-time temperature and humidity data to your connected monitoring system. There are no user-adjustable settings directly on the sensor itself.

• د معلوماتو محصول: The sensor outputs data via its wired connection to your building management system (BMS), HVAC controller, or data acquisition system. Consult the documentation for your specific control system to interpret the sensor's output signals.
• دوامداره څارنه: The sensor is designed for continuous, unattended operation, providing consistent environmental data.

8. ساتنه

Regular maintenance ensures the longevity and accuracy of your NENEN HSH-DV3A sensor.

• پاکول: Periodically inspect the sensor probe for dust, lint, or other obstructions. Gently clean the probe surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• اندازه کول: While the sensor is factory-calibrated, long-term drift can occur. If precise accuracy is critical, periodic recalibration by a qualified technician is recommended.
• د پیوستون چک: Annually inspect wiring connections for tightness and signs of corrosion.

9. ستونزه حل کول

که تاسو د خپل سینسر سره ستونزې سره مخ شئ، لاندې عامې ستونزې او حل لارې وګورئ:

که چیرې د دې حل لارو هڅه کولو وروسته هم ستونزه دوام ومومي، مهرباني وکړئ د پیرودونکو ملاتړ سره اړیکه ونیسئ.

10. تضمین او ملاتړ

NENEN products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or contact your authorized NENEN dealer or customer service directly. Please have your model number (HSH-DV3A) and purchase details ready when contacting support.

For further assistance, visit our official webسایټ ته مراجعه وکړئ یا له هغه پلورونکي سره اړیکه ونیسئ چې تاسو یې دا محصول اخیستی.
