DD Audio PLE-112.1 12" Subwoofer System User Manual

1. پیژندنه

Thank you for choosing the DD Audio PLE-112.1 powered subwoofer system. This unit is designed to provide powerful and controlled bass response for your audio system. It features a 12-inch subwoofer integrated into a precision-tuned, ported MDF enclosure, powered by a compact 400-watt RMS amplifier. This manual provides essential information for proper installation, operation, and maintenance of your PLE-112.1 subwoofer system.

2. د خوندیتوب معلومات

Please read all instructions carefully before operating this product. Failure to do so may result in personal injury or damage to the unit or other equipment.

• تل د بریښنایی نښلولو دمخه د موټر د بیټرۍ منفي ټرمینل قطع کړئ.
• ډاډ ترلاسه کړئ چې ټول تارونه په سمه توګه لیږدول شوي او خوندي شوي دي ترڅو د زیان یا لنډ سرکټ مخه ونیول شي.
• واحد د رطوبت یا سختې تودوخې سره مه مخ کوئ.
• Avoid placing the unit in locations where it could obstruct vehicle operation or safety devices.
• که تاسو د نصبولو کومې پروسې په اړه ډاډه نه یاست، نو د مسلکي نصب کونکي سره مشوره وکړئ.
• د ډیر تودوخې مخنیوي لپاره د بریښنا او ځمکني اتصال لپاره مناسب ګیج تارونه وکاروئ.

3. د بسته محتويات

ډاډ ترلاسه کړئ چې ټول توکي په کڅوړه کې شتون لري:

• DD Audio PLE-112.1 Powered Subwoofer Enclosure
• Remote Gain Control Unit
• Wiring Harness (for power, ground, remote, and RCA inputs)
• د کارونکي لارښود (دا لاسوند)

4. محصول ختم شوview

The PLE-112.1 combines a high-performance subwoofer, a dedicated amplifier, and a tuned enclosure into a single, easy-to-install unit.

شکل 4.1: مخامخ ښي خوا ته view of the DD Audio PLE-112.1 powered subwoofer system. This image shows the 12-inch subwoofer cone and the flared port on the left side of the enclosure, which is covered in black carpet with red DD Audio branding.

شکل 4.2: شاته view of the DD Audio PLE-112.1, highlighting the integrated amplifier panel. The panel includes terminals for power, ground, and remote turn-on, as well as controls for phase, low-pass filter (LPF), and gain. RCA input jacks are also visible.

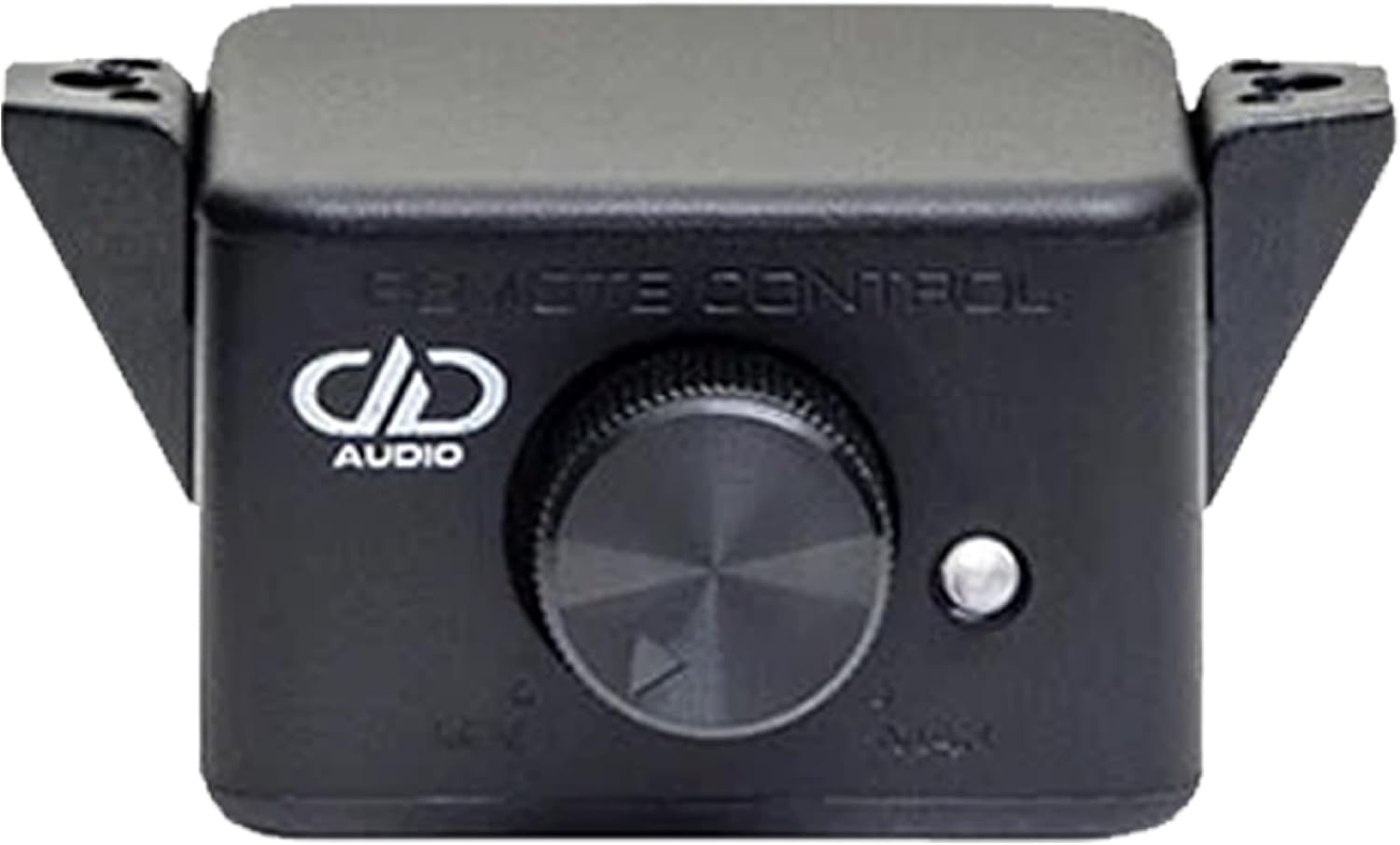

شکل 4.3: The remote gain control unit for the PLE-112.1. This compact device features a rotary knob for adjusting the subwoofer's output level and a small LED indicator.

مهمې برخې:

• 12-inch Subwoofer: Features a high-strength, high-excursion motor and a rigid, non-pressed pulp cone for accurate bass reproduction.
• یوځای شوی Ampژوندی: A 400-watt RMS monoblock amplifier with discrete outputs and a heat sink for reliable performance.
• تړل شوی احاطه: Constructed from 18mm MDF with a flared port, optimized for deep bass.
• د ریموټ ګین کنټرول: Allows convenient adjustment of the subwoofer's output level from the driver's seat.

5. ترتیب او نصب کول

Proper installation is crucial for optimal performance and safety. If you are not comfortable with electrical wiring, please seek professional installation.

5.1 ځای پرځای کول

The PLE-112.1 is designed for vehicle applications. Consider the following for placement:

• خوندي نصب کول: Ensure the enclosure is securely mounted to prevent movement during driving, which could cause damage or injury.
• Trunk/Cargo Area: Typically, the trunk or cargo area of a vehicle provides the best acoustic environment for a subwoofer.
• د هوا جریان: د شاوخوا شاوخوا د هوا مناسب جریان ډاډمن کړئ amplifier's heat sink to prevent overheating.

5.2 د تارونو نښلول

Refer to Figure 4.2 for the amplifier panel layout. Make the following connections:

1. ځمکه (GND): Connect the ground terminal to a clean, unpainted metal surface of the vehicle chassis. Ensure a solid, low-resistance connection. Use a wire of the same gauge as the power wire.
2. ځواک (+12V): Connect the +12V terminal directly to the positive terminal of the vehicle's battery. Install an appropriate fuse (not included, typically 40-60A) within 18 inches (45 cm) of the battery.
3. ریموټ (REM): Connect the REM terminal to the remote turn-on output of your head unit. This wire signals the ampستاسو د سټیریو سره د چالانولو او بندولو لپاره لایفیر.
4. RCA ننوت: Connect the RCA input jacks (L and R) from your head unit's subwoofer or full-range pre-out. If your head unit only has one subwoofer output, use a Y-adapter.
5. د ریموټ ګین کنټرول: Connect the remote gain control unit (Figure 4.3) to the dedicated port on the amplifier panel using the provided cable. Mount the remote in an accessible location for easy adjustment.

مهم: Double-check all connections before reconnecting the vehicle's battery. Incorrect wiring can cause severe damage to the amplifier or vehicle electrical system.

6. عملیاتي لارښوونې

یوځل چې نصب شي، تنظیم کړئ ampد غوره غږ فعالیت لپاره د ژوندي کولو ترتیبات.

6.1 Amplifier Controls (Refer to Figure 4.2)

• ګټه: This control matches the input sensitivity of the amplifier to the output level of your head unit. Start with the gain set to minimum (fully counter-clockwise). Play a familiar track with strong bass at about 75% of your head unit's maximum volume. Slowly increase the gain until you hear distortion, then back it off slightly.
• LPF (د ټیټ پاس فلټر): This control sets the upper frequency limit for the subwoofer. Frequencies above this setting will be filtered out. Adjust the LPF to blend smoothly with your main speakers. A common starting point is between 80Hz and 100Hz. Experiment to find the best integration.
• مرحله: This switch (0°/180°) helps to align the subwoofer's output with your main speakers. Listen to a bass-heavy track and switch between 0° and 180°. Choose the setting that provides the most impactful and cohesive bass.

6.2 Remote Gain Control

The remote gain control allows you to adjust the subwoofer's output level conveniently from your listening position without affecting the amplifier's main gain setting. This is useful for making quick adjustments based on music genre or personal preference.

7. ساتنه

The DD Audio PLE-112.1 requires minimal maintenance to ensure long-term performance.

• پاکول: Use a soft, dry cloth to wipe down the enclosure and ampژغورونکی. سخت کیمیاوي مواد یا د کثافاتو پاکوونکي مه کاروئ.
• د رطوبت څخه ډډه وکړئ: Keep the unit dry. Exposure to water or excessive humidity can damage internal components.
• د تارونو معاینه کول: په دوره یي ډول د تارونو ټولې اړیکې د ټینګښت او د اغوستلو یا زنګ وهلو نښو لپاره وګورئ.

8. ستونزه حل کول

If you experience issues with your PLE-112.1, refer to the following common problems and solutions:

9. مشخصات

Technical specifications for the DD Audio PLE-112.1 powered subwoofer system:

10. تضمین او ملاتړ

DD Audio products are designed for durability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official DD Audio website. For technical support or service inquiries, please contact your authorized DD Audio dealer or DD Audio customer service.

د تضمین ادعاوو لپاره د پیرود ثبوت په توګه د پیرود رسید وساتئ.
